2-2176372-1 Overview

Fixed Resistor

2-2176372-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7323888349
Reach Compliance Codeunknown
ECCN codeEAR99
Samacsys DescriptionRQ 0603 80K6 0.1% 10PPM 5K RL
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2020-10-06 19:21:52
YTEOL8.45
Other featuresPRECISION
Installation featuresSURFACE MOUNT
Number of terminals2
Package shapeRECTANGULAR PACKAGE
method of packingTR
physical size1.55mm x .8mm x .45mm
Rated power dissipation(P)0.15 W
resistance80600 Ω
Resistor typeFIXED RESISTOR
size code0603
surface mountYES
technologyTHIN FILM
Temperature Coefficient10 ppm/°C
Terminal shapeWRAPAROUND
Tolerance0.1%
Operating Voltage75 V

2-2176372-1 Preview

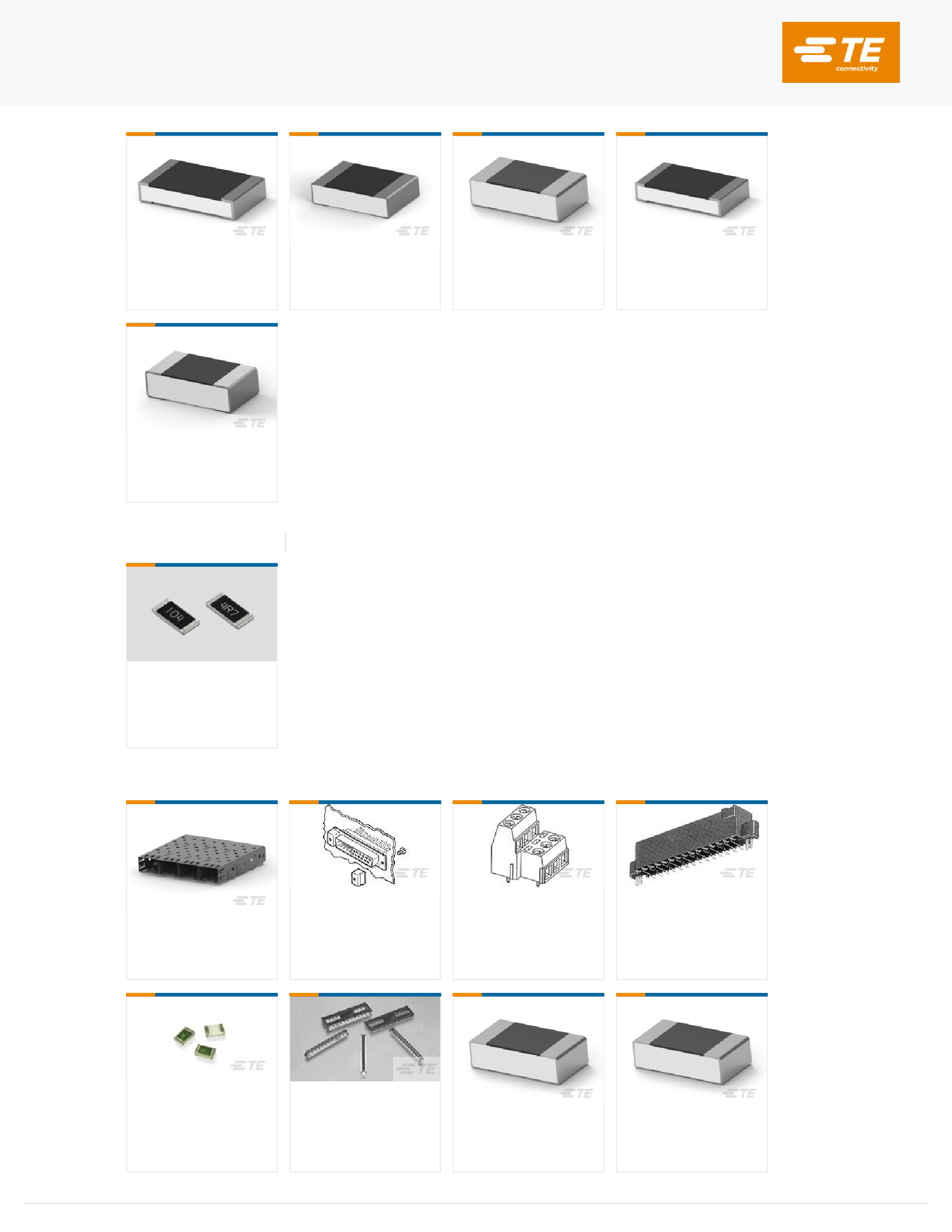

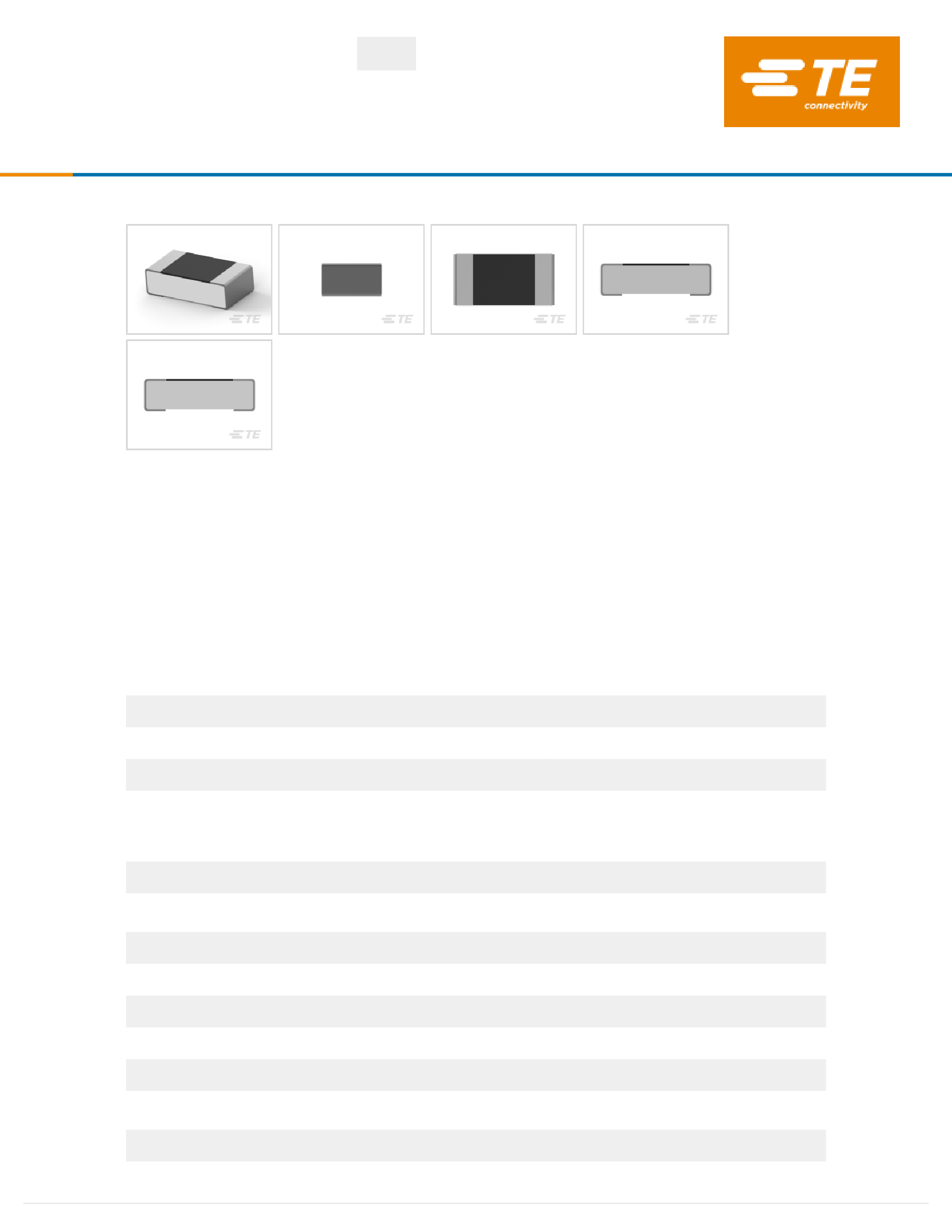

RQ 0603 80K6 0.1% 10PPM 5K RL
TE Part # 2-2176372-1
TE Internal #: RQ73C1J80K6BTD
RQ 0603 80K6 0.1% 10PPM 5K RL
Holsworthy
|
Holsworthy RQ73
ACTIVE
TE Part # 2-2176372-1
TE Internal #: RQ73C1J80K6BTD
View on TE.com >
Passive Components
>
Resistors
>
Fixed Resistors
>
Surface Mount Resistors
Resistor Type:
Precision Resistor
Number of Terminations:
2
Size Code:
0603
Packaging Method:
Taped & Reeled
Tolerance:
.1%
Features
Product Type Features
Product Type
Resistor Type
Size Code
Element Type
Configuration Features
Number of Resistors
Electrical Characteristics
Voltage Rating
Tolerance
Resistance Range
Resistance
Power Rating
Termination Features
Number of Terminations
Termination Type
Fixed Resistor
Precision Resistor
0603
Thin Film
1
75 V
.1%
1kΩ – 1MΩ Ω
80.6K Ω
.15 W
2
Solder
08/27/2019 12:37AM | Page 1
Mechanical Attachment
For support call+1 800 522 6752
RQ 0603 80K6 0.1% 10PPM 5K RL
TE Part # 2-2176372-1
TE Internal #: RQ73C1J80K6BTD
Mechanical Attachment
Mount Style
Dimensions
Dimensions
Usage Conditions
Temperature Coefficient
Packaging Features
Packaging Method
Taped & Reeled
±10 ppm/°C
1.55 x .8 x .45 mm
Surface Mount
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
欧洲化学品管理局最新发布的SvHCs候选清
单:
2019年1月(197)
SvHCs候选清单的声明更新至: 2018年6月
(191)
Halogen Content
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Reflow solder capable to 260°C
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked.Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TE’s information on SVHC in
articles for this part number is still based on the European Chemical Agency (ECHA) ‘Guidance on requirements for
substances in articles’(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished
product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An
Article Always An Article) stating that, in case of ‘complex object’, the threshold for a SVHC must be applied to both the
product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling
based on the new ECHA “Guidance on requirements for substances in articles” (June 2017, version 4.0) and will be
updating its statements accordingly.
Compatible Parts
For support call+1 800 522 6752
08/27/2019 12:37AM | Page 2
RQ 0603 80K6 0.1% 10PPM 5K RL
TE Part # 2-2176372-1
TE Internal #: RQ73C1J80K6BTD
TE Part # 4-2176391-2
RQ 1206 33K2 0.1% 10PPM
5K RL
TE Part # 3-2176382-0
RQ 0805 267K 0.1% 10PPM
5K RL
TE Part # 2176371-8
RQ 0603 5K49 0.1% 10PPM
5K RL
TE Part # 3-2176389-4
RQ 1206 237R 0.1% 10PPM
5K RL
TE Part # 2176372-6
RQ 0603 56K2 0.1% 10PPM
5K RL
Also in the Series
Holsworthy RQ73
Surface Mount Resistors
(3078)
Customers Also Bought
TE Part #1658723-2
ASSY SFP CAGE 1X4
SOLDER TAIL
TE Part #208101-2
LATCH BLOCK SZ 1-4
(BULK PAK)
TE Part #282869-3
TERMI-BLOK PCB
MOUNT 1&2 3P.5,
TE Part #5-147384-1
10 50/50 GRID SMT RCPT
VC LF
TE Part #8-1676970-4
RN 0603 549R 0.1% 10PPM
1K RL
TE Part #3-1939755-6
.5FHR04H,220,S,GIG,30/Sn,
HT,NS
TE Part #7-2176371-3
RQ 0603 26K1 0.1% 10PPM
5K RL
TE Part #2176371-8
RQ 0603 5K49 0.1% 10PPM
5K RL
For support call+1 800 522 6752
08/27/2019 12:37AM | Page 3
RQ 0603 80K6 0.1% 10PPM 5K RL
TE Part # 2-2176372-1
TE Internal #: RQ73C1J80K6BTD

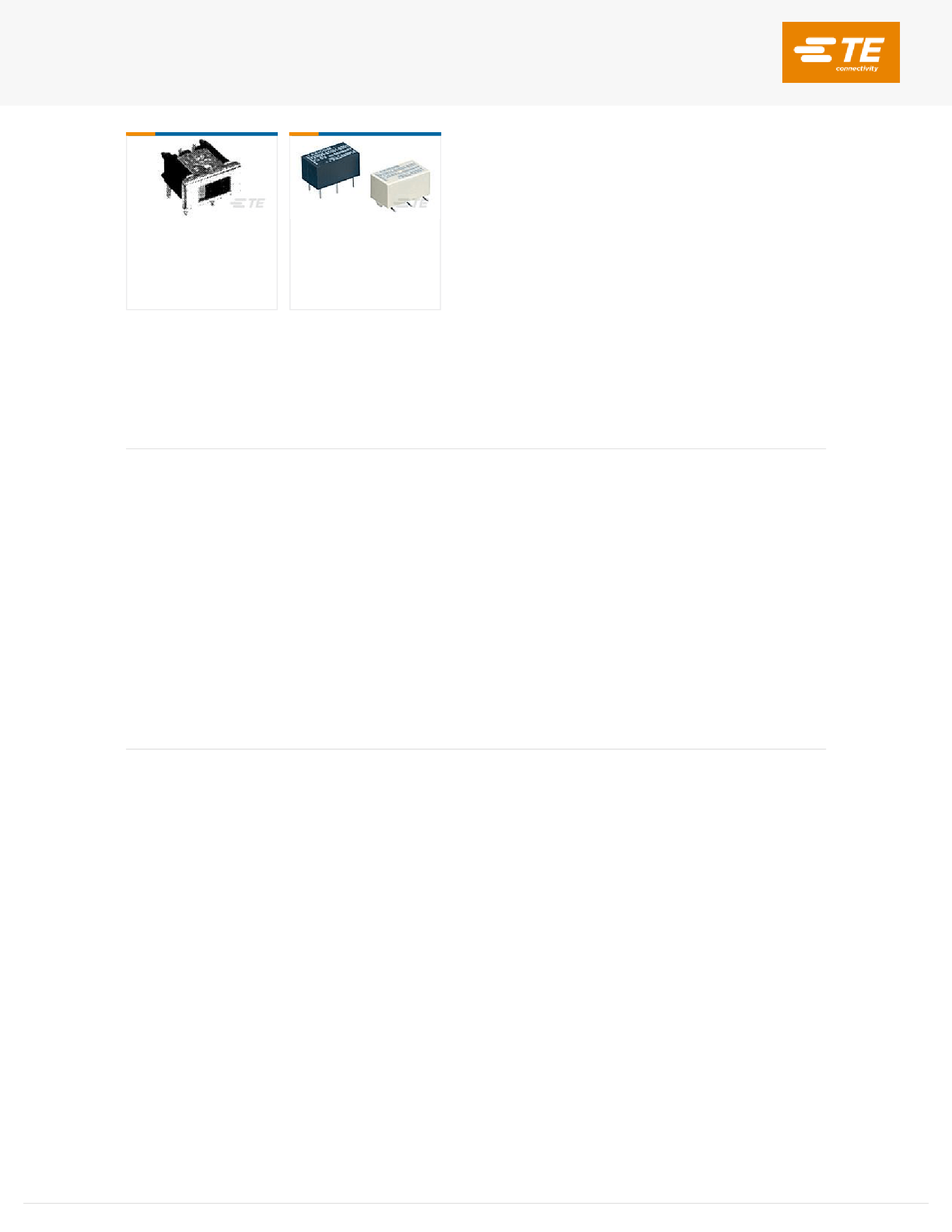

TE Part #1437579-9
TSS11DG1RA=SWITCH
SLIDE RA TER
TE Part #2-1393774-7
V23026C1057B201
Documents
Product Drawings
RQ 0603 80K6 0.1% 10PPM 5K RL
English
CAD Files
3D PDF
3D
Customer View Model
ENG_CVM_CVM_2-2176372-1_A.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_2-2176372-1_A.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_2-2176372-1_A.3d_stp.zip
English
Datasheets & Catalog Pages
SMD Thin Film Precision Resistors - AEC-Q200 Compliant - Type RQ73 Series
English
For support call+1 800 522 6752
08/27/2019 12:37AM | Page 4
