PDB12-F2301-105BF

Description
Potentiometer, Carbon, 0.08W, 1000000ohm, 150V, 20% +/-Tol,
CategoryPassive components    The resistor
File Size302KB,2 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric View All

PDB12-F2301-105BF Overview

Potentiometer, Carbon, 0.08W, 1000000ohm, 150V, 20% +/-Tol,

PDB12-F2301-105BF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerBourns
Reach Compliance Codecompliant
structureRotary
Package height12.8 mm
Package length6.5 mm
Package formPanel Mount
Rated power dissipation(P)0.08 W
resistance1000000 Ω
Resistor typePOTENTIOMETER
rotation angle300 deg
seriesPDB12
technologyCARBON
Tolerance20%
Operating Voltage150 V

PDB12-F2301-105BF Preview

PL
IA
N

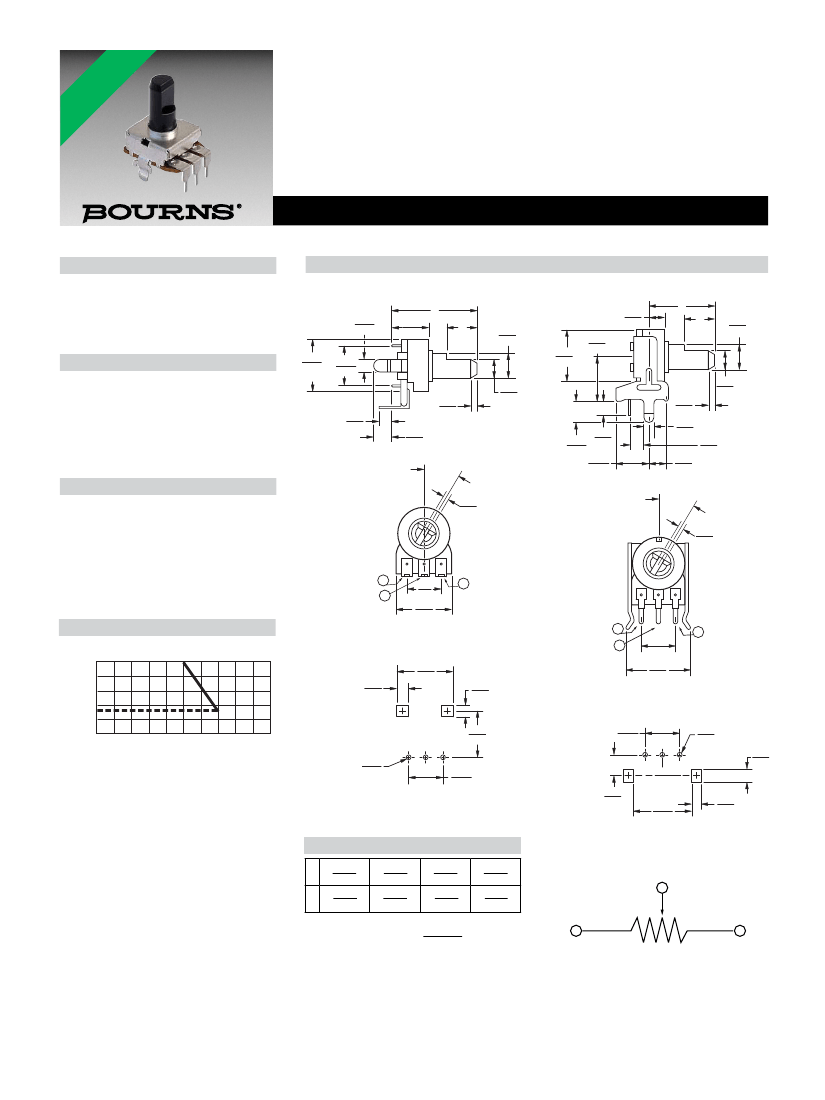

Features
Single gang panel control
RoHS compliant*
Carbon element
Center detent option
Wide range of resistance tapers
Insulated shaft styles
Assortment of pin layouts
Applications
Audio/TV sets
Car radio
Amplifiers/mixers/drum machines/
*R
oH
S
CO
M
T
synthesizers
PCs/monitors
Appliances
PDB12 Series - 12 mm Rotary Potentiometer
Electrical Characteristics
Taper .................................... Linear, audio
Standard Resistance Range
......................... 1K ohms to 1M ohms
Standard Resistance Tolerance.....±20 %
Residual Resistance ..........10 ohms max.
Environmental Characteristics
Power Rating
Linear ...................................0.08 watt
Audio ....................................0.04 watt
Maximum Operating Voltage
Linear ........................................ 150 V
Audio ......................................... 100 V
Sliding Noise ........................ 47 mV max.
Mechanical Characteristics
Mechanical Angle .....................300 ° ±5 °
Rotational Torque ............20 to 200 g-cm
Stop Strength ..................... 3 kg-cm min.
Rotational Life ................... 15,000 cycles
Soldering Condition
............300 °C max. within 3 seconds
Hardware .............. No hardware supplied
Derating Curve
1.5
(.059)

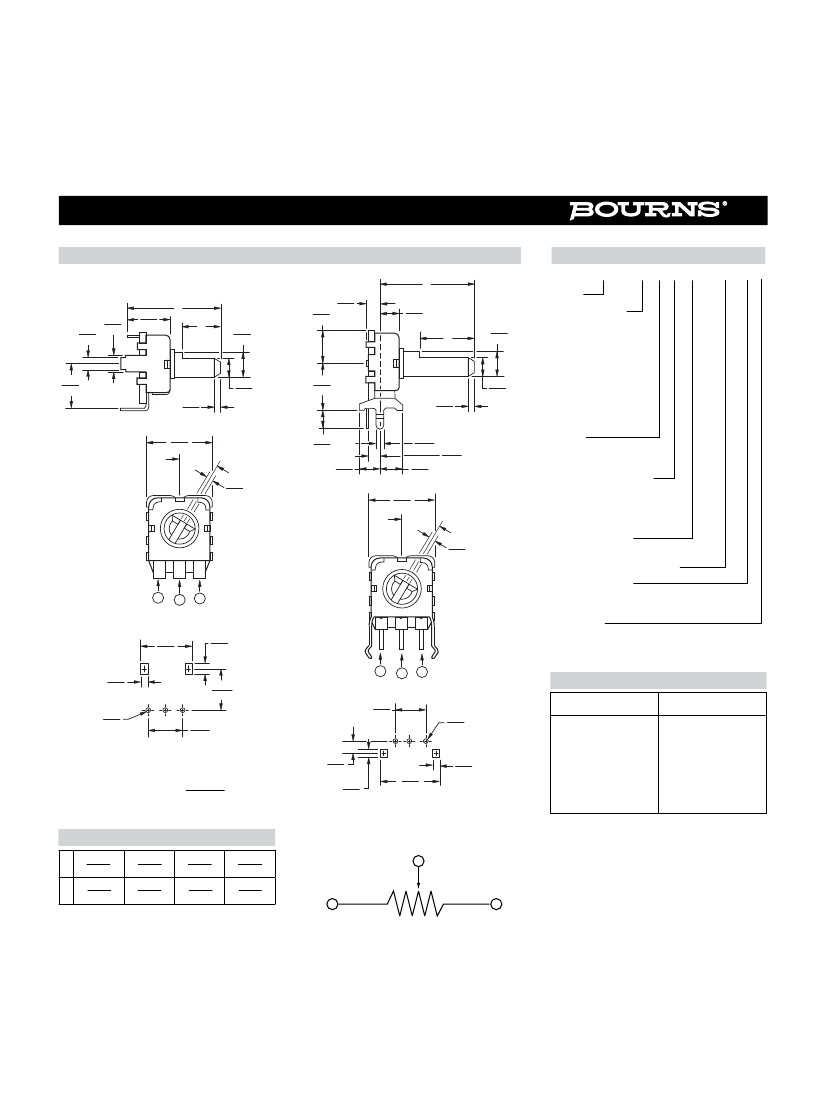

Product Dimensions
PDB12-H
L
PDB12-G
2.6
(.102)
DIA.
6.0
(.24)
3.7
(.145)
10.0
(.393)
12.4
DIA.
(.488)
L
F
8.7
(.342)
F
DIA.
6.0
(.24)
12.4
(.488)
DIA.
9.0
(.354)
4.5
(.177)
4.5
(.177)
1.5
(.059)
2.6
(.102)
4.5
(.177)
3.2
(.125)
1.5
(.059)
4.6
(.181)
30
°
3.0
4.5 (.118)
(.177)
6.0
(.236)
4.0
(.157)
30
°
1.5
(.059)
1
2
7.5
(.295)
12.4
(.488)
3
1
3
7.5
(.295)
14.0
(.551)
Rating Power Ratio (%)
RECOMMENDED PCB LAYOUT
2
12.6
(.496)
2.7
(.106)
100
80
60
40
33
20
0
2.5
(.098)
RECOMMENDED PCB LAYOUT
10.0
(.393)
DIA.
1.0
(.039)
3 PLCS.
7.5
(.295)
DIA.
1.0
(.039)
3 PLCS.
0
10 20 30 40 50 60 70 80 90 100
Ambient Temperature (°C)
2.7
(.106)
7.5
(.295)
SHAFT SHOWN IN CCW POSITION
4.0
(.157)
12.0
(.472)
2.0
(.078)
PDB12 Dimensions
L
F
15
(.591)
7
(.276)
20
(.787)
7
(.276)
DIMENSIONS:
25
(.984)
12
(.472)
MM
(INCHES)
30
(1.181)
12
(.472)
SHAFT SHOWN IN CCW POSITION
2
1
SCHEMATIC
3
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
PDB12 Series - 12 mm Rotary Potentiometer
Product Dimensions
PDB12-M
9.0
(.354)
How To Order
PDB12-F
L
3.5
(.137)
PDB12 - H 4 20 1 - 103 A F
Model
DIA.
6.0
(.24)
L
2.6
(.102)
3.6
(.141)
F
DIA.
6.0
(.24)
6.5
(.255)
3.0
(.118)
F
10.0
(.393)
1.5
(.059)
4.5
(.177)
10.0
(.393)
1.5
(.059)
3.5
(.137)
4.5
(.177)
2.0
(.078)
4.5
(.177)
4.5
(.177)
Terminal Config.
(see individual drawings)
H = PC pins, rear facing
snap mount
G = PC pins, vertical/
down facing/
snap mount
M = PC pins, rear facing
F = PC pins, vertical/
down facing/
snap mount
Option
• 2 = Center Detent
• 4 = No Detent
Standard Shaft Length
• 15 = 15 mm
• 20 = 20 mm
• 25 = 25 mm
• 30 = 30 mm
12.8
(.503)
30°
3.0
(.118)
1.5
(.059)
30°
12.8
(.503)
1.5
(.059)
Number of Gangs
• 1 = Single Gang
Resistance Code (See Table)
1
RECOMMENDED PCB LAYOUT
12.6
(.496)
1.6
(.062)
DIA.
1.0
(.039)
3 PLCS.
2
3
Resistance Taper
• A = Audio Taper
• B = Linear Taper
2.7
(.106)
Shaft Style
• F = Flat Type Insulated Shaft
Other styles available.
1
2
3
10.0
(.393)
Standard Resistance Table
DIA.
1.0
(.039)
3 PLCS.
1.6
(.062)
RECOMMENDED PCB LAYOUT
7.5
(.177)
7.5
(.295)
3.0
(.118)
2.1
(.082)
SHAFT SHOWN IN CCW POSITION
DIMENSIONS:
MM
(INCHES)
14.4
(.566)
SHAFT SHOWN IN CCW POSITION
Resistance
(Ohms)
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
Resistance
Code
102
202
502
103
203
503
104
204
504
105
PDB12 Dimensions
L
F
15
(.591)
7
(.276)
20
(.787)
7
(.276)
25
(.984)
12
(.472)
30
(1.181)
12
(.472)
1
SCHEMATIC
3
2
REV. 08/15
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
