Part Number

Search

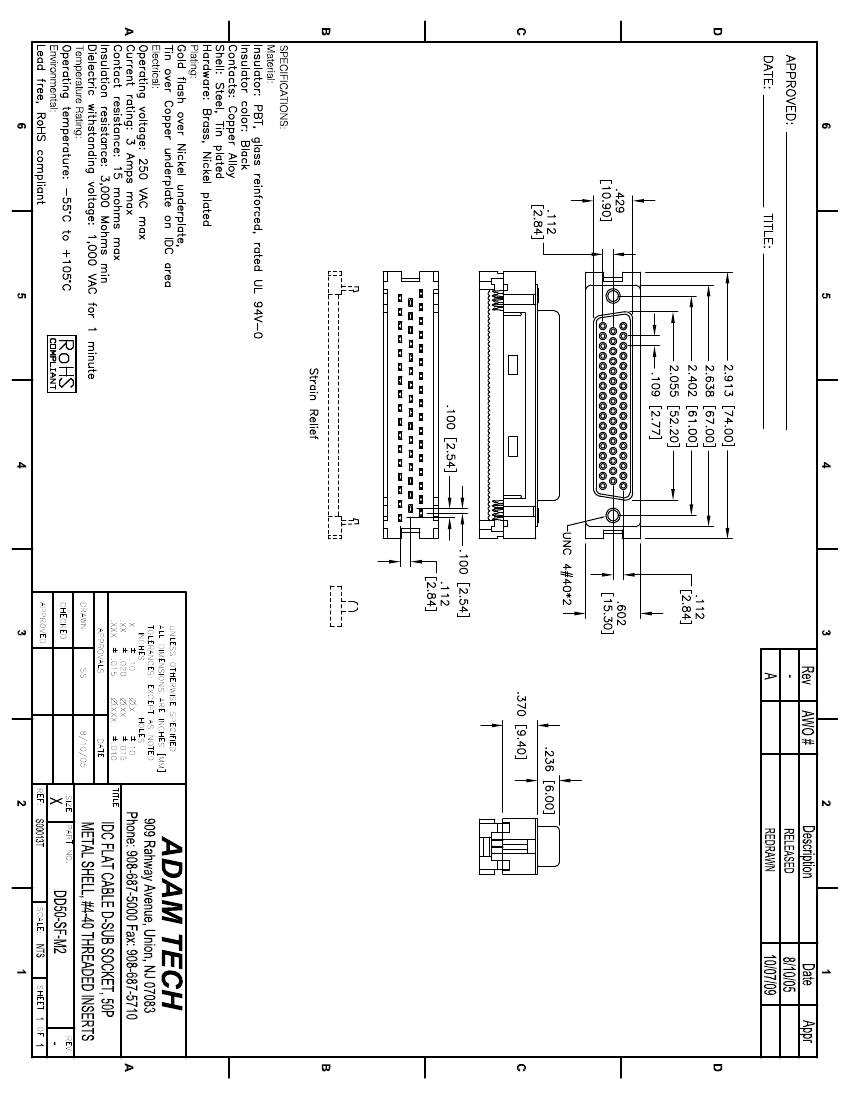

DD50-SF-M2

Description
FLAT CABLE D-SUB SOCKET
CategoryThe connector    The connector
File Size81KB,1 Pages
ManufacturerAdam Tech
Download Datasheet Parametric View All

DD50-SF-M2 Overview

FLAT CABLE D-SUB SOCKET

DD50-SF-M2 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
body width0.492 inch
Body/casing typeRECEPTACLE
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2THREADED INSERT
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell materialSTEEL
Termination typeIDC
Total number of contacts50
Maximum wire diameter28 AWG
Minimum wire diameter30 AWG
Base Number Matches1
