BAS521_15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BAS521_15

BAS521_15: Description0.25 A, 300 V, SILICON, SIGNAL DIODE; Categorysemiconductor Discrete semiconductor; File Size68KB，4 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

BAS521_15 Overview

0.25 A, 300 V, SILICON, SIGNAL DIODE

BAS521_15 Parametric

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Processing package description	GREEN, ULTRA SMALL, PLASTIC, SMD, 2 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	FLAT
terminal coating	MATTE TIN
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
structure	SINGLE
Diode component materials	SILICON
Maximum power consumption limit	0.3250 W
Diode type	SIGNAL DIODE
Maximum reverse recovery time	0.0500 us
Maximum repetitive peak reverse voltage	300 V
Maximum average forward current	0.2500 A

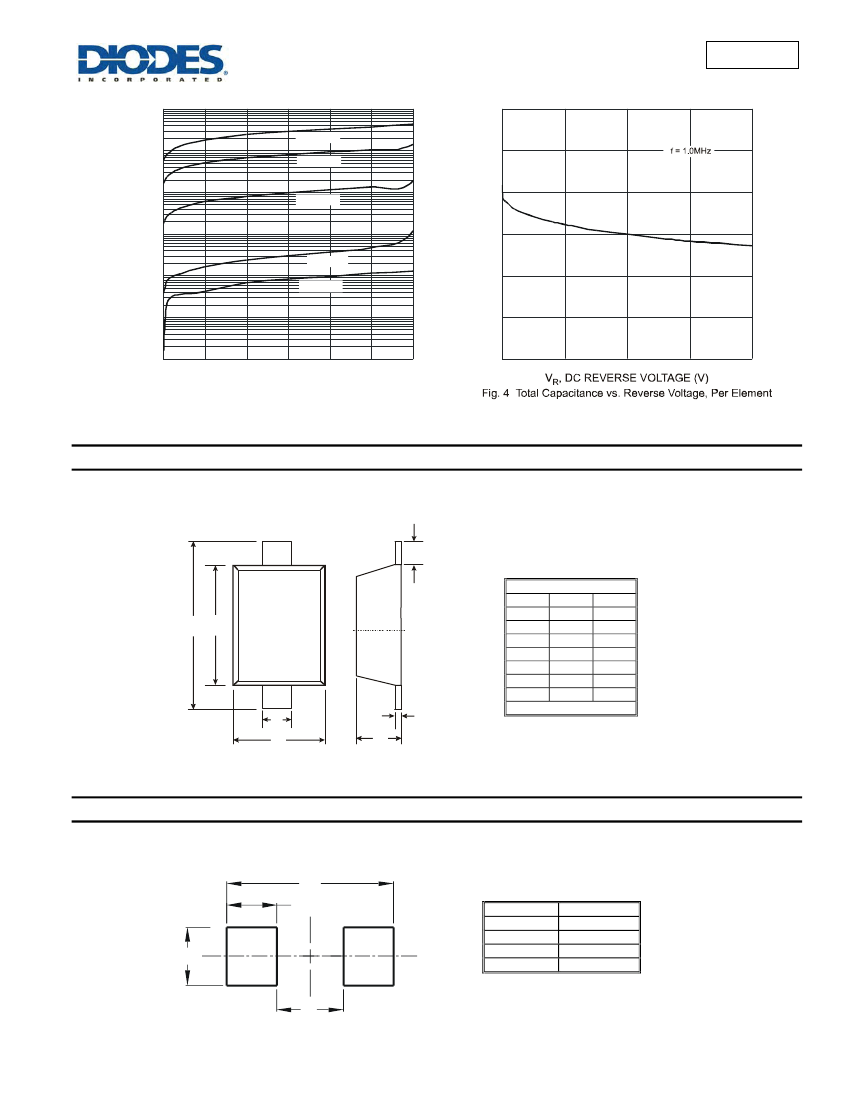

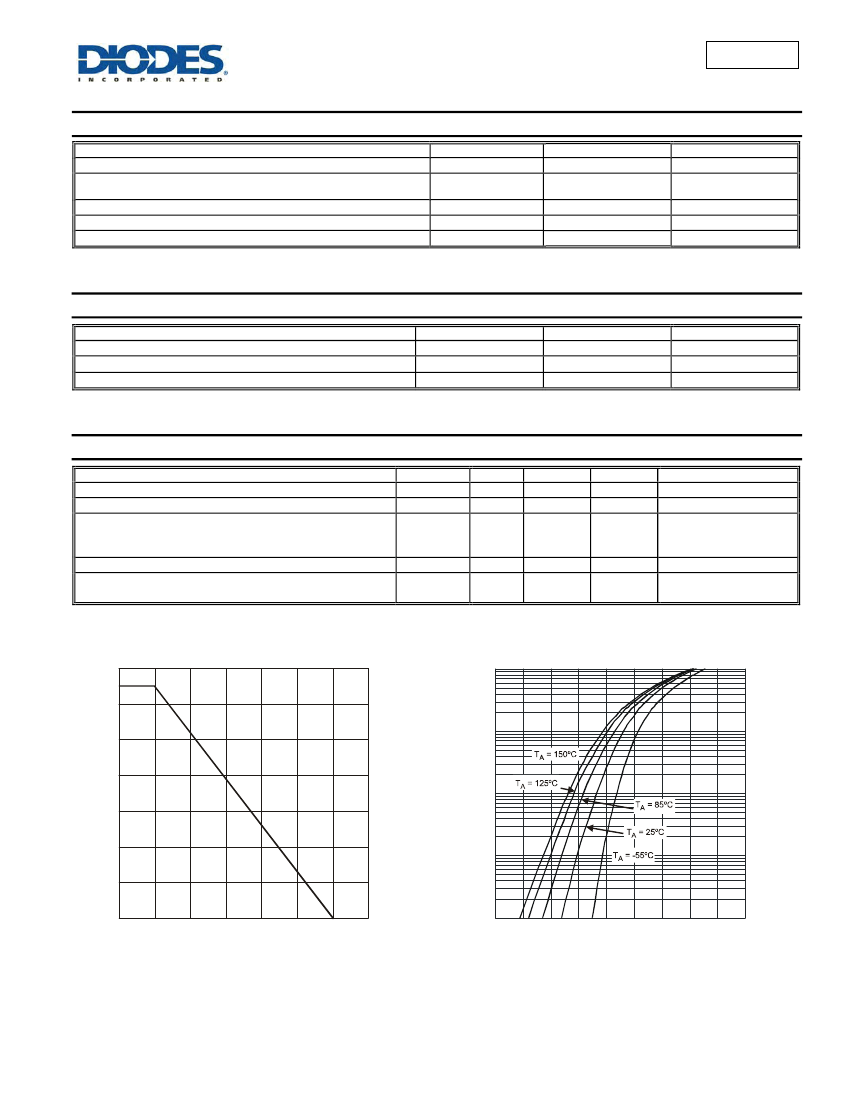

Preview

Download Datasheet

View All

BAS521

HIGH VOLTAGE SWITCHING DIODE

Features

•

Fast Switching Speed: max. 50 ns

High Reverse Breakdown Voltage: 300V

Low Leakage Current: 100nA at room temperature

Ultra Small Plastic SMD Package

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data

•

Case: SOD-523

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: Cathode Bar

Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.0014 grams (approximate)

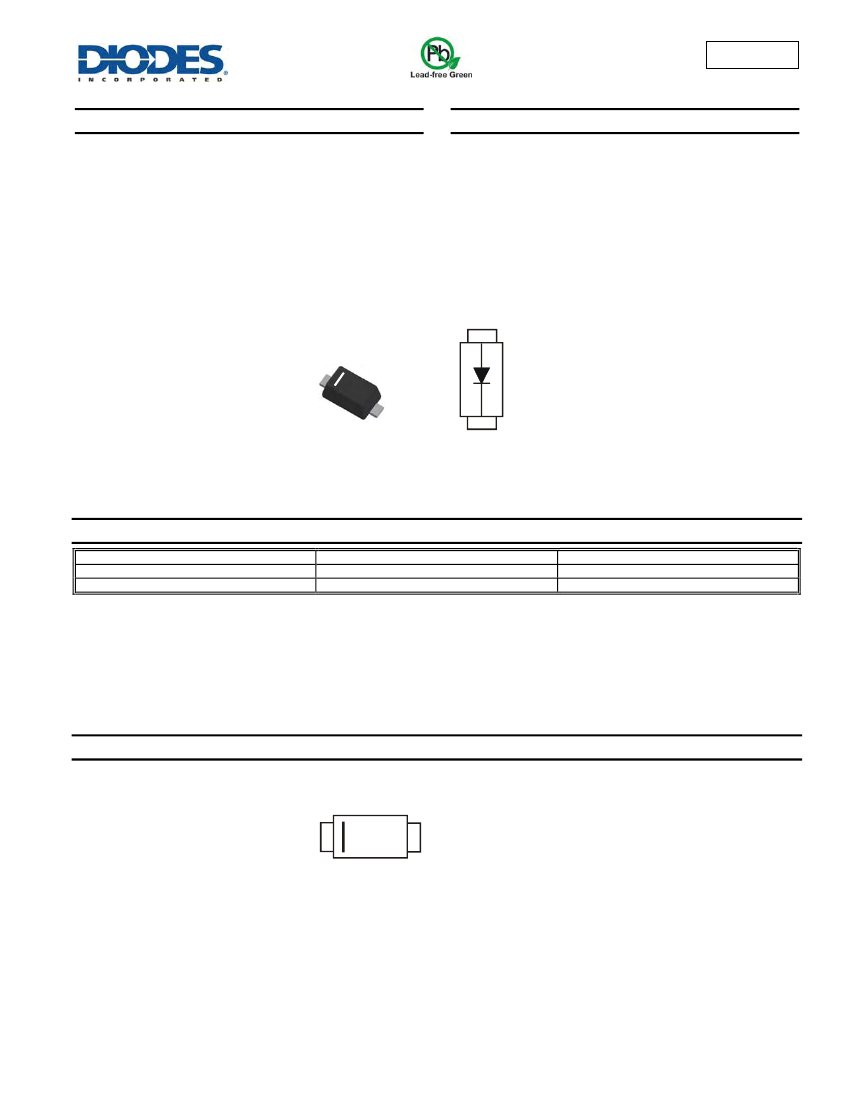

SOD523

Top View

Device Schematic

Ordering Information

(Note 4)

Part Number

BAS521-7

BAS521-13

Notes:

Case

SOD523

Packaging

(Note 5)

3000/Tape & Reel

10000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.

5. Dispensed in every other cavity of the tape.

Marking Information

99 = Product Type Marking Code

Bar Denotes Cathode Side

BAS521

Document number: DS32175 Rev. 5 - 2

1 of 4

www.diodes.com

December 2012
