SBR05U20LPS
0.5A SBR
SURFACE MOUNT SUPER BARRIER RECTIFIER
®
Product Summary
(
@ TA = +25°C
)
V
RRM
(V)
20
I
O
(mA)
500
V
F(MAX)
(V)
0.5
I
R(MAX)
(µA)
50
Features and Benefits
Ultra Low Forward Voltage Drop
Superior Reverse Avalanche Capability
Patented Super Barrier Rectifier Technology
Soft, Fast Switching Capability
+150°C Operating Junction Temperature
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Applications
SMPS
DC-DC Converter
Freewheeling Diodes
Reverse Polarity Protection
Mechanical Data
Case: X2-DFN1006-3
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminal Connections: Cathode Dot
Terminals: Finish - NiPdAu over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
e4
Weight: 0.001 grams (Approximate)
X2-DFN1006-3
Bottom View
Ordering Information
Part Number
SBR05U20LPS-7
Notes:
(Note 4)
Case
X2-DFN1006-3
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
X2-DFN1006-3
5
5 2 = Product Type Marking Code
Dot Denotes Cathode Side
SBR05U20LPS
Document number: DS31357 Rev. 2 - 2
1 of 5
www.diodes.com
June 2015
© Diodes Incorporated
SBR is a registered trademark of Diodes Incorporated.
SBR05U20LPS
Maximum Ratings
(@T
A
= +25°C unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current (See Figure 1)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
RM
V
R(RMS)
I
O
I
FSM
Value
20
14
500
6
Unit
V
V
mA
A
Thermal Characteristics
(@T
A
= +25°C unless otherwise specified.)
Characteristic
Maximum Thermal Resistance (Note 5)
Operating and Storage Temperature Range
Symbol
R
JA
T
j
, T
STG
Value
224
-65 to +150
Unit
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 6)
Symbol
V
(BR)R
Min
20
Typ
-
0.34
0.25
0.38
0.31
0.47
0.42
6
1.5
Max
-
0.38
0.28
0.42
0.34
0.50
0.45
50
5
Unit
V
Test Condition
I
R
= 50µA
I
F
= 0.1A, T
j
= +25°C
I
F
= 0.1A, T
j
= +150°C
V
I
F
= 0.2A, T
j
= +25°C
I
F
= 0.2A, T
j
= +150°C
I
F
= 0.5A, T
j
= +25°C
I
F
= 0.5A, T
j
= +150°C
µA
mA
V
R
= 20V, T
j
= +25°C
V
R
= 20V, T
j
= +150°C
Forward Voltage Drop
V
F
-
Leakage Current (Note 6)
Notes:
I
R
-
5. Device mounted on FR-4 substrate. 2” x 2” 2oz. Copper, single sided PCB board.
6. Short duration pulse test used to minimize self-heating effect.
SBR05U20LPS
Document number: DS31357 Rev. 2 - 2
2 of 5
www.diodes.com
June 2015
© Diodes Incorporated
SBR is a registered trademark of Diodes Incorporated.

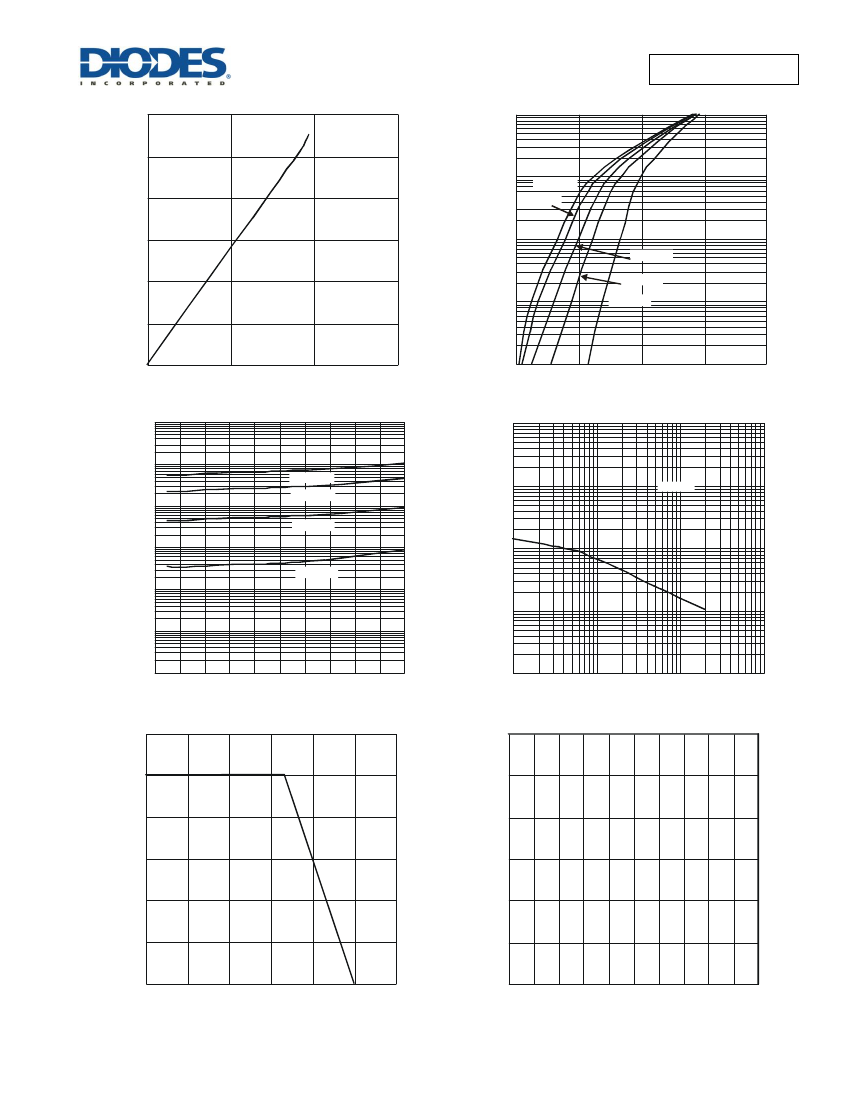

SBR05U20LPS
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
0.6
1
0.5
P
d
, POWER DISSIPATION (W)
0.1
T
A
= 150°C
T
A
= 125°C
0.4
0.3
0.01
T
A
= 85°C
T
A
= 25°C
0.2
0.001
T
A
= -55°C
0.1
0
0
0.5
1
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
Fig. 1 Forward Power Dissipation
1.5
0.0001
0
200
400
600
800
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Fig. 2 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (uA)
10,000
1,000
10,000
C, CAPACITANCE (pF)
T
A
= 150°C
100
T
A
= 125°C
T
A
= 85°C
1,000
f = 1MHz
10
T
A
= 25°C
100
1
10
0.1
0.01
0
2
4
6
8 10 12 14 16 18 20
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
150
T
A
, DERATED AMBIENT TEMPERATURE (°C)
1
0.1
1
10
100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
0.6
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
0.5
Note 3
125
0.4
100
0.3
75
0.2
50
0.1
25
0
25
0
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 5 Forward Current Derating Curve
175
0
2
4
6
8 10 12 14 16 18
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Operating Temperature Derating
20
SBR05U20LPS
Document number: DS31357 Rev. 2 - 2
3 of 5
www.diodes.com
June 2015
© Diodes Incorporated
SBR is a registered trademark of Diodes Incorporated.
SBR05U20LPS
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
A
A1
Seating Plane
D
Pin #1 ID
b
E b2
e
X2-DFN1006-3
Dim Min Max Typ
A
0.40
A1
0.00 0.05 0.03
b
0.10 0.20 0.15
b2
0.45 0.55 0.50
D
0.95 1.05 1.00
E
0.55 0.65 0.60
e
-
-
0.35
L1
0.20 0.30 0.25
L2
0.20 0.30 0.25
L3
-
-
0.40
z
0.02 0.08 0.05
All Dimensions in mm
z
L2
L3
L1
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
C
Y
Y1
G2
Dimensions
C
G1
G2
X
X1
Y
Y1
X
X1
G1
Value (in mm)
0.70
0.30
0.20
0.40
1.10
0.25
0.70
SBR05U20LPS
Document number: DS31357 Rev. 2 - 2
4 of 5
www.diodes.com
June 2015
© Diodes Incorporated
SBR is a registered trademark of Diodes Incorporated.
SBR05U20LPS
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for
use provided in the labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2015, Diodes Incorporated
www.diodes.com
SBR05U20LPS
Document number: DS31357 Rev. 2 - 2
5 of 5
www.diodes.com
June 2015
© Diodes Incorporated
SBR is a registered trademark of Diodes Incorporated.
