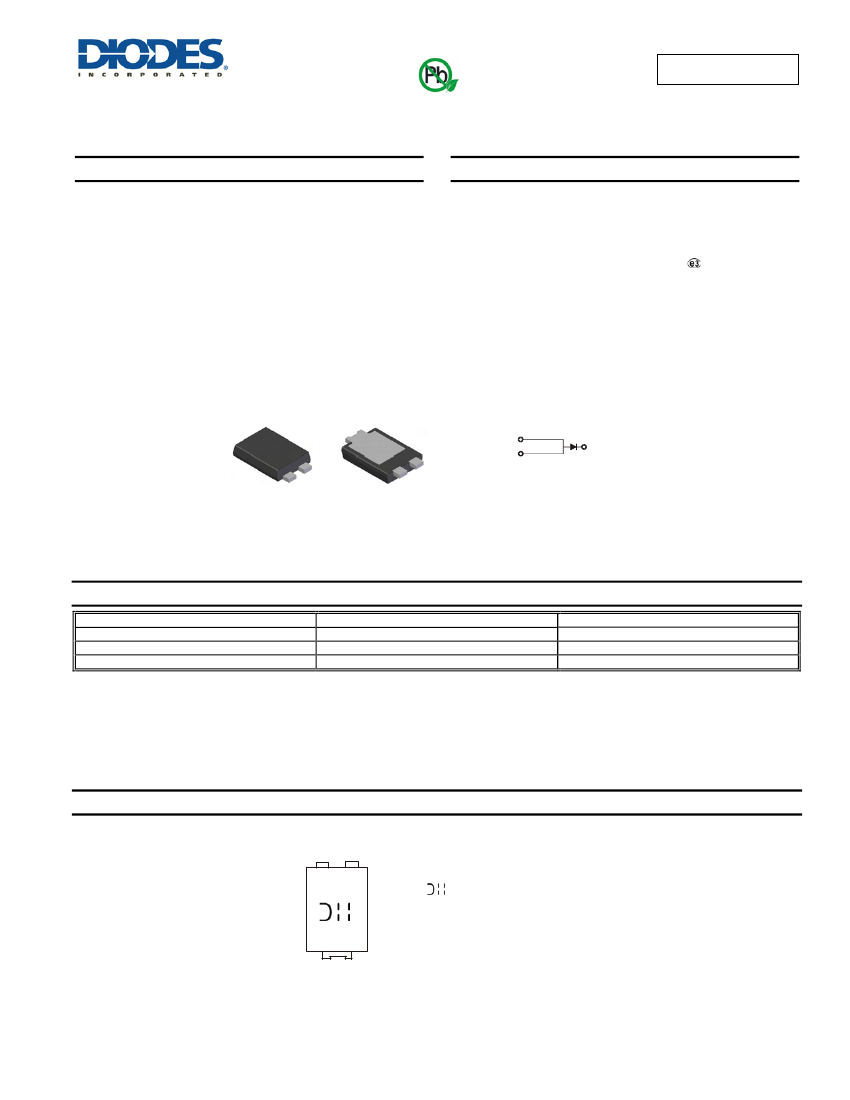

SBR10A45SP5
Green
10A SBR
®
SUPER BARRIER RECTIFIER
POWERDI
®
Features
•
•
•
•
•
•
•
•
Designed as Bypass Diodes for Solar Panels
Selectively Rated for 200ºC Maximum Junction Temperature for
High Thermal Reliability
Patented Super Barrier Rectifier Technology
Low Forward Voltage Drop
Excellent High Temperature Stability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
Case: POWERDI5
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.093 grams (approximate)
NEW PRODUCT
POWERDI5
LEFT PIN
RIGHT PIN
BOTTOMSIDE
HEAT SINK
Top View
Bottom View
Note: Pins Left & Right must
be electrically connected
at the printed circuit board.
Ordering Information
(Note 4)
Part Number
SBR10A45SP5-13
SBR10A45SP5-7
SBR10A45SP5Q-13
Notes:
Case
POWERDI5
POWERDI5
POWERDI5
Packaging
5000/Tape & Reel
1500/Tape & Reel
5000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
S10A45S
YYWWK
S10A45S = Product Type Marking Code
= Manufacturers’ code marking
K = Factory designator
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 for 2008)
WW = Week code (01 - 53)
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBR10A45SP5
Document number: DS35202 Rev. 6 - 2
1 of 5
www.diodes.com
December 2012
© Diodes Incorporated
SBR10A45SP5
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
Value
45
10
180
Unit
V
A
A
NEW PRODUCT
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Thermal Characteristics
Characteristic
Typical Thermal Resistance
Thermal Resistance Junction to Ambient (Note 5)
Thermal Resistance Junction to Ambient (Note 6)
Operating Temperature Range
Storage Temperature Range
V
R
≤
80% V
RRM
V
R
≤
50% V
RRM
DC Forward Mode
Symbol
R
θ
JA
R
θ
JA
T
J
T
STG
Value
102
60
-65 to +150
≤180
≤200
-65 to +175
Unit
ºC/W
ºC
ºC
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 7)
Forward Voltage Drop
Leakage Current (Note 7)
Notes:
Symbol
V
(BR)R
V
F
I
R
Min
45
-
-
-
Typ
-
0.39
0.46
-
Max
-
-
0.53
400
Unit
V
V
μA
Test Condition
I
R
= 0.5mA
I
F
= 5A, T
J
= +25ºC
I
F
= 10A, T
J
= +25ºC
V
R
= 45V, T
J
= +25ºC
5. FR-4 PCB, 2oz. Copper, minimum recommended pad layout per http://www.diodes.com.
6. Polymide PCB, 2oz. Copper, minimum recommended pad layout per http://www.diodes.com.
7. Short duration pulse test used to minimize self-heating effect.
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBR10A45SP5
Document number: DS35202 Rev. 6 - 2
2 of 5
www.diodes.com
December 2012
© Diodes Incorporated
SBR10A45SP5
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
5.0
4.5
P
D
, POWER DISSIPATION (W)
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
2
4
6
8
10
I
F(AV)
, AVERAGE FORWARD CURRENT (A)

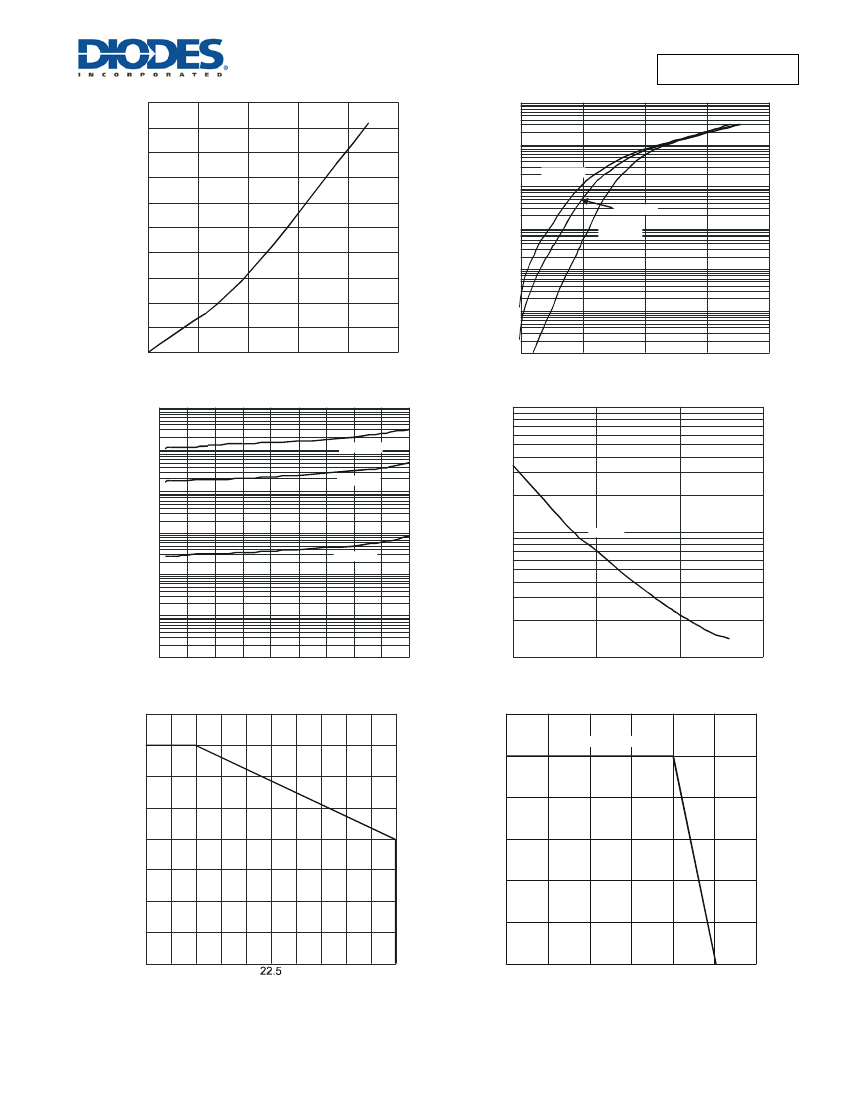

Fig. 1 Forward Power Dissipation
T
A
= 175°C
100,000
10,000
T
A
= 125°C
1,000
T
A
= 85°C
100
T
A
= 25°C
NEW PRODUCT
10
1
0.1
0
200
400
600
800
V
F
, INSTANTANEOUS FORWARD VOLTAGE (mV)
Fig. 2 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
100,000
T
A
= 125°C
10,000
10,000
1,000
T
A
= 85°C
C
T
, TOTAL CAPACITANCE (pF)
100
T
A
= 25°C
1,000
f = 1MHz
10
1
0.1
0
5
10 15 20 25 30 35 40 45
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
100
0.1
1
10
V
R
, DC REVERSE VOLTAGE (V)
100
Fig. 4 Total Capacitance vs. Reverse Voltage
12
I
F
, AVERAGE FORWARD CURRENT (A)
Based on Lead Temp (T
L
)
200
T
A
,DERATED AMBIENT TEMPERATURE (
°
C)
175
150
125
100
75
50
25
0
0
4.5
9 13.5 18
27 31.5 36 40.5 45
V
R
, DC REVERSE VOLTAGE (V)
Fig. 5 Operating Temperature Derating
10
8
6
4
2
0
25
50
75
100
125
150
175
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 6 Forward Current Derating Curve
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBR10A45SP5
Document number: DS35202 Rev. 6 - 2
3 of 5
www.diodes.com
December 2012
© Diodes Incorporated
SBR10A45SP5
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A
D
b2
A2
D2
L
E
E1
E2
W
L1
e
b1
b1
A2
POWERDI5
Dim
Min
Max
A
1.05
1.15
A2
0.33
0.43
b1
0.80
0.99
b2
1.70
1.88
D
3.90
4.05
D2
3.054 Typ
E
6.40
6.60
e
1.84 Typ
E1
5.30
5.45
E2
3.549 Typ
L
0.75
0.95
L1
0.50
0.65
W
1.10
1.41
All Dimensions in mm
NEW PRODUCT
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X
Y
Dimensions
C
G
X
X1
Y
Y1
X1
(2x)
Value (in mm)
1.840
0.852
3.360
1.390
4.860
1.400
G
Y1
(2x)
C
SBR and POWERDI are registered trademarks of Diodes Incorporated.
SBR10A45SP5
Document number: DS35202 Rev. 6 - 2
4 of 5
www.diodes.com
December 2012
© Diodes Incorporated
SBR10A45SP5
