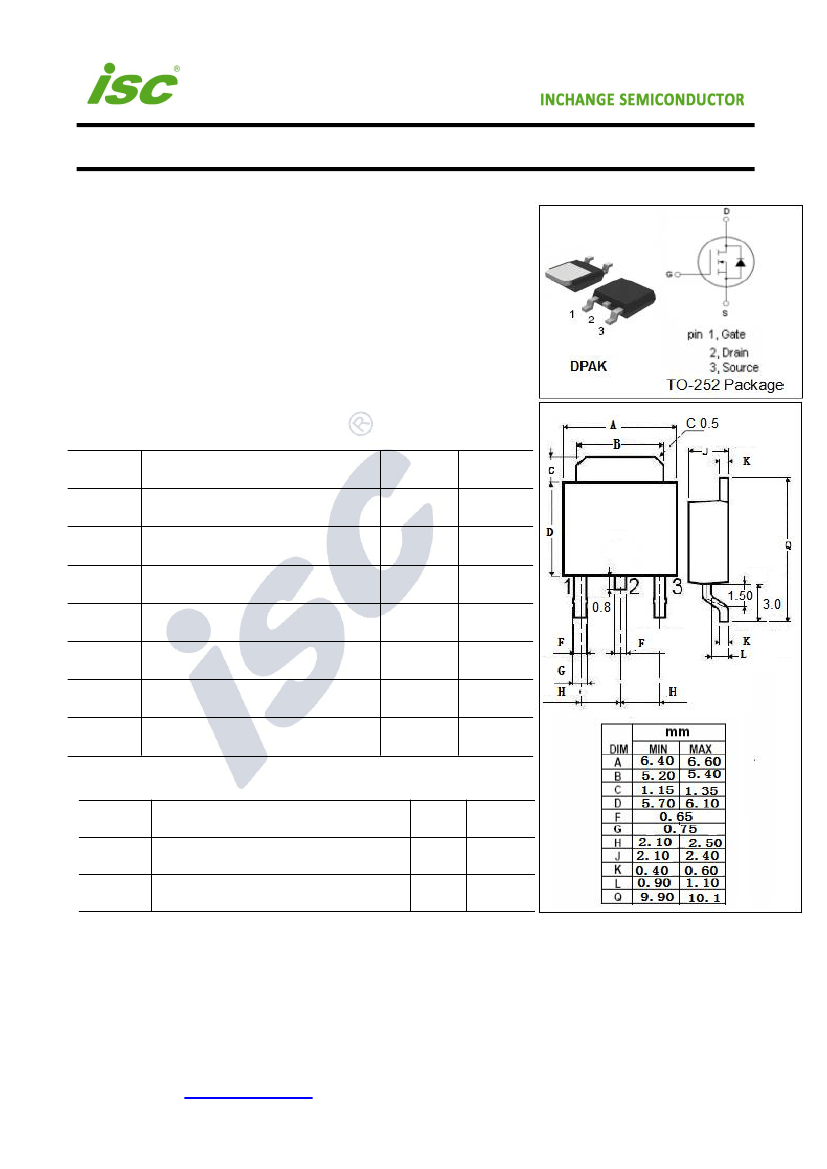

isc N-Channel MOSFET Transistor
·FEATURES
·Static
drain-source on-resistance:
R
DS
(on)≤0.38Ω
·Enhancement
mode:
·100%
avalanche tested
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
·DESCRITION
·Very
high commutation ruggedness
·ABSOLUTE
MAXIMUM RATINGS(T
a
=25℃)
SYMBOL
V
DSS
V
GS
I
D
I
DM
P
D
T
j
T
stg
PARAMETER
Drain-Source Voltage
Gate-Source Voltage
Drain Current-Continuous
Drain Current-Single Pulsed
Total Dissipation @T
C
=25℃
Max. Operating Junction Temperature
Storage Temperature
VALUE
650
±20
10.6
29
83
150
-55~150
IPD65R380E6,IIPD65R380E6
UNIT
V
V
A
A
W
℃
℃
·THERMAL
CHARACTERISTICS
SYMBOL
Rth(j-c)
Rth(j-a)
PARAMETER
Channel-to-case thermal resistance
Channel-to-ambient thermal resistance
MAX
1.5
62
UNIT
℃/W
℃/W
isc website：www.iscsemi.cn
1
isc & iscsemi is registered trademark
isc N-Channel MOSFET Transistor
ELECTRICAL CHARACTERISTICS
T
C
=25℃ unless otherwise specified
SYMBOL
BV
DSS
PARAMETER
Drain-Source Breakdown Voltage
Gate Threshold Voltage
IPD65R380E6,IIPD65R380E6
CONDITIONS
V
GS
=0V; I
D
=1mA
MIN
650
2.5
TYP
MAX
UNIT
V
V
GS
(th
)
V
DS
=V
GS
; I
D
=0.32mA
V
GS
=10V; I
D
=3.2A
3.5
V
R
DS(
on
)
Drain-Source On-Resistance
0.38
Ω
I
GSS
I
DSS
V
SD
Gate-Source Leakage Current
Drain-Source Leakage Current
Diode forward voltage
V
GS
=20V; V
DS
=0V
V
DS
=650V; V
GS
= 0V
I
F
=4.9A, V
GS
= 0V
0.9
0.1
1
μA
μA
V
