AS098Q300W
TECHNICAL DATA
High Power Stacked Infrared Laser Diode Array
Features
•
•
•
•
•
Output Power: 300 W qCW
920-980 nm Emission Wavelength
Spectral Width:
≤4
nm
High Reliability, High Efficiency
QCW stack can be designed according to the
customer of non-standard products heat sink
package
Applications
•
•
•
Laser Pumping
Medical Usage
High power laser diode applications
Specifications (25°C)
Item
Optical Specifications
qCW Output Power
qCW Output Power / Bar
Array Length
Center Wavelength
Wavelength Tolerance
Spectral Width
Package Style
Bar Length
Number of Bars
Wavelength Temperature Coefficient
Beam Divergence
Electrical Specifications
Slope Efficiency
Conversion Efficiency
Threshold Current
Operating Current
Operating Voltage
Absolute Maximum Ratings
Reverse Voltage
Operating Temperature
Storage Temperature
Symbol
P
O
P
S
L
λ
C
Δλ
Value
300
60
10
920-980
±5
≤
4
Micro Channel
0.4
5
0.3
40x8
≥
0.8
≥
30%
≤
15
≤
75
≤
10
2.5
+10 … +40
-40 ... +85
Unit
W
W
mm
nm
nm
nm
mm
nm/°C
deg
W/A
A
A
V
V
°C
°C
θ
┴
×θ
║
E
S
N
S
I
TH
I
F
U
F
U
R
T
OP
T
STG
20.09.2010
AS098Q300W
1 of 2

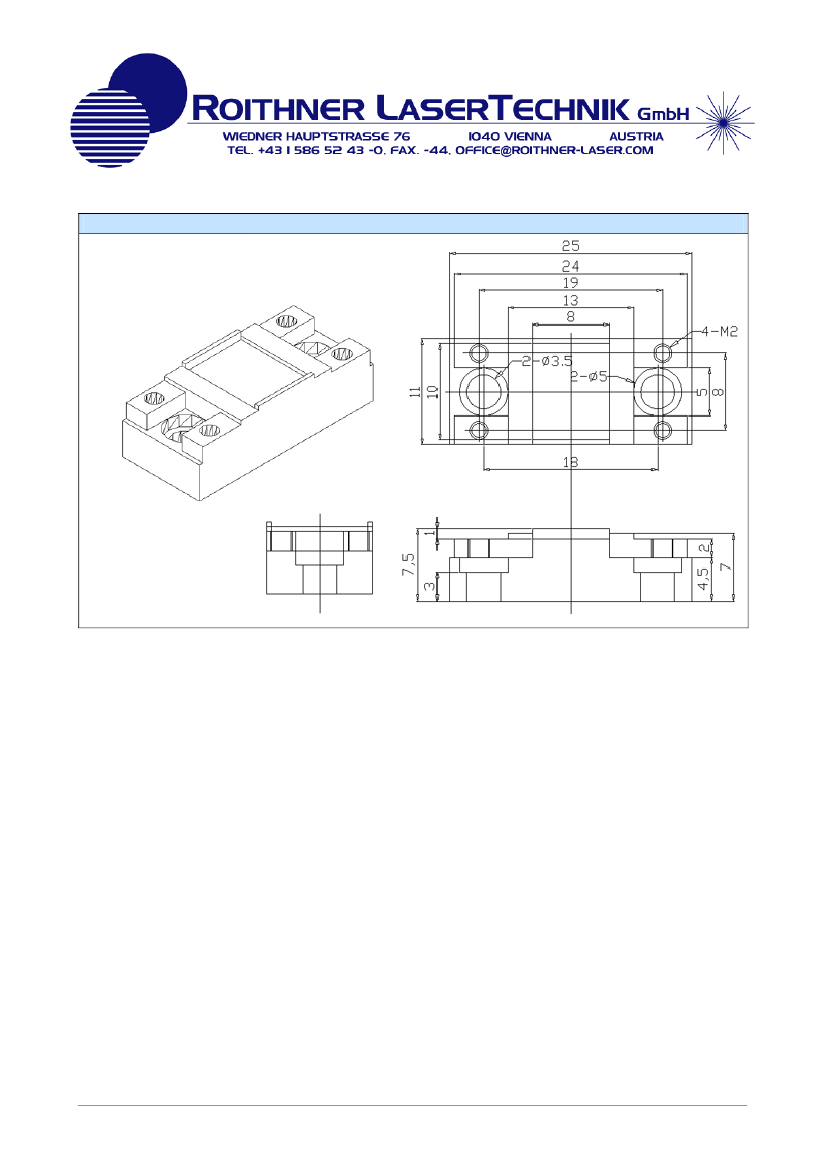

Package Dimensons
Micro Channel (Unit:mm)
Notes
1. Caution! Don't look at the laser beam directly, because it's harmful to eyes.
2. The storage temperature is between -40 and 85 °C.
3. Under normal circumstances, the higher the temperature is, the shorter the life of
semiconductor laser will be. It is recommended to use lasers under TEC cooling or in air-
conditioned room.
4. To use a laser diode in following sequences: Turn on the power supply; connect to the
laser diode; and then increase the current gradually to the specified operating value. To
shut down the laser diode, please decrease the current to zero gradually, and then turn off
the power. Please make sure that the power supply has no current overshoot at any time.
The current overshoot can damage the laser diodes permanently.
5. The high power laser diode arrays are very sensitive to electrostatic. Please wear anti-
static bracelet during operating with the laser diodes (arrays).
6. Be sure that the operating current does not exceed the specified operating current.
Otherwise, it will accelerate laser aging, shorten lifetime or even damage devices
permanently.
7. A clean, dry and ventilated environment should be available when storing and operating
laser diodes (arrays). Dust may degrade the laser diodes (arrays).
8. Constant-current power supply with voltage regulator should be used to avoid surge.
20.09.2010
AS098Q300W
2 of 2
