LED NUMERIC DISPLAY, 4 DIGIT
BL-Q50X-61
Features:
12.70mm (0.5”) 6 digit numeric display series
Low current operation.
Excellent character appearance.
Easy mounting on P.C. Boards or sockets.
I.C. Compatible.
ROHS Compliance.
Super Bright
Electrical-optical characteristics: (Ta=25°C)
(Test Condition: IF=20mA)
Part No
Chip
Common Cathode
BL-Q50A-61S-XX
BL-Q50A-61D-XX
BL-Q50A-61UR-XX
BL-Q50A-61E-XX
BL-Q50A-61Y-XX
BL-Q50A-61G-XX
Common Anode
BL-Q50B-61S-XX
BL-Q50B-61D-XX
BL-Q50B-61UR-XX
BL-Q50B-61E-XX
BL-Q50B-61Y-XX
BL-Q50B-61G-XX
Emitte
d Color
Hi Red
Super
Red
Ultra
Red
Red
Yellow
Green
Material
GaAlAs/GaAs,SH
GaAlAs/GaAs,DH
GaAlAs/GaAs,DDH
GaAsP/GaP
GaAsP/GaP
GaP/GaP
λ
P
(nm)
660
660
660
635
585
570
VF
Unit:V
Typ
1.85
1.85
1.85
2.10
2.10
2.20
Max
2.20
2.20
2.20
2.50
2.50
2.50
Iv
TYP.(mcd
)
115
120
165
120
120
120
Ultra Bright
Electrical-optical characteristics: (Ta=25°C)
(Test Condition: IF=20mA)
Part No
Common Cathode
BL-Q50A-61UHR-XX
BL-Q50A-61UE-XX
BL-Q50A-61YO-XX
BL-Q50A-61UY-XX
BL-Q50A-61UG-XX
BL-Q50A-61PG-XX
BL-Q50A-61B-XX
BL-Q50A-61W-XX
Common Anode
BL-Q50B-61UHR-XX
BL-Q50B-61UE-XX
BL-Q50B-61YO-XX
BL-Q50B-61UY-XX
BL-Q50B-61UG-XX
BL-Q50B-61PG-XX
BL-Q50B-61B-XX
BL-Q50B-61W-XX
Emitted Color
Ultra Red
Ultra Red
Ultra Amber
Ultra Yellow
Ultra Green
Ultra Pure Green
Ultra Blue
Ultra White
Chip
Material
AlGaInP
AlGaInP
AlGaInP
AlGaInP
AlGaInP
InGaN
InGaN
InGaN
λ
P
(nm)
645
630
619
590
574
525
470
/
VF
Unit:V
Typ
Max
2.10
2.10
2.10
2.10
2.20
3.80
2.70
2.70
2.50
2.50
2.50
2.50
2.50
4.50
4.20
4.20
Iv
TYP.(mcd
)
165
145
145
145
145
195
125
150
-XX: Surface / Lens color：
0
Number
Ref Surface Color
White
Epoxy Color
Water
clear
1
Black
White
diffused
2
Gray
Red
Diffused
3
Red
Green
Diffused
4
Green
Yellow
Diffused
5
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 1 of 5
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
LED NUMERIC DISPLAY, 4 DIGIT
BL-Q50X-61
Absolute maximum ratings (Ta=25°C)
Parameter
Forward Current I
F
Power Dissipation P
d
Reverse Voltage V
R
Peak Forward Current I
PF
(Duty 1/10 @1KHZ)
Operation Temperature T
OPR
Storage Temperature T
STG
Lead Soldering Temperature
T
SOL
Absolute maximum ratings (Ta=25°C)
Parameter
Forward Current I
F
Power Dissipation P
d
Reverse Voltage V
R
Peak Forward Current I
PF
(Duty 1/10 @1KHZ)
Operation Temperature T
OPR
Storage Temperature T
STG
Lead Soldering Temperature
T
SOL
UHR
30
75
5
150
S
25
60
5
150
D
25
60
5
150
UR
25
60
5
150
E
25
60
5
150
Y
25
60
5
150
G
30
65
5
150
Unit
mA
mW
V
mA
°C
°C
°C
-40 to +80
-40 to +85
Max.260±5°C for 3 sec Max.
(1.6mm from the base of the epoxy bulb)
UE
30
65
5
150
YO
30
65
5
150
UY
30
65
5
150
UG
30
75
5
150
PG
30
110
5
150
UB
30
120
5
100
UW
30
120
5
100
Unit
mA
mW
V
mA
°C
°C
-40 to +80
-40 to +85
Max.260±5°C for 3 sec Max.
(1.6mm from the base of the epoxy bulb)
°C
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 2 of 5
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
LED NUMERIC DISPLAY, 4 DIGIT
BL-Q50X-61

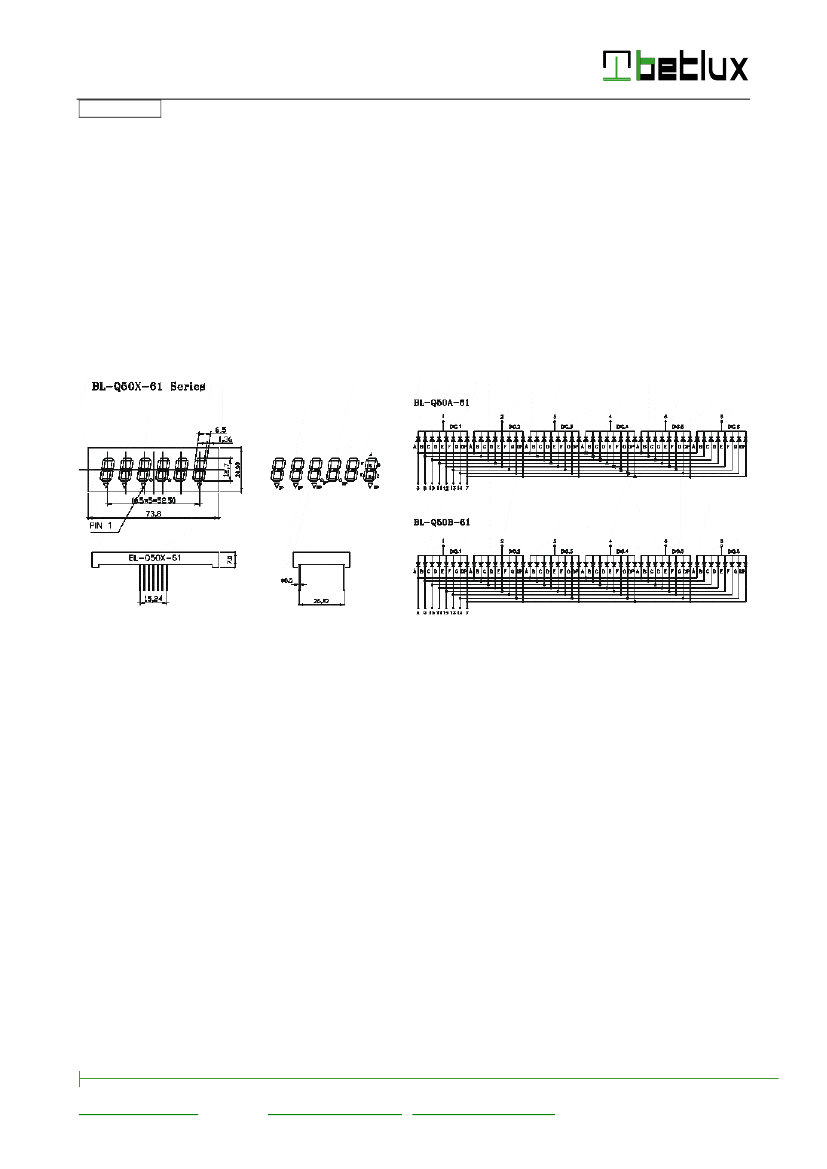

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 3 of 5
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
LED NUMERIC DISPLAY, 4 DIGIT
BL-Q50X-61
Typical electrical-optical characteristics curves:
1.0
(A)
(B)
(C)
(D)
(2)
(3)
(8)
(4)
(1) (6)
(5)
(9)
(10)
0.5
0
350
400
450
500
550
600
650
700
750
800
850
900
950
1000
Wavelength(nm)
RELATIVE INTENSITY Vs WAVELENGTH(λ p )
(1) - GaAsP/GaAs 655nm/Red
(2) - GaP 570nm/Yellow Green
(3) - GaAsP/GaP 585nm/Yellow
(4) - GaAsp/GaP 635nm/Orange & Hi-Eff Red
(5) - GaP 700nm/Bright Red
(6) - GaAlAs/GaAs 660nm/Super Red
(8) - GaAsP/GaP 610nm/Super Red
(9) - GaAlAs 880nm
(10) - GaAs/GaAs & GaAlAs/GaAs 940nm
(A) - GaN/SiC 430nm/Blue
(B) - InGaN/SiC 470nm/Blue
(C) - InGaN/SiC 505nm/Ultra Green
(D) - InGaAl/SiC 525nm/Ultra Green
50
FORWARD CURRENT(mA)
RELATIVE LUMINOUS INTENSITY
3
2
1
0.5
0.2
0.1
-30
-20
-10
1
8
64 5
2 3
4.0
1
3.0
FORWARD CURRENT(mA)
50
40
30
20
10
0
RELATIVE LUMINOUS INTENSITY
40
30
20
10
0
1.2
1
6
2,4,8,A
3
5
2.0
5
B
1.0
0
20
40
60
80
100
1.6
2.0
2.4
2.6
3.0
20
40
60
80
100
FORWARD VOLTAGE (Vf)
FORWARD CURRENT VS.
FORWARD VOLTAGE
FORWARD CURRENT (mA)
RELATIVE LUMINOUS
INTENSITY VS. FORWARD
CURRENT
AMBIENT TEMPERATURE Ta(
℃
)
FORWARD CURRENT VS. AMBIENT
TEMPERATURE
1
5
4
2
3
10
9
8
7
6
5
4
3
2
0
10
20
30
40
50
60
70
1
AMBIENT TEMPERATURE Ta(
℃
)
1
Ipeak MAX.
IDC MAX.
300KHz
3KHz
10KHz
1KHz
100KHz F-REFRESH RATE
3KHz
300Hz
30KHz
100KHz
10KHz 1KHz
100Hz
10
9
8
7
6
5
Ipeak MAX.
IDC MAX.
4
3
2
1
1
10
100
1000
tp-PULSE DURATION uS
(5)
10
100
1000
10,000
10,000
tp-PULSE DURATION uS
(1,2,3,4,6,8,B.D.J.K)
NOTE:25
℃
free air temperature unless otherwise specified
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 4 of 5
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
LED NUMERIC DISPLAY, 4 DIGIT
BL-Q50X-61
Packing and weighting
Maximum
40pcs/bag
12.3g/pcs
Maximum
5
Bag/Inner Box
3 Inner Box /Box
9 Inner Box /Box
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 5 of 5
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
