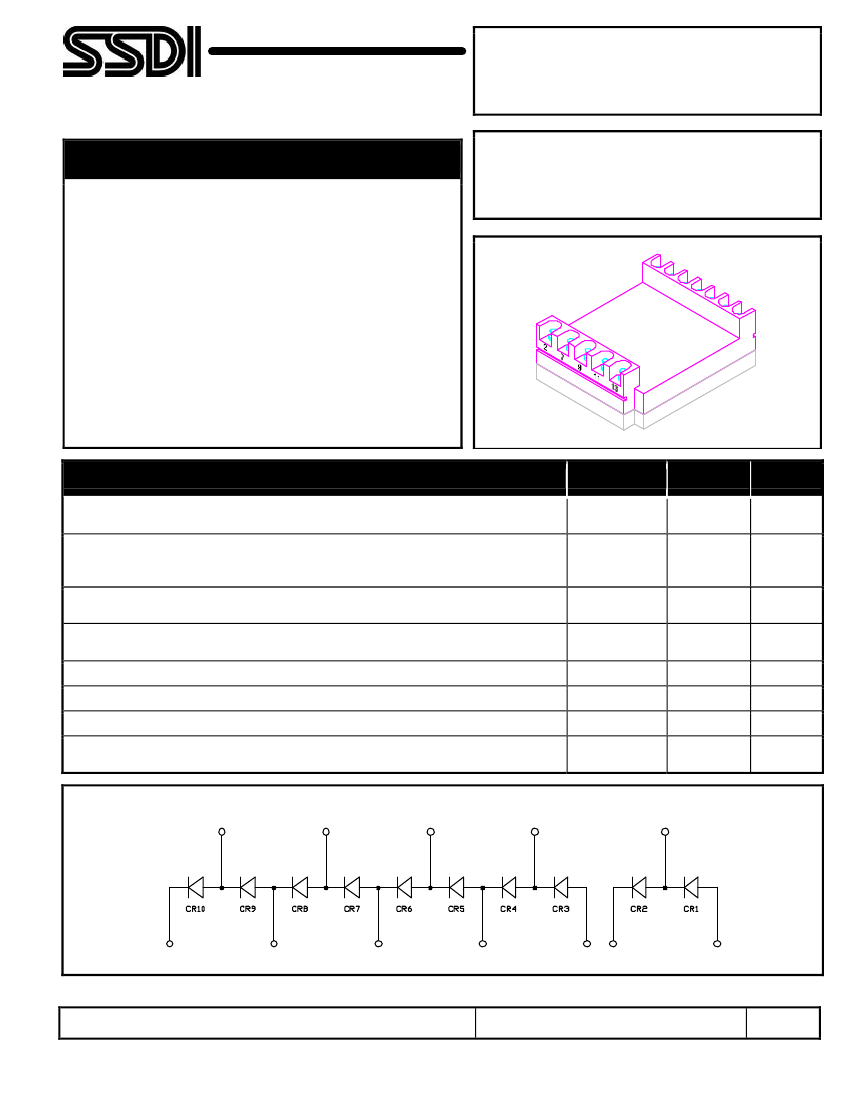

SPA548-01
Designer’s Data Sheet
FEATURES:
•
•
•
•
•
•
100kHz Operation
Airborne Application up to 50,000 ft
High Efficiency
Low EMI / Corona Discharge
Thermally Conductive Aluminum Base Plate
Helicoil Mounting Inserts
ESS Screening Available. Consult Factory.
Exterior Surfaces Sandblasted to Promote Adhesion of
Encapsulation in Subsequent Assembly
HIGH VOLTAGE
DIODE BRIDGE ASSEMBLY
5.5 kV / 2A
•
•
MAXIMUM RATINGS
(Per Leg, Unless Otherwise Specified)
Peak Repetitive Reverse Voltage and
DC Blocking Voltage
Half Wave Rectified Forward Current
Averaged Over Fully Cycle
(Resistive Load, 60 Hz, Sine Wave, T
C
=25
o
C)
Peak Surge Current
(T
C
=55
o
C, 8.3 ms Pulse, Superimposed on Rated Current at Rated Voltage)
Maximum Individual Partial Discharge
(V = 8kV, t = 1min, All Terminals in Common to Base)
Maximum Dielectric Voltage
Operating Temperature Range
(Base plate)
Storage Temperature Range
Maximum Thermal Resistance
(Per Diode)
Junction to Case
Electrical Schematic
E13
E11
E9
E7
Symbol
V
RRM
V
R
I
O
I
FSM
Value
2,000
2.0
20
10
Units
Volts
Amps
Amps
pC
Volts
o
o
V
DIEL
T
OP BASE
T
STG
R
θJC
8,000
-45 to +100
-55 to +150
15
C
C
ºC/W
E2
E14
E12
E10
E8
E5 E3
E1
NOTE:
All specifications are subject to change without notification.
SCD’s for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: PM0022B
DOC
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-7855 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com

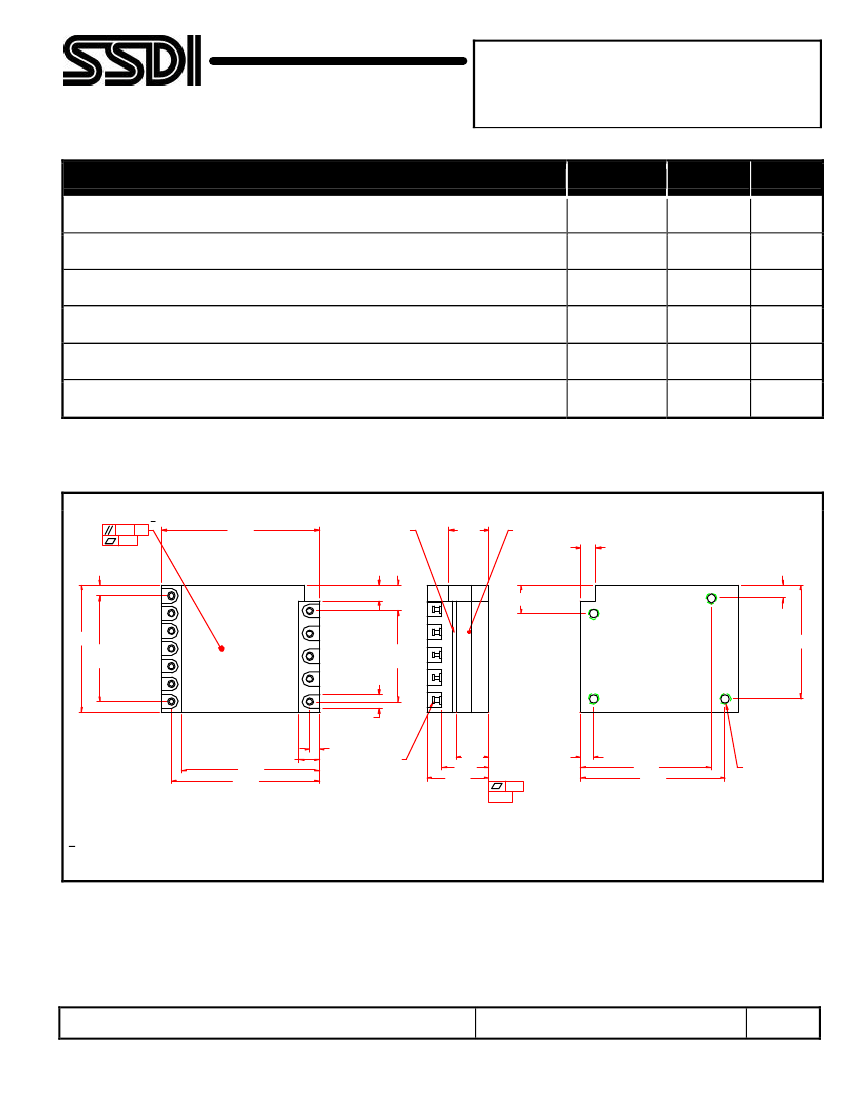

SPA548-01
ELECTRICAL CHARACTERISTICS
(Per Leg)
Max Instantaneous Forward Voltage Drop
(I
F
= 0.75 Adc, T
C
= 25
o
C, 300µs Pulse)
Max Reverse Leakage Current
( V
R
= 2kV, T
C
= 25
o
C)
Max Reverse Leakage Current
( V
R
= 2kV, T
C
= 100
o
C)
Maximum Junction Capacitance
(f = 1 MHz, V
R
=10 V, T
C
= 25
o
C)
Maximum Pin to Ground Capacitance
(f = 1 MHz, V
R
=100 V, T
C
= 25
o
C)
Maximum Reverse Recovery Time
(
I
F
= 0.5A, I
R
= 1.0A, I
RR
= 0.25A, T
C
= 25
ºC)
NOTES:
1.
2.
Symbol
V
F
I
R1
I
R2
C
J
C
B
t
RR
Max
6.0
5
25
20
30
35
Unit
V
µA
µA
pF
pF
nsec
Maximum forward voltage measured with instantaneous forward pulse of 300 µsec minimum.
For information on curves, contact the Factory Representative for Engineering Assistance
1/
.008
.005
A
2.655
SLOT
.063 WIDE x .040 DEEP
2 SIDES
.670
MARKING SURFACE
(2 PLACES)
.260
PACKAGE OUTLINE:
TOLERANCES:
(UNLESS OTHERWISE SPECIFIED)
.XX ±.02
.XXX ±.010
.178
E14
E12
E13
E11
.260
.430
.220
.480
2.125
6x .295
(=1.770)
E10
E8
E5
E3
E1
1.906
E9
E7
E2
12x .235
4x .380
(=1.520)
.170
.340
2.325
2.495
TERMINAL
160-1512-XX-05
(CAMBION)
.550
.785
1.040
.004
--A--
.220
2.201
2.437
4x .138-32 UNF-2B
HELICOIL INSERT
.315 MIN DEEP
NOTE:
1/ Specified Flatness and Parallelism applies to
the area of 2.125 x 1.980” min.
NOTE:
All specifications are subject to change without notification.
SCD’s for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: PM0022B
DOC
