SBRT20U60SP5_15 datasheet, PDF

Datasheet> All Categories > semiconductor> Discrete semiconductor> SBRT20U60SP5_15

SBRT20U60SP5_15: DescriptionRECTIFIER DIODE; Categorysemiconductor Discrete semiconductor; File Size425KB，5 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

SBRT20U60SP5_15 Overview

RECTIFIER DIODE

SBRT20U60SP5_15 Parametric

Parameter Name	Attribute value
state	ACTIVE
Diode type	RECTIFIER DIODE

Preview

Download Datasheet

View All

Green

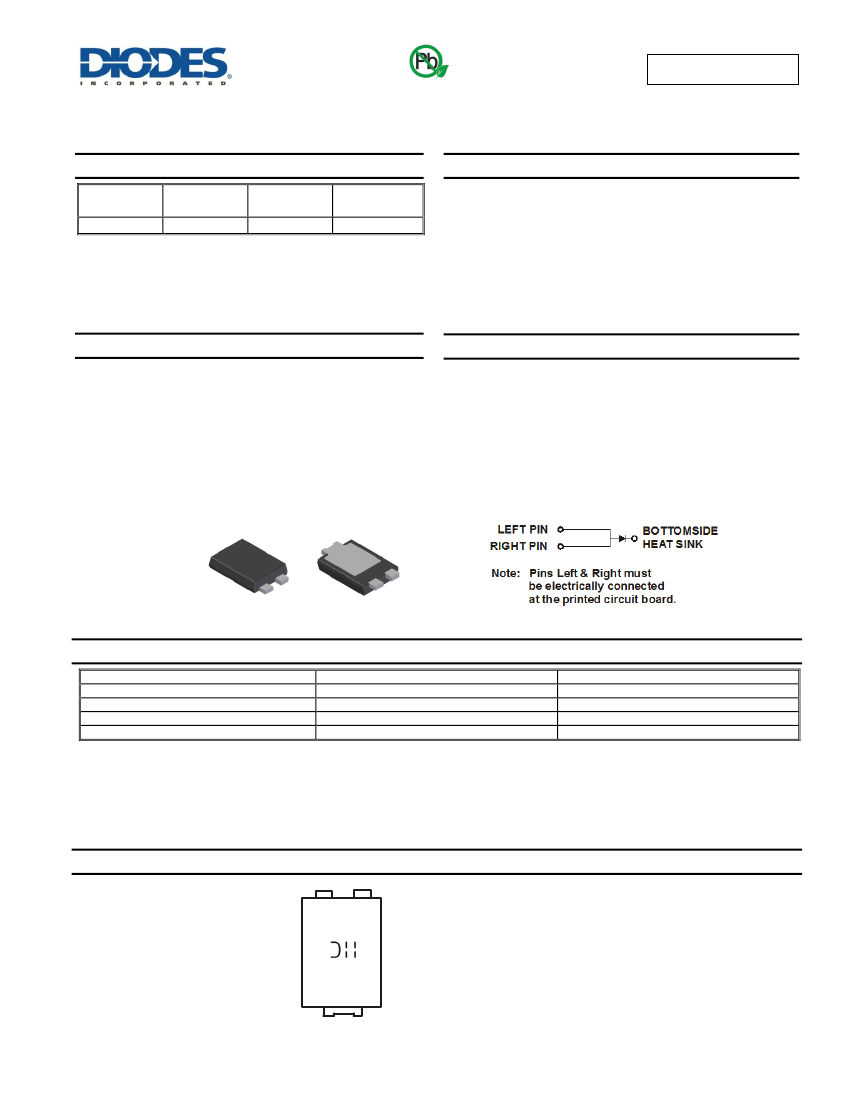

SBRT20U60SP5

20A TrenchSBR

TRENCH SUPER BARRIER RECTIFIER

POWERDI 5

Product Summary

RRM

(V)

(A)

F(MAX)

(V)

@+25°C

0.53

R(MAX)

(mA)

@+25°C

0.4

Features and Benefits



Ultra low forward voltage drop (V

) helps – minimizes power

losses

Excellent reverse leakage (I

) stability at higher temperatures

Thermally efficient package for cooler running applications

Less than 1.1mm package profile ideal for thin applications

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

NEW PRODUCT

ADVANCED INFORMATION

Description and Applications

Packaged in the compact thermally efficient POWERDI5 package, the

TrenchSBR SBRT20U60SP5 provides ultra-low forward voltage drop

) and provides excellent low reverse leakage stability at high

temperatures. It is ideal for use as a rectification, freewheeling or

polarity protection diode in applications such as:



>10W AC-DC Adaptors/Chargers

DC-DC Converters

POWERDI

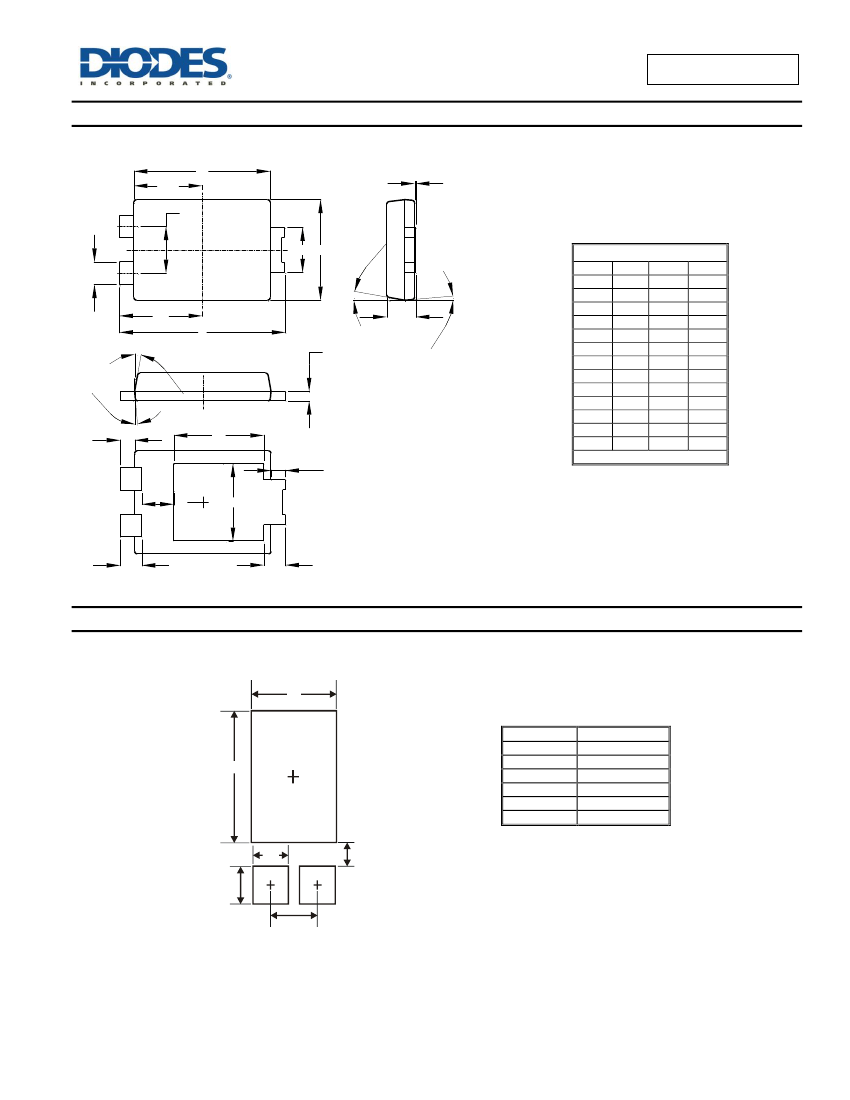

Mechanical Data



Case: POWERDI5

Case Material: Molded Plastic, “Green” Molding Compound;

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Diagram Below

Weight: 0.093 grams (Approximate)

Top View

Bottom View

Ordering Information

(Note 4)

Part Number

SBRT20U60SP5-13

SBRT20U60SP5-13D (Note 5)

SBRT20U60SP5-7

SBRT20U60SP5-7D (Note 5)

Notes:

Case

POWERDI

Packaging

5,000/Tape & Reel

1,500/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

5. POWERDI5 available in 5K quantity on 13-inch reel &12mm tape, part number suffix “13D”; 1.5K quantity on 7-inch reel also, part number suffix “7”.

Diodes also provides 12mm tape with 7inch reel, part number suffix ”7D”.

Marking Information

T20U60S

T15U50S

T20U60S = Product Type Marking Code

YYWW = Date Code Marking

YY = Last Two Digits of Year (ex: 14 = 2014)

K = Factory Designator

YYWWK

SBR and POWERDI are registered trademarks of Diodes Incorporated.

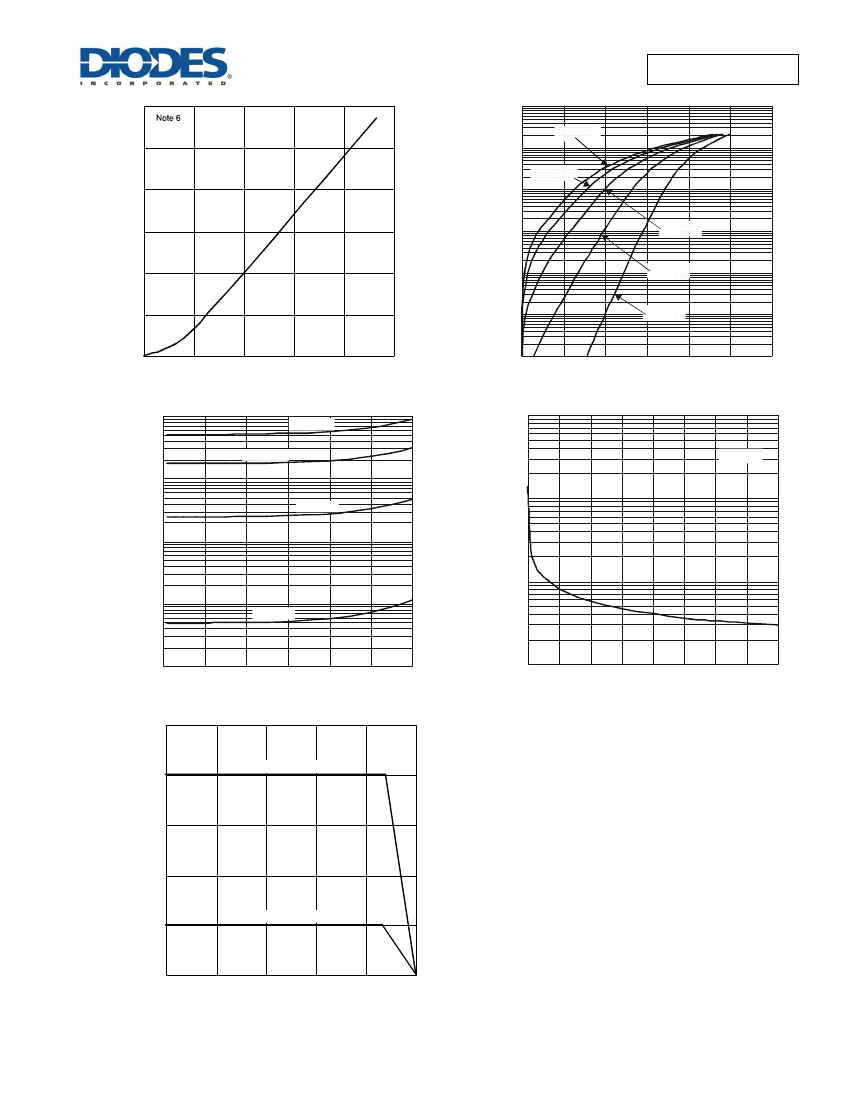

SBRT20U60SP5

Document number: DS36825 Rev. 4 - 2

1 of 5

www.diodes.com

April 2015
