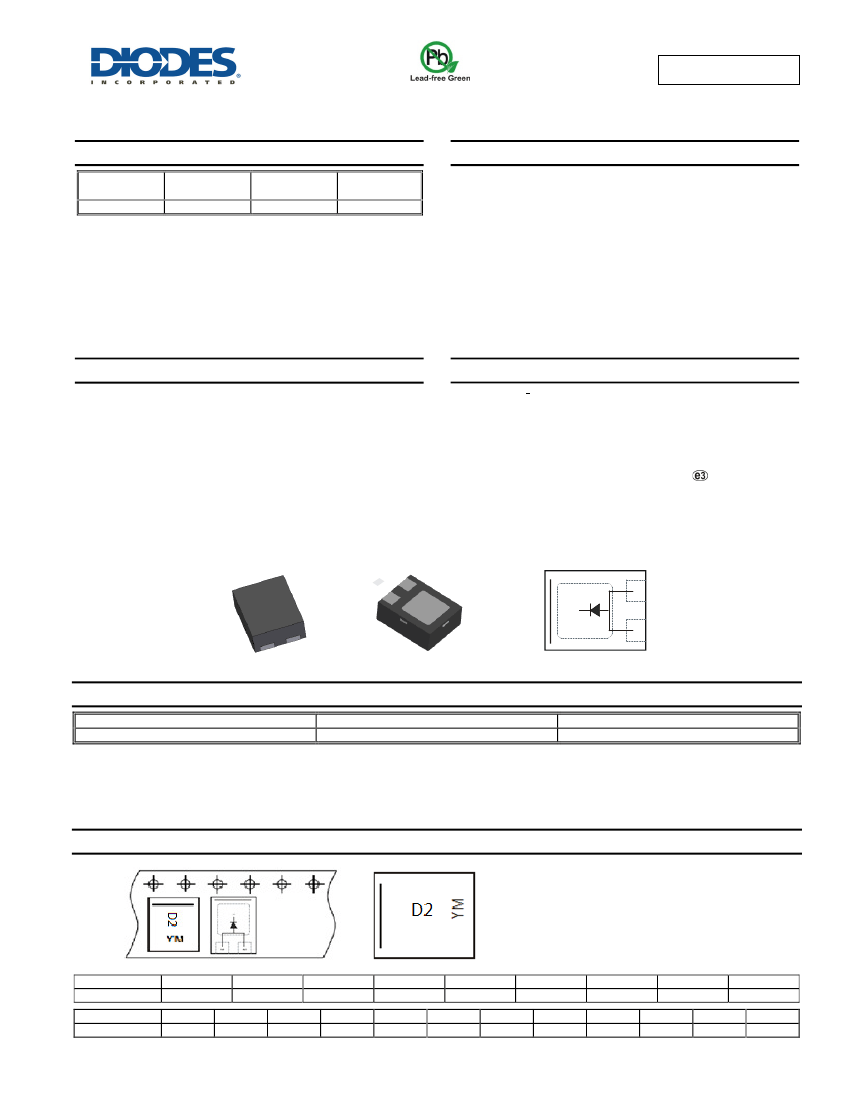

SBRT2U15LP
2A TrenchSBR
TRENCH SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V)
15
I
O
(A)
2
V
F(MAX)
(V)
@ +25°
C
0.48
I
R(MAX)
(mA)
@ +25°
C
0.1
Features and Benefits
•
Patented TrenchSBR technology provides superior avalanche
capability versus Schottky diodes, ensuring more rugged and
reliable end applications.
Reduced ultra-low forward voltage drop (V
F
).
Better efficiency and cooler operation.
Reduced high temperature reverse leakage.
Increased reliability against thermal runaway failure in high
temperature operation.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
•
•
•
•
•
Description and Applications
The SBRT2U15LP provides very low V
F
and excellent reverse
leakage stability at high temperatures. It is ideal for use as a bypass
diode and rectifier, freewheel diode or blocking diode in applications
such as:
•
•
•
•
•
Solar Panels
Blocking Diodes
Bypass Diodes
Boost Diodes
Recirculating Diode
X1-DFN1411-3
Mechanical Data
-
•
•
•
•
•
•
Case: X1 DFN1411-3
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: See Below
Weight: 2.35 mg (Approximate)
2
1
3
Top View
Bottom View
Top View
Internal Schematic
Ordering Information
(Note 4)
Part Number
SBRT2U15LP-7
Notes:
Case
X1-DFN1411-3
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
D2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 6 = June)
Bar = Cathode
Date Code Key
Year
Code
Month
Code
2014
B
Jan
1
Feb
2
2015
C
Mar
3
2016
D
Apr
4
2017
E
May
5
Jun
6
2018
F
Jul
7
2019
G
Aug
8
2020
H
Sep
9
Oct
O
2021
I
Nov
N
2022
J
Dec
D
March 2015
© Diodes Incorporated
SBRT2U15LP
Document number: DS37764 Rev. 3 - 2
1 of 5
www.diodes.com
SBRT2U15LP

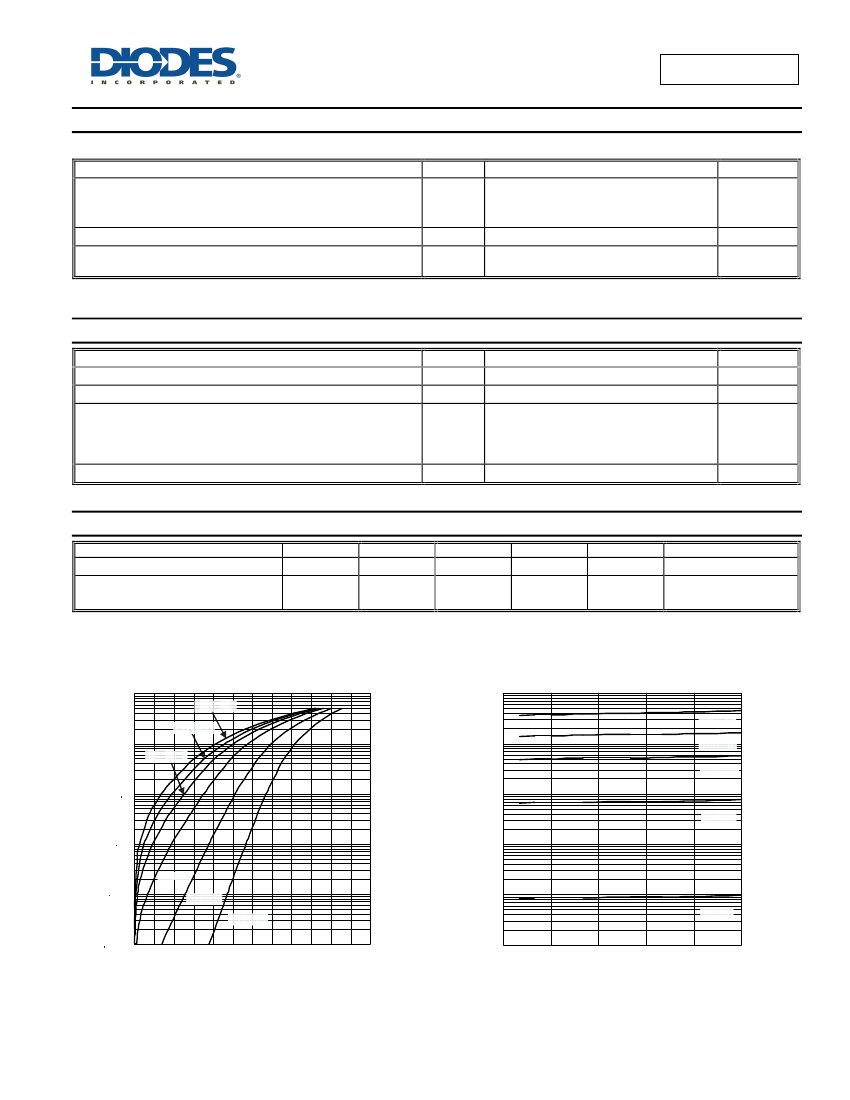

Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
Value
15
2
25
Unit
V
A
A
NEW PROD
ADVANCED INFORMATION
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Case (Note 5)
Typical Thermal Resistance Junction to Ambient (Note 5)
Operating Temperature Range
V
R
≤
80% V
RRM
V
R
≤
50% V
RRM
DC Forward Mode
Symbol
R
θJC
R
θJA
Value
25
100
-55 to +150
≤
+175
≤+200
-55 to +150
Unit
°
C/W
°
C/W
T
J
°
C
(Note 7)
Storage Temperature Range
T
STG
°
C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage Drop (Note 6)
Leakage Current (Note 6)
Notes:
Symbol
V
F
I
R
Min
—
—
—
Typ
—
—
5.7
Max
0.48
100
—
Unit
V
µA
mA
Test Condition
I
F
= 2A, T
J
= +25°
C
V
R
= 15V, T
J
= +25°
C
V
R
= 15V, T
J
= +125°
C
5. Device mounted on FR-4 PCB pad layout 1-inch 2oz copper.
6. Short duration pulse test used to minimize self-heating effect.
7. Max junction temperature guaranteed for two hours.
I
F
, INSTA NTANEOUS FORWARD CURRENT (A)
10
T
A
= 175°
C
T
A
= 150°
C
100000
T
A
=175°
C
I
R
, Reverse Leakage Current (µA)
1
T
A
= 125°
C
10000
T
A
=150°
C
T
A
=125°
C
0 1
.
1000
T
A
=85°
C
0 01
.
T
A
= 85°
C
100
0 001
.
T
A
= 25°
C
T
A
= -55°
C
10
T
A
=25°
C
0 0001
.
0
100
200
300
400
500
600
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 1 Typical Forward Characteristics
1
0
6
9
12
V
R
, REVERSE VOLTAGE (V)
Figure 2 Typical Reverse Characteristics
3
15
SBRT2U15LP
Document number: DS37764 Rev. 3 - 2
2 of 5
www.diodes.com
March 2015
© Diodes Incorporated
SBRT2U15LP
10000
f = 1MHz
150
Note 5
C
T
, JUNCTIO N CAPACI TANCE (pF)
125
T
A
, Ambient Temperature (
°
C)
0
3 4 5 6 7 8 9 10 11 12 13 14 15
-V
DS
, DRAIN-SOURCE VOLTAGE (V)
Figure 3 Typical Junction Capacitance
Single Pulse
1000
100
75
NEW PROD
ADVANCED INFORMATION
100
50
25
10
1 2
0
0
1.5
3 4.5 6 7.5 9 10.5 12 13.5 15
V
R
, DC REVERSE VOLTAGE (V)
Figure 4 Operating Temperature Derating
300
P
(PK)
, P EAK TRA NSIENT PO IWER (W)
R
θJA
= 210
°
C/W
R
θ
JA(t)
= r
(t)
* R
θ
JA
T
J
- T
A
= P * R
JA(t)
θ
200
100
0
0.0001 0.001 0.01 0.1
1
10
100 1000
t
1
, PULSE DURATION TIME (sec)
Figure 5 Single Pulse Maximum Power Dissipation
SBRT2U15LP
Document number: DS37764 Rev. 3 - 2
3 of 5
www.diodes.com
March 2015
© Diodes Incorporated
SBRT2U15LP
1
r(t), TR
ANSIENT THERM RESIST
AL
ANC
E
D = 0.9
D = 0.7
D = 0.5
D = 0.3
0.1
D = 0.1
D = 0.05
NEW PROD
ADVANCED INFORMATION
D = 0.02
0.01
D = 0.01
D = 0.005
R
θ
JA
(t) = r(t) * R
JA
θ
Single Pulse
R
θJA
= 210°
C/W
Duty Cycle, D = t1/ t2
0.001
0.0001
0.001
0.01
0.1
1
10
100
1000
t1, PULSE DURATION TIMES (sec)

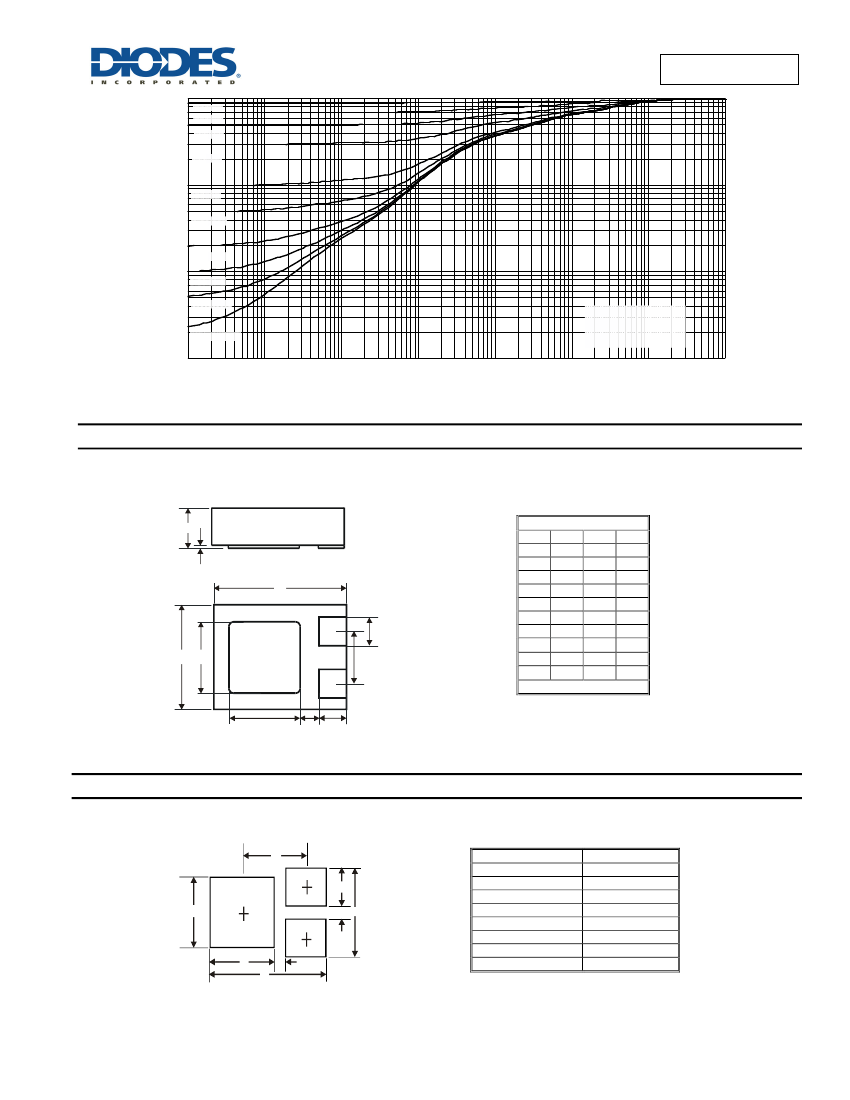

Figure 6 Transient Thermal Resistance
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
A
A1
D
b
E
E2
e
X1-DFN1411-3
Dim Min Max Typ
A
0.47 0.53 0.50
A1
0
0.05 0.02
b
0.25 0.35 0.30
D
1.35 1.475 1.40
D2
0.65 0.85 0.75
E
1.05 1.175 1.10
E2
0.65 0.85 0.75
e
0.55
L
0.225 0.325 0.275
L1
0.20
All Dimensions in mm
D2
L1
L
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
C
X2
X1
G2 X
Y
Z
G1
Dimensions
Z
G1
G2
X
X1
X2
Y
C
Value (in mm)
1.38
0.15
0.15
0.95
0.75
0.40
0.75
0.76
SBRT2U15LP
Document number: DS37764 Rev. 3 - 2
4 of 5
www.diodes.com
March 2015
© Diodes Incorporated
