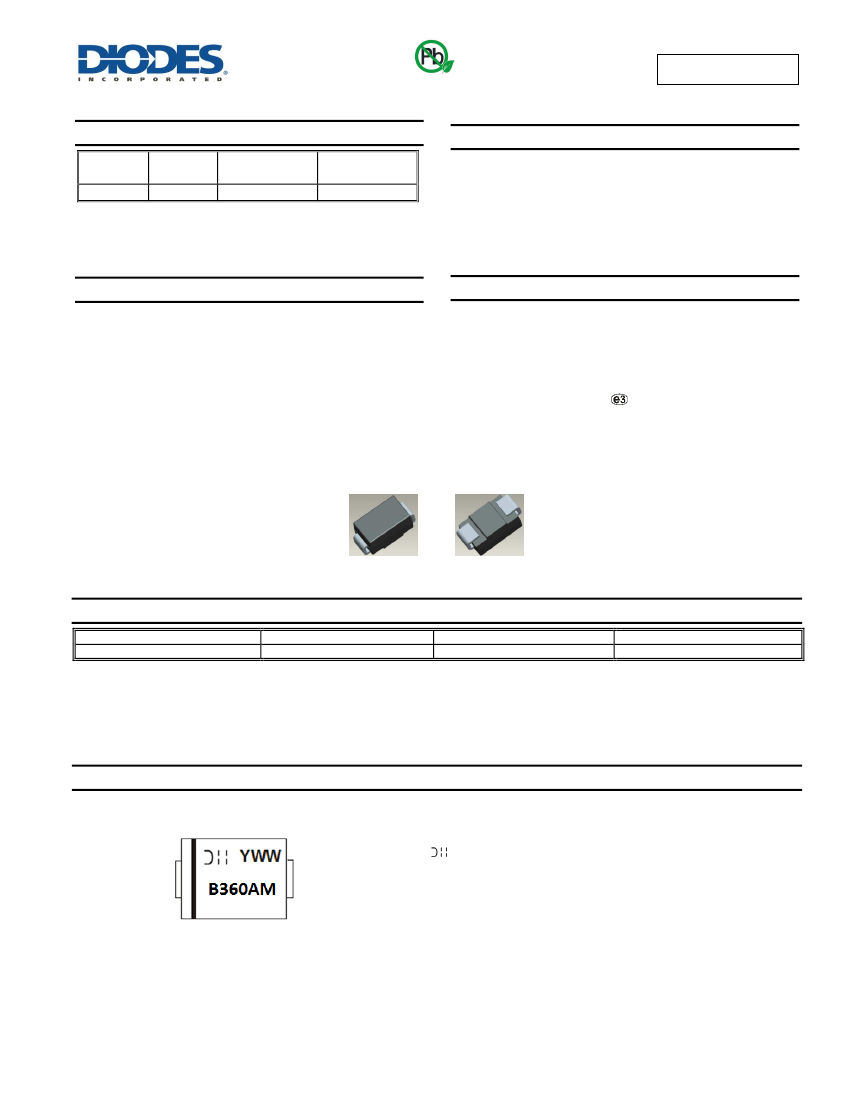

B360AM
3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Product Summary
V
RRM
(V)
I
O
(A)
3.0
V
F(MAX)
@ +25°C
(V)
0.70
I
R(MAX)
@ V
RRM
(mA)
0.10
Features
Guard Ring Die Construction for Transient Protection
Low Leakage at High Temperature
Low Power Loss, High Efficiency
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3)
Qualified to AEC-Q101 Standards for High Reliability
ADVANCED INFORMATION
60
Description and Applications
B360AM is a very low leakage version of B360A. For use in low
voltage, high frequency inverters, freewheeling, DC-DC converters,
and polarity protection applications.
Mechanical Data
SMA
Case: SMA
Case Material: Molded Plastic. “Green” Molding compound.
UL Flammability Classification 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead-Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.064 grams (Approximate)
Top View
Bottom View
Ordering Information
(Note 4)
Part Number*
B360AM-13-F
Notes:
Compliance
Standard
Case
SMA
Packaging
5,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SMA
B360AM = Product Type Marking Code
= Manufacturers’ Code Marking
YWW = Date Code Marking
Y = Last Digit of Year (ex: 14 for 2014)
WW = Week Code (01 to 53)
B360AM
Document number: DS37251 Rev. 2 - 2
1 of 5
www.diodes.com
February 2015
© Diodes Incorporated
B360AM
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
@ T
T
= +100°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
I
O
I
FSM
Value
60
3.0
80
Unit
V
A
A
ADVANCED INFORMATION
Thermal Characteristics
Characteristic
Typical Thermal Resistance, Junction to Ambient (Note 5)
Typical Thermal Resistance, Junction to Lead (Note 5)
Operating Temperature Range
Storage Temperature Range
Symbol
R
θJA
R
θJL
T
J
T
STG
Value
100
30
-55 to +150
-55 to +150
Unit
°C/W
°C/W
°C
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage Drop
Leakage Current (Note 6)
Total Capacitance
Notes:
Symbol
V
F
I
R
C
T
Min
—
Typ
0.60
0.54
0.003
2.4
130
Max
0.70
—
0.10
—
Unit
V
mA
pF
Test Condition
I
F
= 3.0A, T
A
= +25°C
I
F
= 3.0A, T
A
= +125°C
V
R
= 60V, T
A
= +25°C
V
R
= 60V, T
A
= +125°C
V
R
= 4V, f = 1MHz
—
—
—
—
—
5. Device mounted on FR-4 PCB, 1* 1 sq. inch, 2 oz Cu single-side with 0.1 * 0.15 sq. inch copper pad.
6. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
100
I
R
, INSTANTANEOUS REVERSE CURRENT (mA)
100
10
T
A
= 150°C
T
A
= 125°C
10
T
A
= 150°C
T
A
= 125°C
1
T
A
= 100°C
T
A
= 85°C
1
T
A
= 100°C
T
A
= 85°C
0.1
0.01
0.1
T
A
= 25°C
0.001
T
A
= 25°C
T
A
= -55°C
0.01
0.2
0.4
0.6
0.8
1.0
V
F
INSTANTANEOUS FORWARD VOLTAGE (V)

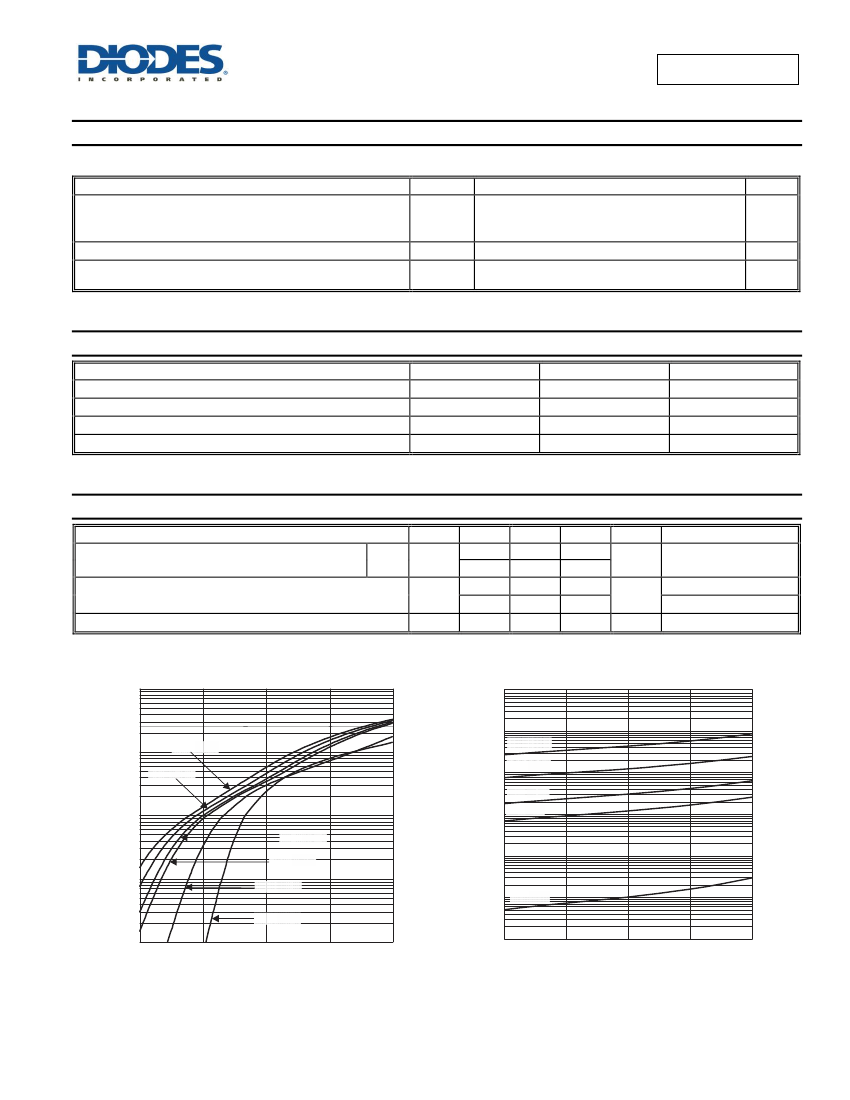

Figure 1 Typical Forward Characteristics
0.0001
20
40
60
80
100
V
R
, PERCENT OF RATED REVERSE VOLTAGE (V)
Figure 2 Typical Reverse Characteristics
B360AM
Document number: DS37251 Rev. 2 - 2
2 of 5
www.diodes.com
February 2015
© Diodes Incorporated
B360AM
500
f = 1MHz
T
j
= 25°C
500
450
p(pk), Peak Transient Power (W)
ADVANCED INFORMATION
C
T
, Total Capacitance (pF)
400
400
350
300
250
200
150
100
50
Single Pulse
Rthja(t)=Rthja * r(t)
Tj-Ta=P * Rthja (t)
300
200
100
0
0
1
100
10
V
R
, DC REVERSE VOLTAGE (V)

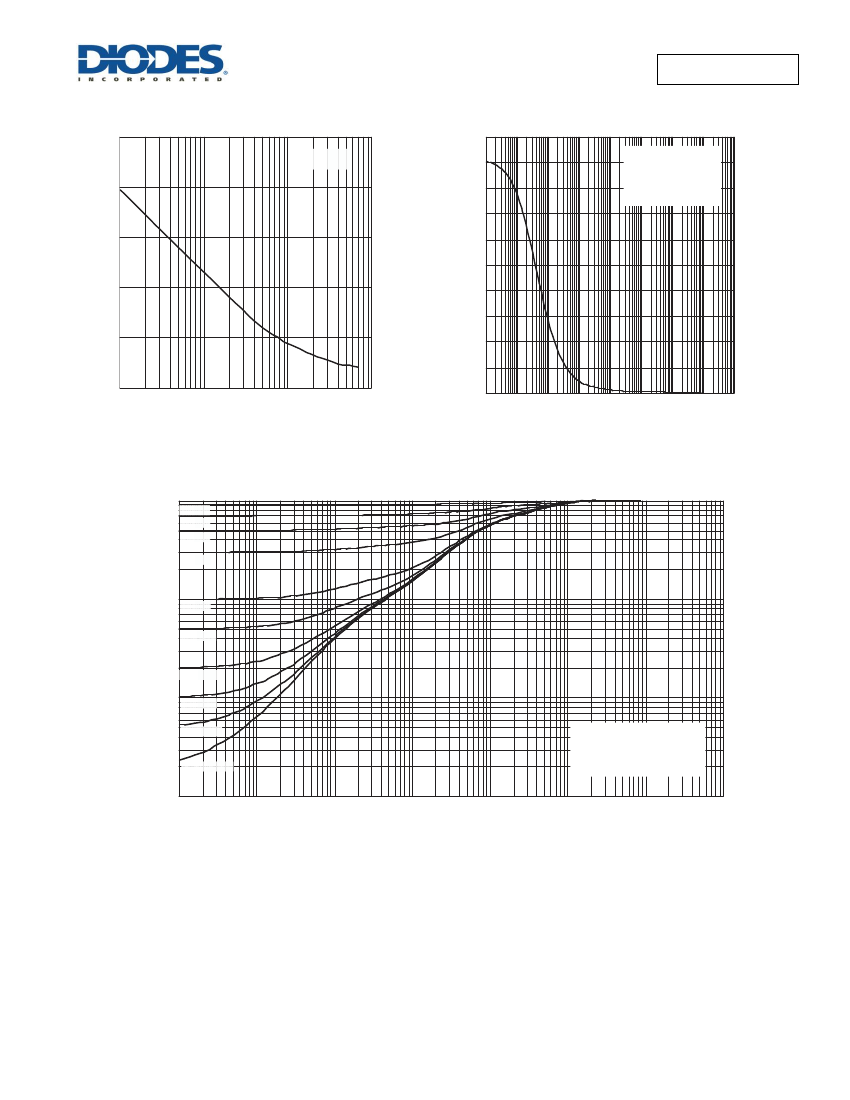

Figure 3 Total Capacitance vs. Reverse Voltage
0
0.0001
0.01
1
100
10000
t1, PULSE DURATION TIME (s)
Figure 4 Single Pulse Maximum Power Dissipation
1
D = 0.9
D = 0.7
D = 0.5
D = 0.3
r(t), TRANSIENT THERMAL RESISTANCE
0.1
D = 0.1
D = 0.05
D = 0.02
0.01
D = 0.01
D = 0.005
Rthja(t)=r(t) * Rthja
Duty Cycle, D=t1 / t2
Single Pulse
0.001
0.001
0.01
0.1
1
10
100
t1, PULSE DURATION TIME (sec)
Figure 5 Transient Thermal Resistance
1000
10000
B360AM
Document number: DS37251 Rev. 2 - 2
3 of 5
www.diodes.com
February 2015
© Diodes Incorporated
B360AM
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
B
ADVANCED INFORMATION
SMA
A
C
D
J
H
E
G
Dim
Min
Max
A
2.29
2.92
B
4.00
4.60
C
1.27
1.63
D
0.15
0.31
E
4.80
5.59
G
0.05
0.20
H
0.76
1.52
J
1.96
2.40
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X
Y
X1
Dimensions
C
G
X
X1
Y
Value
(in mm)
4.00
1.50
2.50
6.50
1.70
G
C
B360AM
Document number: DS37251 Rev. 2 - 2
4 of 5
www.diodes.com
February 2015
© Diodes Incorporated
B360AM
