ISL6430CB

Description
SWITCHING CONTROLLER, 1000kHz SWITCHING FREQ-MAX, PDSO14, PLASTIC, MS-012AB, SOIC-14
CategoryPower/power management    The power supply circuit
File Size393KB，12 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric View All

ISL6430CB Overview

SWITCHING CONTROLLER, 1000kHz SWITCHING FREQ-MAX, PDSO14, PLASTIC, MS-012AB, SOIC-14

ISL6430CB Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerRenesas Electronics Corporation
Parts packaging codeSOIC
package instructionSOP, SOP14,.25
Contacts14
Reach Compliance Codenot_compliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesSWITCHING CONTROLLER
control modeVOLTAGE-MODE
Control TechnologyPULSE WIDTH MODULATION
Maximum input voltage13.2 V
Minimum input voltage10.8 V
Nominal input voltage12 V
JESD-30 codeR-PDSO-G14
JESD-609 codee0
length8.65 mm
Number of functions1
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP14,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height1.75 mm
surface mountYES
Switch configurationPUSH-PULL
Maximum switching frequency1000 kHz
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width3.9 mm

ISL6430CB Preview

®
ISL6430
Data Sheet
July 2003
FN9017.2
Single Sync Buck PWM Controller for
Broadband Gateway Applications
The ISL6430 provides complete control and protection for a
DC-DC converter optimized for high-performance broadband
gateway applications. It is designed to drive two N Channel
MOSFETs in a synchronous-rectified buck topology. The
ISL6430 integrates all of the control, output adjustment,
monitoring and protection functions into a single package.
The output voltage of the converter can be precisely
regulated to as low as 1.27V, with a maximum tolerance of
±1%
over temperature and line voltage variations.
The ISL6430 provides simple, single feedback loop, voltage-
mode control with fast transient response. It includes a
200kHz free-running triangle-wave oscillator that is
adjustable from below 50kHz to over 1MHz. The error
amplifier features a 15MHz gain-bandwidth product and
6V/µs slew rate which enables high converter bandwidth for
fast transient performance. The resulting PWM duty ratio
ranges from 0% to 100%.
The ISL6430 protects against over-current conditions by
inhibiting PWM operation. The ISL6430 monitors the current
by using the r
DS(ON)
of the upper MOSFET which eliminates
the need for a current sensing resistor.
Features
• Drives Two N-Channel MOSFETs
• Operates From +5V or +12V Input
• Simple Single-Loop Control Design
- Voltage-Mode PWM Control
• Fast Transient Response
- High-Bandwidth Error Amplifier
- Full 0% to 100% Duty Ratio
• Excellent Output Voltage Regulation
- 1.27V Internal Reference
-
±1%
Over Line Voltage and Temperature
• Over-Current Fault Monitor
- Does Not Require Extra Current Sensing Element
- Uses MOSFETs r
DS(ON)
• Small Converter Size
- Constant Frequency Operation
- 200kHz Free-Running Oscillator Programmable from
50kHz to Over 1MHz
• 14-Lead SOIC and 16-Lead QFN
Applications
• Cable Modems, Set-Top Boxes and DSL Modems
• DSP and Core Communications Processor Supplies
Ordering Information
TEMP.
PART NUMBER RANGE (
o
C)
ISL6430CB
ISL6430CR
0 to 70
0 to 70
PACKAGE
14 Ld SOIC
16 Ld QFN
PKG. DWG. #
M14.15
L16.5x5B
• High-Power 5V Input DC-DC Regulators
• Low-Voltage Distributed Power Supplies
Add -T suffix to either option for tape and reel packaging.
Pinout
ISL6430 (SOIC)
TOP VIEW
RT
OCSET
SS
COMP
FB
EN
GND
1
2
3
4
5
6
7
14 VCC
SS
13 PVCC
12 LGATE
11 PGND
10 BOOT
9
8
UGATE
PHASE
NC
COMP
FP
EN
1
2
3
4
5
NC
6
GND
7
PHASE
8
UGATE
12
11
10
9
PVCC
LGATE
PGND
BOOT
ISL6430 (QFN)
TOP VIEW
OCSET
VCC
13
16
15
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
|
Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright © Intersil Americas Inc. 2003. All Rights Reserved.
All other trademarks mentioned are the property of their respective owners.
RT
14
ISL6430

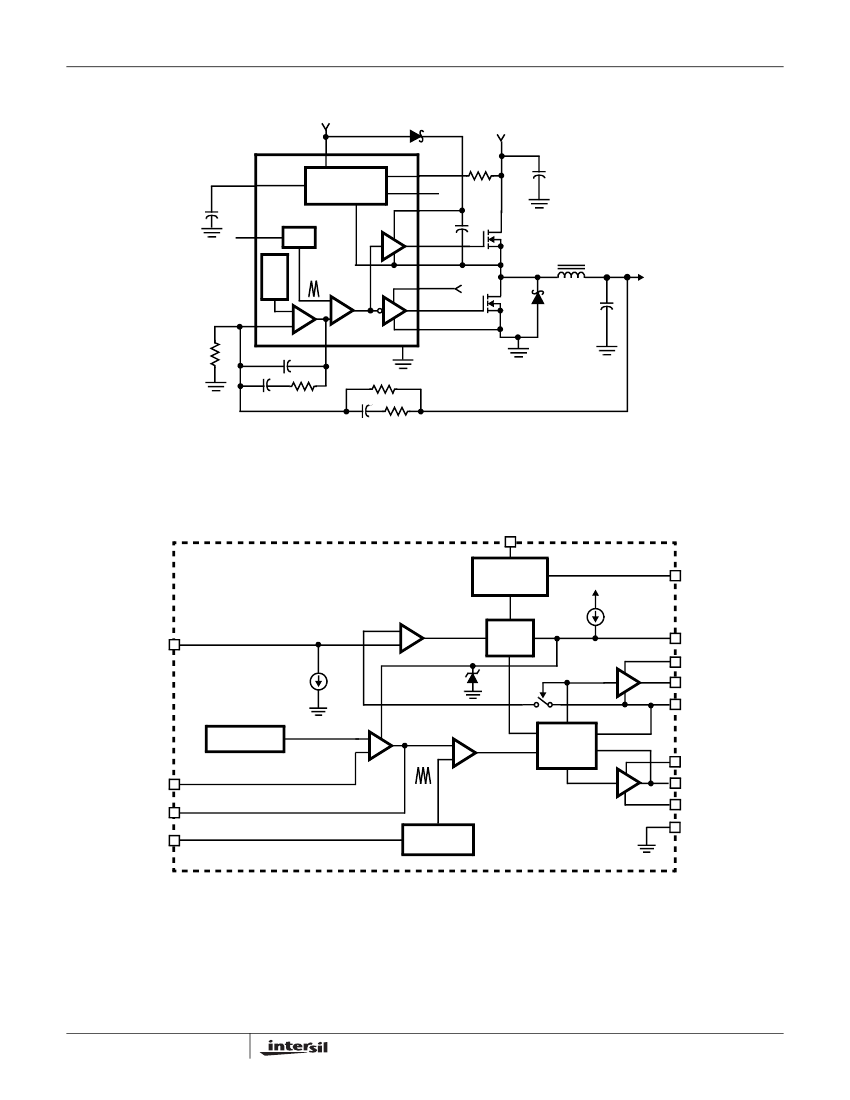

Typical Application
12V
VCC
OCSET
MONITOR AND
PROTECTION
EN
BOOT
RT
+5V OR +12V
SS
OSC
ISL6430
REF
-
+
UGATE
PHASE
+V
O
PVCC
LGATE
PGND
GND
+12V
FB
+
-
COMP
Block Diagram
VCC
POWER-ON
RESET (POR)
10µA
OCSET
+
-
OVER-
CURRENT
4V
SOFT-
START
EN
SS
BOOT
UGATE
PHASE
200µA
1.27 VREF
REFERENCE
+
-
ERROR
AMP
PWM
COMPARATOR
+
-
INHIBIT
PWM
GATE
CONTROL
LOGIC
PVCC
LGATE
PGND
FB
COMP
GND
RT
OSCILLATOR
