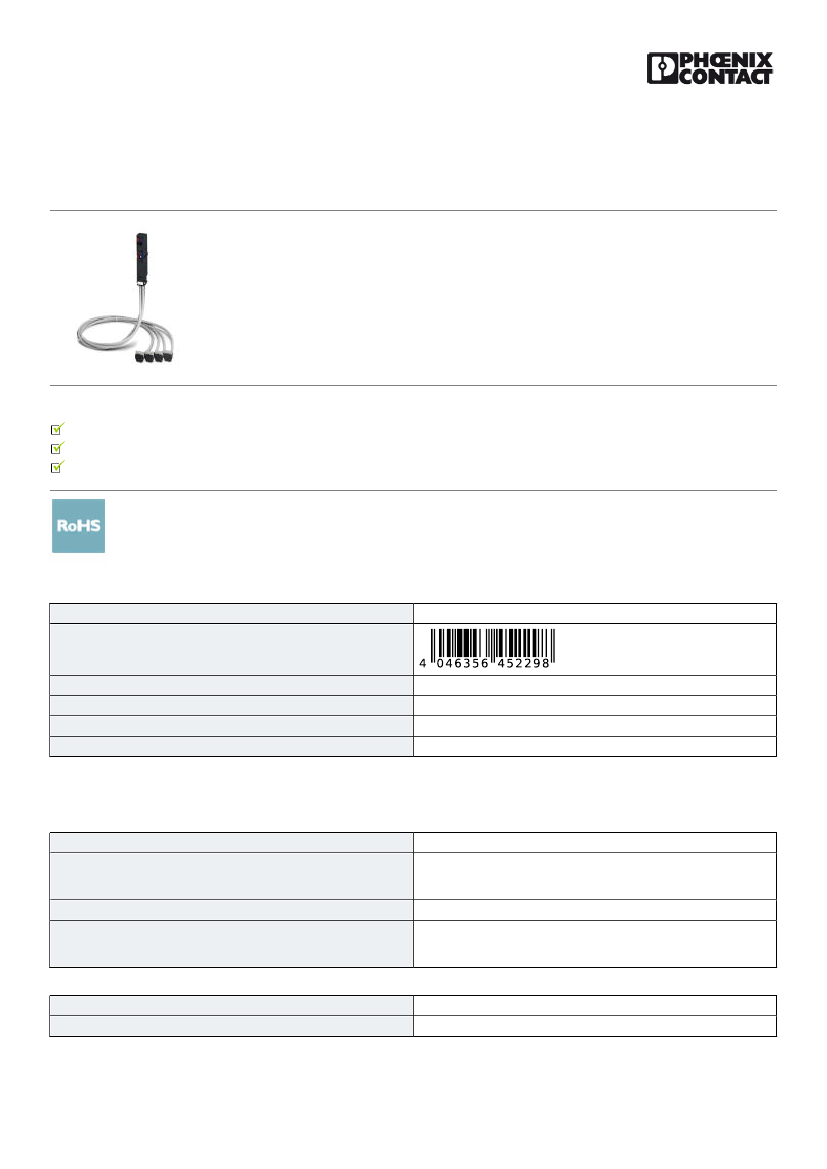

Front adapters - VIP-PA-FLK50/4X14/ 0,5M/S7 - 2322553
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
VIP VARIOFACE front adapter, with connected system cables for SMATIC S7-300, 4 x 8 channels can be
connected, cable length: 0.5 m
Your advantages
Power supply via terminal blocks with spring-cage double connection
Can be screwed on with the I/O module
Encapsulated socket strips on the module side
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356452298
325.700 g
85444290
Germany
1 pc
Technical data
Note
Type of note
Note
Type of note
Note
Notes on operation
Analog I/O cards
To avoid short-circuits, all wire bridges must be disconnected!
No voltage supply may be supplied to the front adapter!
Notes on operation
Digital I/O cards
Thanks to the existing wire bridge upon delivery, the input and output
bytes are non-isolated.
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
12/28/2018 Page 1 / 7
https://www.phoenixcontact.com/in/products/2322553
Front adapters - VIP-PA-FLK50/4X14/ 0,5M/S7 - 2322553
Technical data
General
Max. permissible operating voltage
Max. permissible current
Mounting position
Degree of protection
< 50 V AC
60 V DC
1 A (per path)
8 A (Separate power supply)
any
IP20
Connection data 1
Connection name
Connection method
Note
Control side
Plug connection
Can be plugged onto 40-pos. I/O modules
Connection data 2
Connection name
Connection method
Number of connections
Number of positions
Pitch
Field level
IDC/FLK socket strip
4
14
2.54 mm
Connection data 3
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Supply
Push-in connection
10 mm
0.2 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm²
24 ... 14
Cable
Conductor construction: Number of litz wires:
Single wire, material
Single wire, cross section
External diameter
Length of cable
Shielding
Halogen-free cable
Max. conductor resistance
7
Cu tin-plated
0.14 mm²
6.4 mm
0.5 m
no
No
0.16 Ω/m
Supported controller
Controller
- suitable I/O card
SIEMENS S7-300 / ET 200 M
CPU 313C
CPU 313C-2PtP
CPU 313C-2DP
CPU 314C-2PtP
12/28/2018 Page 2 / 7
https://www.phoenixcontact.com/in/products/2322553
Front adapters - VIP-PA-FLK50/4X14/ 0,5M/S7 - 2322553
Technical data
Supported controller
CPU 314C-2DP
6ES7 321-1BL00-0AA0
6ES7 322-1BL00-0AA0
6ES7 322-8BH01-0AB0
6ES7 322-8BH10-0AB0
6ES7 323-1BL00-0AA0
6ES7 331-7NF00-0AB0
6ES7 331-7NF10-0AB0
6ES7 331-7PF01-0AB0
6ES7 331-7PF11-0AB0
6ES7 350-2AH01-0AE0
6ES7 357-4AH01-0AE0
6ES7 331-1KF02-0AB0
Standards and Regulations
Connection in acc. with standard
Standards/regulations
Rated insulation voltage
Rated surge voltage
Insulation
Degree of pollution
Overvoltage category
CUL
IEC 60664
DIN EN 50178
63 V
0.6 kV
Functional insulation
2
II
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
-
-
1
2
3
4
5
6
7
8
9
10
SP
11
12
13
14
15
16
17
18
19
20
SP
+
+
BR
bl
9
11
13
1
2
3
4
5
6
7
8
10
12
14
9
11
13
1
2
3
4
5
6
7
8
10
12
14
9
11
13
1
2
3
4
5
6
7
8
10
12
14
21
22
23
24
25
26
27
28
29
30
9
11
13
1
2
3
4
5
6
7
8
10
12
14
31
32
33
34
35
36
37
38
39
40
BR
rd
12/28/2018 Page 3 / 7
https://www.phoenixcontact.com/in/products/2322553
Front adapters - VIP-PA-FLK50/4X14/ 0,5M/S7 - 2322553
Classifications
eCl@ss
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27249290
27061800
27249200
27249290
27249290
27242292
ETIM
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC002584
EC002584
EC002584
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
26121620
26121620
26121620
26121620
32151601
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
50 V
1A
FILE E 238705
12/28/2018 Page 4 / 7
https://www.phoenixcontact.com/in/products/2322553
Front adapters - VIP-PA-FLK50/4X14/ 0,5M/S7 - 2322553
Approvals
cUL Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
50 V
1A
FILE E 238705
EAC
RU C-
DE.A*30.B00767
cULus Recognized

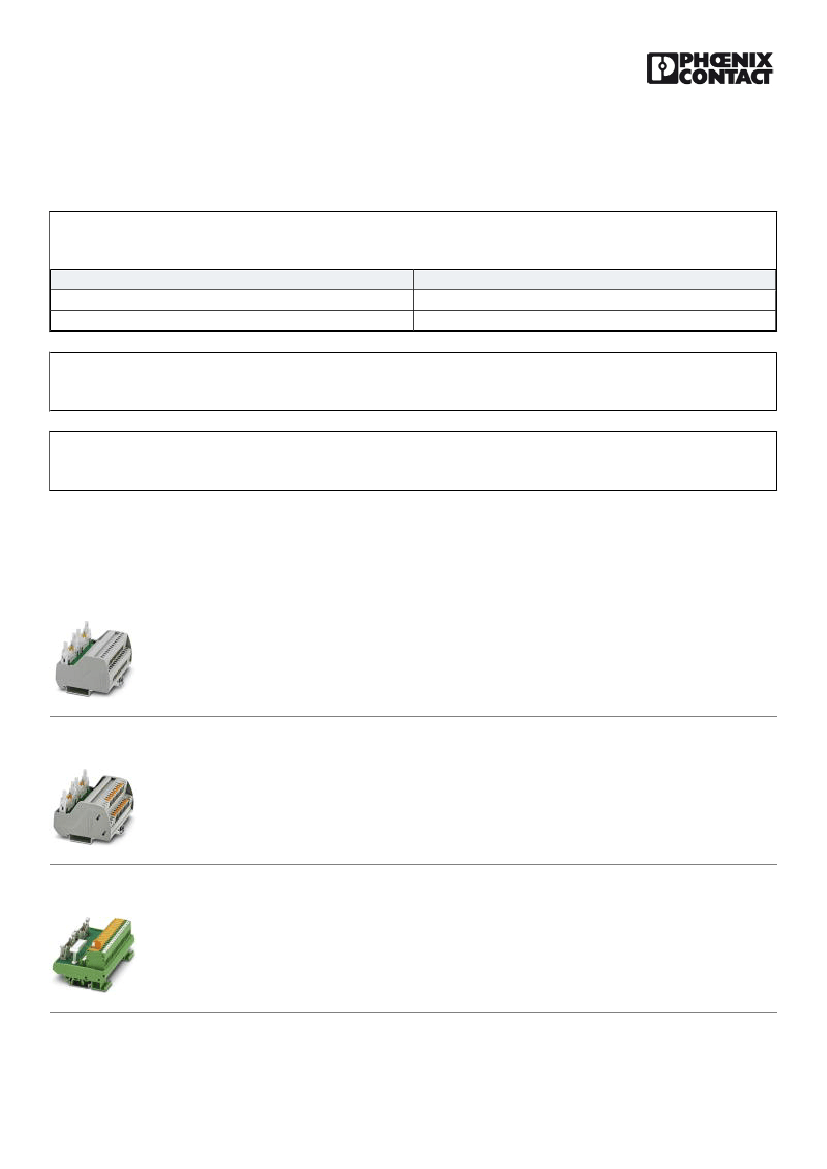

Accessories
Accessories
Controller board
Passive module - VIP-2/SC/2FLK14 (1-20) /S7 - 2315230
VARIOFACE interface module for Siemens SIMATIC® S7-300, for max. 16 channels with SIMATIC®-specific labeling
(1 - 20), with screw connection, module width: 80.6 mm
Passive module - VIP-2/PT/2FLK14 (1-20) /S7 - 2903802
VARIOFACE interface module for Siemens SIMATIC® S7-300, for max. 16 channels with SIMATIC®-specific labeling
(1 - 20), with push-in connection, module width: 82.5 mm
Passive module - FLKM-2FLK14/KDS3-MT/PPA/S7 - 2295062
VARIOFACE interface module for Siemens SIMATIC® S7-300, for max. 16 channels, with SIMATIC®-specific
labeling (1 - 20), knife disconnect terminal block and test connection, module width: 113 mm
