DATASHEET
EL5160, EL5161, EL5260, EL5261, EL5360
200MHz Low-Power Current Feedback Amplifiers
The EL5160, EL5161, EL5260, EL5261, and EL5360 are
current feedback amplifiers with a bandwidth of 200MHz and
operate from just 0.75mA supply current. This makes these
amplifiers ideal for today’s high speed video and monitor
applications.
With the ability to run from a single supply voltage from
5V to 10V, these amplifiers are ideal for handheld, portable, or
battery-powered equipment.
The EL5160, EL5260, and EL5360 also incorporate an enable
and disable function to reduce the supply current to 14µA
typical per amplifier. Allowing the CE pin to float or applying a
low logic level enables the corresponding amplifier.
The EL5160 is available in the 6 Ld SOT-23 and 8 Ld SOIC
packages, the EL5161 in 5 Ld SOT-23 package, the EL5260 in
the 10 Ld MSOP package, the EL5261 in 8 Ld SOIC package,
the EL5360 in 16 Ld SOIC and QSOP packages. All operate
over the industrial temperature range of -40°C to +85°C.
FN7387
Rev 11.00
August 11, 2015
Features
• 200MHz -3dB bandwidth
• 0.75mA supply current
• 1700V/µs slew rate
• Single and dual supply operation, from 5V to 10V supply span
• Fast enable/disable (EL5160, EL5260 and EL5360 only)
• Available in SOT-23 packages
• Pb-Free (RoHS compliant)
Applications
• Battery-powered equipment
• Handheld, portable devices
• Video amplifiers
• Cable drivers
• RGB amplifiers
• Test equipment
• Instrumentation
• Current-to-voltage converters
Pinouts
EL5160
(8 LD SOIC)
TOP VIEW
NC 1
IN- 2
IN+ 3
VS- 4
-
+
8 CE
7 VS+
6 OUT
5 NC
OUT 1
VS- 2
IN+ 3
+ -
EL5160
(6 LD SOT-23)
TOP VIEW
6 VS+
5 CE
4 IN-
OUT 1
VS- 2
IN+ 3
EL5161
(5 LD SOT-23)
TOP VIEW
5 VS+
+ -
4 IN-
EL5260
(10 LD MSOP)
TOP VIEW
OUT 1
IN- 2
IN+ 3
VS- 4
CE 5
-
+
-
+
10 VS+
9 OUT
8 IN-
7 IN+
6 CE
OUTA 1
INA- 2
INA+ 3
VS- 4
EL5261
(8 LD SOIC)
TOP VIEW
8 VS+
-
+
-
+
7 OUTB
6 INB-
5 INB+
EL5360
(16 LD SOIC, QSOP)
TOP VIEW
INA+ 1
CEA 2
VS- 3
CEB 4
INB+ 5
NC 6
CEC 7
INC+ 8
+
-
+
-
-
+
16 INA-
15 OUTA
14 VS+
13 OUTB
12 INB-
11 NC
10 OUTC
9 INC-
FN7387 Rev 11.00
August 11, 2015
Page 1 of 17
EL5160, EL5161, EL5260, EL5261, EL5360
Ordering Information
PART NUMBER
(Notes 2, 3)
EL5160ISZ
EL5160ISZ-T7 (Note 1)
EL5160ISZ-T7A (Note 1)
EL5160ISZ-T13 (Note 1)
EL5160IWZ-T7 (Note 1)
EL5160IWZ-T7A (Note 1)
EL5161IWZ-T7 (Note 1)
EL5161IWZ-T7A (Note 1)
EL5260IYZ
(No longer available or supported)
EL5260IYZ-T7 (Note 1)
(No longer available or supported)
EL5260IYZ-T13 (Note 1)
(No longer available or supported)
EL5261ISZ
(No longer available or supported)
EL5261ISZ-T7 (Note 1)
(No longer available or supported)
EL5261ISZ-T13 (Note 1)
(No longer available or supported)
EL5360ISZ
(No longer available or supported)
EL5360ISZ-T7 (Note 1)
(No longer available or supported)
EL5360ISZ-T13 (Note 1)
(No longer available or supported)
EL5360IUZ(No longer available or
supported)
EL5360IUZ-T7 (Note 1)
(No longer available or supported)
EL5360IUZ-T13 (Note 1)
(No longer available or supported)
NOTES:
1. Please refer to
TB347
for details on reel specifications.
2. Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate
termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL
classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
3. For Moisture Sensitivity Level (MSL), please see product information page for
EL5160, EL5161, EL5260, EL5261, EL5360.
For more information on
MSL, please see tech brief
TB363.
4. The part marking is located on the bottom of the part.
PART MARKING
5160ISZ
5160ISZ
5160ISZ
5160ISZ
BAAN (Note 4)
BAAN (Note 4)
BAJA (Note 4)
BAJA (Note 4)
BAAAK
BAAAK
BAAAK
5261ISZ
5261ISZ
5261ISZ
EL5360ISZ
EL5360ISZ
EL5360ISZ
5360IUZ
5360IUZ
5360IUZ
TAPE & REEL
-
7”
7”
13”
7” (3k pcs)
7” (250 pcs)
7” (3k pcs)
7” (250 pcs)
-
7”
13”
-
7”
13”
-
7”
13”
-
7”
13”
PACKAGE
(Pb-free)
8 Ld SOIC (150 mil)
8 Ld SOIC (150 mil)
8 Ld SOIC (150 mil)
8 Ld SOIC (150 mil)
6 Ld SOT-23
6 Ld SOT-23
5 Ld SOT-23
5 Ld SOT-23
10 Ld MSOP (3.0mm)
10 Ld MSOP (3.0mm)
10 Ld MSOP (3.0mm)
8 Ld SOIC (150 mil)
8 Ld SOIC (150 mil)
8 Ld SOIC (150 mil)
16 Ld SOIC (150 mil)
16 Ld SOIC (150 mil)
16 Ld SOIC (150 mil)
16 Ld QSOP (150 mil)
16 Ld QSOP (150 mil)
16 Ld QSOP (150 mil)
PKG.
DWG. #
M8.15E
M8.15E
M8.15E
M8.15E
P6.064A
P6.064A
P6.064A
P6.064A
M10.118A
M10.118A
M10.118A
M8.15E
M8.15E
M8.15E
MDP0027
MDP0027
MDP0027
MDP0040
MDP0040
MDP0040
FN7387 Rev 11.00
August 11, 2015
Page 2 of 17
EL5160, EL5161, EL5260, EL5261, EL5360
Absolute Maximum Ratings
(T
A
= +25°C)
3
Thermal Information
Maximum Operating Junction Temperature . . . . . . . . . . . . . . . . . . +125°C
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . see curves on page 7
Maximum Storage Temperature Range . . . . . . . . . . . . . -65°C to +150°C
Ambient Operating Temperature Range . . . . . . . . . . . . . . -40°C to +85°C
Pb-free reflow profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see link below
http://www.intersil.com/pbfree/Pb-FreeReflow.asp
Supply Voltage between V
S
+ and V
S
-. . . . . . . . . . . . . . . . . . . . . . . . . . 13.2V
Maximum Continuous Output Current . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Slew Rate of V
S
+ to V
S
- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1V/µs
Pin Voltages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . (V
S
-) - 0.5V to (V
S
+) + 0.5V
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and
operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
Electrical Specifications
V
S
+ = +5V, V
S
- = -5V, R
F
= 750Ω for A
V
= 1, R
L
= 150Ω, V
CE, H
= V
S
+, V
CE, L
= (V
S
+) -3V, T
A
= +25°C, Unless
Otherwise Specified. Boldface limits apply across the operating temperature range, -40°C to +85°C.
PARAMETER
AC PERFORMANCE
BW
-3dB Bandwidth
A
V
= +1, R
L
= 500Ω
A
V
= +2, R
L
= 150Ω
BW1
SR
0.1dB Bandwidth
Slew Rate
R
L
= 100Ω
V
O
= -2.5V to +2.5V, A
V
= +2, R
F
= R
G
= 1kΩ,
R
L
= 100Ω
EL5260, EL5261
SR
t
S
e
N
i
N
-
i
N
+
HD2
HD3
dG
dP
Differential Gain Error (Note 5)
Differential Phase Error (Note 5)
500Ω Load
0.1% Settling Time
Input Voltage Noise
IN- Input Current Noise
IN+ Input Current Noise
5MHz, 2.5V
P-P
, R
L
= 150Ω, A
V
= +2
5MHz, 2.5V
P-P
, R
L
= 150Ω, A
V
= +2
A
V
= +2
A
V
= +2
V
OUT
= -2.5V to +2.5V, A
V
= +2
900
800
200
125
10
1700
1300
1360
35
4
7
8
-74
-50
0.1
0.1
2500
2500
MHz
MHz
MHz
V/µs
V/µs
V/µs
ns
nV/√Hz
pA/√Hz
pA/√Hz
dBc
dBc
%
°
DESCRIPTION
CONDITIONS
MIN
(Note 6)
TYP
MAX
(Note 6)
UNIT
DC PERFORMANCE
V
OS
T
C
V
OS
R
OL
Offset Voltage
Input Offset Voltage Temperature
Coefficient
Open Loop Transimpedance Gain
Measured from T
MIN
to T
MAX
±2.5V
OUT
into 150Ω
800
-5
1.6
6
2000
+5
mV
µV/°C
INPUT CHARACTERISTICS
CMIR
CMRR
-ICMR
+I
IN
-I
IN
R
IN
C
IN
Common Mode Input Range
Common Mode Rejection Ratio
- Input Current Common Mode Rejection
+ Input Current
- Input Current
Input Resistance
Input Capacitance
Guaranteed by CMRR test
V
IN
= ±3V
±3
50
-1
-4
-5
1.5
4
1
±3.3
62
75
+1
+4
+5
15
V
dB
µA/V
µA
µA
pF
FN7387 Rev 11.00
August 11, 2015
Page 3 of 17
EL5160, EL5161, EL5260, EL5261, EL5360
V
S
+ = +5V, V
S
- = -5V, R
F
= 750Ω for A
V
= 1, R
L
= 150Ω, V
CE, H
= V
S
+, V
CE, L
= (V
S
+) -3V, T
A
= +25°C, Unless
Otherwise Specified. Boldface limits apply across the operating temperature range, -40°C to +85°C. (Continued)
PARAMETER
OUTPUT CHARACTERISTICS
V
O
Output Voltage Swing
R
L
= 150Ω to GND
R
L
= 1kΩ to GND
I
OUT
SUPPLY
I
SON
Supply Current - Enabled, per Amplifier
No load, V
IN
= 0V (EL5160, EL5161, EL5260,
EL5261)
No load, V
IN
= 0V (EL5360)
I
SOFF
+
I
SOFF
-
PSRR
-IPSR
Supply Current - Disabled, per Amplifier
Supply Current - Disabled, per Amplifier
Power Supply Rejection Ratio
- Input Current Power Supply Rejection
No load, V
IN
= 0V, Only EL5160, EL5260,
EL5360
DC, V
S
= ±4.75V to ±5.25V
DC, V
S
= ±4.75V to ±5.25V
0.6
0.6
0
-25
65
-0.5
0.75
0.8
10
-14
74
0.1
0.5
0.85
0.92
25
0
mA
mA
µA
µA
dB
µA/V
Output Current
R
L
= 10Ω to GND
±3.1
±3.8
40
±3.4
±4.0
70
±3.8
±4.2
140
V
V
mA
DESCRIPTION
CONDITIONS
MIN
(Note 6)
TYP
MAX
(Note 6)
UNIT
Electrical Specifications
ENABLE (EL5160, EL5260, EL5360 ONLY)
t
EN
t
DIS
I
CE, H
I
CE, L
Enable Time
Disable Time
CE Pin Input High Current
CE Pin Input Low Current
CE = V
S
+
CE = (V
S
+) - 5V
1
-1
600
800
5
0
25
1
ns
ns
µA
µA
NOTE:
5. Standard NTSC test, AC signal amplitude = 286mV
P-P
, f = 3.58MHz.
6. Compliance to datasheet limits is assured by one or more methods: production test, characterization and/or design.
Typical Performance Curves
3
4
NORMALIZED GAIN (dB)
-1
NORMALIZED GAIN (dB)
10M
FREQUENCY (Hz)
100M
1G
1
2
0
-3 V = +5V
S+
V
S-
= -5V
R
L
= 150Ω
-5 A = 2
V
R
F
= 806Ω
R
G
= 806Ω
-7
100k
1M
-2
V
S+
= +5V
V
S-
= -5V
-4 A
V
= 1
R
L
= 500Ω
R
F
= 2800Ω
-6
100k
1M
10M
FREQUENCY (Hz)
100M
1G
FIGURE 1. FREQUENCY RESPONSE (A
V
= +2)
FIGURE 2. FREQUENCY RESPONSE (A
V
= +1)
FN7387 Rev 11.00
August 11, 2015
Page 4 of 17
EL5160, EL5161, EL5260, EL5261, EL5360

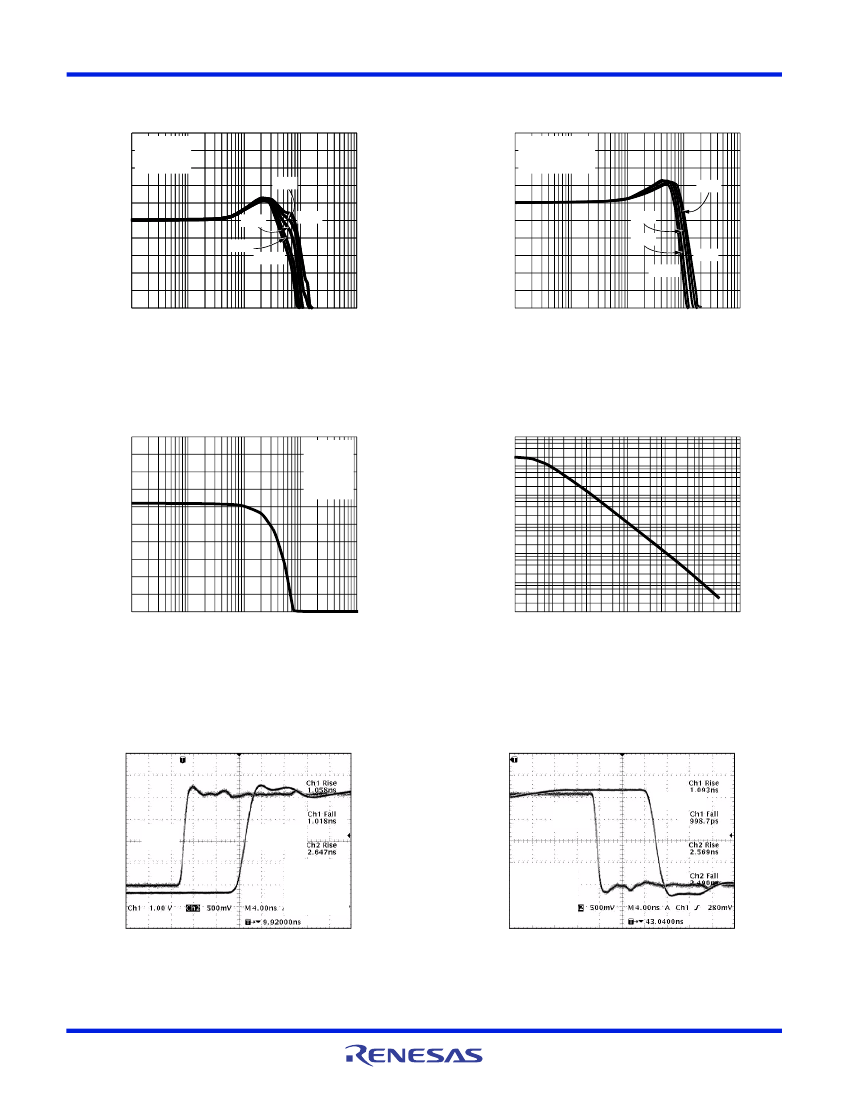

Typical Performance Curves
5
R
L
= 500Ω
R
F
= 2.7kΩ
3 A
V
= 1
±5V
1
±4V
-1
±3V
±2.5V
-3
±6V
(Continued)
4
NORMALIZED GAIN (dB)
NORMALIZED GAIN (dB)
A
V
= 2
R
L
=150Ω
2 R
F
= R
G
= 762Ω
±5V
0
±4V
-2
±3V
±6V
-4
±2.5V
-5
100k
1M
10M
FREQUENCY (Hz)
100M
1G
-6
100k
1M
10M
FREQUENCY (Hz)
100M
1G
FIGURE 3. FREQUENCY RESPONSE FOR VARIOUS ±V
S
FIGURE 4. FREQUENCY RESPONSE FOR VARIOUS
SUPPLY VOLTAGES
4
NORMALIZED GAIN (dB)
TRANSIMPEDANCE (Ω)
2
V
S+
= +5V
V
S-
= -5V
A
V
= 10
R
L
= 500Ω
R
F
= 560Ω
10M
1M
100k
10k
1k
100
10
1k
0
-2
-4
-6
100k
1M
10M
FREQUENCY (Hz)
100M
1G
10k
100k
1M
10M
100M
1G
FREQUENCY (Hz)
FIGURE 5. FREQUENCY RESPONSE (A
V
= +10)
FIGURE 6. OPEN LOOP TRANSIMPEDANCE GAIN vs FREQUENCY
(R
OL
)
INPUT
1V/DIV
OUTPUT
500mV/DIV
V
S+
= +5V
V
S-
= -5V
A
V
= 2
R
L
= 150Ω
R
F
= R
G
= 422Ω
4ns/DIV
INPUT
1V/DIV
OUTPUT
500mV/DIV
V
S+
= +5V
V
S-
= -5V
A
V
= 2
R
L
= 150Ω
R
F
= R
G
= 422Ω
4ns/DIV
FIGURE 7. OUTPUT RISE TIME
FIGURE 8. OUTPUT FALL TIME
FN7387 Rev 11.00
August 11, 2015
Page 5 of 17
Share the solution of realizing TFT industrial serial port screen
[font=Verdana, Helvetica, Arial, sans-serif][size=14px]The LT768 industrial serial port screen solution provides 50 control instructions and 2 development modes. Users can use the graphic UI editor in...
cjc59717407 Microchip MCU
I have a question for you guys
Hello everyone, I am working on the EZ430RF project and encountered a problem: how to add the dat file to the main program like a header file, the one with the h icon as shown in the picture: , ah, I ...
lhqalex Microcontroller MCU
I'm begging for an electronic circuit course to design an electronic password lock! ! .
[table=72%,#ffffff][tr][td][/td][td=1,1,97%][table][tr][td]Design requirements: Design an electronic password lock. Enter the password in the unlocked state. The password is four digits in total. Use ...
liyiling24@con MCU
【Contribute to C2000】Dead zone research based on TMS320F28335
Research on Dead Zone Based on TMS320F28335...
0212009623 Microcontroller MCU
Dr. Dot is giving away ARDUINO UNO PCB for free (only students are eligible for application)
Dr. Dot is giving away ARDUINO UNO PCB for free (only students can apply): I have been sorting things out these two days and found the ARDUINO UNO compatible PCB I made before. A Bluetooth to COM port...
圆点博士 DIY/Open Source Hardware
[HPM-DIY] HPM6750 peripheral LCDC driver RGB screen high frame rate video playback
The LCD peripheral functions of HPM6750 are relatively complete, and the underlying interfaces of the SDK are mostly complete. Basically, you can directly look at the interface definition without touc...
RCSN Domestic Chip Exchange

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2457  408  250  1449  578  50  9  6  30  12
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
