Two Terminals
SMD Switching Diode
TWD160WT
Two Terminals SMD Switching Diode
Features
•
•
•
•
Low Forward Voltage
Fast Reverse Recovery Time
Small Total Capacitance
RoHS Compliant
SOD-523
Mechanical Data
Case:
Terminals:
Polarity:
Weight:
SOD-523, Plastic Case
Solderable per MIL-STD-750, Method 2026
Color band denotes cathode end
Approx. 0.0016 gram
Maximum Ratings
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Marking Code
Description
TWD160WT
UF
80
85
300
100
2.0
-
150
-55 to +150
V
V
mA
mA
A
mW
°C
°C
Unit
Conditions
V
RM
V
RRM
I
FM
I
F(AV)
I
FSM
P
D
T
J
T
STG
Reverse Voltage
Peak Reverse Voltage
Max. Peak Forward Current
Max. Forward Average Current at T
A=
25° C
Peak Forward Surge Current, Pulse Width=1.0us
Power Dissipation Derate above 25°C
Junction Temperature
Storage Temperature Range
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. B/AH
Page 1 of 5
Two Terminals SMD Switching Diode
TWD160WT
Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Description
TYP.
0.6
MAX.
-
-
1.2
0.5
3.0
4.0
V
µA
pF
ns
Unit
Conditions
V
F
I
R
C
T
T
rr
Max. Forward Voltage
Reverse Current
Total Capacitance
Max. Reverse Recovery Time
0.72
0.9
-
0.9
1.6
I
F
=1mA
I
F
=10mA
I
F
=100mA
V
R
=80V
V
R
=0V,
f
=1MHz
I
F
=10mA ,
Typical Characteristics Curves

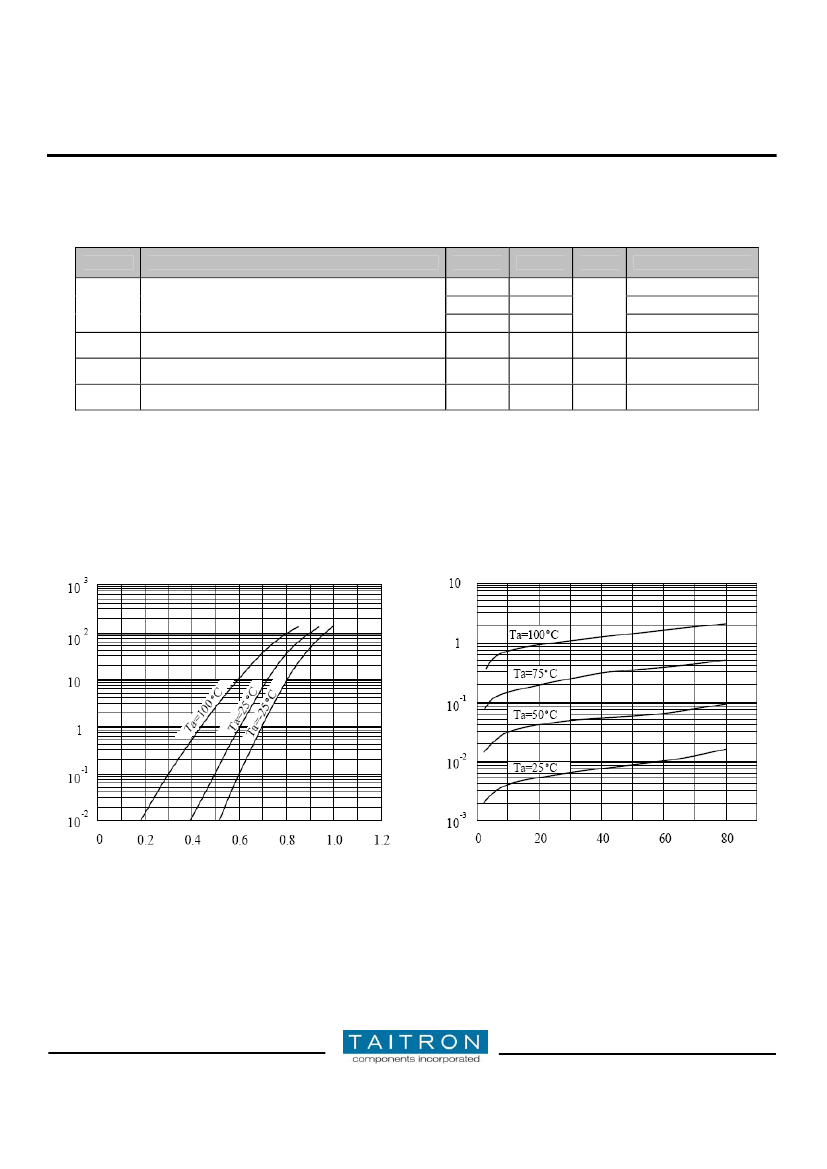

Fig.1- Typical Instantaneous
Forward Characteristics
Fig.2- Typical Instantaneous
Reverse Characteristics Curve
I
F
Forward Current (mA)
I
R
Reverse Current (µA)
Forward Voltage (V)
Reverse Voltage (V)
Rev. B/AH
www.taitroncomponents.com
Page 2 of 5
Two Terminals SMD Switching Diode
TWD160WT

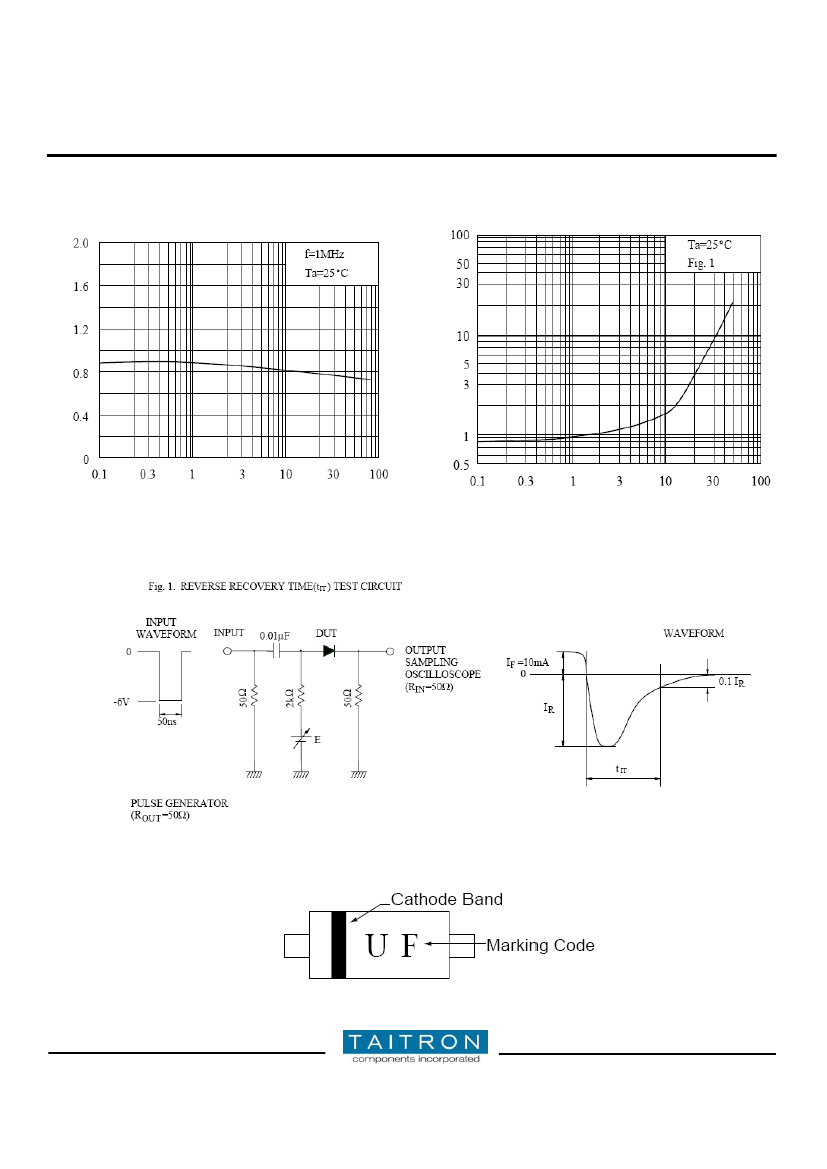

Fig.3- C
T
– V
R
Fig.4-
T
rr
–
I
F
Reverse Voltage (V)
Trr Reverse Recovery Time (ns)
C
T
Total Capacitance (pF)
Forward Current (mA)
Marking Information:
Rev. B/AH
www.taitroncomponents.com
Page 3 of 5
Two Terminals SMD Switching Diode
TWD160WT

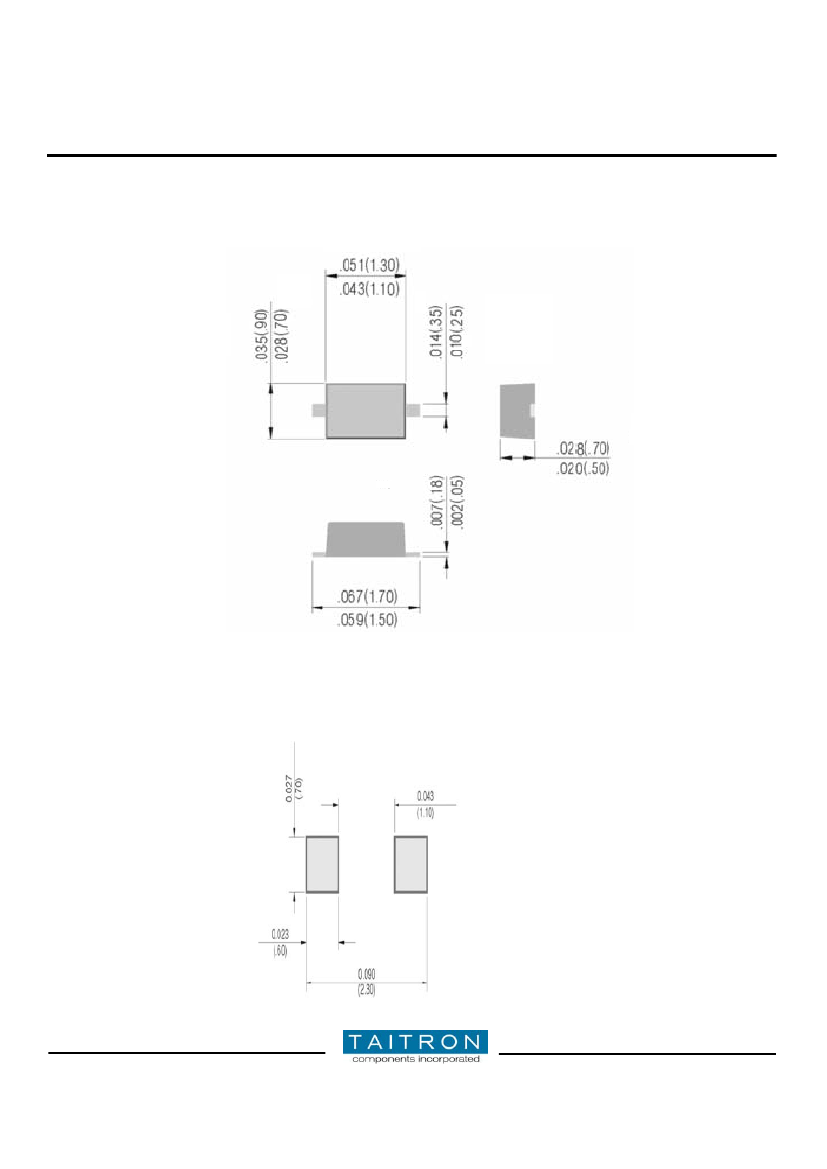

Dimensions in inch (mm)
SOD-523
Mounting Pad Layout in inch (mm)
Rev. B/AH
www.taitroncomponents.com
Page 4 of 5
