Getting Started with the ARMIC30 Evaluation Board

Preview

Download Datasheet

View All

UM0193

User manual

Getting Started with the ARMIC30 Evaluation Board

(ARM Core-based Industrial Controller using STR730 MCU)

Introduction

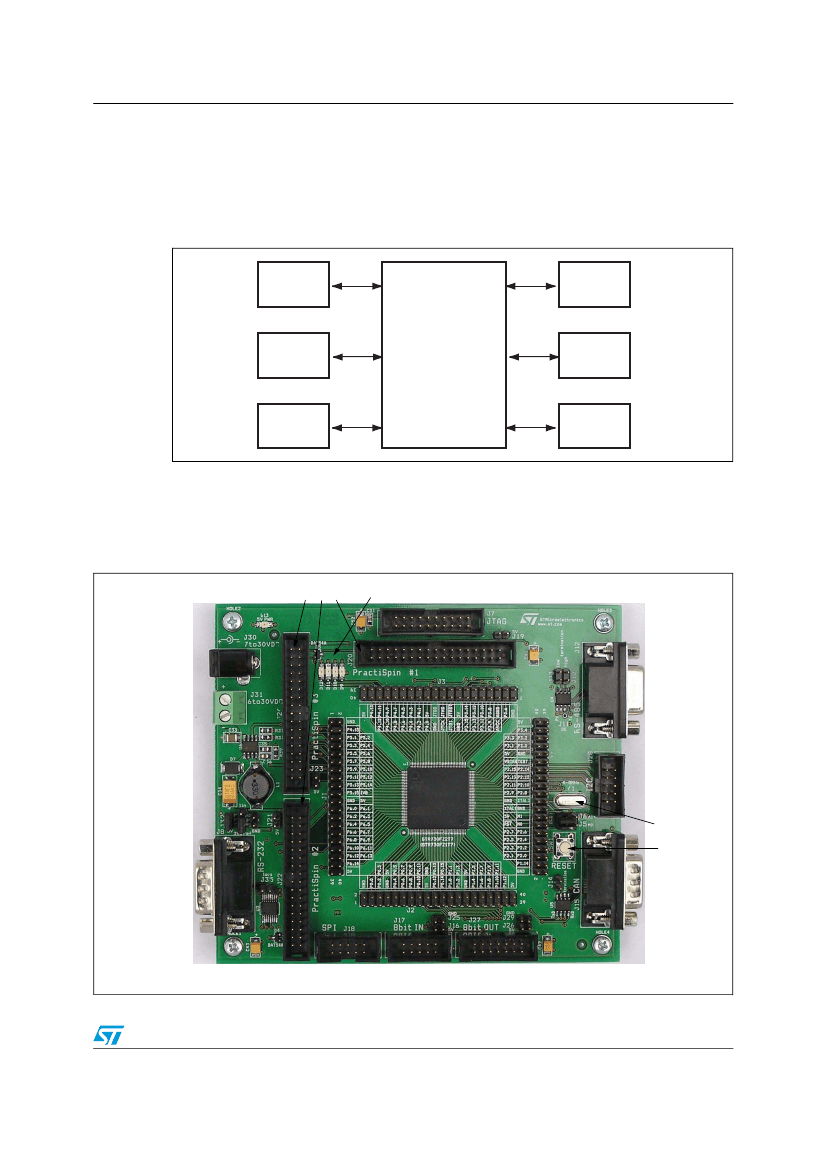

This user manual describes the implementation of the ARMIC30 Evaluation Board. The

ARMIC30 can be used to evaluate a variety of devices, especially microcontrollers, with the

added advantage that all pins are available on logically structured and well-documented

header pins.

Applications are based on 32-bit STR730F microcontroller that uses a powerful ARM7TDMI

core providing an extensive range of peripheral functions and enhanced I/O capabilities.

The ARMIC30 is equipped with RS-232, RS-485, CAN, SPI, I²C and JTAG communication

interfaces.

The evaluation board also includes digital input/output connectors and three motor control

connectors with a pinout compatible with PowerSpin evaluation boards (supporting L6205,

-6, -7, -8, and L6235 integrated motor drivers). The output interface is compatible with

VN808 and VN340 Reference Design Boards and the input interface can be used for CLT3-

4BT6 or PCLT-2A evaluation board connections.

Applications can be supplied from a standard DC power supply (7 to 30V DC) or directly

using a 24V DC industrial mains supply.

Complete solution is implemented on double-face board with only two copper layers for

increased cost-effectiveness. Routing accuracy is also cost-optimized.

The ARMIC30 evaluation board package includes a CD-ROM containing the standard

STR730 software library, source code examples, board fabrication data (Gerber files), this

user manual and other related documentation.

Key Features

■

32-bit STR730FZ2T7 microcontroller with 36-MHz ARM7TDMI CPU core

RS-232 interface with 15kV guaranteed ESD protection using ST202E transceiver

RS-485 interface using ST485A high-speed transceiver with bit rates up to 30 Mbps

L9616 high-speed CAN driver with communication speeds up to 1 Mbps

SPI and I²C communication connectors

8-bit digital input/output connectors

3 Motor Control connectors

STM811 small reset circuit

Power supply using L5973AD DC/DC converter

6 to 30V DC supply voltage range

April 2006

Rev 2

1/35

www.st.com

Contents

UM0193

Contents

Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1

1.2

1.3

1.4

1.5

1.6

1.7

RS-232 interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

RS-485 interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CAN interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

SPI interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

I²C interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

JTAG interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.6.1

JTAG supply voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

General purpose connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.7.1

1.7.2

1.7.3

General purpose input connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

General purpose output connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

General purpose motor control connectors . . . . . . . . . . . . . . . . . . . . . . 12

1.8

1.9

1.10

1.11

1.12

LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Power supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Boot mode selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Electrical specifications and timings . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Appendix A ARMIC30 board layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Appendix B ARMIC30 schematic diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Appendix C Jumper settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Appendix D Bill of materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

2/35
