DATASHEET
ISL32490E, ISL32492E, ISL32493E, ISL32495E, ISL32496E, ISL32498E
±60V Fault Protected, 5V, RS-485/RS-422 Transceivers with ±25V CMR and ESD Protection
The
ISL32490E, ISL32492E, ISL32493E, ISL32495E,
ISL32496E,
and
ISL32498E
are fault protected, 5V powered,
differential transceivers that exceed the RS-485 and RS-422
standards for balanced communication. The RS-485 transceiver
pins (driver outputs and receiver inputs) are fault protected up to
±60V and are protected against ±16.5kV ESD strikes without
latch-up. Additionally, the extended Common-Mode Range
(CMR) allows these transceivers to operate in environments with
common-mode voltages up to ±25V (>2x the RS-485
requirement), making this fault protected RS-485 family one of
the most robust on the market.
The transmitters (Tx) deliver an exceptional 2.5V (typical)
differential output voltage into the RS-485 specified 54Ω load.
This yields better noise immunity than standard RS-485 ICs, or
allows up to six 120Ω terminations in star network topologies.
The receiver (Rx) inputs feature a full fail-safe design that
ensures a logic high Rx output if the Rx inputs are floating,
shorted, or on a terminated but undriven (idle) bus. The Rx
outputs have high drive levels; typically, 15mA at V
OL
= 1V (for
opto-coupled, isolated applications).
Half duplex (Rx inputs and Tx outputs multiplexed together)
and full duplex pinouts are available. See
Table 1 on page 3
for
key features and configurations by device number.
For fault protected or wide common-mode range RS-485
transceivers with cable invert (polarity reversal) pins, see the
ISL32483E
datasheet.
FN7786
Rev.6.00
Feb 8, 2019
Features
• Fault protected RS-485 bus pins . . . . . . . . . . . . . . up to ±60V
• Extended CMR . . . . . . . . . . ±25V (more than twice the range
required for RS-485)
• ±16.5kV HBM ESD protection on RS-485 bus pins
• 1/4 unit load for up to 128 devices on the bus
• High transient overvoltage tolerance. . . . . . . . . . . . . . . . ±80V
• Full fail-safe (open, short, terminated) RS-485 receivers
• High Rx I
OL
for opto-couplers in isolated designs
• Hot plug circuitry; Tx and Rx outputs remain three-state
during power-up/power-down
• Choice of RS-485 data rates. . . . . . . . . . 250kbps to 15Mbps
• Low quiescent supply current. . . . . . . . . . . . . . . . . . . . 2.3mA
• Ultra low shutdown supply current. . . . . . . . . . . . . . . . . . 10µA
Applications
• Utility meters/automated meter reading systems
• High node count RS-485 systems
• PROFIBUS and RS-485 based field bus networks, and factory
automation
• Security camera networks
• Building lighting and environmental control systems
• Industrial/process control networks
Related Literature
• For a full list of related documents, visit our website:
-
ISL32490E, ISL32492E, ISL32493E, ISL32495E,
ISL32496E,
and
ISL32498E
device pages
30
B
25
20
VOLTAGE (V)
15
10
5
RO
0
-5
TIME (20ns/DIV)
A
V
ID
= ±1V
25
COMMON-MODE RANGE
12
0
-7
-12
-20
-25
STANDARD RS-485
TRANSCEIVER
CLOSEST
COMPETITOR
ISL3249xE
FIGURE 1. EXCEPTIONAL Rx OPERATES AT >15Mbps EVEN WITH A
±25V COMMON-MODE VOLTAGE
FIGURE 2. ISL3249xE DELIVERS SUPERIOR COMMON-MODE
RANGE vs STANDARD RS-485 DEVICES
FN7786 Rev.6.00
Feb 8, 2019
Page 1 of 22
ISL32490E, ISL32492E, ISL32493E, ISL32495E, ISL32496E, ISL32498E

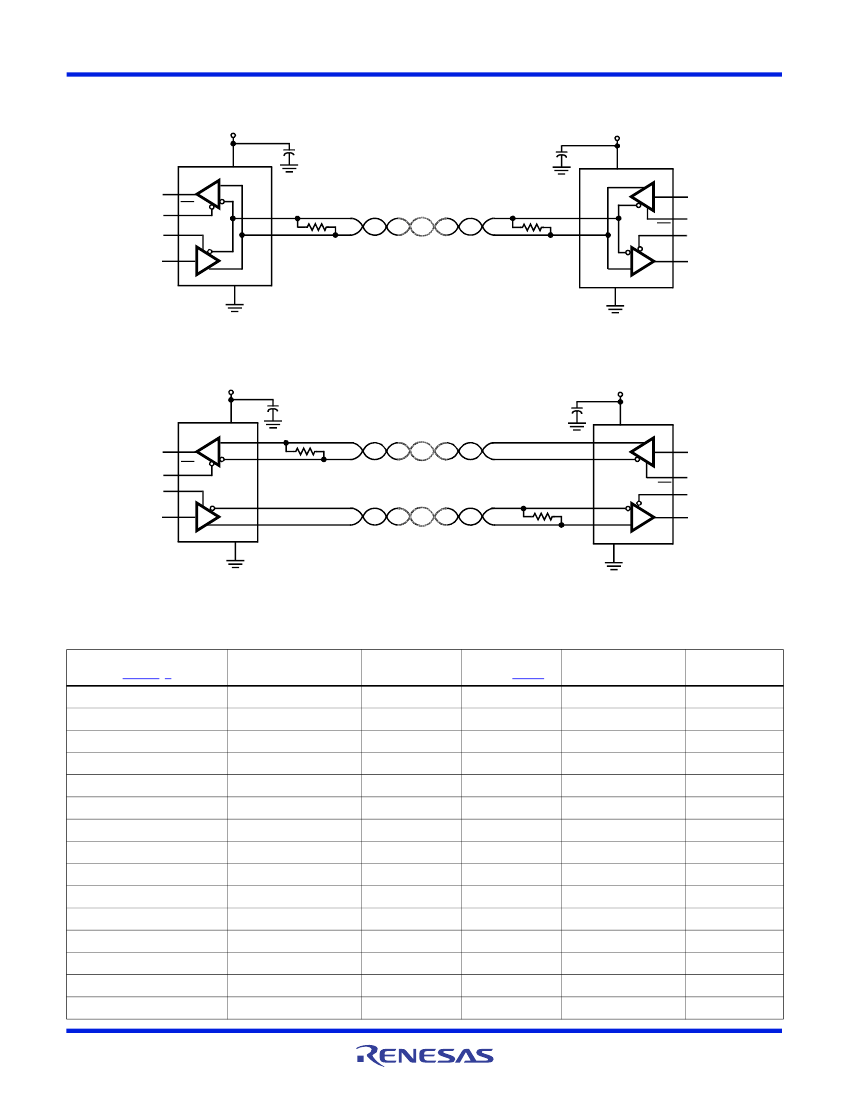

Typical Operating Circuits
+5V
+
8
V
CC
1 RO
2 RE
3 DE
4 DI
D
GND
5
GND
5
R
B/Z
A/Y
7
6
R
T
R
T
7
6
B/Z
A/Y
R
0.1µF
0.1µF
+
8
V
CC
D
DI 4
DE 3
RE 2
RO 1
+5V
FIGURE 3. ISL32492E, ISL32495E, ISL32498E HALF DUPLEX EXAMPLE
+5V
+
13, 14
V
CC
2 RO
3 RE
4 DE
5 DI
Z 10
D
GND
6, 7
Y 9
R
T
11 B
12 A
R
A 12
B 11
0.1µF
R
T
0.1µF
+
+5V
13, 14
9 Y
10 Z
V
CC
D
DI 5
DE 4
RE 3
R
RO 2
GND
6, 7
FIGURE 4. ISL32490E, ISL32493E, ISL32496E FULL DUPLEX EXAMPLE (SOIC PIN NUMBERS SHOWN)
Ordering Information
PART NUMBER
(Notes
2, 3)
ISL32490EIBZ
ISL32490EIBZ-T
ISL32490EIBZ-T7A
ISL32490EIUZ
ISL32490EIUZ-T
ISL32490EIUZ-T7A
ISL32492EIBZ
ISL32492EIBZ-T
ISL32492EIBZ-T7A
ISL32492EIUZ
ISL32492EIUZ-T
ISL32492EIUZ-T7A
ISL32493EIBZ
ISL32493EIBZ-T
ISL32493EIBZ-T7A
PART
MARKING
ISL32490 EIBZ
ISL32490 EIBZ
ISL32490 EIBZ
2490E
2490E
2490E
32492 EIBZ
32492 EIBZ
32492 EIBZ
2492E
2492E
2492E
ISL32493 EIBZ
ISL32493 EIBZ
ISL32493 EIBZ
TEMP. RANGE
(°C)
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
TAPE AND REEL
(Units) (Note
1)
-
2.5k
250
-
2.5k
250
-
2.5k
250
-
2.5k
250
-
2.5k
250
PACKAGE
(RoHS COMPLIANT)
14 Ld SOIC
14 Ld SOIC
14 Ld SOIC
10 Ld MSOP
10 Ld MSOP
10 Ld MSOP
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld MSOP
8 Ld MSOP
8 Ld MSOP
14 Ld SOIC
14 Ld SOIC
14 Ld SOIC
PKG.
DWG. #
M14.15
M14.15
M14.15
M10.118
M10.118
M10.118
M8.15
M8.15
M8.15
M8.118
M8.118
M8.118
M14.15
M14.15
M14.15
FN7786 Rev.6.00
Feb 8, 2019
Page 2 of 22
ISL32490E, ISL32492E, ISL32493E, ISL32495E, ISL32496E, ISL32498E
Ordering Information
(Continued)
PART NUMBER
(Notes
2, 3)
ISL32493EIUZ
ISL32493EIUZ-T
ISL32493EIUZ-T7A
ISL32495EIBZ
ISL32495EIBZ-T
ISL32495EIBZ-T7A
ISL32495EIUZ
ISL32495EIUZ-T
ISL32495EIUZ-T7A
ISL32496EIBZ
ISL32496EIBZ-T
ISL32496EIBZ-T7A
ISL32496EIUZ
ISL32496EIUZ-T
ISL32496EIUZ-T7A
ISL32498EIBZ
ISL32498EIBZ-T
ISL32498EIBZ-T7A
ISL32498EIUZ
ISL32498EIUZ-T
ISL32498EIUZ-T7A
NOTES:
1. See
TB347
for details about reel specifications.
2. These Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte tin plate
plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Pb-free products are
MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.
3. For Moisture Sensitivity Level (MSL), see the
ISL32490E, ISL32492E, ISL32493E, ISL32495E, ISL32496E,
and
ISL32498E
device information pages.
For more information about MSL, see
TB363.
TABLE 1. SUMMARY OF FEATURES
PART NUMBER
ISL32490E
ISL32492E
ISL32493E
ISL32495E
ISL32496E
ISL32498E
HALF/FULL
DUPLEX
Full
Half
Full
Half
Full
Half
DATA RATE
(Mbps)
0.25
0.25
1
1
15
15
SLEW-RATE
LIMITED?
Yes
Yes
Yes
Yes
No
No
EN PINS?
Yes
Yes
Yes
Yes
Yes
Yes
HOT
PLUG?
Yes
Yes
Yes
Yes
Yes
Yes
QUIESCENT I
CC
(mA)
2.3
2.3
2.3
2.3
2.3
2.3
LOW POWER
SHUTDOWN?
Yes
Yes
Yes
Yes
Yes
Yes
PIN COUNT
10, 14
8
10, 14
8
10, 14
8
2493E
2493E
2493E
32495 EIBZ
32495 EIBZ
32495 EIBZ
2495E
2495E
2495E
ISL32496 EIBZ
ISL32496 EIBZ
ISL32496 EIBZ
2496E
2496E
2496E
32498 EIBZ
32498 EIBZ
32498 EIBZ
2498E
2498E
2498E
PART
MARKING
TEMP. RANGE
(°C)
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
TAPE AND REEL
(Units) (Note
1)
-
2.5k
250
-
2.5k
250
-
2.5k
250
-
2.5k
250
-
2.5k
250
-
2.5k
250
-
2.5k
250
PACKAGE
(RoHS COMPLIANT)
10 Ld MSOP
10 Ld MSOP
10 Ld MSOP
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld MSOP
8 Ld MSOP
8 Ld MSOP
14 Ld SOIC
14 Ld SOIC
14 Ld SOIC
10 Ld MSOP
10 Ld MSOP
10 Ld MSOP
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld MSOP
8 Ld MSOP
8 Ld MSOP
PKG.
DWG. #
M10.118
M10.118
M10.118
M8.15
M8.15
M8.15
M8.118
M8.118
M8.118
M14.15
M14.15
M14.15
M10.118
M10.118
M10.118
M8.15
M8.15
M8.15
M8.118
M8.118
M8.118
FN7786 Rev.6.00
Feb 8, 2019
Page 3 of 22
ISL32490E, ISL32492E, ISL32493E, ISL32495E, ISL32496E, ISL32498E
Pin Configurations
ISL32492E, ISL32495E, ISL32498E
(8 LD MSOP, 8 LD SOIC)
TOP VIEW
RO
RE
DE
DI
1
2
3
4
D
R
8
7
6
5
VCC
B/Z
A/Y
GND
ISL32490E, ISL32493E, ISL32496E
(10 LD MSOP)
TOP VIEW
RO 1
RE 2
DE 3
DI 4
GND 5
D
R
10 VCC
9 A
8 B
7 Z
6 Y
ISL32490E, ISL32493E, ISL32496E
(14 LD SOIC)
TOP VIEW
NC 1
RO 2
RE 3
DE 4
DI 5
GND 6
GND 7
D
R
14 VCC
13 VCC
12 A
11 B
10 Z
9 Y
8 NC
NOTE: Evaluate creepage and clearance requirements at your maximum fault voltage before using small pitch packages such as MSOP.
Pin Descriptions
PIN 8 LD 10 LD 14 LD
NAME PIN # PIN # PIN #
RO
RE
DE
DI
GND
A/Y
B/Z
A
B
Y
Z
VCC
NC
1
2
3
4
5
6
7
-
-
-
-
8
-
1
2
3
4
5
-
-
9
8
6
7
10
-
2
3
4
5
6, 7
-
-
12
11
9
10
1, 8
FUNCTION
Receiver output. If A-B
≥
-10mV, RO is high; if A-B
≤
-200mV, RO is low; if A and B are unconnected (floating), shorted
together, or connected to an undriven, terminated bus, RO is high.
Receiver output enable. RO is enabled when RE is low; RO is high impedance when RE is high. Internally pulled low.
Driver output enable. The driver outputs, Y and Z, are enabled by bringing DE high. They are high impedance when DE is
low. Internally pulled high.
Driver input. A low on DI forces output Y low and output Z high. A high on DI forces output Y high and output Z low.
Ground connection.
±60V fault and ±16.5kV HBM ESD protected RS-485/RS-422 level, non-inverting receiver input and non-inverting driver
output. Pin is an input if DE = 0; pin is an output if DE = 1.
±60V fault and ±16.5kV HBM ESD protected RS-485/RS-422 level, inverting receiver input and inverting driver output.
Pin is an input if DE = 0; pin is an output if DE = 1.
±60V fault and ±15kV HBM ESD protected RS-485/RS-422 level, non-inverting receiver input.
±60V fault and ±15kV HBM ESD protected RS-485/RS-422 level, inverting receiver input.
±60V fault and ±15kV HBM ESD protected RS-485/RS-422 level, non-inverting driver output.
±60V fault and ±15kV HBM ESD protected RS-485/RS-422 level, inverting driver output.
No internal connection.
13, 14 System power supply input (4.5V to 5.5V).
Truth Tables
TRANSMITTING
INPUTS
RE
X
X
0
1
DE
1
1
0
0
DI
1
0
X
X
Z
0
1
High-Z
High-Z (see Note)
OUTPUTS
Y
1
0
High-Z
High-Z (see Note)
RE
0
0
0
0
1
1
INPUTS
0
0
0
0
0
1
X
X
X
X
0
1
RECEIVING
OUTPUT
A-B
V
AB
≥
-0.01V
-0.01V > V
AB
> -0.2V
V
AB
≤
-0.2V
Inputs
Open/Shorted
X
X
RO
1
Undetermined
0
1
High-Z (see
Note)
High-Z
DE
DE
Half Duplex Full Duplex
NOTE: Low Power Shutdown Mode (see
Note 11 on page 9).
NOTE: Low Power Shutdown Mode (see
Note 11 on page 9).
FN7786 Rev.6.00
Feb 8, 2019
Page 4 of 22
ISL32490E, ISL32492E, ISL32493E, ISL32495E, ISL32496E, ISL32498E
Absolute Maximum Ratings
VCC to Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Input Voltages
DI, DE, RE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to (V
CC
+ 0.3V)
Input/Output Voltages
A/Y, B/Z, A, B, Y, Z . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±60V
A/Y, B/Z, A, B, Y, Z (Transient Pulse Through 100Ω, (Note
15).
. . . ±80V
RO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to (V
CC
+0.3V)
Short-Circuit Duration
Y, Z . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indefinite
ESD Rating . . . . . . . . . . . . . . . . . . . . see
“ESD PERFORMANCE” on page 6
Latch-Up (Tested per JESD78, Level 2, Class A) . . . . . . . . . . . . . . . +125°C
Thermal Information
Thermal Resistance (Typical)
θ
JA
(°C/W)
θ
JC
(°C/W)
8 Ld MSOP Package (Notes
4, 5)
. . . . . . . .
140
40
8 Ld SOIC Package (Notes
4, 5)
. . . . . . . . .
108
47
10 Ld MSOP Package (Notes
4, 5)
. . . . . . .
135
50
14 Ld SOIC Package (Notes
4, 5)
. . . . . . . .
88
39
Maximum Junction Temperature (Plastic Package) . . . . . . . . . . . . . +150°C
Maximum Storage Temperature Range . . . . . . . . . . . . . . . -65°C to +150°C
Pb-Free Reflow Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See
TB493
Recommended Operating Conditions
Supply Voltage (V
CC
). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to +85°C
Bus Pin Common-Mode Voltage Range. . . . . . . . . . . . . . . . . . -25V to +25V
CAUTION: Do not operate at or near the maximum ratings listed for extended periods of time. Exposure to such conditions can adversely impact product
reliability and result in failures not covered by warranty.
NOTES:
4.
θ
JA
is measured with the component mounted on a high-effective thermal conductivity test board in free air. See
TB379
for details.
5. For
θ
JC
, the “case temp” location is taken at the package top center.
V
CC
= 4.5V to 5.5V; unless otherwise specified. Typical values are at V
CC
= 5V, T
A
= +25°C (Note
6).
Boldface
limits apply across the operating temperature range, -40°C to +85°C.
PARAMETER
DC CHARACTERISTICS
Driver Differential V
OUT
(No load)
Driver Differential V
OUT
(Loaded,
Figure 5A)
V
OD1
V
OD2
R
L
= 100Ω (RS-422)
R
L
= 54Ω (RS-485)
R
L
= 54Ω (PROFIBUS, V
CC
≥
5V)
R
L
= 21Ω (Six 120Ω terminations for star
configurations, V
CC
≥
4.75V)
Change in Magnitude of Driver
Differential V
OUT
for Complementary
Output States
Driver Differential V
OUT
with
Common-Mode Load (Figure
5B)
ΔV
OD
R
L
= 54Ω or 100Ω (Figure
5A)
Full
Full
Full
Full
Full
Full
-
2.4
1.5
2.0
0.8
-
-
3.2
2.5
2.5
1.3
-
-
0.2
V
V
V
CC
-
V
CC
V
V
V
SYMBOL
TEST CONDITIONS
TEMP
MIN
(°C) (Note
14)
TYP
MAX
(Note
14)
UNIT
Electrical Specifications
V
OD3
R
L
= 60Ω, -7V
≤
V
CM
≤
12V
R
L
= 60Ω, -25V
≤
V
CM
≤
25V (V
CC
≥
4.75V)
R
L
= 21Ω, -15V
≤
V
CM
≤
15V (V
CC
≥
4.75V)
Full
Full
Full
Full
Full
Full
1.5
1.7
0.8
-1
-2.5
-
2.1
2.3
1.1
-
-
-
V
CC
V
-
3
5
0.2
V
V
V
V
Driver Common-Mode V
OUT
(Figure
5)
Change in Magnitude of Driver
Common-Mode V
OUT
for
Complementary Output States
Driver Short-Circuit Current
V
OC
R
L
= 54Ω or 100Ω
R
L
= 60Ω or 100Ω, -20V
≤
V
CM
≤
20V
ΔV
OC
R
L
= 54Ω or 100Ω (Figure
5A)
I
OSD
I
OSD1
I
OSD2
DE = V
CC
, -25V
≤
V
O
≤
25V (Note
8)
At first foldback, 22V
≤
V
O
≤
-22V
At second foldback,
35V
≤
V
O
≤
-35V
DE, DI, RE
DE, DI, RE
DI
DE, RE
Full
Full
Full
Full
Full
Full
Full
-250
-83
-13
2.5
-
-1
-15
-
-
-
-
-
-
6
250
83
13
-
0.8
1
15
mA
mA
mA
V
V
µA
µA
Logic Input High Voltage
Logic Input Low Voltage
Logic Input Current
V
IH
V
IL
I
IN1
FN7786 Rev.6.00
Feb 8, 2019
Page 5 of 22
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Youyi brand BCD-188 refrigerator circuit

Thyristor trigger circuit

Light controlled automatic trench light circuit

Frequency adjustable audio oscillator circuit diagram

Single tube 0TL power amplifier circuit

Computer motherboard circuit diagram 820 1_44

Question about loop program
Could you please help me solve the following program? Thank you for(i=1;i(8-i); P1=a|b; Also, doandloops include carry?...
zhushuping Embedded System
Vote and read public opinion: Which 15th Anniversary DIY Electronic Toolbox should you choose?
Voting validity period: From now until August 5 The community's 15th anniversary DIY electronic toolbox suggestion collection activity has ended. Engineers in the forum have provided a lot of suggesti...
nmg DIY/Open Source Hardware
2012 National Electrical Engineering Competition Control Topic Laser Targeting Image Processing Hardware
I have just used ov7670 to collect image signals, but I am not clear about its working steps, what signals it collects, and what are the steps of the subsequent binarization and synchronous separation...
大眼BB Electronics Design Contest
Creating a RAMDISK Chinese Manual Revision 1
Creating a RAMDISK Chinese Manual Revision 1...
鑫海宝贝 DSP and ARM Processors
RFID (Radio Frequency Identification) Application Architecture Planning Guide
Starting from the grand undertaking of the Internet of Things advocated by EPCGlobal, combined with the author's personal experience in participating in some RFID pilot projects, this paper focuses on...
Jacktang Wireless Connectivity
Wang Chuanfu: From King of Copycats to China's Richest Man
In less than a month, Wang Chuanfu won the titles of Forbes China's richest man and Hurun Report's richest man. After hearing too many stories about the financial crisis that caused the wealth of the ...
gina Embedded System
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. 647303-1
  2. EXM-A01-21-39PA-01
  3. 46W-NKR15H-CR9
  4. 91322-011
  5. TBC5401-0111020
  6. FO1003S-08-1M29106L
  7. D47A-C3LD
  8. PH396S32-110GB02-U
  9. GQZJ6.8A_R2_10001
  10. BZX84B47W_R2_00001
  11. BZM55-C100CT/R7
  12. US1BF

Popular Articles

  1. 51 MCU-Use of timer interrupt function
  2. ZDS2022 Oscilloscope 100 Practical Specials 24: CAN Protocol Trigger Mode Settings
  3. Wafer foundry orders cut in Q4? Why does the industry's view differ from Morgan Stanley's?
  4. Apple is sued again, this time by an LED manufacturer?
  5. Taxi meter project design
  6. Ambarella launches AI domain controller CV3 series SoC, single chip realizes ADAS and L4 autonomous driving
  7. Whether you choose a traditional car or a new energy vehicle, safety always comes first.
  8. Porting u-boot-2010.09 to S3C2440 (Part 2) - The difference between LDR and ADR in ARM assembly
  9. Overview of the instruction set of ARM microprocessors (Part 2) - Detailed notes on ARM application system development
  10. Debugging Circuits Using a Tektronix TDS3000C Series Oscilloscope

Technical ResourceMore

  1. Design and application of power factor correction circuit for switching power supply
  2. Changhong KFR-25GW/EQ circuit schematic diagram
  3. AG6202 Chinese Manual | AG6206 Chinese Specification
  4. Research on the transformation of AC power supply system of J-7 aircraft
  5. MATLAB Case 8 GRNN Data Prediction - Freight Volume Prediction Based on Generalized Regression Neural Network.rar
  6. Altium-Common 3D Package Library (Step) [Common Patch] PB-22E60 self-lock.rar
  7. Basic knowledge of varistor
  8. Wang Kuang, Xinpeng Microelectronics
  9. Keyboard selection of electronic music_Keil C
  10. Research on new auxiliary power supply for AC drive electric locomotive

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1061  665  2667  1066  1024  22  14  54  21  38
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
