ESDCJ-10-3-75 datasheet, PDF - EEWORLD Datasheet

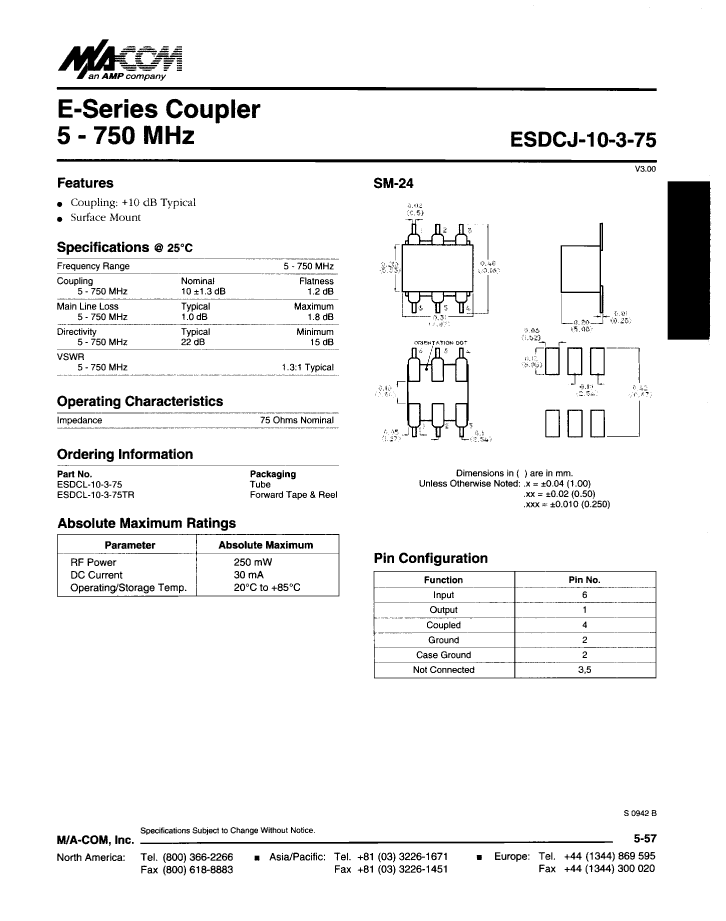

ESDCJ-10-3-75: Description5MHz - 750MHz RF/MICROWAVE DIRECTIONAL COUPLER, 1.8dB INSERTION LOSS-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size29KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

ESDCJ-10-3-75 Overview

5MHz - 750MHz RF/MICROWAVE DIRECTIONAL COUPLER, 1.8dB INSERTION LOSS-MAX

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Characteristic impedance	75 Ω
Maximum input power (CW)	23.98 dBm
Maximum insertion loss	1.8 dB
Maximum operating frequency	750 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.3

	ESDCJ-10-3-75	ESDCJ-10-3-75TR
Description	5MHz - 750MHz RF/MICROWAVE DIRECTIONAL COUPLER, 1.8dB INSERTION LOSS-MAX	5MHz - 750MHz RF/MICROWAVE DIRECTIONAL COUPLER, 1.8dB INSERTION LOSS-MAX
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown
Characteristic impedance	75 Ω	75 Ω
Maximum input power (CW)	23.98 dBm	23.98 dBm
Maximum insertion loss	1.8 dB	1.8 dB
Maximum operating frequency	750 MHz	750 MHz
Minimum operating frequency	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.3	1.3
