8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
ACC. TO USCAR30
SCALE 2:1
OPTION A
OPTION B
(MIRROR IMAGE
OF OPTION A)
14
FOR OPTION A & B
5
14
13
FOR OPTION C,D,E,F,G,H,J & K
1
2
3
14
( 1.2 )2x
4
5
OPTIONS
E
SEE ECR-16-009374
25AUG2016
JC
JL
PN: 0-2294731-1 OPTION A, AS SHOWN
USB CONNECTOR SHROUD ACC. TO 999-U-USB-Z01
TE-TRADEMARK
MATERIAL MARKING OF SINGLE PART
( 9.26 )
14
( 2 )2x
OPTION C
OPTION D
(MIRROR IMAGE
OF OPTION C)
14
( 5 )2x
D
D
TE-SINGLE PART NO. AND REVISION
TE-ASM NO. AND DATE CODE YYWWD IN THIS AREA
TEMPERATURE STABLE FOR REFLOW SOLDERING
ELECTRICAL AND MECHANICAL REQUIREMENTS ACCORDING TO:
-USCAR30 ,FROM 2006/11/10
-USB 2.0, ECN#1, FROM 10/20/2000
PACKAGING: TAPE AND REEL
EOL - TESTED (CONTINUITY AND SHORT CIRCUIT)
MATERIAL DESCRIPTION
CONTACTS: PHOSPHOR BRONZE
PLATING, PALLADIUM-NICKEL ON CONTACT AREA
MATTE-TIN ON SOLDER TAIL,WITH ENTIRE CONTACT
UNDERPLATED NICKEL
INSULATOR: PA9T-GF33
SHIELD: PHOSPHOR BRONZE
PLATING, TIN OVER NICKEL
HOUSING: PCT-GF30
SOLDERNAIL: BRASS
PLATING, TIN OVER NICKEL
PART HAS TO BE FREE OF MOLD RELEASE AGENTS OR DEFORMATIONS
THAT MAY AFFECT THE FIT OR FUNCTION OF THE PART.
CENTER OF GRAVITY
CODING DIMENSIONS FOR CODINGS A,B,C,D,E,F,G,H,J & K
SECTION
B-B
( 0 ) 13
SCALE
2:1
SECTION
6
OPTION E
OPTION F
(MIRROR IMAGE
OF OPTION E)
PN:0-2294731-1 OPTION A,AS SHOWN
B-B
7
SCALE
2:1
8
PN:0-2294731-3 OPTION C,AS SHOWN
4
3
9
10
11
OPTION G
OPTION H
(MIRROR IMAGE
OF OPTION G)
( 18.4 )
( 7.2 )
( 22.6 )
6
2
(4)
C
12
2294731-1 YYWWD
( 9.16 )
9.31
( 2.44 )
C
OPTION J
OPTION K
(MIRROR IMAGE
OF OPTION J)
( 13 )
13 ( 3.4 )
13
14
( 12.5 )
INSULATOR
SOLDER NAIL
( 1 ) 13
9 SURFACES
(SOLDER TAILS &
GROUND LEGS)
SHIELD
HOUSING
RECOMMENDED PCB LAYOUT
17
0.10
A
0.5
0.05
0.1
2 PLC
A B
( 0.4 )
CONTACTS 5X
0.9
0.10
3.2
0.8
TYP
( 0.35 )
12.4
B
4.95
0.05
2.5
TYP
2 0.10
TYP
B
G
K
J
H
G
F
E
D
C
B
A
GRAPHITE BLACK
HEATHER VIOLET
CLARET VIOLET
SIGNAL BLUE
NUT BROWN
CREAM
BLUE GRAY
BEIGE
1-2294731-7
1-2294731-0
2294731-9
2294731-8
2294731-7
2294731-6
2294731-5
2294731-4
2294731-3
2294731-2
2294731-1
PART
NUMBER
TE Connectivity
SEE DETAIL
A
0.5
0.05
5 PLC
B
2.3
4.05
0.10
0.10
5.75
3.36
YELLOW GREEN
DUSTY GRAY
0.1
A B
0.8
1.6
8.9
12.4
2 PLC
2 PLC
DETAIL
SCALE
( 0.5 )
1.55
0.05
TYP
8:1
A
GRAPHITE BLACK
HOUSING
COLOR
29JUL2015
SRINIVAS RATHOD
CHK
19AUG2015
R.DEMARCHIS
APVD
20AUG2015
R.DEMARCHIS
DWN
PRODUCT SPEC
APPLICATION SPEC
A
OPTION
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
mm
NAME
1.9
2.95
4805 (3/13)
0.05
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
0.3
0.3
0.3
0.3
0.3
-
-

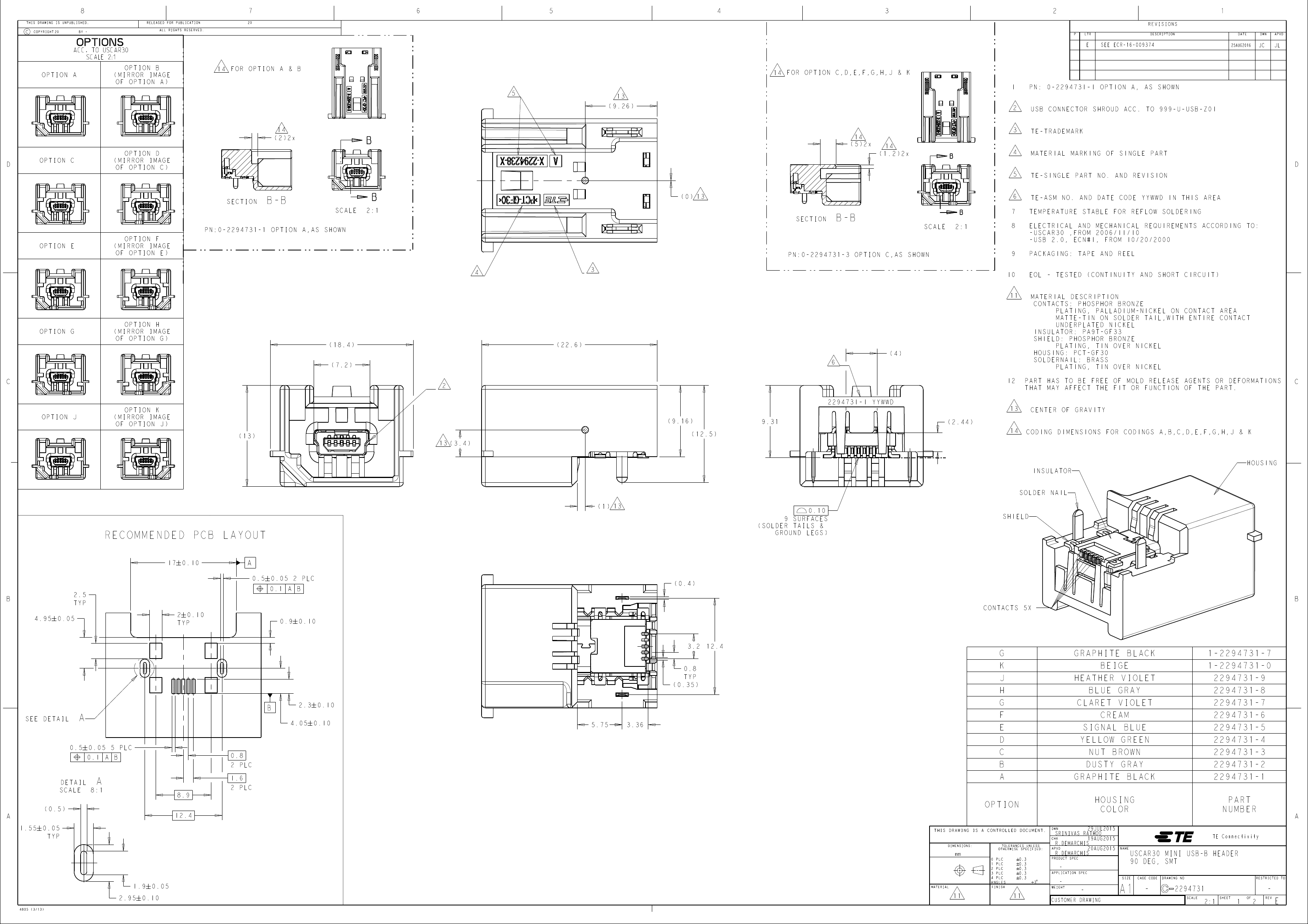

USCAR30 MINI USB-B HEADER
90 DEG, SMT
CAGE CODE
DRAWING NO
RESTRICTED TO
3 $
WEIGHT
0.10
11
11
-
CUSTOMER DRAWING
A1
SIZE
-
2294731
SCALE
2:1
SHEET
1
OF
2
REV
-
E
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
-
SEE SHEET 1
-
-
-
28
0.5
1.5
A
4
D
D
22.7
44
REEL
200 PCS/REEL
SECTION
A-A
CUSTOMER DE-REEL DIRECTION
SEE DETAIL
B
A
13.5
C
4 REELS/CARTON BOX
0.2
C
R 0.75
DETAIL
B
45.4
52.2
REF
REF
WINDING COVER TAPE
AROUND OUTER
PERIPHERY IN ONE TURN
TY
CO
El
ec
tr
on
ic
PI
CK
/S
HI
P
c
O
ni
YC
T
ro
ct
e
El
CT
DU
RO
P
ID
B
B
165 $ ~180 $
PEELING ANGLE
380
REF
WITH PRODUCT CHARGE
LEADER
WITHOUT CHARGE
(300mm)
CARTON BOX
800 PCS/BOX
100 REF
A
TRAILER
WITHOUT CHARGE
(300mm)
PEELING RESISTANCE: 0.2N~0.9N (20gf ~90gf)
PEELING ANGLE: 165 $ ~180 $
PEELING SPEED: 300mm/min
QUANTITY PER REEL: 200 PIECES
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
29JUL2015
SRINIVAS RATHOD
CHK
19AUG2015
R.DEMARCHIS
APVD
20AUG2015
R.DEMARCHIS
DWN
PRODUCT SPEC
APPLICATION SPEC
TE Connectivity
NAME
mm
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
-
-
-
-
-

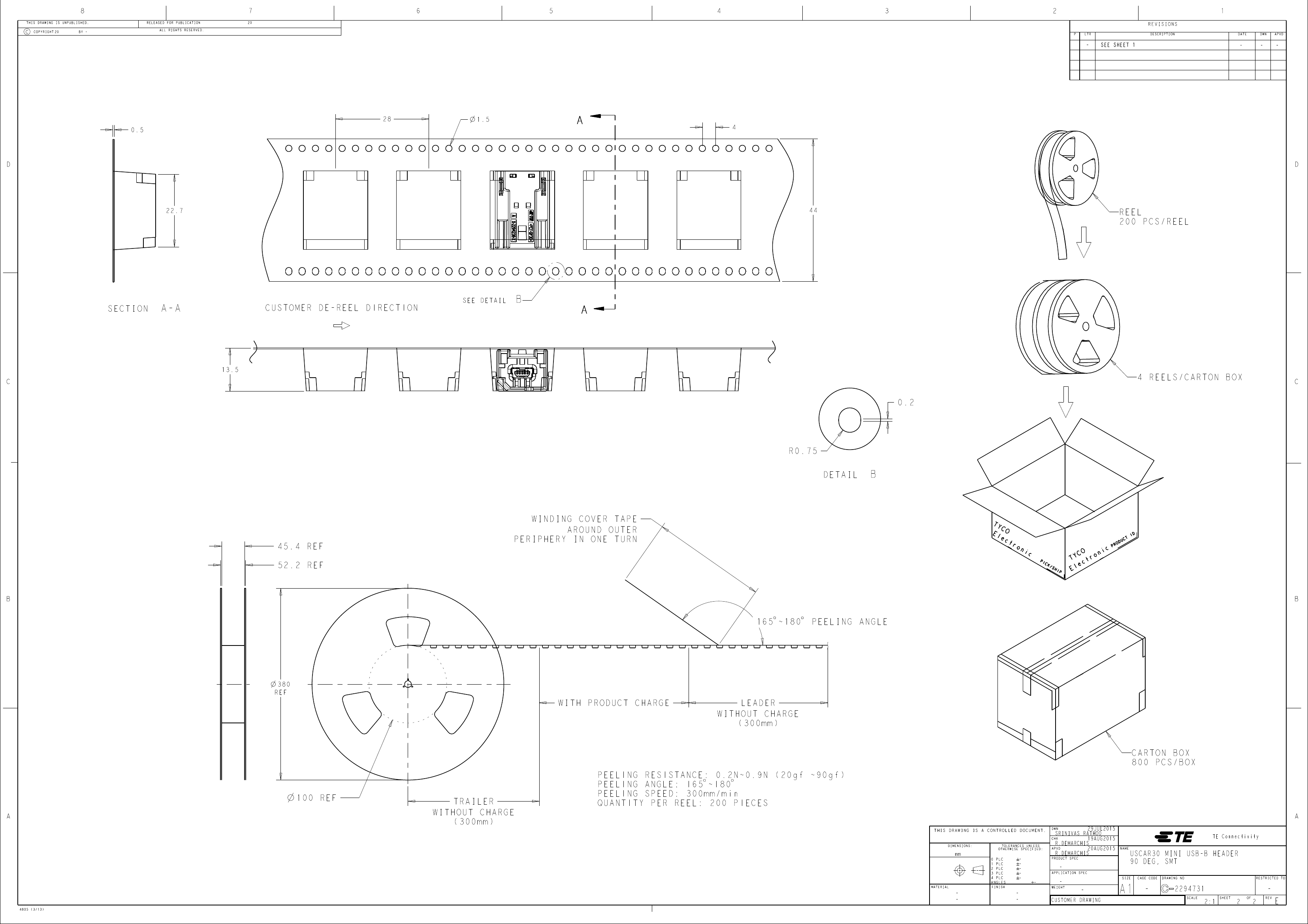

USCAR30 MINI USB-B HEADER
90 DEG, SMT
CAGE CODE
DRAWING NO
RESTRICTED TO
-
-
-
-
-
WEIGHT
-
CUSTOMER DRAWING
A1
SIZE
-
2294731
SCALE
4805 (3/13)
2:1
SHEET
2
OF
2
REV
-
E
