4-2110108-5

Description
HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,SKT,0.075 PITCH,PC TAIL TERMINAL,LOCKING,BLACK
CategoryThe connector    The connector
File Size316KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

4-2110108-5 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,180 CONTACTS,SKT,0.075 PITCH,PC TAIL TERMINAL,LOCKING,BLACK

4-2110108-5 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
body width0.909 inch
subject depth1.272 inch
body length1.197 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number2110108
Plug contact pitch0.075 inch
Match contact row spacing0.053 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number15
Number of rows loaded15
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing1.3462 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.047 inch
Terminal pitch1.905 mm
Termination typeSOLDER
Total number of contacts180

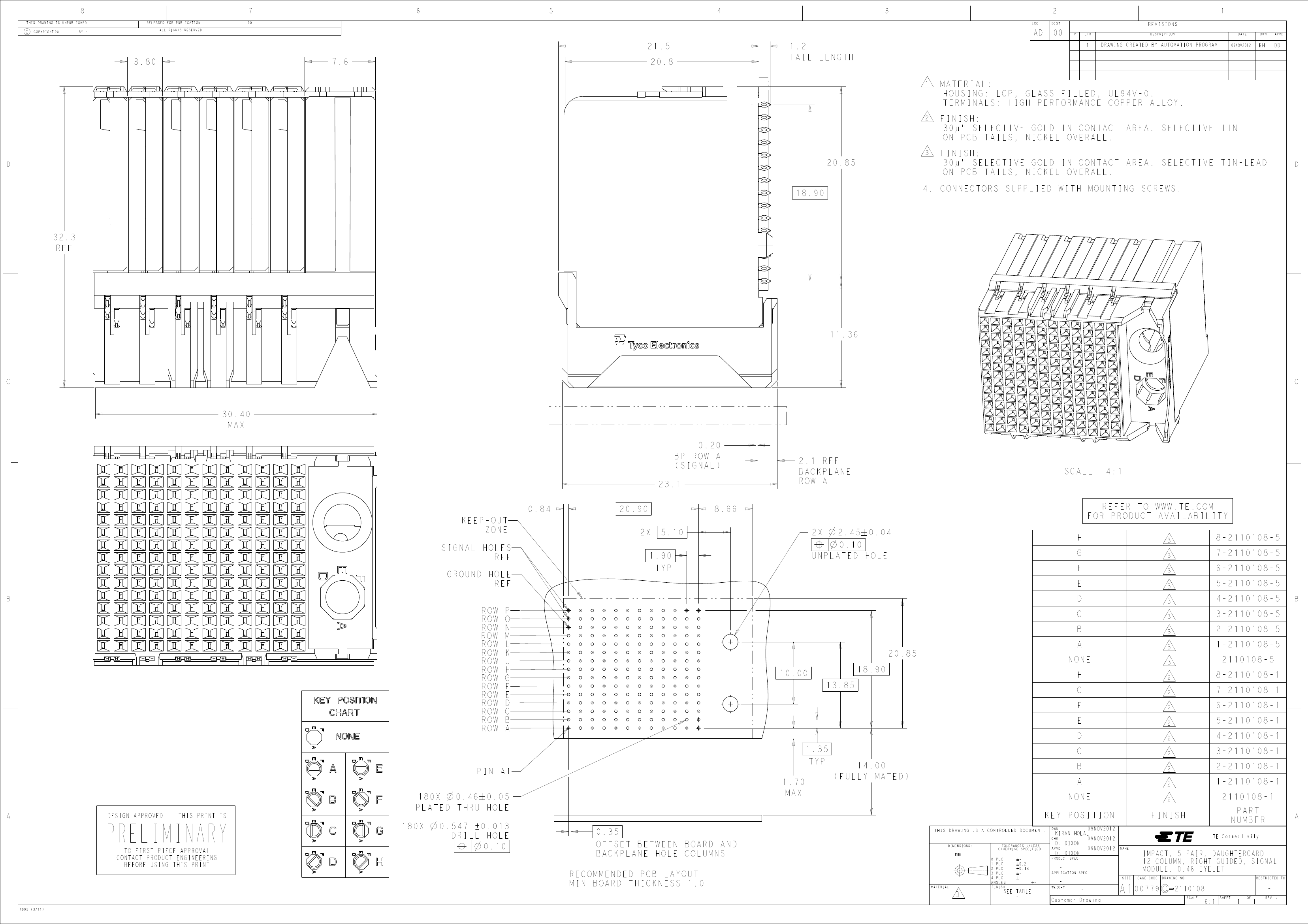

4-2110108-5 Preview

8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
7
6
5
4
3
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
21.5
3.80
7.6
20.8
1.2
TAIL LENGTH
D
20.85
18.90
4. CONNECTORS SUPPLIED WITH MOUNTING SCREWS.
D
32.3
REF
11.36
C
C
30.40
MAX
0.20
BP ROW A
(SIGNAL)
23.1
0.84
20.90
2X
5.10
8.66
2X
2.45
0.04
H
G
F
E
D
C
B
A
NONE
8- 2110108 -5
7- 2110108 -5
6- 2110108 -5
5- 2110108 -5
4- 2110108 -5
3- 2110108 -5
2- 2110108 -5
1- 2110108 -5
2110108 -5
8- 2110108 -1
7- 2110108 -1
6- 2110108 -1
5- 2110108 -1
4- 2110108 -1
3- 2110108 -1
2- 2110108 -1
1- 2110108 -1
2110108 -1
FINISH
B
2.1 REF
BACKPLANE
ROW A
SCALE
4:1
KEEP-OUT
ZONE
SIGNAL HOLES
REF
GROUND HOLE
REF
B
1.90
TYP
0.10
UNPLATED HOLE
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
P
O
N
M
L
K
J
H
G
F
E
D
C
B
A
20.85
10.00
18.90
13.85
H
G
F
E
D
C
1.35
PIN A1
180X
0.46 0.05
PLATED THRU HOLE
180X
0.547 ±0.013
DRILL HOLE
0.10
0.35
TYP
1.70
MAX
14.00
(FULLY MATED)
B
A
NONE
KEY POSITION
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
A
PART
NUMBER
TE Connectivity
A
OFFSET BETWEEN BOARD AND
BACKPLANE HOLE COLUMNS
RECOMMENDED PCB LAYOUT
MIN BOARD THICKNESS
1.0
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
PRODUCT SPEC
PRELIMINARY
NAME
APPLICATION SPEC
WEIGHT
A1
SIZE
CAGE CODE
DRAWING NO
RESTRICTED TO
SCALE
SHEET
OF
REV
4805 (3/11)
