SMT Power Inductor
SI 85 Type
Features
RoHS compliant.
Low profile (5.5mm max.Height)), SMD type.
Unshielded.
Self-leads,suitable for high density mounting.
High energy storage and low DCR
Provided with embossed carrier tape packing.
Ideal for power source circuits, DC-DC converter, DC-AC inverters inductor applications.
In addition to the standard versions shown here,
customized inductors are available to meet your exact requirements.

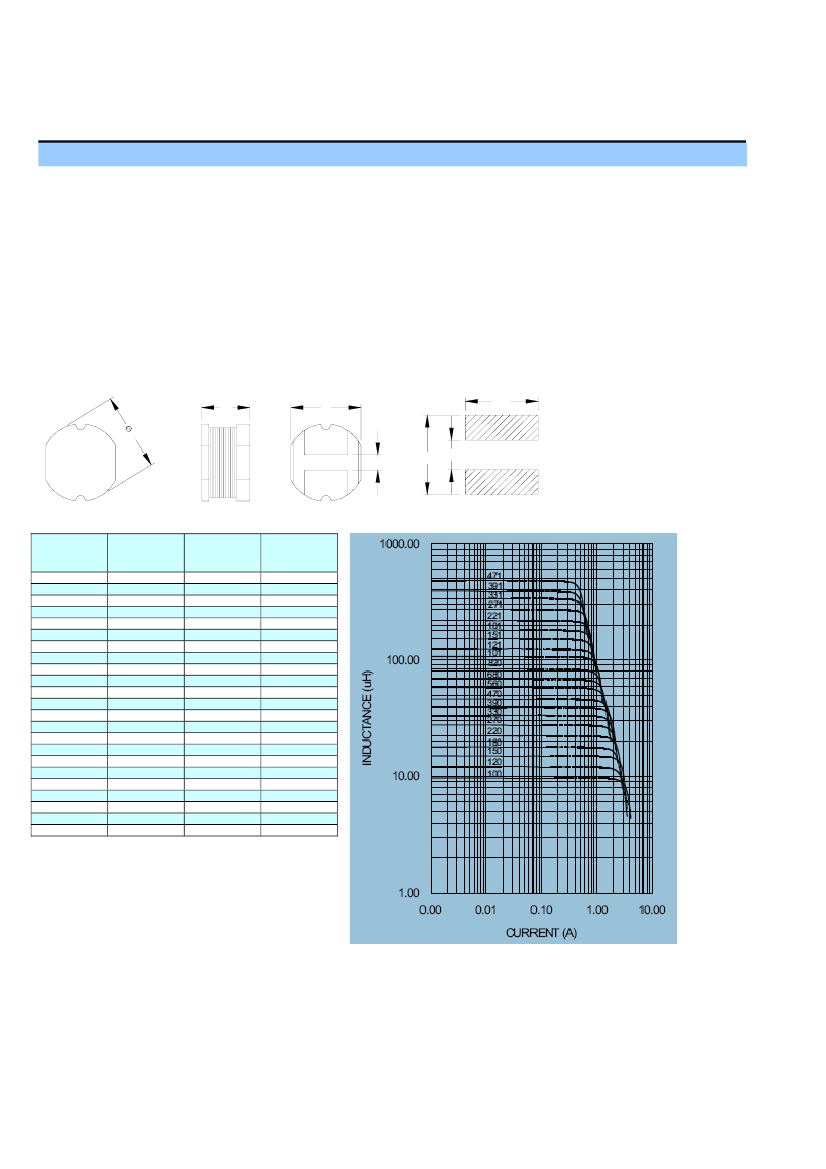

Mechanical Dimension:
RECOMMENDED PAD PATTERNS
C
A
B
8.0
UNIT:mm/inch
A = 7.8±0.2 / 0.307±0.008
B = 7.0±0.2 / 0.276±0.008
C = 5.0±0.5 / 0.197±0.020
D = 1.5±0.2 / 0.059±0.008
D
8.0 1.4
Electrical Characteristics:
25℃, 100KHz, 0.1V for 0.8~6.8uH. 1KHz,1.0V for 10~1000uH
PART NO.
SI85-100K
SI85-120K
SI85-150K
SI85-180K
SI85-220K
SI85-270K
SI85-330K
SI85-390K
SI85-470K
SI85-560K
SI85-680K
SI85-820K
SI85-101K
SI85-121K
SI85-151K
SI85-181K
SI85-221K
SI85-271K
SI85-331K
SI85-391K
SI85-471K
SI85-561K
SI85-102K
L
(uH)
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
390.0
470.0
560.0
1000.0
1
DCR
(Ω) MAX
0.0700
0.0800
0.0900
0.1000
0.1100
0.1200
0.1300
0.1600
0.1800
0.2400
0.2800
0.3700
0.4300
0.4700
0.6400
0.7100
0.9600
1.1100
1.2600
1.7700
1.9600
2.1600
3.8500
Irated
(Adc)
2.30
2.00
1.80
1.60
1.50
1.40
1.30
1.20
1.10
0.94
0.85
0.78
0.72
0.66
0.58
0.51
0.49
0.42
0.40
0.36
0.34
0.31
0.26
2
1.Tolerance of inductance±15% for 0.8~6.8uH, ±10% for 10~1000uH.
2.Irated is the DC current which cause the inductance drop less than 10% of its nominal inductance without current
and the surface temperature of the part increase less than 45℃.
3.Operating temperature:-20℃ to 105℃ (including self-temperature rise).
