Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company
SCHOTTKY BARRIER RECTIFIER
Reverse Voltage - 20 to 100 Volts
Forward Current -5.0 Amperes
SK52B - SK510B
DO-214AA
SMD Package
RoHS compliant
FEATURES:
1. The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
2. For surface mounted applications
3. Metal silicon junction,majority carrier conduction
4. Low power loss,high efficiency
5. Built-in strain relief,ideal for automated placement
6. High forward surge current capability
7. High temperature soldering guaranteed 260° C/10 seconds at terminals
8. Glass passivated chip junction
ABSOLUTE MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25° C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Parameters
SYMBOL SK52B SK53B SK54B SK55B SK56B SK58B SK510B UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified
current at T
L
=75° C
Peak forward surge current 8.3ms single
half sine-wave superimposed on rated
load
Maximum instantaneous forward voltage
at 3.0A
Maximum DC reverse current T
A
=25° C
at rated DC blocking voltage T
A
=100° C
Typical junction capacitance (NOTE 1)
Typical thermal resistance (NOTE 2)
Operating junction temperature range
Storage temperature range
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
C
J
R
θJA
T
J
,
T
STG
20
14
20
30
21
30
40
28
40
50
35
50
50.0
100.0
60
42
60
80
56
80
100
70
100
V
V
V
A
A
0.55
0,5
20
0.7
0.85
0.1
10
V
µA
pF
°C/W
°C
°C
200
68.0
-55 to +125
-55 to +150
-55 to +150
Notes:
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2. P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas
SK52B - SK510B
Rev0 30052019ERC
Continental Device India Pvt. Limited
Data Sheet
Page 1 of 5
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company

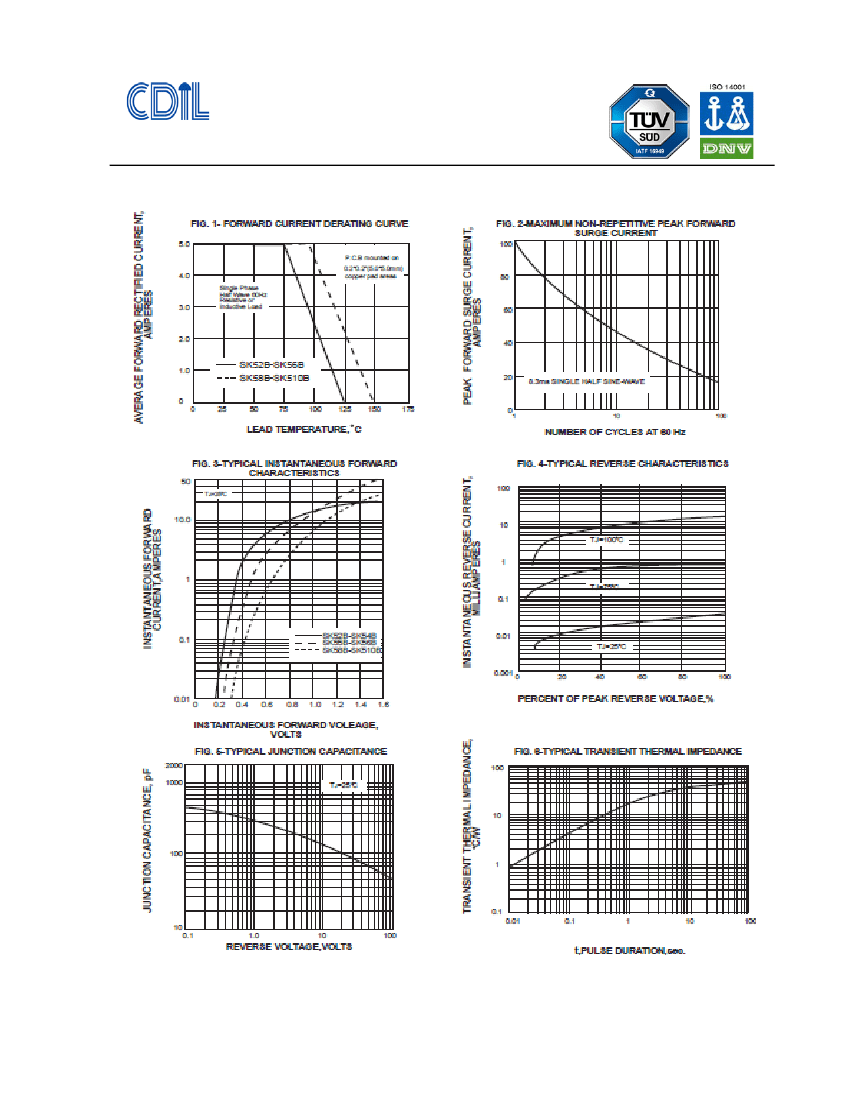

Typical Characteristic curves
SK52B - SK510B
Rev0 30052019ERC
Continental Device India Pvt. Limited
Data Sheet
Page 2 of 5
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company

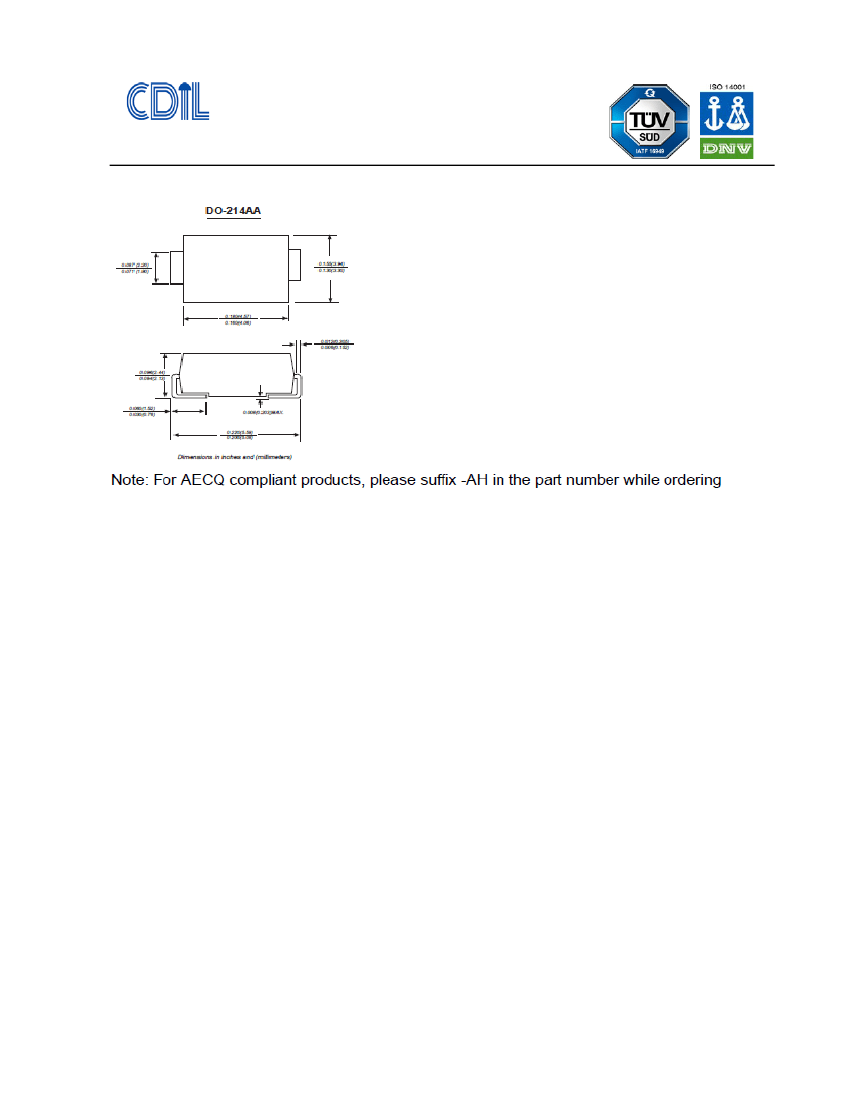

Package Details
MECHANICAL DATA
Case:
JEDEC DO-214AA molded plastic body over passivated chip
Terminals:
Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:0.003
ounce, 0.093 grams
SK52B - SK510B
Rev0 30052019ERC
Continental Device India Pvt. Limited
Data Sheet
Page 3 of 5

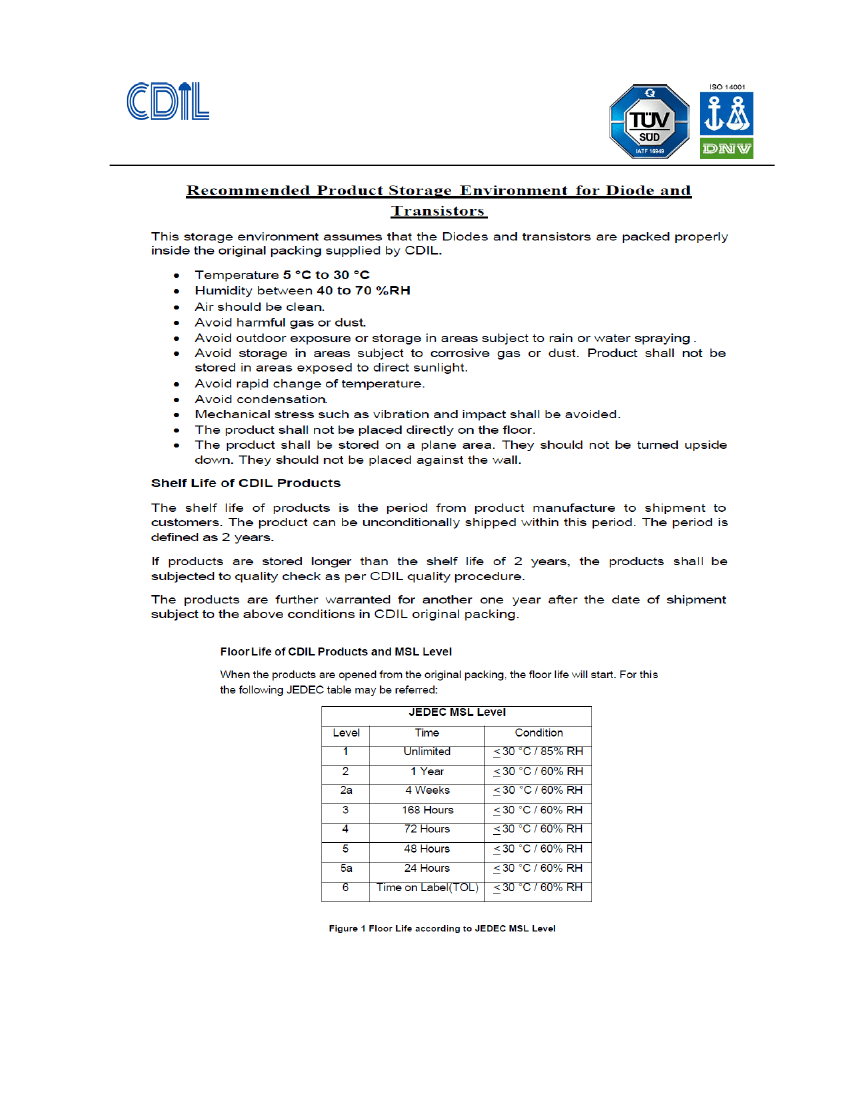

Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company
SK52B - SK510B
Rev0 30052019ERC
Continental Device India Pvt. Limited
Data Sheet
Page 4 of 5
Continental Device India Pvt. Limited
An IATF 16949, ISO9001 and ISO 14001 Certified Company
Customer Notes
Component Disposal Instructions
1. CDIL Semiconductor Devices are RoHS compliant, customers are requested to please
dispose as per prevailing Environmental Legislation of their Country.
2. In Europe, please dispose as per EU Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
Disclaimer
SK52B - SK510B
Rev0 30052019ERC
Continental Device India Pvt. Limited
Data Sheet
Page 5 of 5
