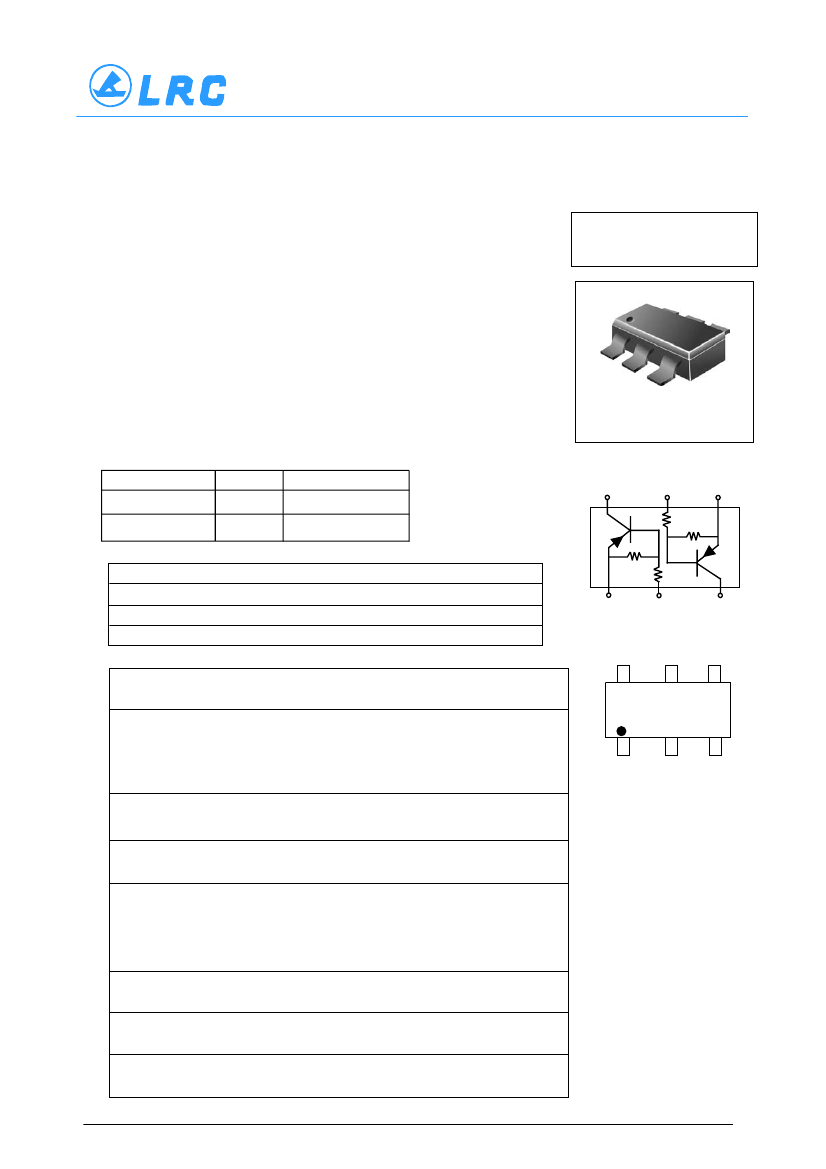

LESHAN RADIO COMPANY, LTD.

Dual Bias Resistor Transistors

PNP Silicon Surface Mount Transistors

with Monolithic Bias Resistor Network

The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias

network consisting of two resistors; a series base resistor and a base–emitter resistor. These

digital transistors are designed to replace a single device and its external resistor bias network.

The BRT eliminates these individual components by integrating them into a single device. In

the LMUN5111DW1T1G series, two BRT devices are housed in the SOT–363 package which

is ideal for low–power surface mount applications where board space is at a premium.

. Simplifies Circuit Design

. Reduces Board Space

. Reduces Component Count

. Available in 8 mm, 7 inch/3000 Unit Tape and Reel

LMUN5111DW1T1G

Series

SC-88/SOT-363

. We declare that the material of product compliance with RoHS requirements.

Ordering Information

Device

LMUN51XXDW1T1G

LMUN51XXDW1T3G

Package

SC-88

Shipping

3000/Tape&Reel

10000/Tape&Reel

MAXIMUM RATINGS

= 25°C unless otherwise noted, common for Q

and Q

)

Rating

Symbol Value

Unit

Collector-Base Voltage

CBO

–50

Vdc

Collector-Emitter Voltage

CEO

–50

Vdc

Collector Current

–100 mAdc

THERMAL CHARACTERISTICS

Characteristic

(One Junction Heated)

Symbol

Max

Unit

Total Device Dissipation

187 (Note 1.)

256 (Note 2.)

= 25°C

1.5 (Note 1.)

mW/°C

Derate above 25°C

2.0 (Note 2.)

Thermal Resistance –

Junction-to-Ambient

Characteristic

(Both Junctions Heated)

Total Device Dissipation

= 25°C

Derate above 25°C

Thermal Resistance –

Junction-to-Ambient

Thermal Resistance –

Junction-to-Lead

Junction and Storage

Temperature

1. FR–4 @ Minimum Pad

θJA

670 (Note 1.)

490 (Note 2.)

°C/W

MARKING DIAGRAM

xx = Device Marking

(See Page 2)

DEVICE MARKING

INFORMATION

See specific marking information in

the device marking table on page 2 of

this data sheet.

Symbol

Max

250 (Note 1.)

385 (Note 2.)

2.0 (Note 1.)

3.0 (Note 2.)

493 (Note 1.)

325 (Note 2.)

188 (Note 1.)

208 (Note 2.)

–55 to +150

Unit

mW/°C

°C/W

°C

θJA

θJL

, T

stg

2. FR–4 @ 1.0 x 1.0 inch Pad

1/12
