Ceramic Trimmer
Capacitors
Murata
Manufacturing Co., Ltd.
Cat.No.T13E-9
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
T13E9.pdf 04.6.15
CONTENTS
Part Numbering
Selection Guide of Ceramic Trimmer Capacitor
1
2
3
4
5
6
7
8
TZR1 Series
TZS2 Series
TZY2 Series
TZV2 Series
TZC3 Series
TZW4 Series
TZB4 Series
TZ03 Series
2
3
4
8
12
16
20
1
2
3
4
25
29
35
5
Packaging
Recommended Adjustment Tools
Qualified Standards
42
45
47
6
7
8
The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U. S. A.
Recycled Paper
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
T13E9.pdf 04.6.15
o
Part Numbering
Ceramic Trimmer Capacitors
(Part Number)
qProduct
ID
Product ID
TZ
wSeries/Terminal
Code
03
B4
W4
C3
S2
Y2
V2
R1
Series/Terminal
6mm Size Lead Type
4mm Size SMD/Lead Type
4mm Size SMD Type
3mm Size SMD Type
2mm Size SMD Type (Height 1.0mm)
2mm Size SMD Type (Height 1.25mm)
2mm Size SMD Type (Height 1.45mm)
1mm Size SMD Type (Height 0.90mm)
uPackaging
Code
A00
B00
M00
R00
eTemperature
Characteristics
Code
Z
S
N
T
R
K
P
Temperature Characteristics
NP0 ppm/°C
N150ppm/°C
N200ppm/°C
N450ppm/°C
N750ppm/°C
N1000ppm/°C
N1200ppm/°C
R01
Packaging
Ammo Pack (Radial Taping)
Bulk
Magazine
Reel (Taping ø180mm)
Reel (Taping ø330mm)
Trimmer Capacitors
TZ
q
Y2
w
R
e
200
r
A
t
001 R00
y
u
yIndividual
Specification
Code
001
110
169
310
A10
B10
Individual Specifications
TZR1,TZS2,TZY2,TZW4
Standard Type
TZV2,TZC3
(Minus Slot) Standard Type
TZ03
Standard Type
TZC3
(Plus Slot) Standard Type
TZB4
No-cover Film Standard Type
TZB4
with Cover Film Standard Type
Please refer to ratings for tolerance of temperature characteristics.
rMaximum
Capacitance
Expressed by three figures. The unit is pico-farad(pF). The first
and second figures are significant digits, and the third figure
expresses the number of zeros which follow the two numbers.
If there is a decimal point, it is expressed by the capital letter "R".
In this case, all figures are significant digits.
tTerminal
Shape
Code
A
B
C
D
E
F
N
T
Y
Terminal Shape
Top Adjustment;
TZR1,TZS2,TZY2,TZV2,
TZC3,TZW4,TZB4
(SMD Type)
Top Adjustment;
TZB4
(SMD Type),
Rear Adjustment;
TZ03
(Lead Type)
Top Adjustment;
TZB4
(Lead Type)
Rear Adjustment;
TZB4
(Lead Type)
Top Adjustment;
TZ03
(Lead Type),
Rear Adjustment;
TZB4
(SMD Type)
Top Adjustment;
TZ03
(Lead Type)
Rear Adjustment;
TZ03
(Lead Type)
Top Adjustment;
TZ03
(Taping Type)
Side Adjustment;
TZ03
(Lead Type)
Please refer to dimensions for terminals in detail.
2
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
T13E9.pdf 04.6.15

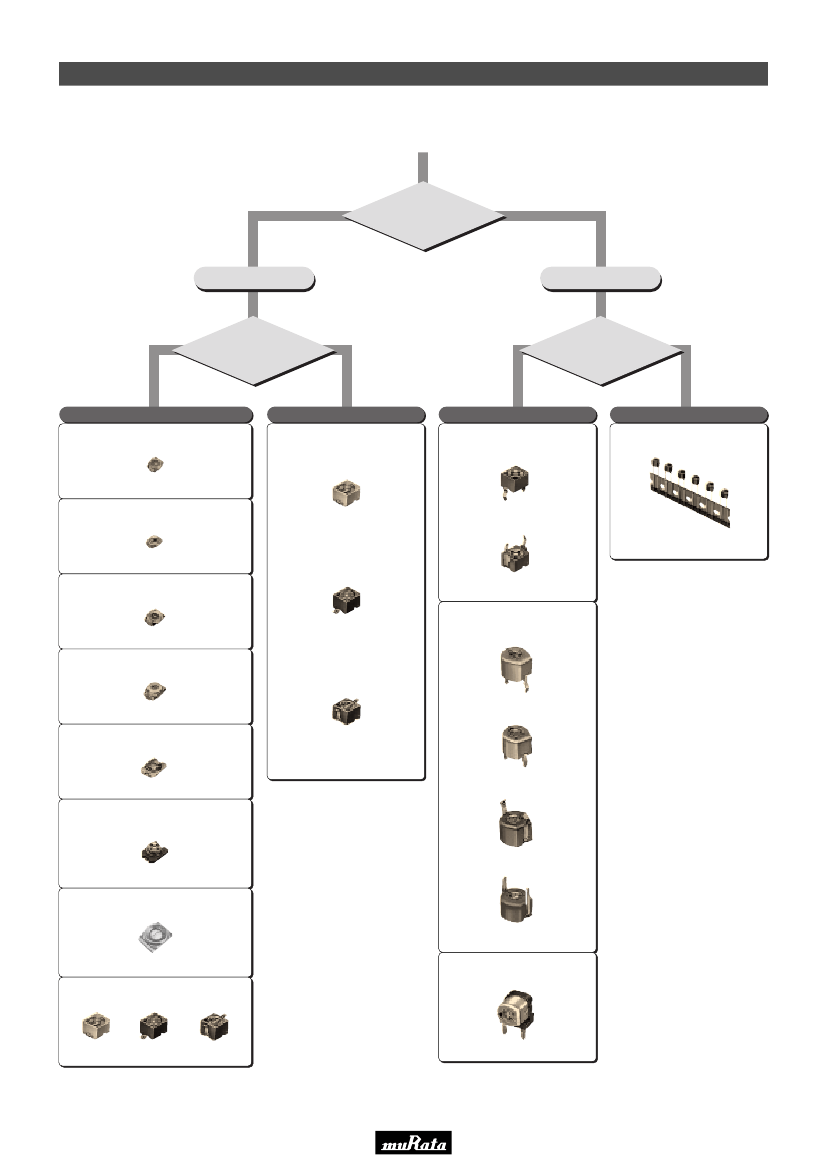

Selection Guide of Ceramic Trimmer Capacitor
Start
Mounting Method
Surface Mount
PCB Insertion
Soldering Method
Insertion Method
Reflow
Height 0.90mm
max.
1.5(W) x 1.7(L)
Flow
Height 3.2mm
max.
4.0(W) x 4.5(L)
Manual Insertion
Height 3.2mm
max.
4.0(W) x 4.5(L)
Automatic Insertion
Height 6.6mm
max.
6.0(W) x 6.0(L)
TZR1
Height 1.00mm
max.
2.2(W) x 2.7(L)
TZB4_C
TZB4_A
(with cover film)
TZ03_T
Radial Taping Type
TZS2
Height 1.25mm
max.
2.5(W) x 3.2(L)
TZB4_D
Height 5.3mm
max.
6.0(W) x 6.0(L)
TZY2
Height 1.45mm
max.
2.3(W) x 3.2(L)
TZB4_B
(with cover film)
TZV2
Height 1.7mm
max.
3.2(W) x 4.5(L)
TZ03_F
TZB4_E
(with cover film)
TZC3
Height 1.8mm
max.
3.2(W) x 4.5(L)
TZ03_E
TZ03_N
TZC3
Height 2.5mm
max.
4.2(W) x 5.2(L)
TZ03_B
TZW4
Height 3.2mm
max.
4.0(W) x 4.5(L)
Height 7.7mm
max.
7.0(W) x 7.5(L)
TZB4_A
TZB4_B
TZB4_E
TZ03_Y
3
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
T13E9.pdf 04.6.15
1
Ceramic Trimmer Capacitors

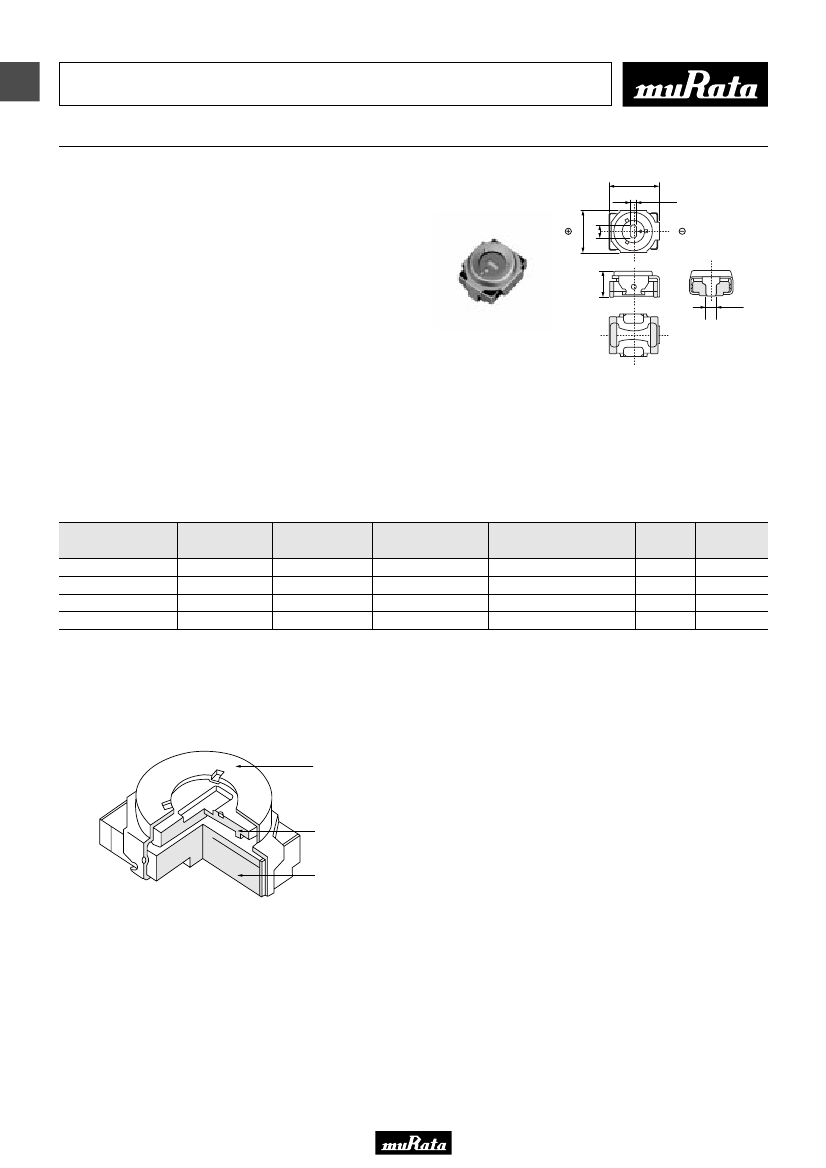

TZR1 Series
1.7
s
Features
1. Ultra-small and thin with external dimensions
of 1.5(W)x1.7(L)x0.85(H)mm
(80% less in volume than the current product).
2. Unique construction with no plastic material
provides superior soldering heat resistance to
maintain excellent characteristic performance
after reflow soldering.
3. Suitable for high frequency circuit due to high
