Power Switches
Power Supply Snap-in Rocker Switches, JW Series
■
Features
1. Its construction is highly resistant to an in-rush current. It’s
secured with contact gap of 3mm compatible with Class 2
under European Standards.
2. It is mountable, compatible with A type in our JW Series (in
chassis mounting dimensions).
Pb Free
F Type
Hot Stamp Color
0 Without
1 Black
2 Red
3 White
Hot Stamp Indication
■
Variation

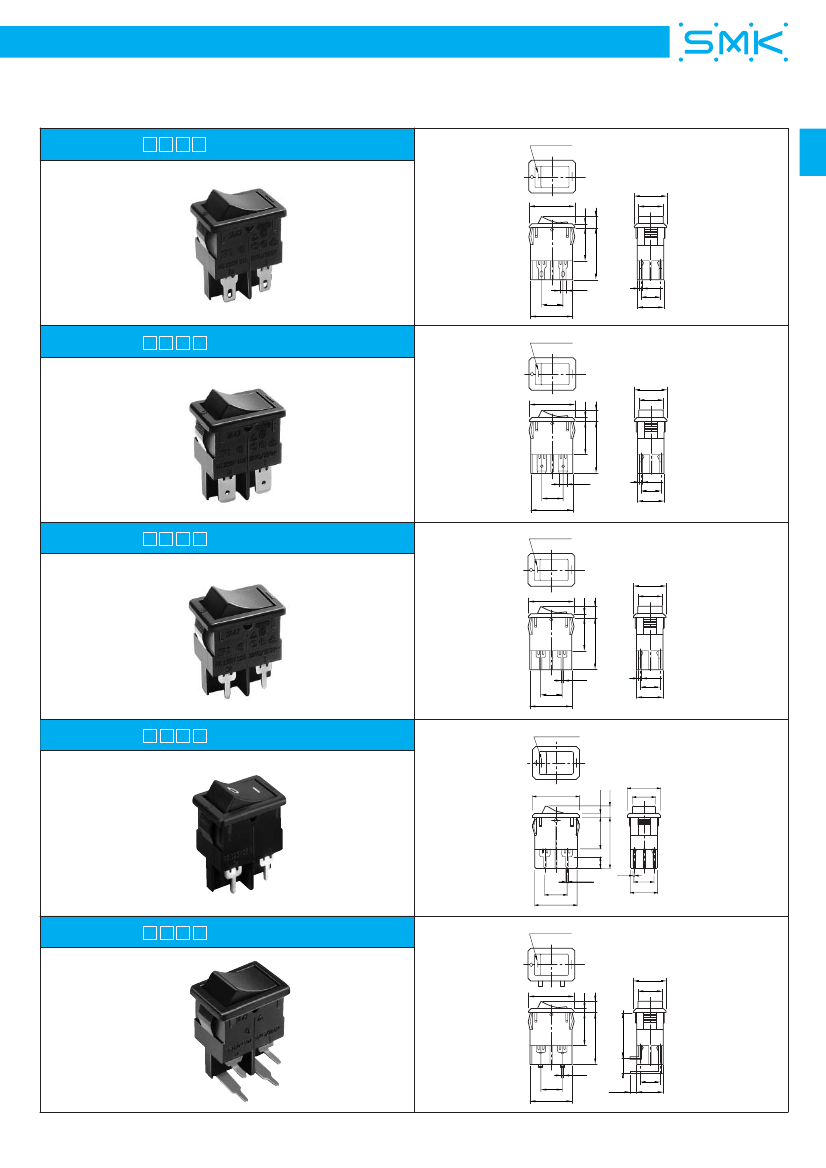

JWF21
-
F
Rocker Switches
■
Specification
1.
2.
3.
4.
5.
6.
Rating
In-Rush Current
Withstanding Voltage
Electrical Life
Circuit
Operating Temperature Range
: 10A, 250V AC / 16A, 125V AC (JWF2131 only)
: 100A (5msec max.)
: AC 2000V (for one minute)
: 10,000 cycles
: DPST
:
−10°C
to
+
55°C
1
2
3
4
: Lead Wiring
: Faston
: P. C. Board (Straight)
: P. C. Board (Right-Angle)
0
1
2
3
Without
4
5
6
●
Minimum Per-purchase Quantity : 900 units
0 : Compatible with overseas
safety standards
1 : Not compatible with
overseas safety standards
■
Safety Standard Approval No.
UL
JWF2110
JWF2120
JWF2130
JWF2140
(Cat. No. JA47)
CSA
SEMKO
DEMKO
VDE
TÜV
SEV
Knob Color
0 Black
1 Orange
2 Beige
3 Gray
Case Color
0 Black
1 Orange
2 Beige
3 Gray
■
Precautions on Use
1. Setting the switching current to as low as 0.5A or less might
result in an instable contact. If you apply the product in such
usage, please make a separate inquiry with us.
2. The power switch is designed to have an alternating current
rated. If you apply it with a direct current, please make a
separate inquiry with us.
3. The rush performance (at an inrush current of 100A) has
been evaluated under the RC load conditions subject to
IEC65. The rush-resistant performance may vary with the
conditions of a load, etc. It rest separately on an on-
equipment basis.
■
Size of Mounting Hole
X
Thickness of mounting board
0.75
~
1.25
1.25
~
2.00
X
19.2
19.4
+0.1
0
+0.1
0
Y
Y
12.9
+0.1
0
12.9
+0.1
0
Refer to the following drawing for a mounting hole.
Stamping direction
Switch operation side
■
Precaution when mounting a switch
Switch design is on the basis of mounting on a SPCC (steel)
panel. If use of soft materials such as plastic panels in place of
standard SPCC panels is planned, decision should be made after
verification of usability, particularly mounting strength for an
extended period of time, under actual application conditions.
16
