Preliminary
Datasheet
RJK0702DPP-E0
N-Channel MOS FET
75 V, 90 A, 4.8 m
Features
High speed switching
Low drive current
Low on-resistance R
DS(on)
= 3.9 m typ. (at V
GS
= 10 V)
Package TO-220FP
R07DS0629EJ0200
Rev.2.00
Oct 15, 2012
Outline
RENESAS Package code: PRSS0003AG-A
(Package name: TO-220FP)
D
G
1. Gate
2. Drain
3. Source
1
2 3
S
Absolute Maximum Ratings
(Ta = 25°C)
Item
Drain to source voltage
Gate to source voltage
Drain current
Drain peak current
Body-drain diode reverse drain current
Avalanche current
Avalanche energy
Channel dissipation
Channel to case thermal impedance
Channel temperature
Storage temperature
Notes: 1. PW
10
s,
duty cycle
1%
2. Value at L = 100
H
, Tch = 25C, Rg
50,
3. Tc = 25C
Symbol
V
DSS
V
GSS
I
D
I
D (pulse) Note1
I
DR
I
AP Note2
E
AS Note2
Pch
Note3
ch-c
Tch
Tstg
Ratings
75
±20
90
270
90
45
304
30
4.17
150
–55 to +150
Unit
V
V
A
A
A
A
mJ
W
C/W
C
C
R07DS0629EJ0200 Rev.2.00
Oct 15, 2012
Page 1 of 6
RJK0702DPP-E0
Preliminary
Electrical Characteristics
(Ta = 25°C)
Item
Drain to source breakdown voltage
Gate to source leak current
Zero gate voltage drain current
Gate to source cutoff voltage
Static drain to source on state
resistance
Forward transfer admittance
Input capacitance
Output capacitance
Reverse transfer capacitance
Gate Resistance
Total gate charge
Gate to source charge
Gate to drain charge
Turn-on delay time
Rise time
Turn-off delay time
Fall time
Body-drain diode forward voltage
Body-drain diode reverse recovery time
Notes: 4. Pulse test
Symbol
V
(BR)DSS
I
GSS
I
DSS
V
GS(off)
R
DS(on)
|y
fs
|
Ciss
Coss
Crss
Rg
Qg
Qgs
Qgd
t
d(on)
t
r
t
d(off)
t
f
V
DF
t
rr
Min
75
—
—
2.0
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ
—
—
—
—
3.9
110
6450
1240
310
1.5
89
33
13
40
12
70
15
0.85
60
Max
—
±0.1
1
4.0
4.8
—
—
—
—
—
—
—
—
—
—
—
—
1.5
—
Unit
V
A
A
V
m
S
pF
pF
pF
nC
nC
nC
ns
ns
ns
ns
V
ns
Test conditions
I
D
= 10mA, V
GS
= 0
V
GS
=
20
V, V
DS
= 0
V
DS
= 75 V, V
GS
= 0
V
DS
= 10 V, I
D
= 1 mA
I
D
= 45 A, V
GS
= 10 V
Note4
I
D
= 45 A, V
D
= 10 V
Note4
V
DS
= 10 V
V
GS
= 0
f = 1 MHz
V
DD
= 25 V
V
GS
= 10 V,
I
D
= 45 A
V
GS
= 10 V
I
D
= 45 A
V
DD
30 V
Rg = 4.7
I
F
= 90 A, V
GS
= 0
Note4
I
F
= 90 A, V
GS
= 0
di
F
/dt = 100 A/s
R07DS0629EJ0200 Rev.2.00
Oct 15, 2012
Page 2 of 6
RJK0702DPP-E0
Preliminary

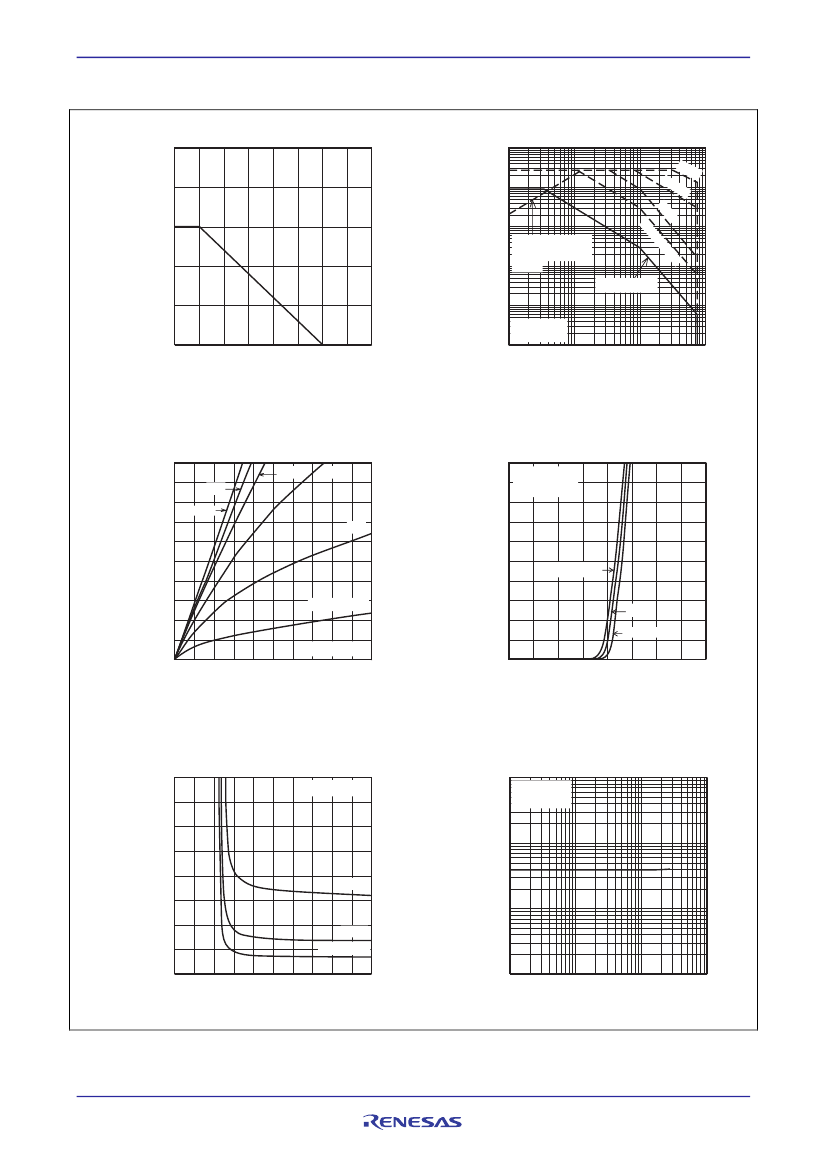

Main Characteristics
Power vs. Temperature Derating
50
1000
10
1
Maximum Safe Operation Area
10
μ
0
μ
s
Channel Dissipation Pch (W)
s
Drain Current I
D
(A)
40
100
m
s
30
10
Operation in this
area is limited by
1
R
DS(on)
PW
=
10
m
s
20
DC Operation
10
0.1
0.01
0.1
Tc = 25°C
1 shot pulse
0
50
100
150
200
1
10
100
Case Temperature Tc (°C)
Drain to Source Voltage V
DS
(V)
Typical Output Characteristics
100
6V
7V
5.4 V
100
Typical Transfer Characteristics
V
DS
= 10 V
Pulse Test
Drain Current I
D
(A)
10 V
5V
Drain Current I
D
(A)
80
80
60
60
Tc = 75°C
40
40
V
GS
= 4.6 V
20
Pulse Test
0
0.2
0.4
0.6
0.8
1.0
20
25°C
−25°C
2
4
6
8
0
Drain to Source Voltage V
DS
(V)
Gate to Source Voltage V
GS
(V)
Drain to Source on State Resistance
vs. Drain Current
Drain to Source on State Resistance
R
DS(on)
(mΩ)
100
V
GS
= 0 V
Pulse Test
Drain to Source Saturation Voltage vs.
Gate to Source Voltage
Drain to Source Saturation Voltage
V
DS(on)
(mV)
400
Pulse Test
300
10
200
45 A
1
100
20 A
I
D
= 10 A
0
0.1
1
10
100
1000
4
8
12
16
20
Gate to Source Voltage V
GS
(V)
Drain Current I
D
(A)
R07DS0629EJ0200 Rev.2.00
Oct 15, 2012
Page 3 of 6
RJK0702DPP-E0
Drain to Source on State Resistance
vs. Temperature
Drain to Source on State Resistance
R
DS(on)
(mΩ)
10
Pulse Test
V
DS
= 10 V
8 I
D
= 45 A
10000
Preliminary
Typical Capacitance vs.
Drain to Source Voltage
Ciss
6
Capacitance C (pF)
1000
Coss
4
2
Crss
V
GS
= 0
f = 1 MHz
0
−25
0
25
50
75
100 125 150
100
0.1
1
10
100
Case Temperature Tc (°C)
Drain to Source Voltage V
DS
(V)
Reverse Drain Current vs.
Source to Drain Voltage
100
Dynamic Input Characteristics
Gate to Source Voltage V
GS
(V)
20
V
DD
= 10 V
25 V
50 V
16
I
DR
(A)
I
D
= 45 A
Pulse Test
80
12
Reverse Drain Current
60
10 V
V
GS
= 0 V
8
40
4
20
0
30
60
90
120
150
0
0.5
1.0
1.5
2.0
Gate Charge Qg (nC)
Source to Drain Voltage V
SD
(V)
Maximum Avalanche Energy vs.
Channel Temperature Derating
400
I
AP
= 45 A
V
DD
= 50 V
duty < 0.1%
Rg
≥
50
Ω
Avalanche Energy E
AS
(mJ)
300
200
100
0
25
50
75
100
125
150
Channel Temperature Tch (°C)
R07DS0629EJ0200 Rev.2.00
Oct 15, 2012
Page 4 of 6
RJK0702DPP-E0
Normalized Transient Thermal Impedance vs. Pulse Width
Normalized Transient Thermal Impedance
γ
s (t)
10.0
Preliminary
1
D=1
0.5
0.2
0.1
0.1
0.05
0.02
0.01
0.01
θch
– c(t) =
γs
(t) •
θch
– c
θch
– c = 4.17°C/W, Tc = 25°C
P
DM
D=
PW
T
PW
T
1shot pulse
0.001
100
μ
1m
10 m
100 m
1
10
Pulse Width
PW (s)
Switching Time Test Circuit
Vin Monitor
D.U.T.
R
L
25
Ω
Vin
10 V
V
DD
= 30 V
td(on)
Vout
Monitor
Vin
Vout
10%
10%
Waveform
90%
10%
90%
td(off)
tf
90%
tr
R07DS0629EJ0200 Rev.2.00
Oct 15, 2012
Page 5 of 6
