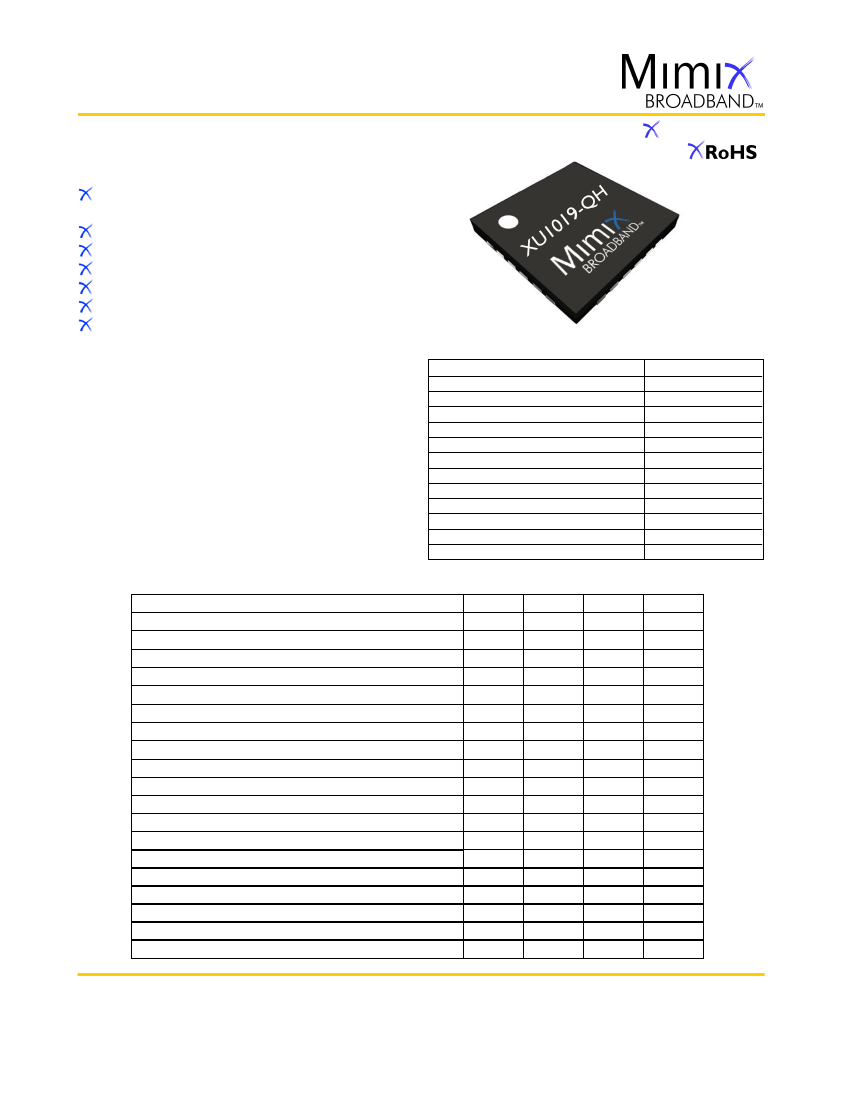

37.0-40.0 GHz Up-Converter
QFN, 4x4mm
March 2010 - Rev 25-Mar-10
U1019-QH
Features
Integrates Image Reject (Balanced) Mixer, LO Buffer,
LO Doubler and RF Buffer
7 dB Conversion Gain (USB)
-25 dBm (2x) LO Leakage (at RF Port)
26 dBm Output Third Order Intercept Point (OIP3)
Variable Gain with Adjustable Bias
4x4mm QFN Package
100% RF and DC Testing
General Description
Mimix Broadband’s 37.0-40.0 GHz GaAs MMIC Intergrated
Up-converter that has a typical conversion gain of 7 dB, and
an image rejection of greater than 15 dBc. It has been
optimized for USB operation. The device includes a LO
doubler and buffer, and can be tuned to give 2xLO leakage of
less than -25 dBm. Variable gain regulation can be achieved
by adjusting the bias, with turn-down trajectories optimized
to maintain linearity and minimal 2xLO leakage over the gain
control range. At full gain, an OIP3 of 26 dBm is typical. The
device comes in an RoHS compliant 4x4mm QFN surface
mount package offering excellent RF and thermal properties.
Typical application for this device are as an up-converter
stage in a linear 38GHz radio transmit lineup. They device is
well suited for Millimeter-wave Point-to-Point Radio, LMDS,
SATCOM and VSAT applications.
Absolute Maximum Ratings
Supply Voltage (Vd1,2,3)
Drain Current (Id1+2+3)
Gate Bias Voltage (Vg1,2,3)
Gate Bias Voltage (Vg4)
Input Power (IFin)
LO Input Power (LOin)
Storage Temperature (Tstg)
Operating Temperature (Ta)
Max. Operating Junction/Channel Temp.
Mounting Temperature
ESD Min. - Machine Model (MM)
ESD Min. - Human Body Model (HBM)
MSL Level
+4.3V
480 mA
-1.5V < Vg < 0V
-4.0V min.
+10 dBm
+13 dBm
-65 to +165 ºC
-55 to +85 ºC
150 ºC
See solder reflow profile
Class A
Class 1A
MSL3
Electrical Characteristics (Ambient Temperature T = 25
o
C)
Parameter
Frequency Range (RF)
Frequency Range (LO)
1
Frequency Range (IF)
LO Input Power (Plo)
Conversion Gain
Image Rejection
Output IP3 (OIP3)
Spurious (2xLO) [tuned]
Spurious (1xLO)
Noise Figure (NF)
Input Return Loss (IF port)
Output Return Loss (RF Port)
LO Return Loss
Drain Bias Voltage (Vd1,2,3)
Drain Current (Id1)
Drain Current (Id2)
Drain Current (Id3)
Gate Voltage (Vg4)
Gate Current (Ig4)
(1) LO frequency range limits the performance characteristics to USB only.
Units
GHz
GHz
GHz
dBm
dB
dBc
dBm
dBm
dBm
dB
dB
dBm
dB
V
mA
mA
mA
V
mA
Min.
37.0
16.75
DC
0
5.0
15
23.0
-25
-45
Typ.
7.0
26.0
Max.
40.0
20.0
3.5
6.0
9.0
18.5
7.0
7.0
7.0
4.0
120
120
150
-3
7
4.0
150
150
180
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 1 of 10
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
37.0-40.0 GHz Up-Converter
QFN, 4x4mm
March 2010 - Rev 25-Mar-10
U1019-QH

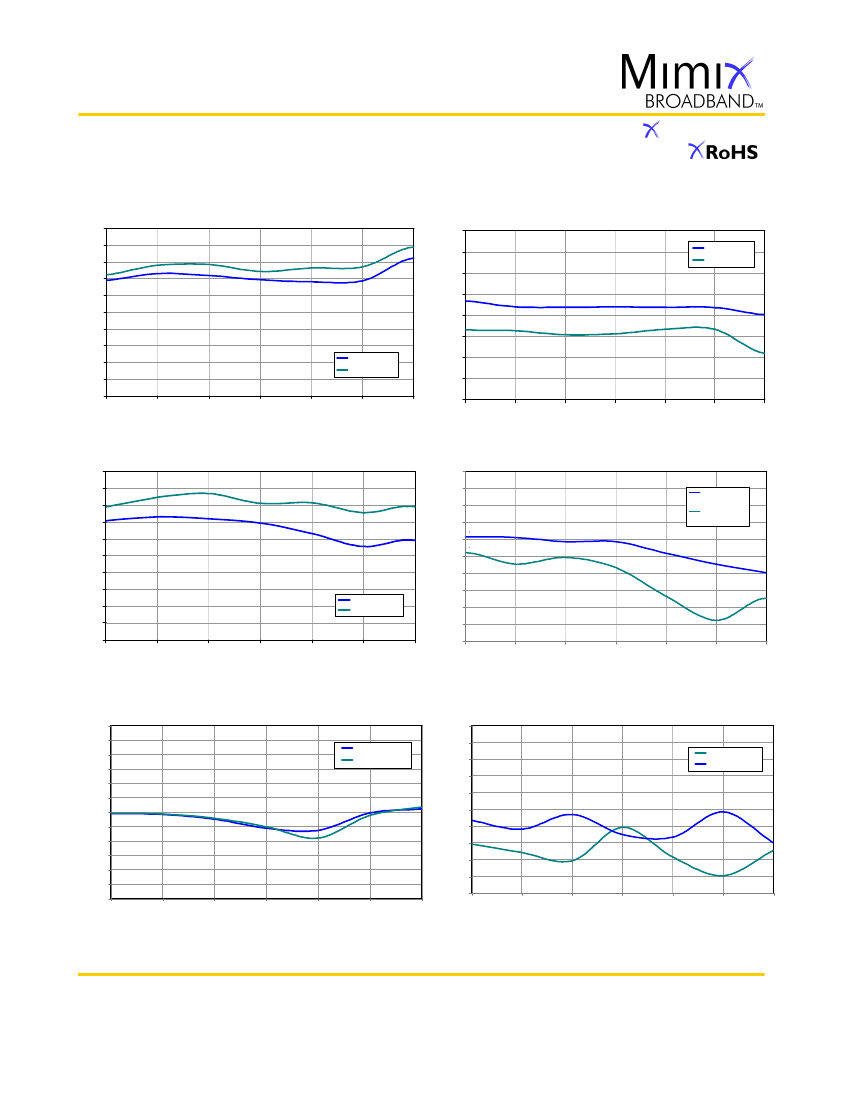

Up-Converter Measurements
10
XU1019-QH: USB Conversion Gain vs. Freq (GHz),
Vd1,2,3=4V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4=-3V
0
XU1019-QH: USB Image Rejection vs. Freq (GHz),
Vd1,2,3=4V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4=-3V
Image IF1,IF2
Image IF1*,IF2*
USB Conversion Gain (dB)
9
8
7
6
5
4
3
2
1
0
37
37.5
38
38.5
39
39.5
40
Gain IF1,IF2
Gain IF1*,IF2*
USB Image Rejection (dBc)
-5
-10
-15
-20
-25
-30
-35
-40
37
37.5
38
38.5
39
39.5
40
RF (GHz) [IF = 2 GHz]
RF (GHz) [IF = 2 GHz]
X
U1019-QH: LSB Image Rejection & Conversion Gain vs. Freq (GHz),
Vd1,2,3 = 4 V, Id1,2,3 = 120, 120 & 150 mA, Vg4 = - 3 V
9
LSB Image Rejection (dBc) & Conversion
Gain (dB)
10
XU1019-QH: LSB Conversion Gain vs. Freq (GHz),
Vd1,2,3=4 V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4=-3V
0
-5
Image IF1,IF2
IF1*,IF2*
LSB Conversion Gain (dB)
8
7
6
5
4
3
2
1
0
37
37.5
38
38.5
39
39.5
40
Gain IF1,IF2
Gain IF1*,IF2*
-10
-15
-20
-25
-30
-35
-40
-45
-50
37
37.5
38
38.5
39
39.5
40
RF (GHz) [IF = 2 GHz]
RF (GHz) [IF = 2 GHz]
-20
-25
-30
XU1019-QH: USB 1xLO Leakage Power vs. Freq (GHz),
Vd1,2,3=4V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4 =-3V
1xLO IF1,IF2
0
-5
XU1019-QH: USB 2xLO Leakage Power vs. Freq (GHz),
Vd1,2,3=4V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4 =-3V
2xLO IF1*,IF2*
2xLO IF1,IF2
1xLO Leakage (dBm)
-35
-40
-45
-50
-55
-60
-65
-70
-75
-80
37
37.5
38
38.5
39
2xLO Leakage (dBm)
1xLO IF1*,IF2*
-10
-15
-20
-25
-30
-35
-40
-45
-50
37
37.5
38
38.5
39
39.5
40
39.5
40
RF (GHz) [IF = 2 GHz]
RF (GHz) [IF = 2 GHz]
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 2 of 10
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
37.0-40.0 GHz Up-Converter
QFN, 4x4mm
March 2010 - Rev 25-Mar-10
U1019-QH

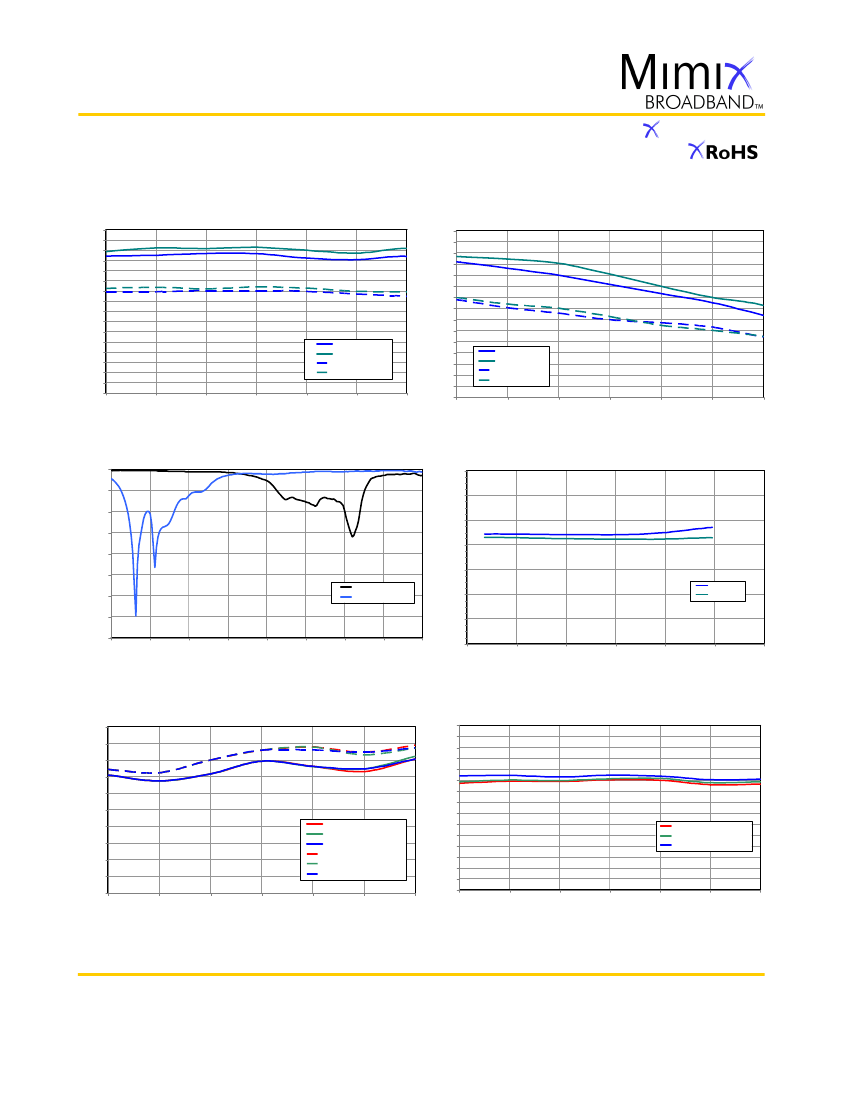

Up-Converter Measurements (cont.)
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
0
37
XU1019-QH: USB OIP3 & IIP3 vs. Freq (GHz),
Vd1,2,3=4V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4=-3V
OIP3 IF1,IF2
OIP3 IF1*,IF2*
IIP3 IF1,IF2
IIP3 IF1*,IF2*
37.5
38
38.5
39
39.5
40
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
0
37
XU1019-QH: LSB OIP3 & IIP3 vs. Freq (GHz),
Vd1,2,3=4V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4=-3V
USB IIP3 & OIP3 (dBm)
LSB IIP3 & OIP3 (dBm)
OIP3 IF1,IF2
OIP3 IF1*,IF2*
IIP3 IF1,IF2
IIP3 IF1*,IF2*
37.5
38
38.5
39
39.5
40
RF (GHz) [IF = 2 GHz]
RF (GHz) [IF = 2 GHz]
0
-5
XU1019-QH: RF & LO Return Loss vs. Freq (GHz)
Vd1,2,3=4V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4=-3V
24
22
XU1019-QH: USB Noise Figure vs. Freq (GHz)
Vd1,2,3=4V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4=-3V
RF & LO Return Loss (dB)
-15
-20
-25
-30
-35
-40
10
15
20
25
30
35
40
45
50
RF Return Loss
LO Return Loss
Noise Figure (dB)
-10
20
18
16
14
12
10
37
37.5
38
38.5
39
39.5
40
IF1,IF2
IF1*,IF2*
Frequency (GHz)
RF (GHz) [IF = 2 GHz]
10
9
XU1019-QH: USB Conversion Gain vs. Freq ,Varying LO Power
Vd1,2,3=4V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4=-3V
Conversion Gain (dB)
8
7
6
5
4
3
2
1
0
37
37.5
38
38.5
39
39.5
40
IF1,IF2 PLO = 0 dBm
IF1,IF2 PLO = 3 dBm
IF1,IF2 PLO = 6 dBm
IF1*,IF2* PLO = 0 dBm
IF1*,IF2* PLO = 3 dBm
IF1*,IF2* PLO = 6 dBm
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
0
37
XU1019-QH: USB IIP3 vs. Freq,Varying LO Power
Vd1,2,3=4V,Id1=120mA,Id2=120mA,Id3=150mA,Vg4=-3V
IIP3 (dBm)
IF1*,IF2* PLO = 0 dBm
IF1*,IF2* PLO = 3 dBm
IF1*,IF2* PLO = 6 dBm
37.5
38
38.5
39
39.5
40
RF (GHz)
RF (GHz)
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 3 of 10
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
37.0-40.0 GHz Up-Converter
QFN, 4x4mm
March 2010 - Rev 25-Mar-10
U1019-QH

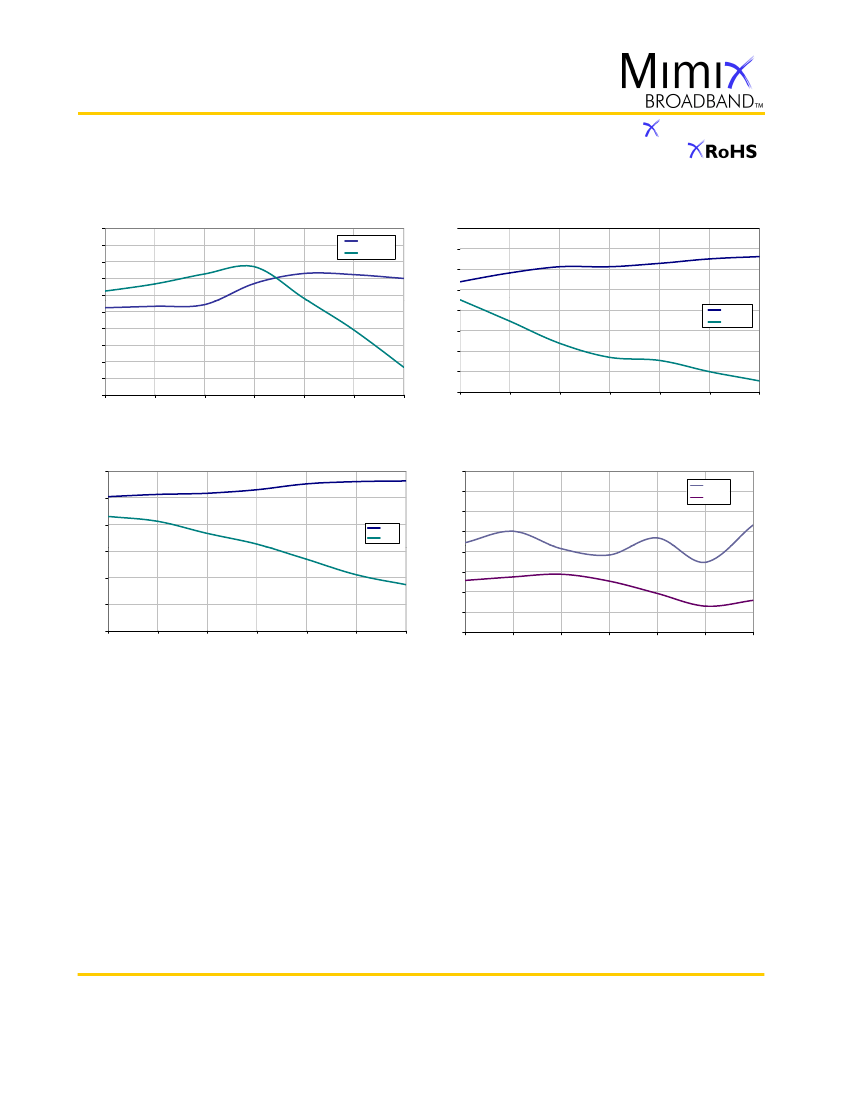

Up-Converter Measurements (cont.)
10
9
8
7
6
5
4
3
2
1
0
37
37.5
38
38.5
39
39.5
40
XU1019-QH: Conversion Gain vs Freq,Pscl=0 dBm, IF1/IF2 used
Vd1,2,3=4V;Id1=120 mA,Id2=120 mA,Id3=150 mA,Vg4=-3V
USB,CG
LSB,CG
XU1019-QH: Image Rejection vs Freq,Pscl=0 dBm, IF1/IF2 used
Vd1,2,3=4V;Id1=120 mA,Id2=120 mA,Id3=150 mA,Vg4=-3V
-10
-15
Conversion Gain (dB)
Image Rej. (dB)
-20
-25
-30
-35
-40
-45
-50
37
37.5
38
38.5
39
39.5
40
USB,IR
LSB,IR
RF (GHz) [IF=3.5 GHz]
RF (GHz) [IF=3.5 GHz]
XU1019-QH: OIP3 vs Freq,Pscl=0 dBm, IF1/IF2 used
Vd1,2,3=4V;Id1=120 mA,Id2=120 mA,Id3=150 mA,Vg4=-3V
30
25
0
-10
XU1019-QH: (USB) LO Leakage vs LO Freq,Plo=3 dBm
Vd1,2,3=4V;Id1=120 mA,Id2=120 mA,Id3=150 mA,Vg4=-3V
X2 LO
X1 LO
OIP3 (dBm)
20
15
10
5
0
37
37.5
38
38.5
39
39.5
USB
LSB
LO Leakage (dBm)
40
-20
-30
-40
-50
-60
-70
-80
16.75
17
17.25
17.5
17.75
18
18.25
RF (GHz) [IF=3.5 GHz]
LO Frequency (GHz)
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 4 of 10
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
37.0-40.0 GHz Up-Converter
QFN, 4x4mm
March 2010 - Rev 25-Mar-10
U1019-QH
App Note [1] Biasing
- As shown in the Pin Designations table, the device is operated by biasing Vd1, Vd2, and Vd3 at 4.0V. The corresponding
drain currents are set to 120mA, 120mA, and 150mA respectively. Vg4 requires a fixed voltage bias of nominally -3V. It is recommended to use
active bias on Vg1, Vg2, Vg3 to keep the currents in Vd1, Vd2, and Vd3 constant, in order to maintain the best performance over temperature.
Depending on the supply voltages available and the power dissipation constraints, the bias circuits may include a single transistor or a low power
operational amplifier, with a low value resistor in series with the drain supply to sense the current. Make sure to sequence the applied voltage to
ensure negative gate bias is available before applying the positive drain supply.

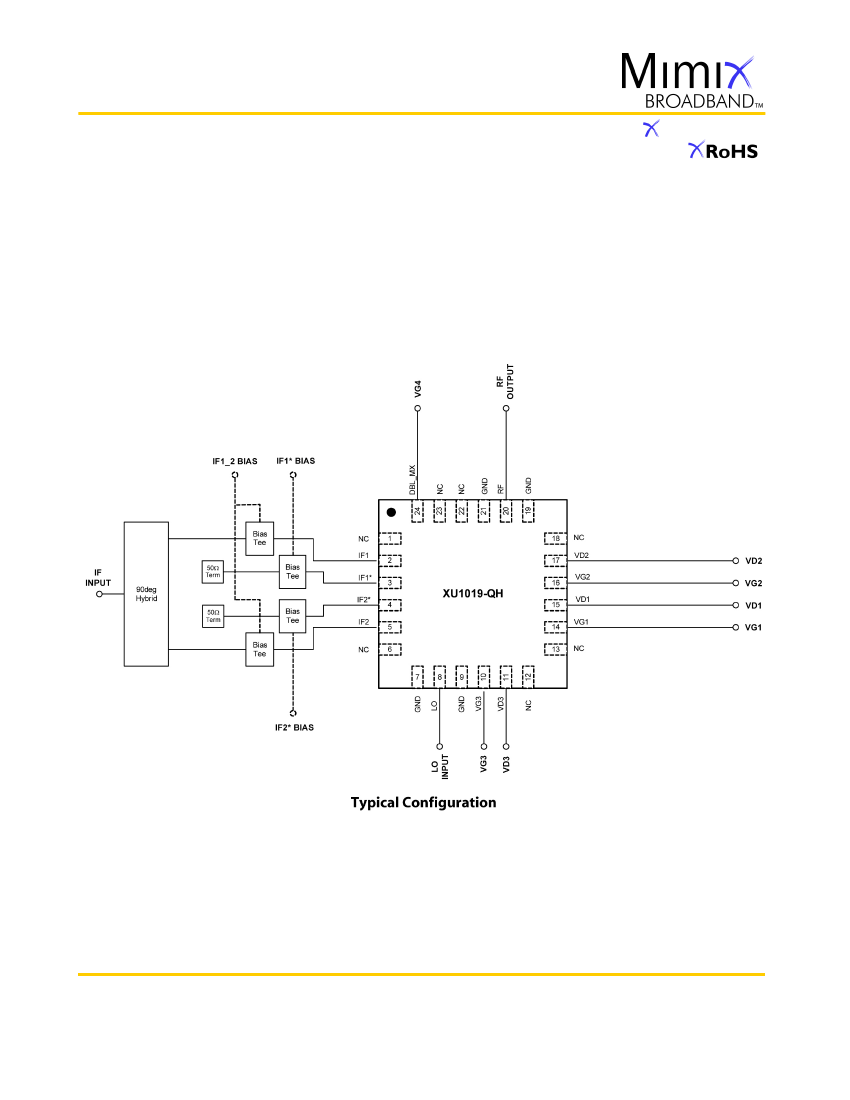

App Note [2] IF1/IF2 versus IF1*/IF2*
- The IF input to the typical configuration is through a 90deg hybrid coupler. The hybrid splits the IF input
into inphase and quadrature phase components. These two signals enter the XU1019-QH on either the IF1/IF2 pair, or the IF1*/IF2* complimentary
pair. Which ever pair are not used must be terminated into 50 ohms. There are subtle differences between the performance when using the main IF
ports (IF1,IF2) versus the complimentary ports (IF1*, IF2*) which are shown in the preceding performance curves. For highest gain, best image
rejection and lowest noise figure, the complimentary ports (IF1*, IF2*) should be used.
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 5 of 10
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
