LESHAN RADIO COMPANY, LTD.
General Purpose Transistors
PNP Silicon
FEATURE
Complementary to L9014.
L9015QLT1G
Series
We declare that the material of product compliance with RoHS requirements.
S- Prefix for Automotive and Other Applications Requiring Unique Site
and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable.
S-L9015QLT1G
Series
3
DEVICE MARKING AND ORDERING INFORMATION
Device
L9015QLT1G
S-L9015QLT1G
L9015QLT3G
S-L9015QLT3G
L9015RLT1G
S-L9015RLT1G
L9015RLT3G
S-L9015RLT3G
L9015SLT1G
S-L9015SLT1G
L9015SLT3G
S-L9015SLT3G
Marking
15Q
15Q
15R
15R
15S
15S
Shipping
3000/Tape&Reel
10000/Tape&Reel
3000/Tape&Reel
SOT– 23
1
2
10000/Tape&Reel
3000/Tape&Reel
10000/Tape&Reel
1
BASE
COLLECTOR
3
MAXIMUM RATINGS
Rating
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector current-continuoun
Symbol
V
CEO
V
CBO
V
EBO
I
C
Value
-45
-50
-5
-100
Unit
V
V
V
mA
2
EMITTER
THERMAL CHARATEERISTICS
Characteristic
Total Device Dissipation FR-5 Board.(1)
T
A
=25 C
Derate above 25
C
Thermal Resistance, Junction to Ambient
Total Device Dissipation
Alumina Substrate, (2) TA=25
o
C
Derate above 25
o
C
Thermal Resistance, Junction to Ambient
Junction and Storage Temperature
1. FR–5 = 1.0 x 0.75 x 0.062 in.
2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina.
o
o
Symbol
P
D
Max
Unit
225
1.8
R
JA
P
D
300
2.4
R
JA
T
J
,T
stg
417
-55 to +150
556
mW
mW/
o
C
o
C
/
W
mW
mW/
o
C
o
C
/
W
o
C
Rev.O 1/4
LESHAN RADIO COMPANY, LTD.
L9015QLT1G Series
S-L9015QLT1G Series
ELECTRICAL CHARACTERISTICS (T
A
=25
o
C unless otherwise noted)
OFF CHARACTERISTICS
Characteristic
Collector-Emitter Breakdown Voltage
(I
C
=-1.0mA)
Emitter-Base Breakdown Voltage
(I
E
=-100µA)
Collector-Base Breakdown Voltage
(I
C
=-100µA)
Collector Cutoff Current (V
CB
=-40V)
Emitter Cutoff Current (V
EB
=-3V)
ON CHARACTERISTICS
DC Current Gain
(I
C
=-1mA, V =-5V)
CE
Collector-Emitter Saturation Voltage
(I
C
=-100mA,I
B
=-5mA)
V
CE
-
-
-0.3
V
H
FE
150
-
600
I
I
CBO
EBO
Symbol
V(BR)
CEO
Min
-45
Typ
-
Max
-
Unit
V
V(BR)
EBO
-5
-
-
V
V(BR)
CBO
-50
-
-
V
-
-
-100
-100
nA
nA
NOTE:
*
H
FE
Q
150~300
R
200~400
S
300~600
Rev.O 2/4
LESHAN RADIO COMPANY, LTD.
L9015QLT1G Series
S-L9015QLT1G Series

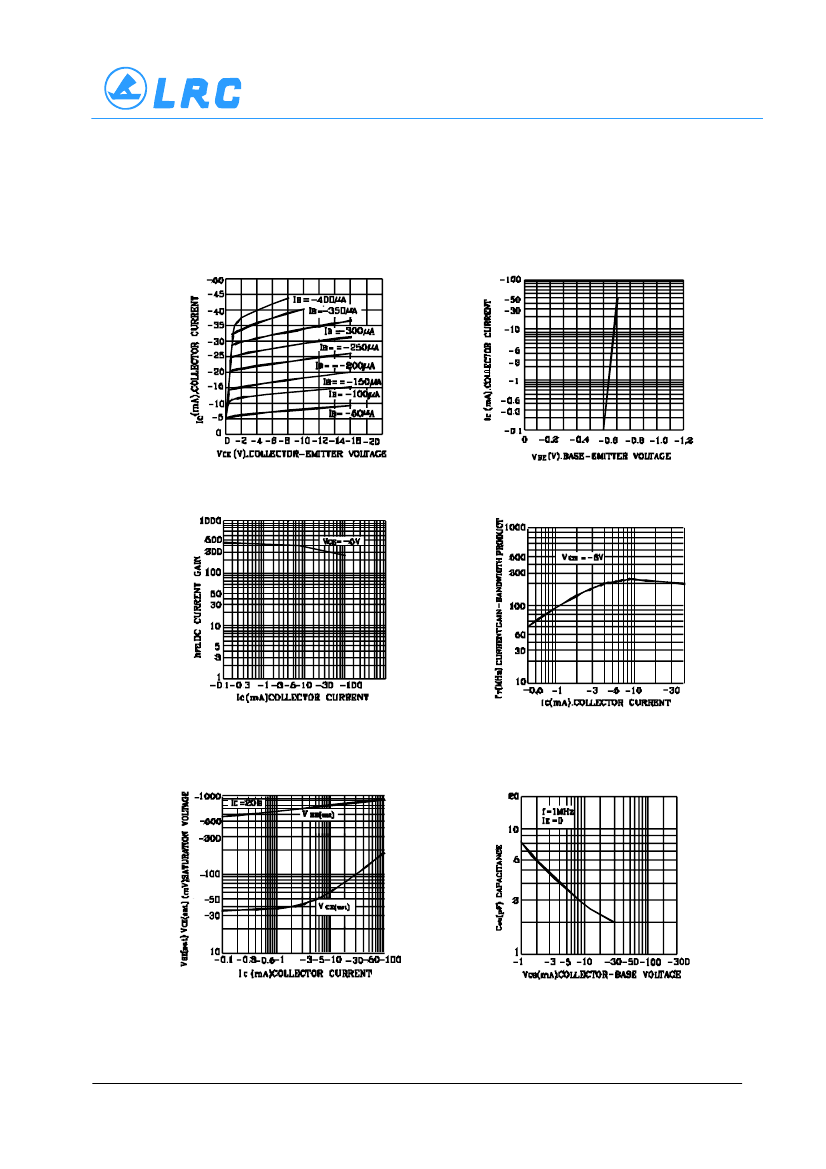

STATIC CHARACTERISTIC
BASE-EMITTER VOLTAGE
DC CURRENT GAIN
CURRENT GAIN-BANDWIDTH PRODUCT
BASE-EMITTER SATURATION VOLTAGE
COLLECTOR-EMITTER SATURATION VOLTAGE
COLLECTOR OUTPUT CAPACITANCE
Rev.O 3/4
LESHAN RADIO COMPANY, LTD.
L9015QLT1G Series
S-L9015QLT1G Series
SOT-23
NOTES:
A
L
3
1
V
G
2
B S
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
DIM
A
B
C
D
G
H
J
K
L
S
V
C
D
H
K
J
INCHES
MIN
MAX
0.1102
0.1197
0.0472
0.0551
0.0350
0.0440
0.0150
0.0200
0.0701
0.0807
0.0005
0.0040
0.0034
0.0070
0.0140
0.0285
0.0350
0.0401
0.0830
0.1039
0.0177
0.0236
MILLIMETERS
MIN
MAX
2.80
3.04
1.20
1.40
0.89
1.11
0.37
0.50
1.78
2.04
0.013
0.100
0.085
0.177
0.35
0.69
0.89
1.02
2.10
2.64
0.45
0.60
PIN 1. BASE
2. EMITTER
3. COLLECTOR
0.037
0.95
0.037
0.95
0.079
2.0
0.035
0.9
0.031
0.8
inches
mm
Rev.O 4/4
