LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
1W Power Light LED
LGFLV-311E-60
DATA SHEET
DOC. NO :
REV
：
DATE
:
QW0905- LGFLV-311E-60
A
20 - Apr. -2011
發行
立碁電子
DCC
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
Features
*. High Flux per LED
*. Very long operating life(up to 100k hours).
*. Available in White.
*. More Energy Efficient than lncandescent and most Halogen lamps.
*. Low voltage DC operated..
*. Cool beam, safe to the touch.
*. Instant light(less than 100 ns).
*. Fully dimmable.
*. No UV.
*. Superior ESD protection..
*. Soldering methods: hand Soldering or reflow solder.
Typical Applications
*. Reading Light (car,bus,aircraft)
*. Portable(flashlight,bicycle).
*. LCD Backlights / Light Guides.
*. Automotive Exterior (Stop-Tail-Tum,CHMSL,Mirror Side Repeat).
*. Commercial and Residential Architectural lighting.
*. Mini-accent / Uplighters / Downlighters / Orientation lighting
*. Fiber Optic Alternative / Decorative / Entertainment lighting.
*. Security / Garden lighting.
*. Cove / Undershelf / Task lighting.
*. Traffic signaling / Beacons / Rail crossing and Wayside lighting.
*. Decorative.
*. Sign and channel Letter.
Dimension
Anode
∅
8±0.2
2x1.5±0.2
Anode(+)
2x1.3±0.2
Cathode(-)
6
5.0±0.2
1.25±0.2
9.6±0.3
11.9±0.3
14.5±0.3
2.4
5.8±0.3
Note:1.All dimension are in millimeter
2.Specifications are subject to change without notice
Page 1/13
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
Absolute Maximum Ratings at Ta=25
℃
Ratings
Parameter
Symbol
Warm White
DC Forward Current
Power Dissipation
Peak pulse current
Duty 1/10@10KHz
LED junction Temperature
Reverse Current(VR=5V)
ESD Sensitivity
Storage Temperature
Operating Temperature
Manual Soldering Time
at 260°C(Max)
I
F
PD
I
FP
Tj
Ir
V
B
Tstg
T
opr
T
sol
350
1.4
500
125
100
±4000
-40 ~ +120
-40 ~ +100
5
mA
W
mA
UNIT
℃
μ
A
V
℃
℃
seconds
NOTE:
1. Proper current derating must be observed to maintain temperature below the maximum.
2. LEDS are not designed to be driven in reverse bias.
. Luminous Flux Characteristics at 350mA
(Ratings At 25
℃
Ambient)
Luminous
Flux
@350mA(lm)
Min.
Typ.
Max.
Radiation
Pattern
PART NO
Emission
Color
Units
Lambertian LGFLV-311E-60 Warm White
51.7
60
----
lm
Note :
1. Warm Whiteemitters are built with InGaN.
2. Flux and power is measured with an accuracy of
±10%
Page 2/13
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
. Forward Voltage Characteristics at 350mA
(Ratings At 25
℃
Ambient)
Radiation
Pattern
PART NO
Emission
Color
Vf
Min.
Typ.
Max.
Units
Lambertian LGFLV-311E-60
Warm White
3.0
3.6
4.0
V
Note : Forward Voltage is measured with an accuracy of
±0.1V
. Color Tempeature Characteristics at 350mA
(Ratings At 25℃ Ambient )
Radiation
Pattern
PART NO
Emission
Color
CCT
Min.
Typ.
Max.
Units
Lambertian LGFLV-311E-60
Warm White
2670 ---- 3800
K
Note : CCT±5% tester tolerance.
. Tempeature Coefficient Of Forward Voltage&Thermal
Resistance Junction To Board Characteristics at 350mA
(Ratings At 25℃ Ambient )
Radiation
Pattern
PART NO
Emission
Color
VF/ T
Rth,j-B
Typ.
Units
Typ. Units
Lambertian
LGFLV-311E-60
Warm White
-2 mV/° C 18
°C/W
. Emission Angle Characteristics at 350mA
(Ratings At 25
℃
Ambient )
Emission
Color
PART NO
Lambertian
60
Units
LGFLV-311E-60 Warm White
Degrees
Page 3/13
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
Brightness Code For High Power LED
Group
F23-1
F23-2
Luminous flux(lm)
Min
51.7
60
Max
60
67.2
Note : Flux is measured with an accuracy of
±10%

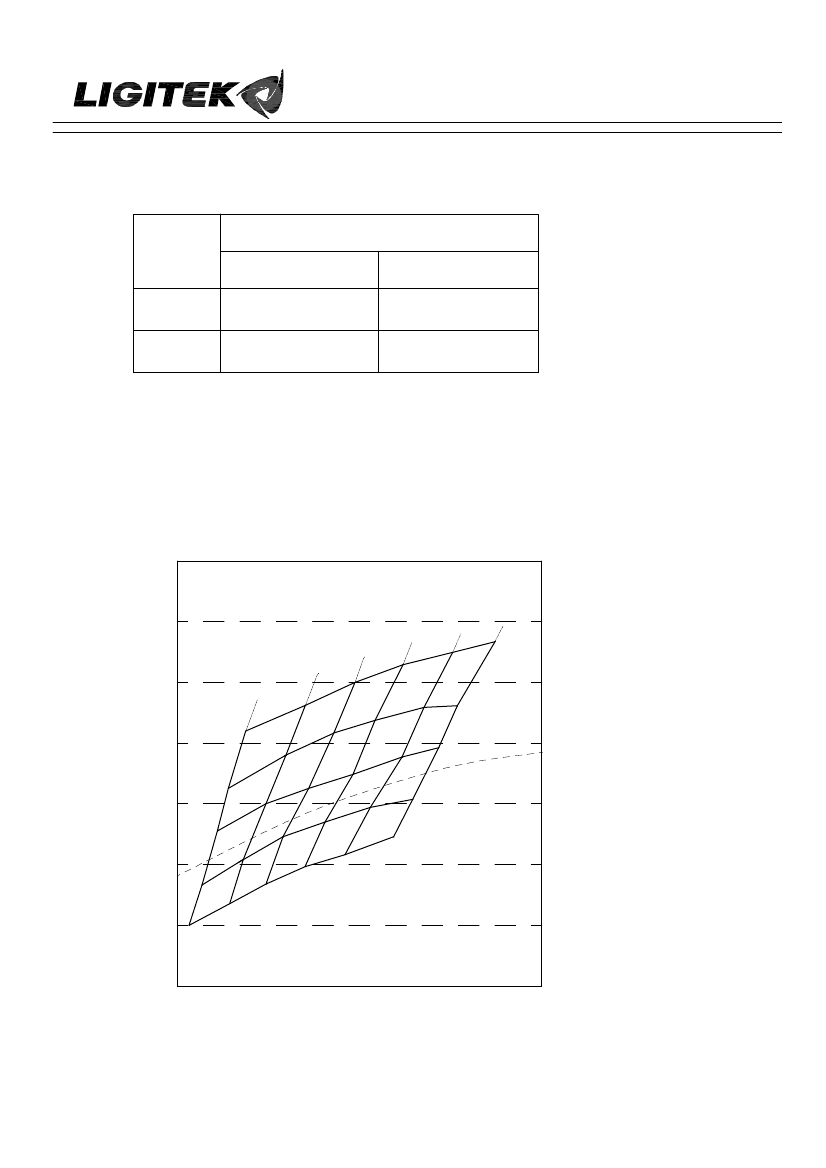

White Binning Structure Graphical Representation
0.48
0.46
3050K
3250K
3500K
2670K
2850K
0.44
3800K
PM
QM
NN
PN
QN
NO
MP
NP
NM
MN
MM
y
0.42
RM
MO
0.40
RN
QO
RO
PO
PP
0.38
RP
0.36
QP
0.34
0.38
0.40
0.42
0.44
0.46
0.48
0.50
x
Page 4/13
