output. It can be used as a power amplifier stage or
as a driver stage in high power pulsed applications.
This power amplifier is ideally suited for Point-to-
Point Radios and C-band radar applications.
Each device is 100% RF tested to ensure
performance compliance.
14
13
12
11
7
8
9
V
G
1b
V
G
2b
V
D
1b
V
D
2b
Pin Configuration
2
Pin No.
Function
Ground
Ground
RF
IN
Ground
Ground
V
G
1b
V
G
2b
V
D
1b
V
D
2b
V
D
2b
Pin No.
11
12
13
14
15
16
17
18
19
20
21
Function
Ground
Ground
RF
OUT
Ground
Ground
V
D
2a
V
D
2a
V
D
1a
V
G
2a
V
G
1a
Paddle
3
Ordering Information
1
Part Number
MAAP-011027-TR0500
MAAP-011027-000SMB
Package
500 piece reel
Sample Board
1
2
3
4
5
1. Reference Application Note M513 for reel size information.
6
7
8
9
10
2. MACOM recommends connecting unused package pins to
ground.
3. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
For further information and support please visit:
https://www.macomtech.com/content/customersupport
V
D
2b
MAAP-011027
Amplifier, Power, 8 W
5.2 - 5.9 GHz
Electrical Specifications:
Freq. 5.2 - 5.9 GHz, V
DD
= 9 V Pulsed, 100 µs Pulse Width,10% Duty Cycle , Z
0
= 50 Ω
Parameter
Gain
Input Return Loss
Output Return Loss
P
SAT
Pulse Period
Pulse Duty Cycle
Efficiency
Small Signal Current
Units
dB
dB
dB
dBm
µs
%
%
A
Min.
17
—
—
37
—
—
—
—
Typ.
20
10
10
39
100
10
37
1
Max.
—
—
—
—
—
—
—
—
Rev. V2
Maximum Operating Ratings
4,5,6
Parameter
Input Power
Supply Voltage
Operating Temperature
Junction Temperature
7
Storage Temperature
Absolute Maximum
+28 dBm
+11 V
-40°C to +85°C
+150 °C
-55°C to +150°C
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
class 1A devices.
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. MACOM does not recommend sustained operation near
these survivability limits.
6. Operating at nominal conditions with T
J
≤ +150°C will ensure
MTTF > 1 x 10
6
hours.
7. Junction Temperature (T
J
) = T
C
+
Ө
JC
* (V * I)
Typical CW thermal resistance (Ө
JC
) = 7.7°C/W
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
For further information and support please visit:
https://www.macomtech.com/content/customersupport
MAAP-011027
Amplifier, Power, 8 W
5.2 - 5.9 GHz

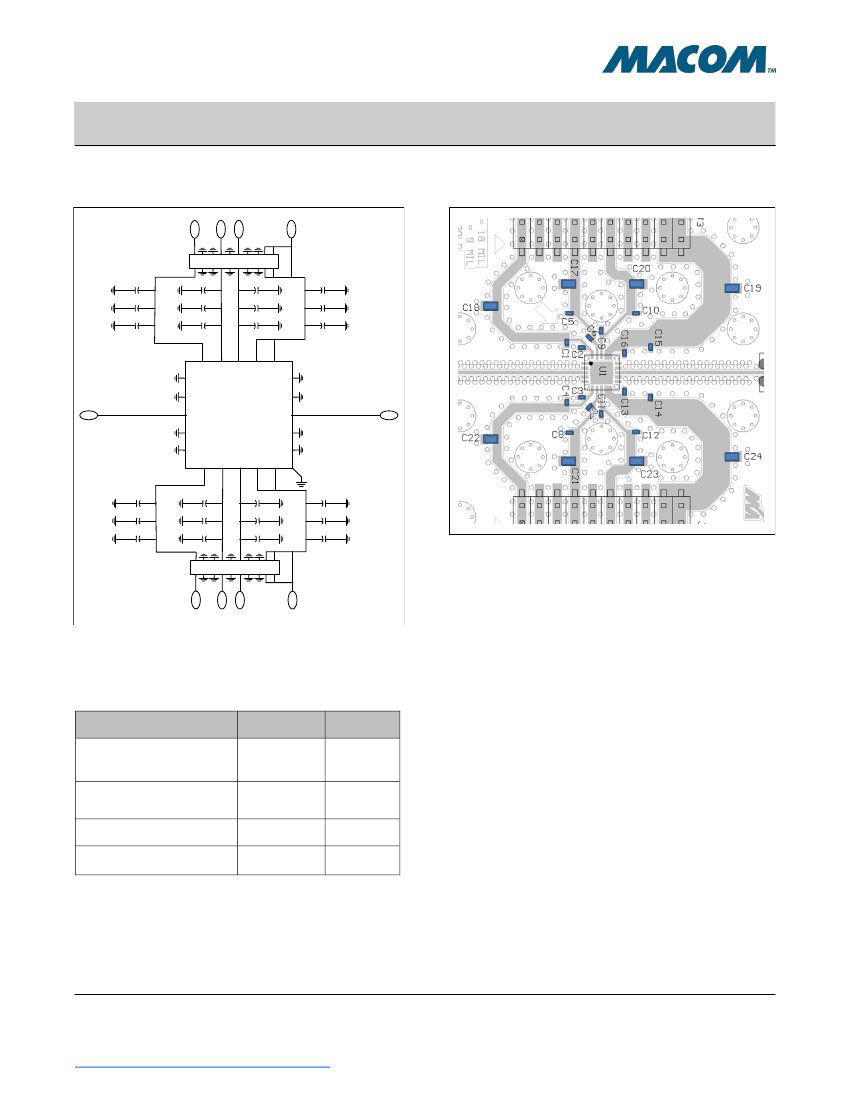

Schematic
Vg1a
Vg2a
Vd1a
Vd2a
Rev. V2
Recommended PCB Layout
2
1
4
3
6
5
8
7
10 12 14 16 18 20
9
11 13 15 17 19
J3
C18
C1
C2
C17
C5
C6
C20
C10
C9
C19
C15
C16
20
1
2
3
RFin
19
18
17
16
15
14
13
12
11
RFout
4
5
6
7
8
9
10
21
C3
C4
C22
2
1
C7
C8
C21
4
3
6
5
8
7
C11
C12
C23
10 12 14 16 18 20
9
11 13 15 17 19
C13
C14
C24
Vg1b
Vg2b
Vd1b
Vd2b
Parts List
Component
C1, C4, C5, C8,
C10, C12, C14, C15
C2, C3, C6, C7,
C9, C11, C13, C16
C17, C18, C21, C22
C19, C20, C23, C24
Value
1000 pF
100 pF
1 µF
10 nF
Package
0402
0402
0805
0805
Operating the MAAP-011027
To operate, follow these steps.
Ramp down or shut down in reverse order.
1. Apply V
G
between -1 V and -0.5 V to set IDQ to 1 A
2. Apply RF Power ON
3. Apply V
DD
Pulsed
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
For further information and support please visit:
https://www.macomtech.com/content/customersupport
MAAP-011027
Amplifier, Power, 8 W
5.2 - 5.9 GHz

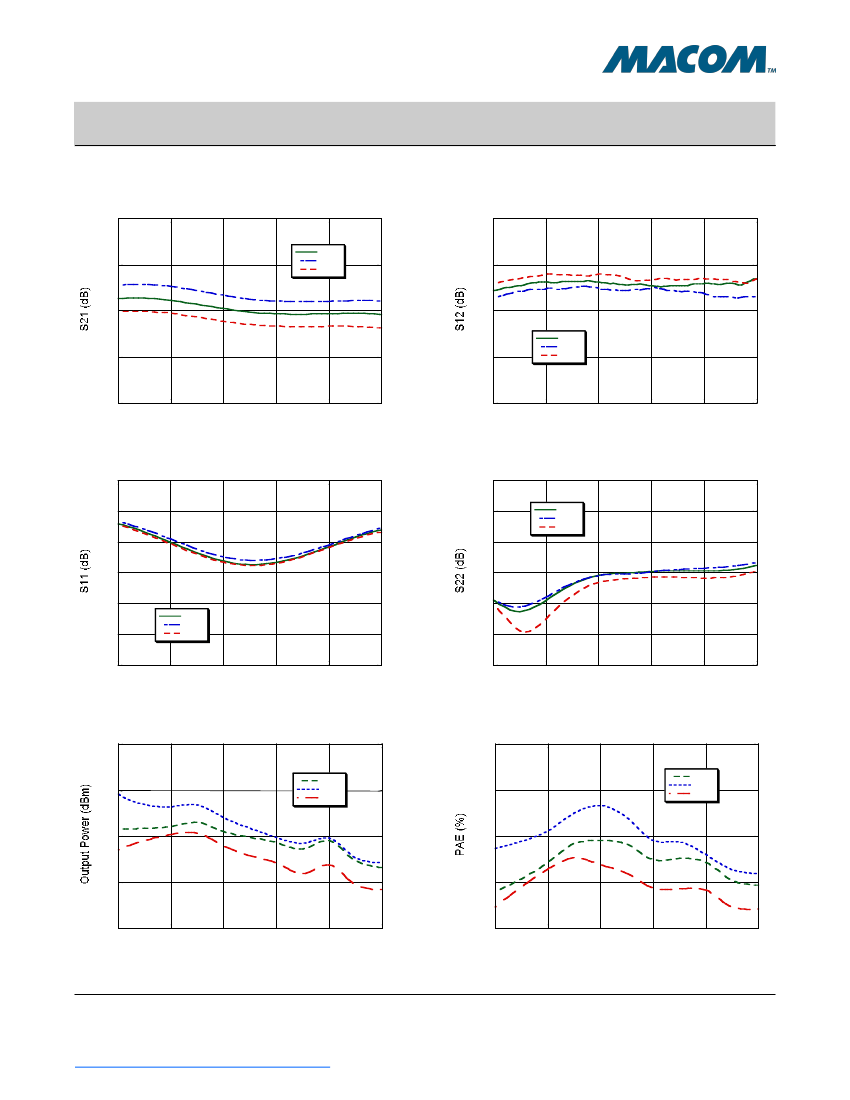

Typical Performance Curves over Temperature
Gain
30
Rev. V2
Reverse Isolation
-40
25
+25°C
-40°C
+85°C
-45
20
-50
+25°C
-40°C
+85°C
15
-55
10
5.0
5.2
5.4
5.6
5.8
6.0
-60
5.0
5.2
5.4
5.6
5.8
6.0
Frequency (GHz)
Frequency (GHz)
Input Return Loss
0
-5
-10
-15
-20
-25
-30
+25°C
-40°C
+85°C
Output Return Loss
0
-5
-10
-15
-20
-25
-30
+25°C
-40°C
+85°C
5.0
5.2
5.4
5.6
5.8
6.0
5.0
5.2
5.4
5.6
5.8
6.0
Frequency (GHz)
Frequency (GHz)
Output Power
41
Power Added Efficiency
50
+25°C
-40°C
+85°C
40
+25°C
-40°C
+85°C
45
39
40
38
35
37
5.0
5.2
5.4
5.6
5.8
6.0
30
5.0
5.2
5.4
5.6
5.8
6.0
Frequency (GHz)
Frequency (GHz)
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
For further information and support please visit:
https://www.macomtech.com/content/customersupport
MAAP-011027
Amplifier, Power, 8 W
5.2 - 5.9 GHz

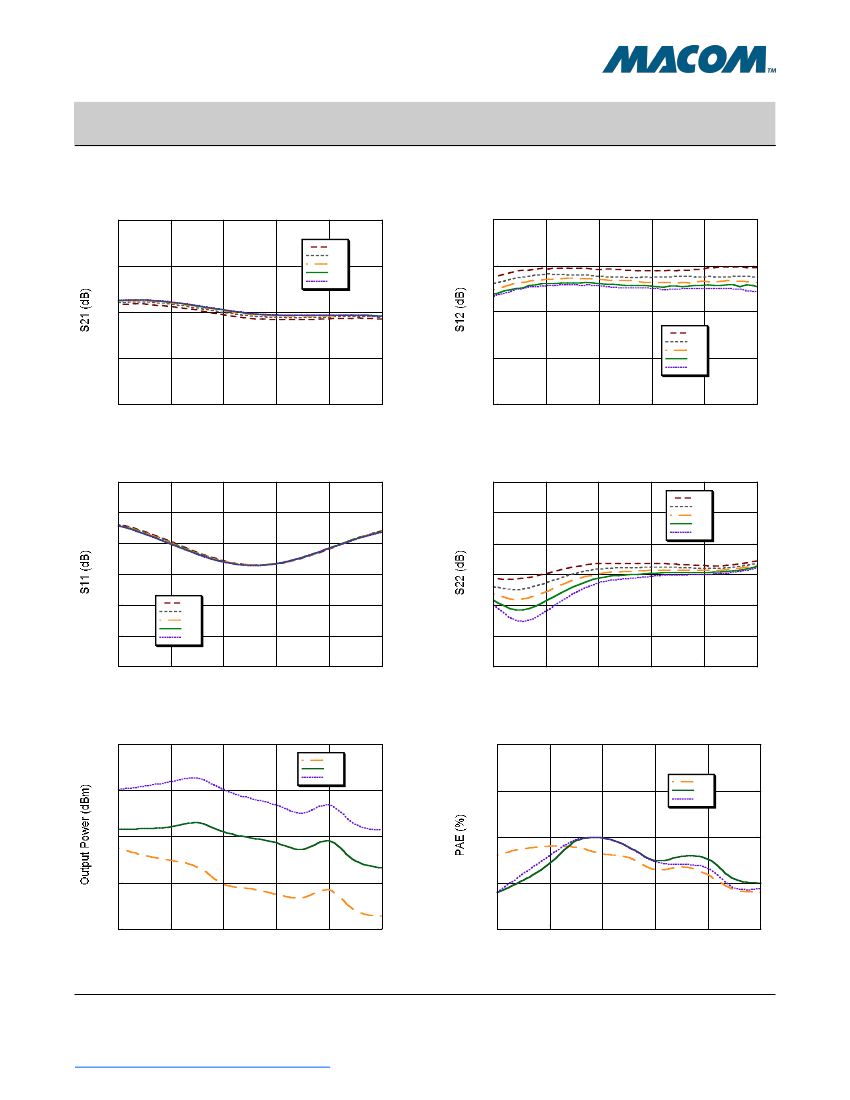

Typical Performance Curves over Voltage
Gain
30
6V
7V
8V
9V
10 V
Rev. V2
Reverse Isolation
-40
25
-45
20
-50
6V
7V
8V
9V
10 V
15
-55
10
-60
5.0
5.2
5.4
5.6
5.8
6.0
5.0
5.2
5.4
5.6
5.8
6.0
Frequency (GHz)
Frequency (GHz)
Input Return Loss
0
-5
-10
-15
-20
-25
-30
6V
7V
8V
9V
10 V
Output Return Loss
0
-5
-10
-15
-20
-25
-30
6V
7V
8V
9V
10 V
5.0
5.2
5.4
5.6
5.8
6.0
5.0
5.2
5.4
5.6
5.8
6.0
Frequency (GHz)
Frequency (GHz)
Output Power
41
8V
9V
10 V
Power Added Efficiency
50
40
45
8V
9V
10 V
39
40
38
35
37
5.0
5.2
5.4
5.6
5.8
6.0
30
5.0
5.2
5.4
5.6
5.8
6.0
Frequency (GHz)
Frequency (GHz)
5
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
