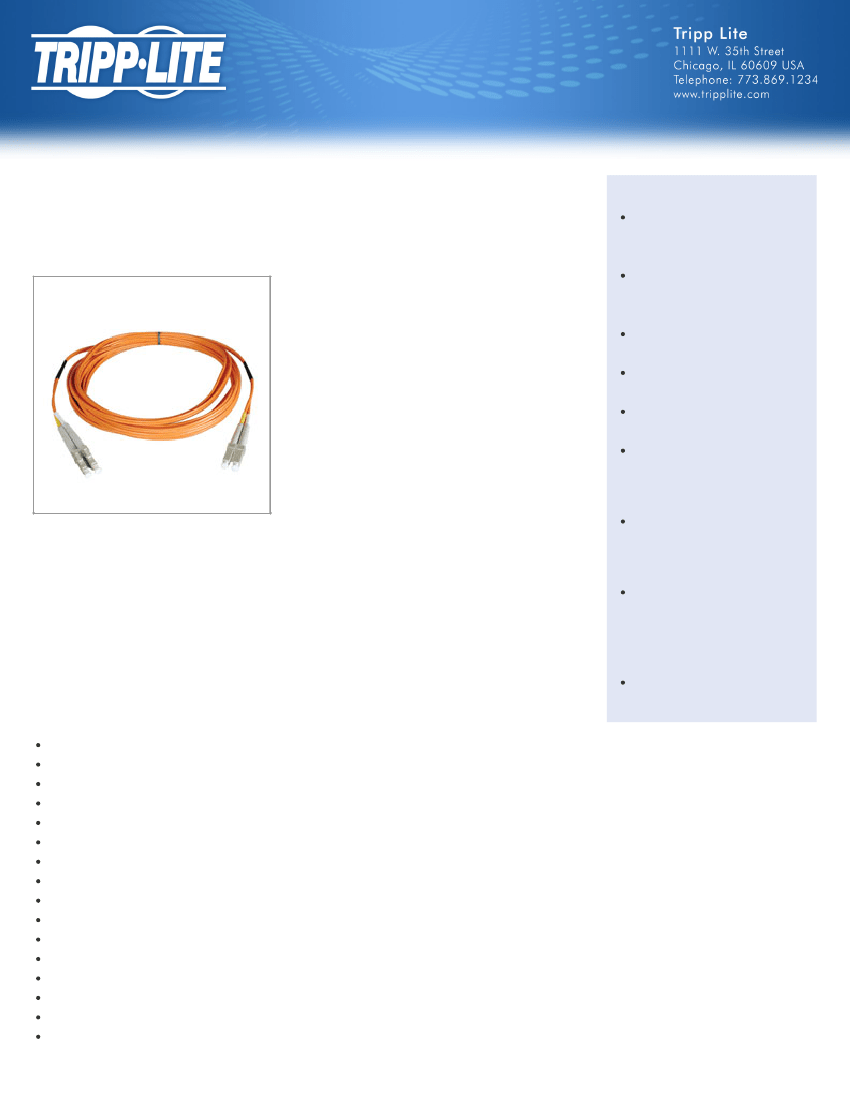

Duplex Multimode 50/125 Fiber Patch Cable
(LC/LC), 25M (82-ft.)
MODEL NUMBER:
N520-25M
Highlights
Perfect for use with Fibre
Channel Controller Cards and
Switches
Attenuation loss meets or
exceeds the latest industry
standards
Higher bandwidth, optimized for
gigabit and 10Gbps networks
Backward compatible with 62.5
micron fiber
Built-in headroom for future
applications
Premium PVC multimode patch
cables
Applications
Fibre Channel storage
installations
Description
Tripp Lite's 25-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125
zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated.
50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible
with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher
bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 30, and 50
meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-", and
for SC-SC, search "N506-".
System Requirements
Any fiber optic hardware or NIC
card requiring multimode duplex
cable with LC/LC connectors
Package Includes
25M Duplex MMF Cable LC/LC
50/125 Fiber
Features
Constructed with 50/125 micron cable
Length - 25M
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: Two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
1/3
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Specifications
OVERVIEW
Attenuation @ 1300NM
Attenuation @ 850NM
Bandwidth @ 1300NM
Bandwidth @ 850NM
Clad Diameter
Core Diameter
Number of Fibers
Numerical Aperture
Primary Coating Diameter
Primary Coating Material
Proof Test Level
Secondary Coating Diameter
Secondary Coating Material
Fiber Type
Cable Type
1.0 DB/KM maximum
3.5 DB/KM maximum
600 MHZ-KM minimum
220 MHZ-KM minimum
125 +/- 2 microns
Two 50 +/- 3 microns
2
.275 nominal
245 +/- 15 microns
Acrylate
100,000 PSI
900 +/- 50 microns
PVC
50/125 - OM2
Multimode
INPUT
Cable Length (ft.)
Cable Length (m)
82
25
PHYSICAL
Color
Orange
COMMUNICATIONS
Network Speed
1Gbps
CONNECTIONS
Connector A
LC
2/3
