MAFL-008070-CL0AD0
CATV MoCA Low Pass Filter
50 - 870/ 975 - 1525 MHz
Features
•
•
•
75 Ohm
SMT unit
RoHS* Compliant
M/A-COM Products
Released - Rev. V3

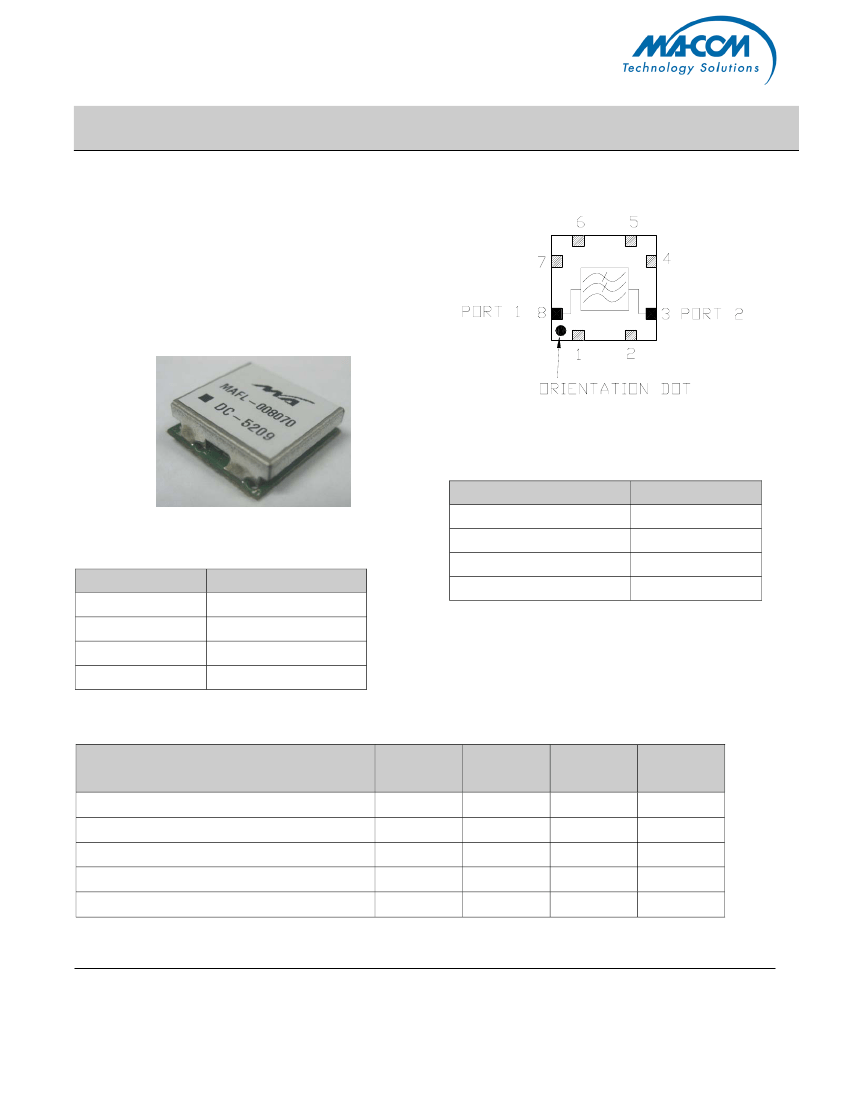

Functional Schematic
Description
•
M/A-COM Technology Solutions MAFL-008070-
CL0AD0 is a surface mount Low-Pass Filter unit
designed for MoCA applications.
Recommended Maximum Ratings¹ ²
Parameter
Storage Temperature
Value
-40ºC to +85ºC
-40ºC to +85ºC
30mA
250mW
Pin Configuration
Function
Port 1
Port 2
Ground
Not connected
Pin Number
8
3
1, 2, 4-7
-
Operating Temperature
DC Current
RF Power
1. Exceeding any one or combination of these limits may
cause permanent damage to this device.
2. M/A-COM Technology Solutions does not recommend
sustained operation near these survivability limits.
Electrical Specifications: T
A
= 25°C, Z
0
= 75Ω
Parameter
Insertion Loss 50-750MHz
Insertion Loss 750-870MHz
Stop band Rejection 975-1525MHz
Stop band Rejection 1790-2100MHz
Input Return Loss 50-870MHz
Unit
dB
dB
dB
dB
dB
Typ
0.75
1.8
34
30
13
Min
-
-
30
25
12
Max
1
2
-
-
-
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAFL-008070-CL0AD0
CATV MoCA Low Pass Filter
50 - 870/ 975 - 1525 MHz

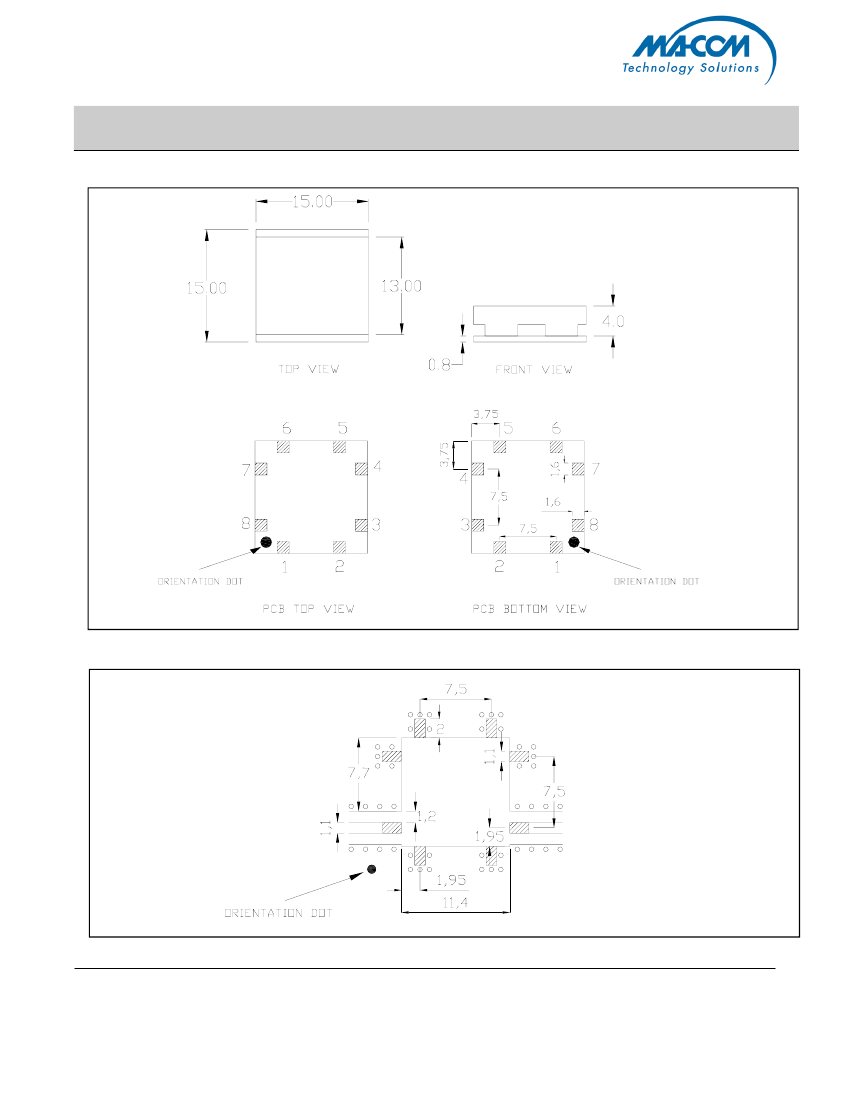

Outline Drawing:
M/A-COM Products
Released - Rev. V3
Recommended PCB Configuration
∗
2
Dimensions are millimeters ±0.1 unless otherwise specified.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAFL-008070-CL0AD0
CATV MoCA Low Pass Filter
50 - 870/ 975 - 1525 MHz
Typical Performance Curves at +25°C
Insertion Loss
0
M/A-COM Products
Released - Rev. V3
-10
-20
-30
dB
-40
-50
-60
-70
0
500
1000
1500
2000
2500
3000
Freq (MHz)
Return Loss
0
-10
-20
-30
dB
-40
-50
-60
-70
0
500
1000
1500
2000
2500
3000
Freq (MHz)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAFL-008070-CL0AD0
CATV MoCA Low Pass Filter
50 - 870/ 975 - 1525 MHz

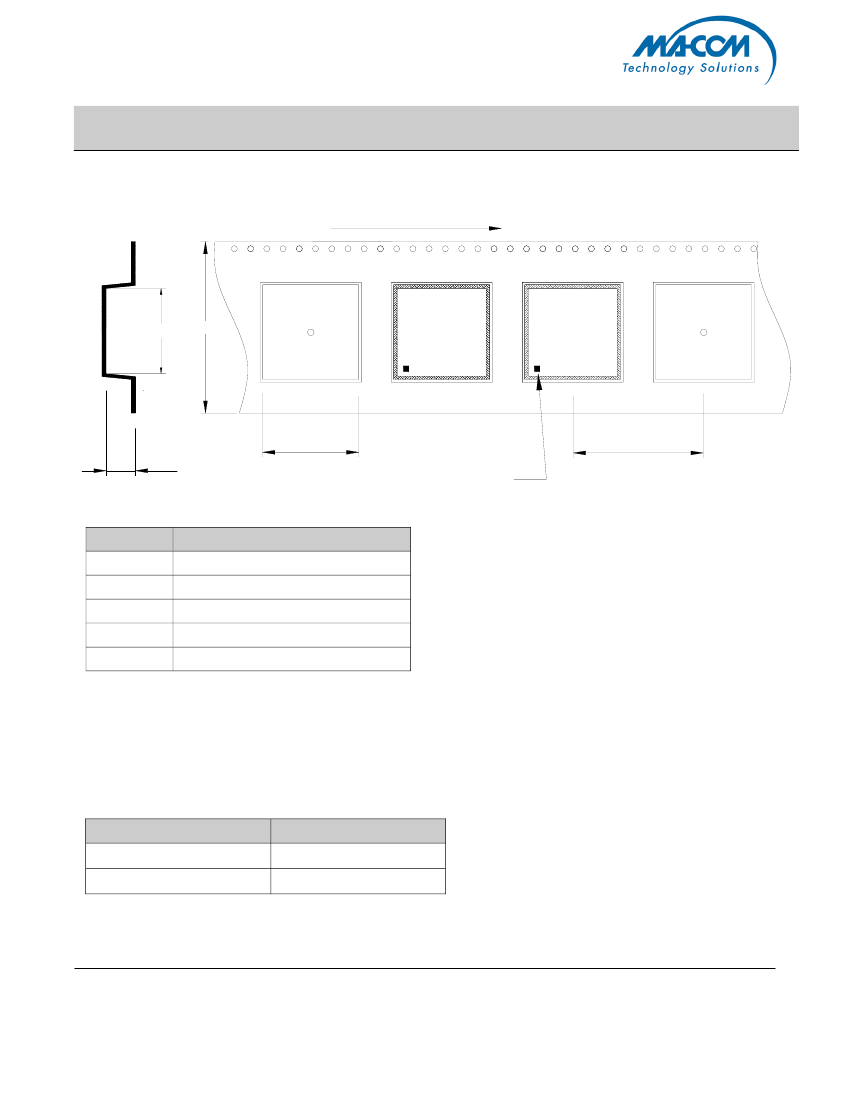

Carrier Tape:
Direction of Feed
M/A-COM Products
Released - Rev. V3
Bo
W
Ao
Ko
P1
Orientation
Item
Ao
Bo
Ko
W
P1
Dimension
15.40mm +/- 0.1mm
15.40mm +/- 0.1mm
5.40mm +/- 0.1mm
32.00mm +/- 0.3mm
20.00mm +/- 0.1mm
Ordering Information
Part Number
MAFL-008070-CL0AD0
MAFL-008080-CL0ATB
Quantity
500
Evaluation PCB
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
