MAFL-009217-CD0AC0
CATV Diplex Filter
5 - 864 / 1128 - 1525 MHz
Features
•
•
•
75 Ohm
SMT unit
RoHS* Compliant
Rev. V2
Functional Schematic
Description
•
M/A-COM Technology Solutions MAFL-009217-
CD0AC0 is a surface mount diplex filter unit de-
signed for MoCA applications.

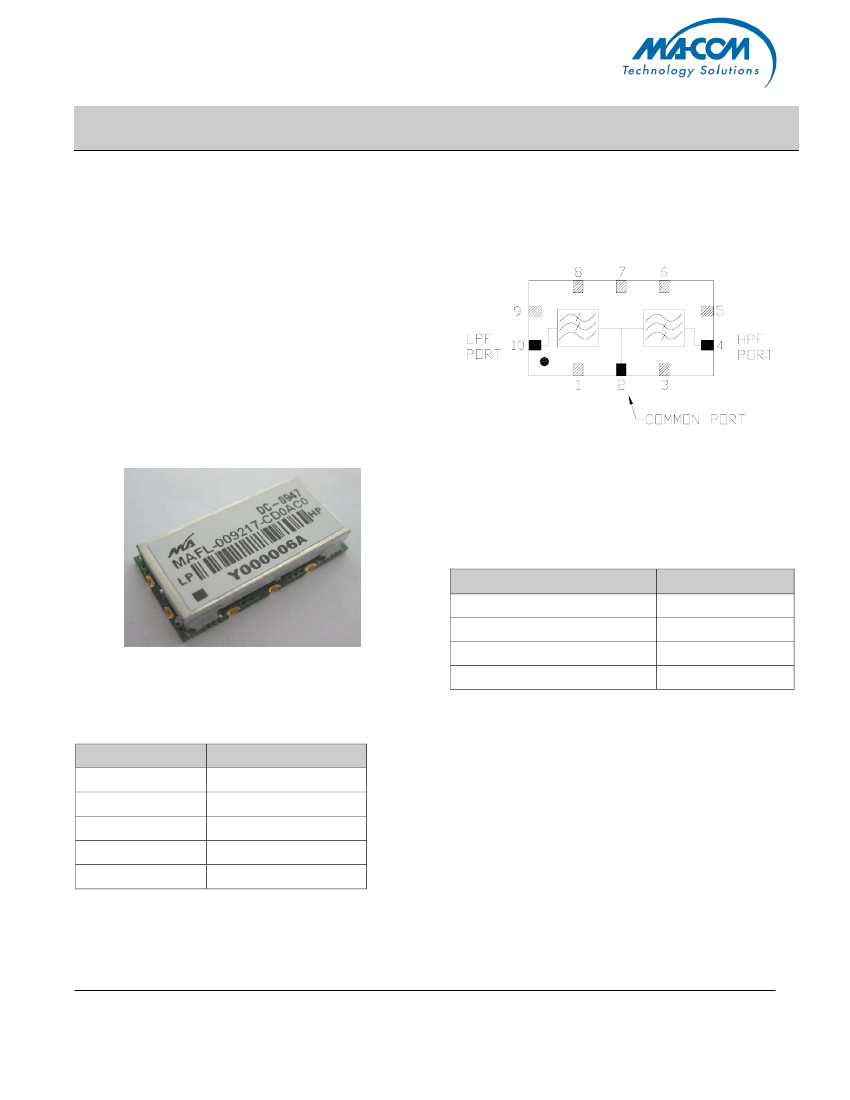

Product Image
Recommended Maximum Ratings
1,2
Parameter
Storage Temperature
Operating Temperature
DC Current
RF Power
Value
-40ºC to +85ºC
-40ºC to +85ºC
30mA
250mW
Pin Configuration
Function
Common Port
Low Pass Port
High Pass Port
Ground
Not connected
Pin Number
2
10
4
1, 3, 5 - 9
-
1. Exceeding any one or combination of these limits may cause
permanent damage to this device.
2. M/A-COM Technology Solutions does not recommend sus-
tained operation near these survivability limits.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
MAFL-009217-CD0AC0
CATV Diplex Filter
5 - 864 / 1128 - 1525 MHz

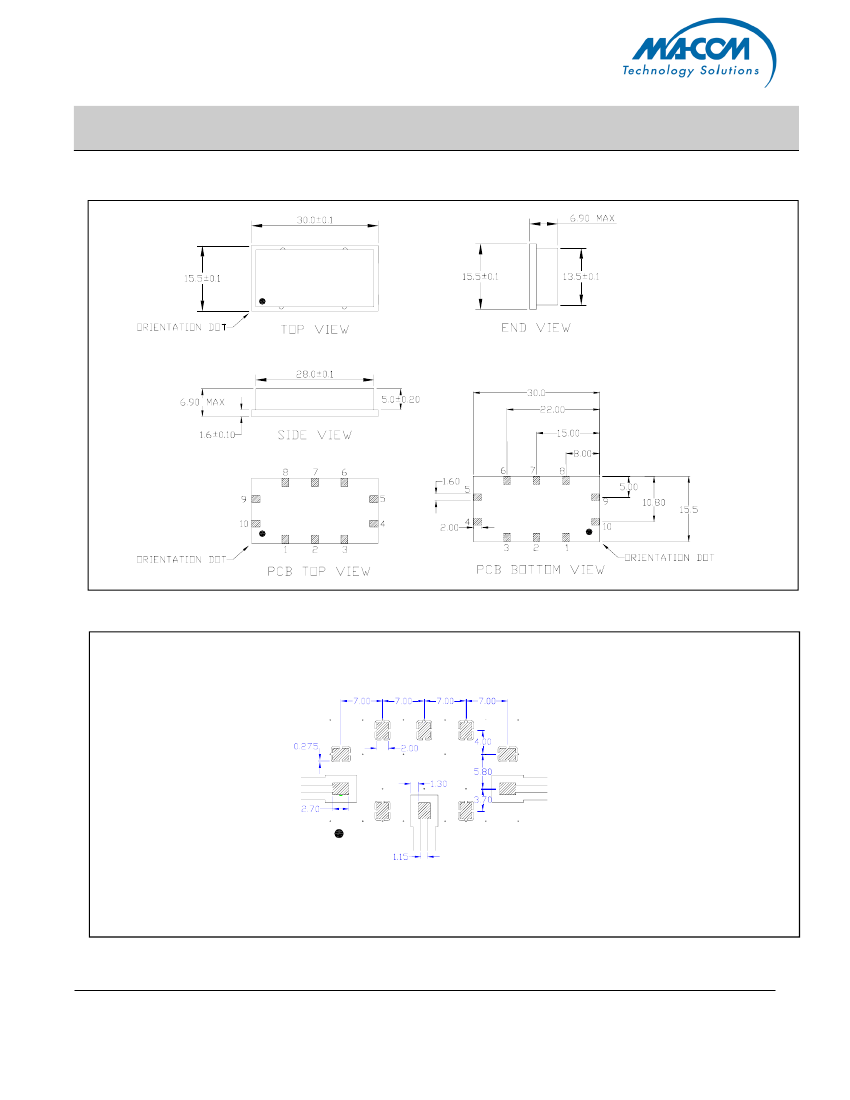

Outline Drawing: SM-172
Rev. V2
Recommended PCB Configuration
NOTE: Substrate is 1.6mm thick FR4
Dimensions in mm. Tolerance: .x
±
0.1, .xx
±
0.05 unless otherwise noted
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
MAFL-009217-CD0AC0
CATV Diplex Filter
5 - 864 / 1128 - 1525 MHz
Electrical Specifications: T
A
= 25°C, Z
0
= 75Ω
Parameter
Common to Low
Insertion Loss
5 - 750 MHz
750 -864 MHz
Rejection
977 - 1023 MHz
1128 - 1525 MHz
Common to High
Insertion Loss
1128 - 1525 MHz
Rejection
5 - 750 MHz
750 - 864 MHz
977 - 1023 MHz
2300 - 2400 MHz
2400 - 3000 MHz
Common Port Return Loss
5 - 864 MHz
1128 - 1525 MHz
Common Port Voltage Transient
dB
dB
dB
dB
dB
dB
dB
V
40
37
30
30
20
12
12
-
44
45
43
34
25
14
18
-
-
-
-
-
-
-
-
200
dB
-
1.5
2.0
dB
dB
30
37
35
44
-
-
dB
dB
-
-
0.5
1.0
1.0
1.5
Units
Min
Typ
Max
Rev. V2
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
MAFL-009217-CD0AC0
CATV Diplex Filter
5 - 864 / 1128 - 1525 MHz

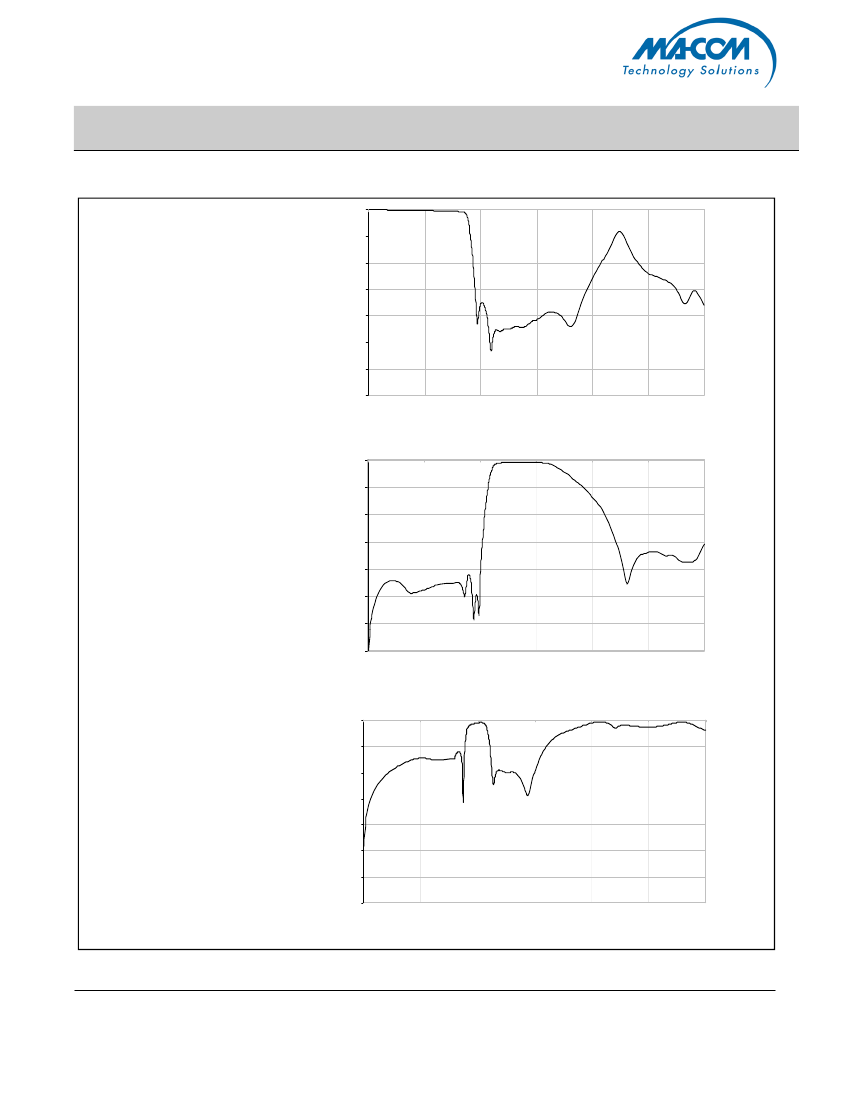

Typical Performance Curves at +25°C
0
Rev. V2
Common to Low pass
- 10
- 20
- 30
dB
- 40
- 50
- 60
- 70
0
500
1000
1500
2000
2500
3000
Freq (MHz)
0
Common to High pass
- 10
- 20
- 30
dB
- 40
- 50
- 60
- 70
0
500
1000
1500
2000
2500
3000
Freq (MHz)
0
Common Port Return Loss
-10
-20
-30
dB
-40
-50
-60
-70
0
500
1000
1500
2000
2500
3000
Freq (MHz)
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
is considering for development. Performance is based on target specifications, simulated results,
and/or prototype measurements. Commitment to develop is not guaranteed.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
Commitment to produce in volume is not guaranteed.
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
Visit www.macomtech.com for additional data sheets and product information.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
changes to the product(s) or information contained herein without notice.
MAFL-009217-CD0AC0
CATV Diplex Filter
5 - 864 / 1128 - 1525 MHz

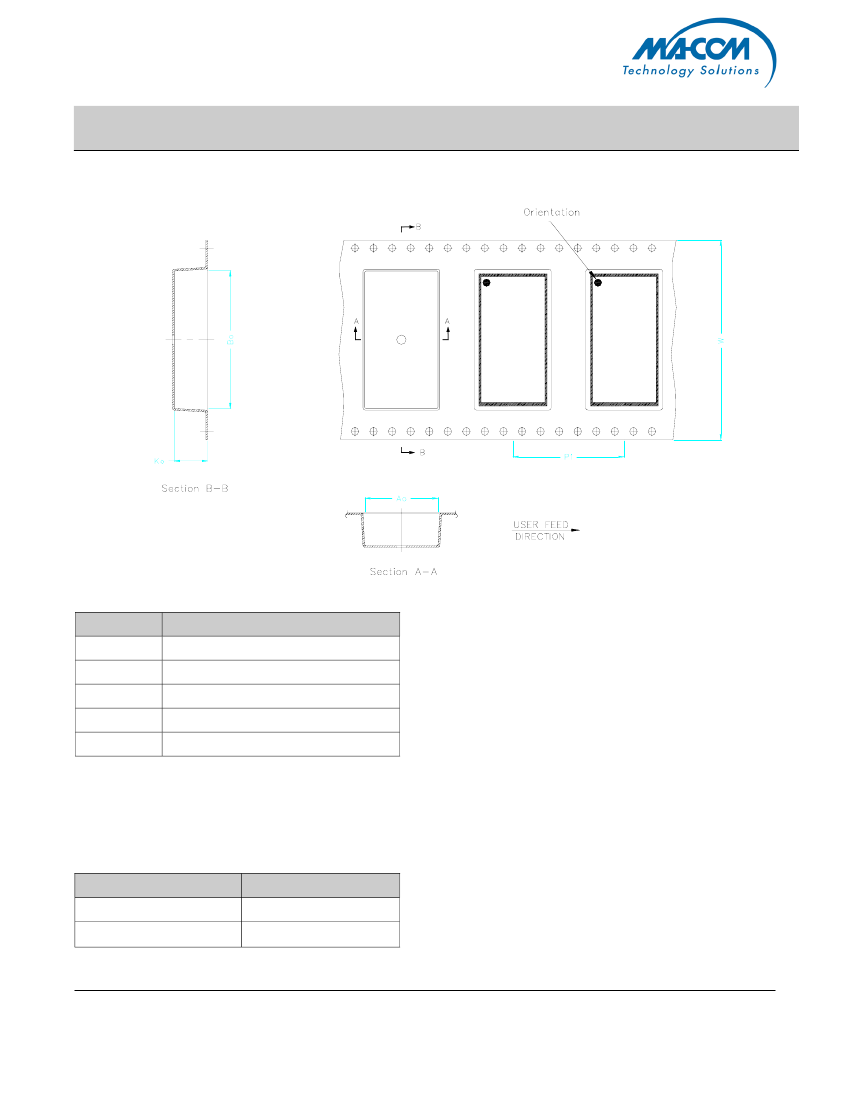

Tape Specification
Rev. V2
Item
Ao
Bo
Ko
W
P1
Dimension
15.80mm +/- 0.1mm
30.30mm +/- 0.1mm
7.20mm +/- 0.1mm
44.00mm +/- 0.3mm
24.00mm +/- 0.1mm
Ordering Information
Part Number
MAFL-009217-CD0AC0
Package
200 pcs Reel
5
