MAMX-008611
Low Cost MMIC Mixer with Local Oscillator Amplifier
0.8 - 1.0 GHz
Features
•
•
•
•
•
•
•
-5 to +5 dBm LO Drive Level
High Isolation, 28 dB LO to RF
Lead Free SOT-26 package
100% Matte Tin Plating over Copper
Halogen-Free “Green” Mold Compound
260°C Re-flow Compatible
RoHS Compliant Version of MD57-0001
Rev. V1
Functional Schematic
Description
The MAMX-008611 is a floating FET mixer with an
on-chip LO amplifier. The LO drive for the MAMX-
008611 can range from –5 to +5 dBm without
severely impacting the mixer’s performance. The
MAMX-008611 is ideally suited for cellular band
communications handsets’ that can provide only
minimal amounts of LO drive. Typical applications
include frequency up/down conversion and IQ
modulation and demodulation in digital receivers and
transmitters.
The MAMX-008611 utilizes a patented “floating-FET”
architecture. The on-chip LO amplifier allows the
MAMX-008611 to operate with as little as –5 dBm of
LO drive making it an ideal choice for low power
portable designs.
The MAMX-008611 is fabricated using M/A-COM’s
0.5 micron low noise GaAs MESFET process. This
process features full passivation for increased
performance and reliability. The MAMX-008611 is
100% RF tested to ensure superior performance
specification compliance.
Pin Configuration
Pin No.
1
2
3
4
5
6
Pin Name
RF Port
Bias
LO Port
V
DD
GND
IF Port
Description
RF Input/Output
LO Amplifier Bias Resistor
LO Input
LO Amplifier V
DD
Ground
IF Input/Output
Absolute Maximum Ratings
2,3,4,5
Parameter
Input RF/IF Power
4
Input LO Power
4
Operating Voltages
4
Absolute Maximum
+27 dBm
+17 dBm
V
DD
= +6 V
-30°C to +80°C
-65°C to +150°C
Ordering Information
Part Number
MAMX-008611-000000
MAMX-008611-TR1000
MAMX-008611-TR3000
1
Package
SOT-26
1000 piece reel
3000 piece reel
Operating Temperature
Storing Temperature
1. Reference Application Note M513 for reel size information.
2. Exceeding any one or combination of these limits may cause
permanent damage to this device.
3. M/A-COM does not recommend sustained operation near
these survivability limits.
4. Ambient Temperature (TA) = +25°C
5. Typical Thermal Resistance
(
qjc
) = 108°C/W at nominal bias
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAMX-008611
Low Cost MMIC Mixer with Local Oscillator Amplifier
0.8 - 1.0 GHz
= 170 MHz, V
DD
= 2.7 V, Typical I
IDD
= 5 mA
Parameter
Conversion Loss
Isolation
LO to RF
LO to IF
RF to IF
Rev. V1
Electrical Specifications
6
:
T
A
= +25°C, RF = 900 MHz (-15 dBm), LO = 730 MHz (-5 dBm), IF
Test Conditions
Units
dB
dB
dB
dB
Ratio
Ratio
Ratio
Min.
—
20
10
—
—
—
—
—
—
Typ.
9.3
28
12
20
Max.
11
—
—
—
—
—
—
—
—
VSWR
Input 1 dB Compression
Two Tone IM Ratio
RF Port
LO Port
IF Port
RF Freq = 900 MHz, LO = -5 dBm
Two tones @ -10 dBm each;
Two spacing = 1 MHz, IF = 170 MHz
2.0:1
2.0:1
2.0:1
14
59
dBm
dBc
6. IMR vs. RF drive can be calculated by the formula: IMR = [44 - 1.5(PIN)]

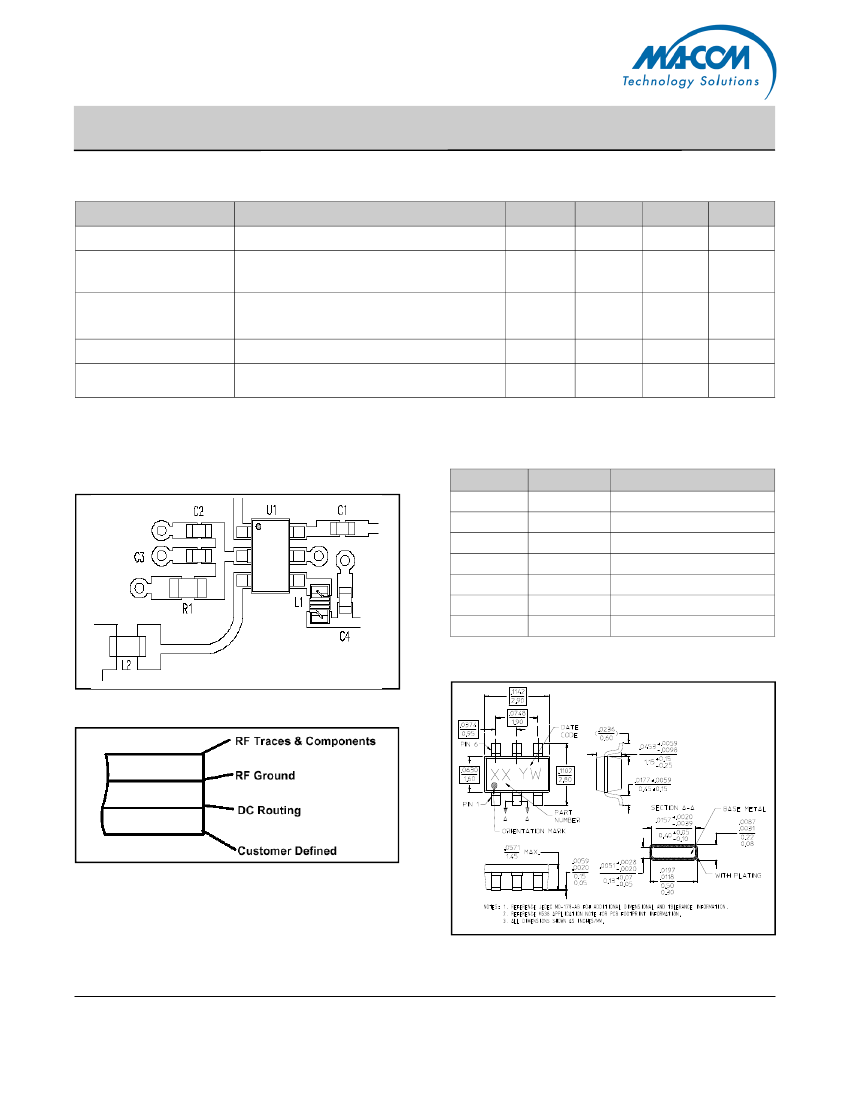

Recommended PCB Configuration
Layout View
External Circuitry Parts List
Part
R1
L1
L2
C1
C2
C3
C4
Value
200
Ω
22 nH
10 nH
10 nF
10 nF
22 pF
47 pF
Purpose
LO Amplifier Bias Resistor
LO Amplifier Bias Input
LO Port Matching
IF Port Matching
IF Bypass Capacitor
RF Bypass Capacitor
V
DD
Bypass
Lead-Free
SOT-26 Plastic Package
†
PCB Cross Section View
PCB dielectric between RF traces and RF ground
layers should be chosen to reduce RF
discontinuities between 50
Ω
lines and package
pins. M/A-COM recommends an FR-4 dielectric
thickness of 0.008” (0.2 mm) yielding a 50
Ω
line
width of 0.015” (0.38 mm). The recommended
metallization thickness is 1 oz. Copper.
2
†
Reference Application Note M538 for lead-free solder reflow
recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAMX-008611
Low Cost MMIC Mixer with Local Oscillator Amplifier
0.8 - 1.0 GHz
Spurious Table
LO Harmonic
(n)
0X
1X
2X
3X
4X
-10 dBm
0 dBm
-10 dBm
0 dBm
-10 dBm
0 dBm
-10 dBm
0 dBm
-10 dBm
0 dBm
Rev. V1
The spurious table shows the spurious signals
resulting from the mixing of the RF and LO input
signals assuming down conversion.
Mixing products are indicated relative to the IF
level.
The lower frequency mixing term is shown for two
different RF input levels.
The RF frequency is 900 MHz, the LO frequency
is 730 MHz.
RF Harmonic (m)
0X
X
X
13.8
22.9
10.8
20.4
12.1
22.7
13.6
24.0
1X
4.1
3.9
0
0
18.9
18.9
23.8
23.8
50.9
49.4
2X
44.9
31.9
47.6
35.1
46.5
36.6
41.5
31.0
68.5
58.9
3X
69.5
48.4
82.0
73.0
70.6
55.9
76.9
63.1
64.5
45.4
4X
79.7
70.0
76.6
83.8
78.0
84.0
77.1
74.0
80.6
63.4
[n
FRF
- mFLO]
[n
FRF
- mFLO]
RF = -10 dBm
RF = 0 dBm

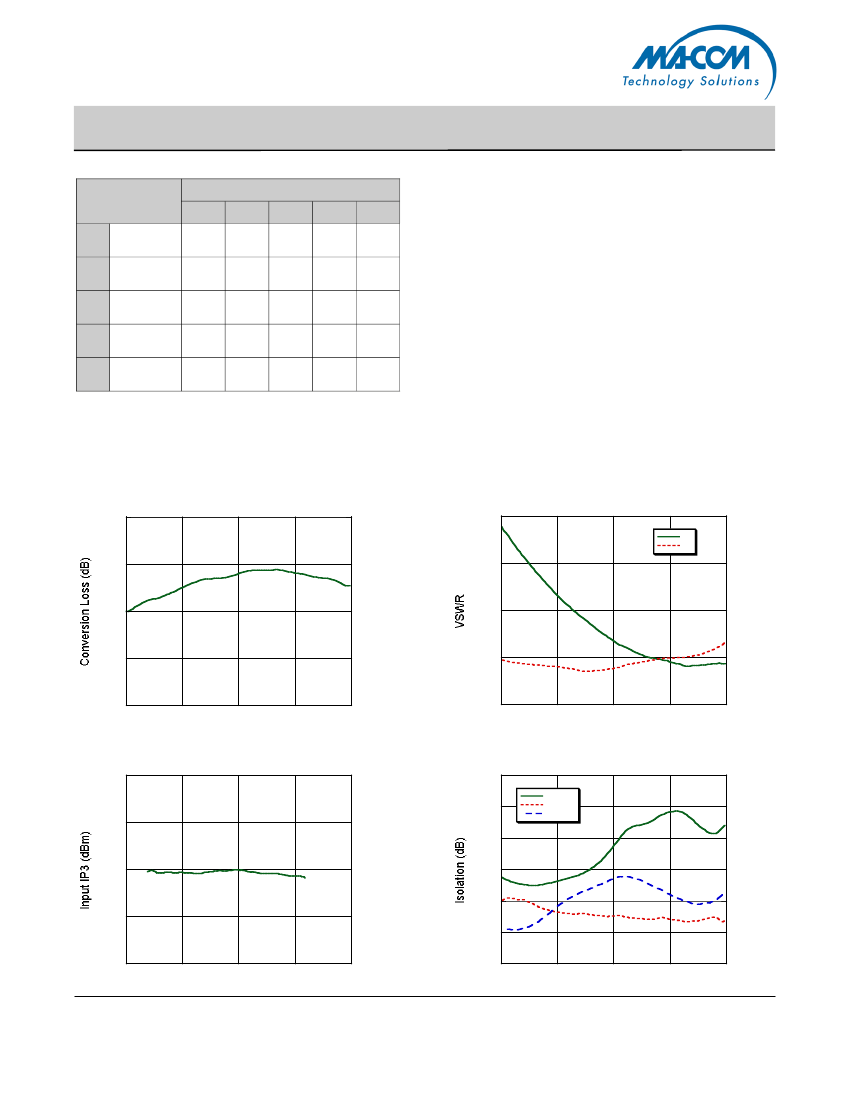

Typical Performance Data
Down Converter Application Test Conditions:
RF=900 MHz, IF=170 MHz, LO=730 MHz (LO Power = -5dBm)
Conversion Loss vs. Frequency
-8
VSWR vs. Frequency
5
RF
LO
-9
4
-10
3
-11
2
-12
800
850
900
950
1000
1
600
700
800
900
1000
RF Frequency (MHz)
Frequency (MHz)
IMR Plot
30
Isolations
60
LO to RF
RF to IF
LO to IF
50
25
40
20
30
20
15
10
10
800
850
900
950
1000
0
600
700
800
900
1000
3
RF Frequency (MHz)
Frequency (MHz)
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
3
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
