SCIROCCO - HID/CFL
Type:
QUANTITy:
projecT:
ELECTRICAL
ELECTRICAL
SR305
SERIES
MOUNTING
cATAlog
SR305
NUmber:
FIxTUre
ACCESSORIES
WATTAge
VolTAge
FINIsh
opTIoN
opTIoN
opTIoN
opTIoN
SR305T
1
2
3
1-

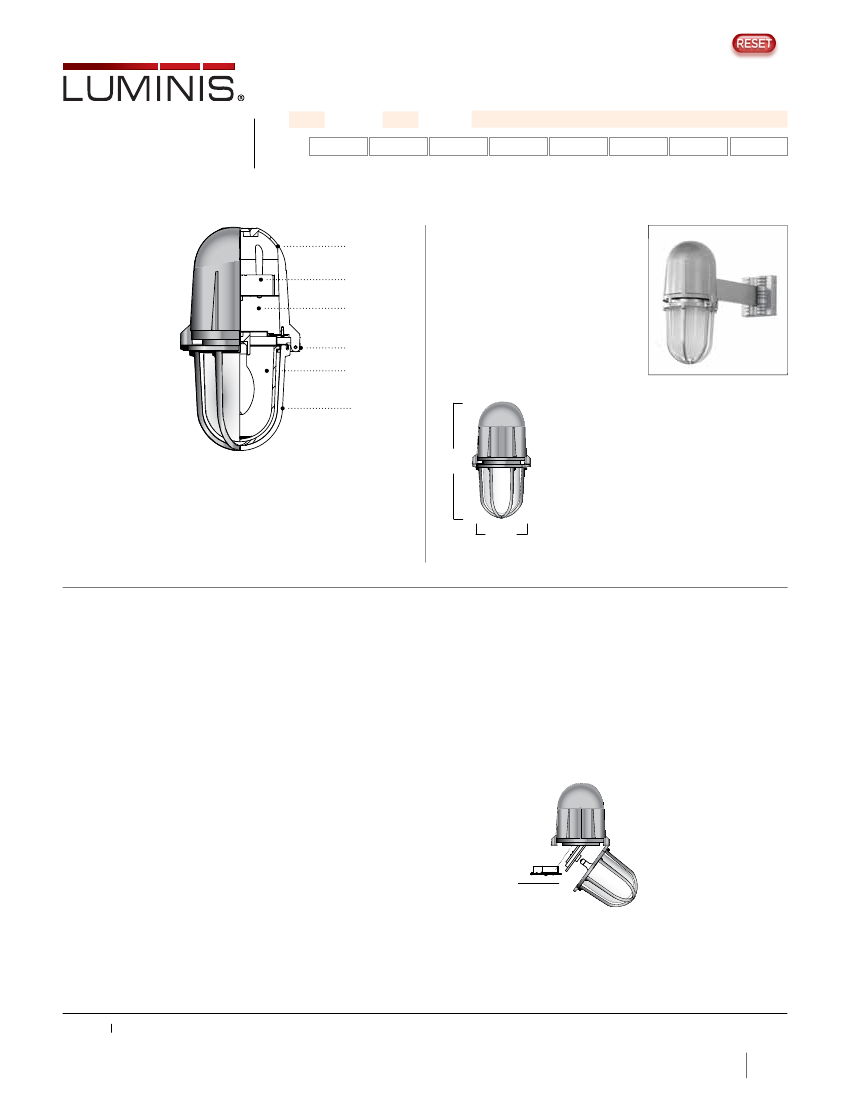

Cast aluminum ballast housing.
2-
Universal ballast tray with twist lock
design.
3-
Sealed and isolated lamp compartment.
4-
Diffuser/cage assembly hinge
mechanism.
5-
Borosilicate prismatic heavy glass
diffuser.
6-
Cast aluminum ribbed cage.
4
5
6
16.5”
(420)
7.5”
(190)
EPA: 0.59
MATERIALS
Scirocco is made of corrosion resistant 356 aluminum alloy with a copper (CU)
content of less than 0.1%. The top cast aluminum housing is designed with a
hinged mechanism.
The inner surface is standard white enamel for higher light efficiency.
The lower optical assembly includes a sealed borosilicate prismatic glass
diffuser, secured with a silicone memory retention gasket.
The diffuser is enclosed in a star ribbed one piece cast aluminum cage.
MOUNTINg
Maximum weight: 11.6lbs (5.3kg)
Scirocco is designed as a modular luminaire concept offering a selection of
mounting arrangements for various architectural requirements.
Pole, wall or suspended attachments are proposed with high quality components
to meet multiple installation conditions.
CERTIFICATION
Tested to UL1598 and CSA 22.2 #250. ETL listed wet location.
CE certification on request.
Rated IP65.
ELECTRICAL
HigH intensity DiscHarge (H.i.D)
BALLAST
Electronic 120/277V multi volt, or 347V (50-60HZ) with a
minimum starting temperature of -30ºC/-20ºF, including end of life
protection.
Medium base pulse rated 4KV porcelain body with a nickel plated
screw shell, and center contact rated 600V. Supplied with 200°C
leads.
SOCKET
compact Fluorescent (cFl)
BALLAST
120/277V-50/60HZ multi volt or 347V electronic ballast with end of
life protection. Minimum starting temperature of 0ºF/-18ºC
SOCKET
Thermoplastic body rated for 75W-600V. Supplied with 105°C leads.
Access
to lamp
and ballast
Scirocco is designed
for ease of access
to electrical and
lighting compartment
with a unique hinge
mechanism concept.
FINISh
Five-stage preparation process including preheating of cast aluminum parts for
air extraction, and an environmentally friendly alloy sealant. Polyester powder
coating is applied through an electrostatic process and oven cured for long
term finish.
LUMINIS
Toll free: 866.586.4647 Fax: 514.683.8872
260 Labrosse, Pointe-Claire (QC) Canada H9R 5L5
Luminaires may be altered for design improvement or discontinued without prior notice.
Unless specified, lamps are not included with luminaires.
LUMINIS.COM
1
Jan 2014 rev 0
SCIROCCO - HID/CFL

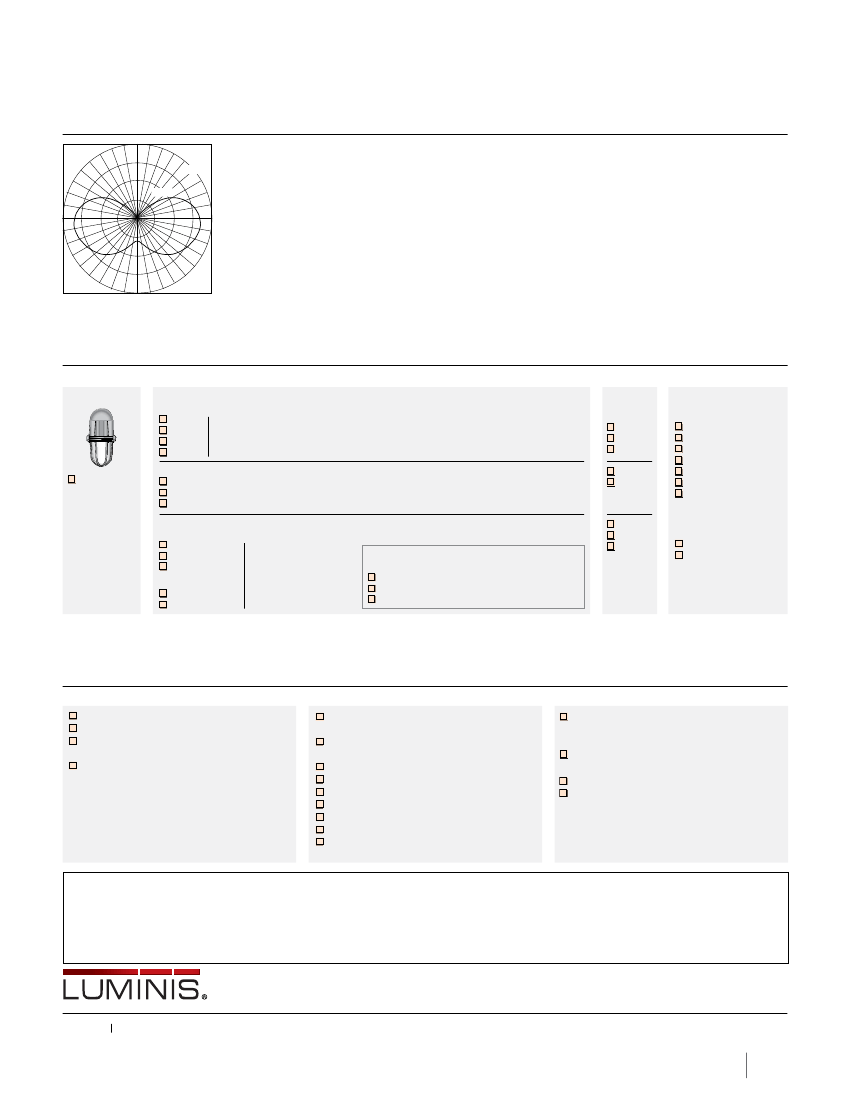

TYPICAL PhOTOMETRY SUMMARY
800
400
SR305
SERIES
Descriptive Information
Total Lms: 5600 Lumens
Total Input Watts: 70 W
Source: HID
Total efficiency: 75.3%
BUG Rating: B1-U5-G3
Distribution: Type V
SR305-M70E
Outdoor report
Polar graph
Maximum Candela = 483
Please visit our web site www.luminis.com for complete I.E.S. formatted download data.
LUMINAIRE SELECTION
MoDEL#
LAMP sELECtion
MEtAL HALiDE
6
1
VoLtAgE
2
FinisH
STANDARD COLORS
ANSI
ANSI
ANSI
ANSI
M110
M98/M139/M143
M90/M140
M102/M142
SR305
ED LAMP TYPE
M50E
M70E
(ED17/E26 base)
M100E
M150E
120V
277V
347V
120V
277V
COSMOPOLIS
TM
Lighting System (includes lamp)
M60C
90W/140W 277V Only
M90C
(T6/PGZ12 base) 2800K, 70CRI
M140C
}
WHT
BKT
BZT
MST
GRT
DGT
CHT
Snow white
Jet black
Bronze
Matte silver
Titanium gray
Gun metal
Champagne
CoMPACt FLuoREsCEnt
Single lamp
F132 1X32W
F142 1X42W
F157 1X57W
Two lamps
F232 2X32W
F242 2X42W
(Gx24q)
oPtionAL
COSMOPOLIS
TM
Lumistep
TM
Dimming
LM60
(60W Step Dimming Ballast - 6 hours)
LM90
(90W Step Dimming Ballast - 6 hours)
LM140
(140W Step Dimming Ballast - 6 hours)
120V
277V
347V
OPTIONAL COLORS
CS
Custom color
RAL RAL# color
(Refer to color chart)
The CosmoPolis
TM
system offers a step-dimming option.
The ballast will dim the 90W and 140W lamps to 60 % lamp power.
The ballast calculates the mid-point of the evening, which is the starting point for 6 hour LumiStep
TM
.
8 or 10 hours LumiStep
TM
available on request. * CosmoPolis
TM
and LumiStep
TM
are registered trademarks of Royal Philips Electronics.
OPTIONS
For details please refer to next pages
ELECtRiCAL
Mounting
ACCEssoRiEs
FS
Ph
QS
QRS
Fuse
3
Photocell
3
120V Max. 100W bayonet lamp base for
emergency external power
4
Quartz lamp standby restrike.
Max. 100W bayonet lamp.
120-277V
5
ACA
Pole mounted attachment with
45º support
ACW
Wall mounted attachment with
45º support
APA
Pole mounted shepherd arm attachment
APC
Pole mounted straight arm attachment
APS
Post top shepherd arm attachment
CAT
Catenary suspension attachment
W
Wall mounted shepherd arm attachment
T
Wall mount straight arm attachment
STM
36” Field-cuttable stem with 45º swivel
(other lengths available, please specify
SPg
SC
SSC
hS
Silver braided power cord with
adjustable suspension cable. 36” in
length (other lengths on request).
Safety cable extends 18” over mounting
plate (with stem mounting only)
Stabilizer cables
House shield installed within the glass
diffuser
LUMINIS
Toll free: 866.586.4647 Fax: 514.683.8872
260 Labrosse, Pointe-Claire (QC) Canada H9R 5L5
Luminaires may be altered for design improvement or discontinued without prior notice.
Unless specified, lamps are not included with luminaires.
LUMINIS.COM
2
Jan 2014 rev 0
notEs
1-
Unless otherwise noted, lamps are by others.
2-
Luminaires are factory prewired for 120V (if no voltage is specified.) For other voltages, please specify with catalog number, or consult factory.
3-
Fuse option is installed in hand hole with pole mount luminaire.
4-
QS option requires a separate 120V emergency external power line.
5-
QRS option requires a 120/277V line.
6-
High Pressure Sodium sources are available on request.
SCIROCCO - HID/CFL

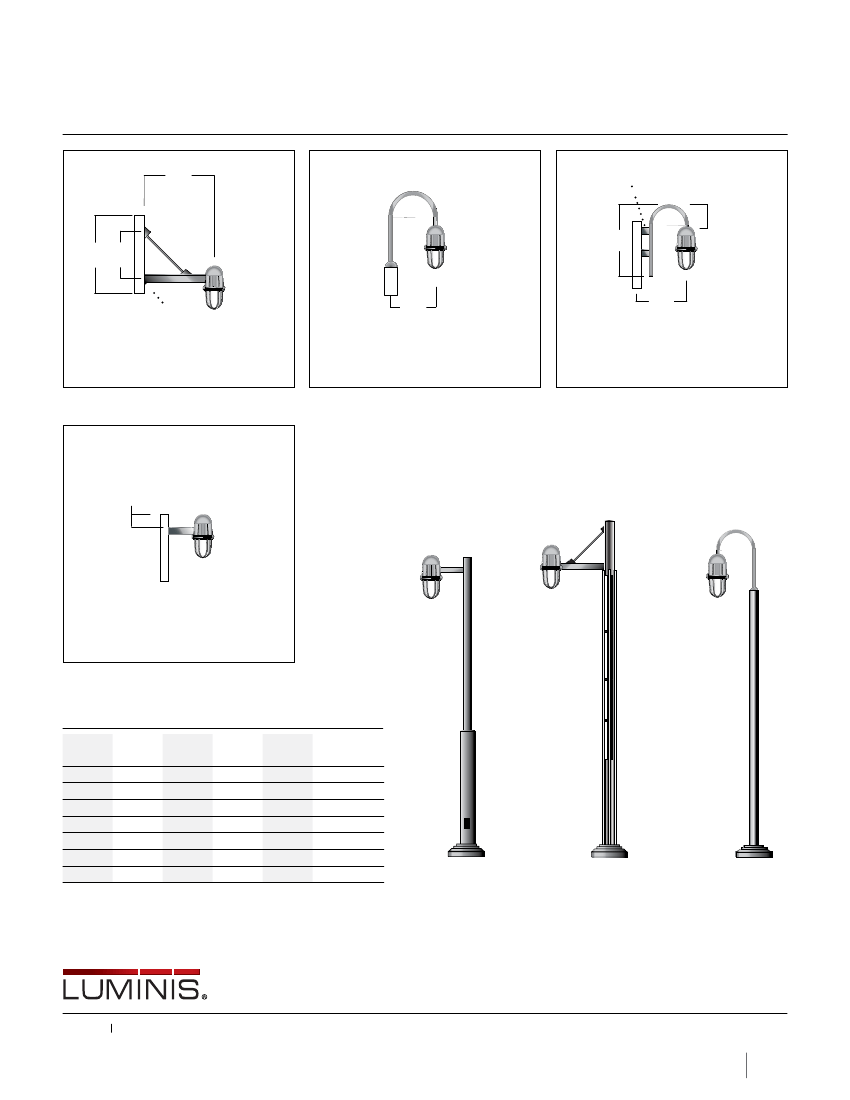

POLE MOUNT
SR305
SERIES
31”
(787)
Power feed
10.75”
(273)
30” 17.75”
(762) (451)
28”
(711)
Power feed
ACA
1
1” X 3” extruded aluminum extended arm pole
mounting adaptor designed to fit with 4 to
5” dia. poles. 1/2” dia. X 45º standard natural
stainless steel rod support. (EPA: 0.7)
16”
(406)
22.5”
(572)
APS
1 5/8” Dia. shepherd aluminum post top mount,
with a cast aluminum tenon to fit with a 3 3/4”
I.D. pole. (EPA: 0.15)
APA
1
1 5/8” Dia. shepherd aluminum side pole mount.
(EPA: 0.15)
NOTE 1
:
PCA Pole with ACA and APA attachments require a 30” (762) tenon extension over pole nominal height. Factory installed.
4.25”
(108)
APC
1” X 3” extruded aluminum side pole mounting
straight adaptor (EPA: 0.12)
MATChINg POLE SELECTION
Ø 4”
Ø 5”
Ø 4”
PST10
PST12
PST14
PST16
-------
-------
-------
Tapered
Pole
-------
-------
-------
PTA16
PTA18
PTA20
PTA25
Ø 4”
PSB10
PSB12
PSB14
PSB16
PSB18
-------
Height
10 Ft. (3 M)
12 Ft. (3,6 M)
14 Ft. (4,2 M)
16 Ft. (4,8 M)
18 Ft. (5,5 M)
PAA410 PAA510
PAA412
PAA414
PAA416
PAA418
-------
PAA512
PAA514
PAA516
PAA518
-------
PAA420 PAA520
PSB20 20 Ft. (6,0 M)
25 Ft. (7,6 M)
PSB
Pole series
PST
Pole series
PAA
Pole series
For additional pole details, please refer to separate pole specification sheet.
Ø 4”= 100mm Ø5”= 127mm
LUMINIS
Toll free: 866.586.4647 Fax: 514.683.8872
260 Labrosse, Pointe-Claire (QC) Canada H9R 5L5
Luminaires may be altered for design improvement or discontinued without prior notice.
Unless specified, lamps are not included with luminaires.
LUMINIS.COM
3
Jan 2014 rev 0
SCIROCCO - HID/CFL

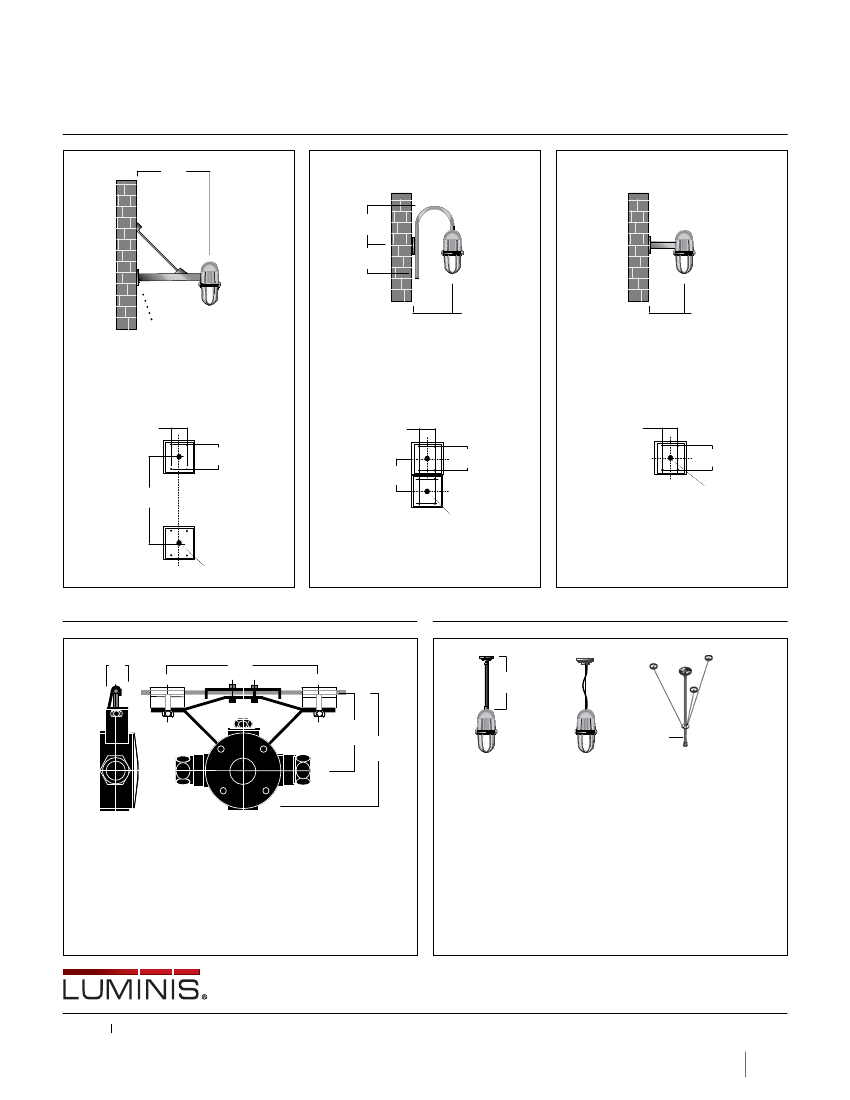

WALL MOUNT
27”
(686)
SR305
SERIES
13.5”
(343)
14”
(356)
Power feed
ACW
1” X 3” extruded aluminum extended arm wall
mounting adaptor with cast aluminum covers and
galvanized steel mounting plates. 1/2” dia. X 45º
standard natural stainless steel rod support.
Mounting
3”
(76)
4.625”
(118)
18.25”
(463)
14.5”
(368)
W
1 5/8” Dia. shepherd aluminum arm wall mount,
with a cast aluminum wall cover and galvanized
steel mounting plate.
Mounting
3”
(76)
4.625”
(118)
t
1” X 3” extruded aluminum wall mounting
straight adaptor with cast aluminum cover and
galvanized steel mounting plate.
Mounting
3”
(76)
4.625”
(118)
Power feed
6.125”
(156)
17.75”
(451)
Power feed
Power feed
CATENARY SUSPENSION
CEILINg PENDANT MOUNT
1”
(25)
8.5”
(216)
36”
(915)
4.25”
(108)
6.25”
(159)
STEM
STM
SPg
SSC
CAt
Attachment includes a sealed cast aluminum connection box with (2) 1/2”
sealed connectors for armored power cable (by Others). Ready to accept
1/4” stainless steel suspension cable. (By others)
stM
36” lg. (914) stem with 45º swivel ceiling mount Ø 5/8” (16) aluminum
suspension stem.
Luminaire top swivel adaptor allows to cut stem to length on site.
(Mounts over a standard 4” octagonal box with 3 1/2” C/C holes)
sPg
4/18 Silver braided power cable, with stainless steel adjustable cable.
Standard 36” lg. (914). Other lengths available on request.
Jan 2014 rev 0
ssC
Set of three stabilizer cables
LUMINIS
Toll free: 866.586.4647 Fax: 514.683.8872
260 Labrosse, Pointe-Claire (QC) Canada H9R 5L5
Luminaires may be altered for design improvement or discontinued without prior notice.
Unless specified, lamps are not included with luminaires.
LUMINIS.COM
4
