Model. No.
Rev.
FYLP-1W-PGS
A

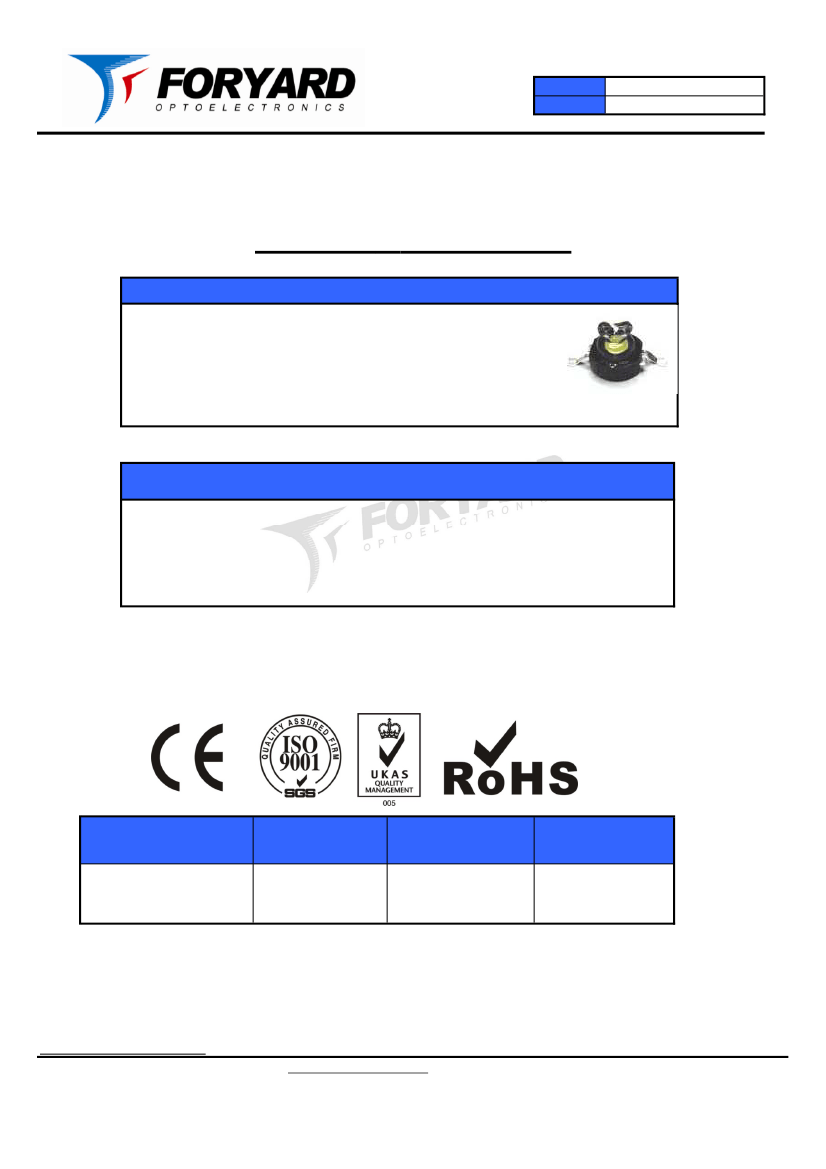

PRODUCT SPECIFICATION
Model No.:FYLP-1W-PGS
:
Features:
■High-Power
LED Type
■
Size (mm):Φ5.6*6.5 concave
Φ
■
Emitting Color:Pure Green
■
SMT package
■
RoHS Compliant
Applications:
■
Decorative lighting
■
Architectural lighting
■
Interior automotive
■
Illuminations
CUSTOMER APPROVED
SIGNATURES
APPROVED BY
CHECKED BY
PREPARED BY
NINGBO FORYARD OPTOELECTRONICS CO.,LTD
Add:NO.115
Qixin Road Ningbo Zhejiang China
Tel:
0086-574-87933652 87927870 87922206
Fax:
0086-574-87927917
E-mail:Sales@foryard.com
( General)
Zip:315051
Http://www.foryard.com
Http://www.foryard.com
Page:
1/8
Model. No.
Rev.
FYLP-1W-PGS
A
Model No.:FYLP-1W-PGS
:
■

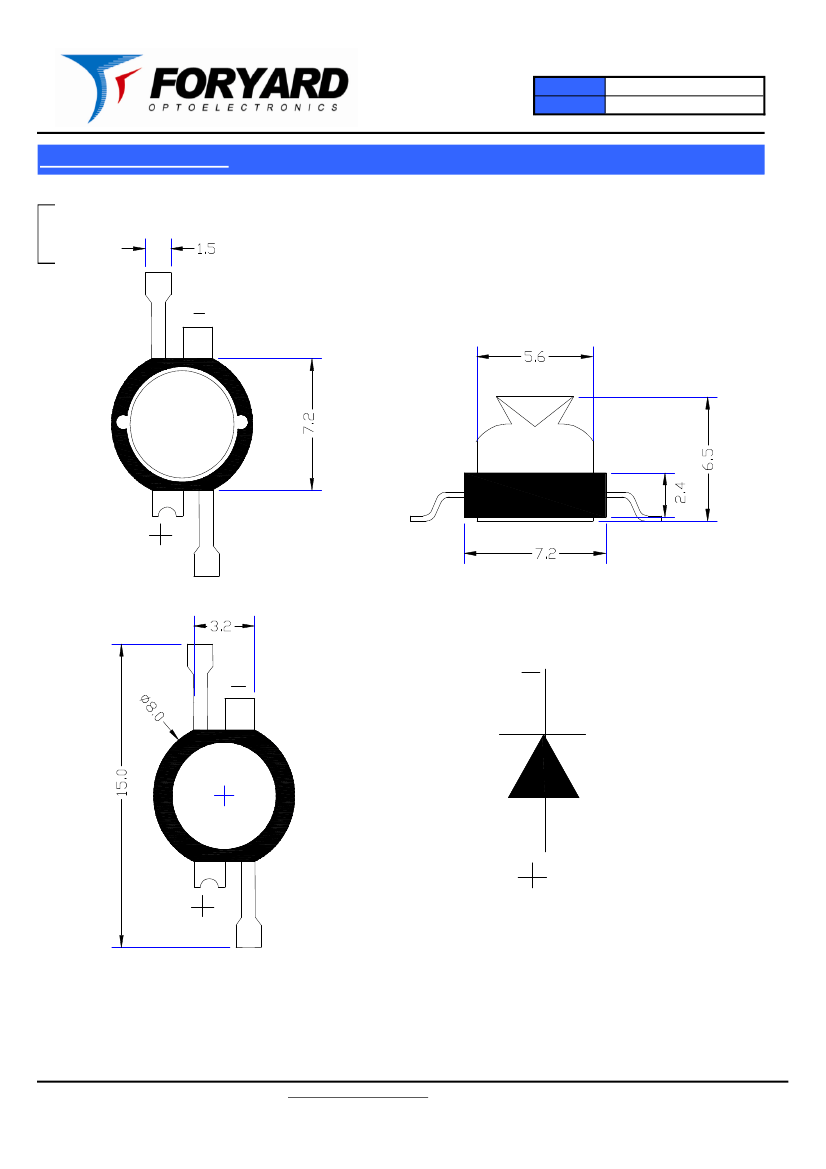

Mechanical Dimensions
Φ5.6*6.5
concave
Notes:
1. Dimension in millimeter, tolerance is ±0.2mm.
3.The specifications,characteristics and technical data described in the datasheet are subject to change without prior notice.
Http://www.foryard.com
Page:
2/8
Model. No.
Rev.
FYLP-1W-PGS
A
Model No.:FYLP-1W-PGS
:
■
Absolute Maximun Ratings(Ta=25ºC)
º
Items
Forward Current(DC)
Peak Forward Current*
Power Dissipation
Operation Temperature
Storage Temperature
Reverse Voltage
Soldering Temperature
Symbol
IF
IFP
PD
Topr
Tstg
VR
Tsol
Absolute maximum Rating
350
500
1000
-40ºC+85ºC
-40ºC+100ºC
5
Hand Soldering:250℃/10sec
Unit
mA
mA
Mw
℃
℃
V
*Pulse width≦1msec duty≦1/10
≦
≦
■
Typical Electrical &Optical Charcteristics(Ta=25ºC)
Items
Forward Voltage
Reverse Current
Dominant Wavelength
Luminous Flux
50% Power Angle
Symbol
VF
IR
λ(D)
ΦV
2θ½
Condition
IF = 350mA
VR = 5V
IF = 350mA
IF = 350mA
IF = 350mA
Min.
3.00
Typ.
---
Max
4.00
5
Unit
V
uA
nm
LM
Deg
520
---
---
---
60
120
530
---
---
■
Material
Item
Material
Reflector
PPA
Wire
Gold
Encapsulate
Silicone
Chip
InGaN
Note:
1.Luminous Intensity is based on the Foryard standards.
2.Pay attention about static for InGaN
Http://www.foryard.com
Page:
3/8
Model. No.
Rev.
FYLP-1W-PGS
A
Model No.:FYLP-1W-PGS
:
º
■

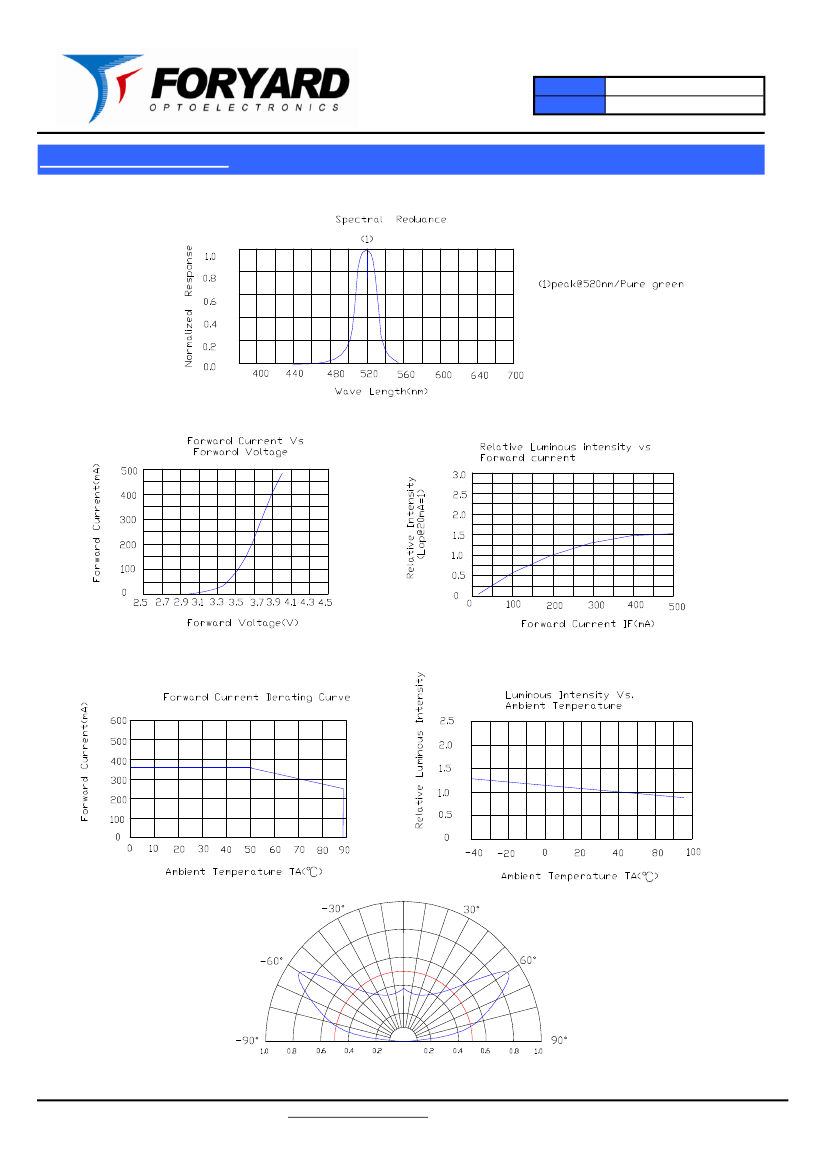

Typical Eletrical/Optical Characteristics Curves(Ta=25ºC Unless Otherwise Noted)
I n G a N / A l
2
O
3
Radiation pattern.
R e l a t i v e L u m i o n o u s I n t e n s i t y
(
L O P @ m a x = 1 )
Http://www.foryard.com
Page:
4/8
Model. No.
Rev.
FYLP-1W-PGS
A
Model No.:FYLP-1W-PGS
:
■

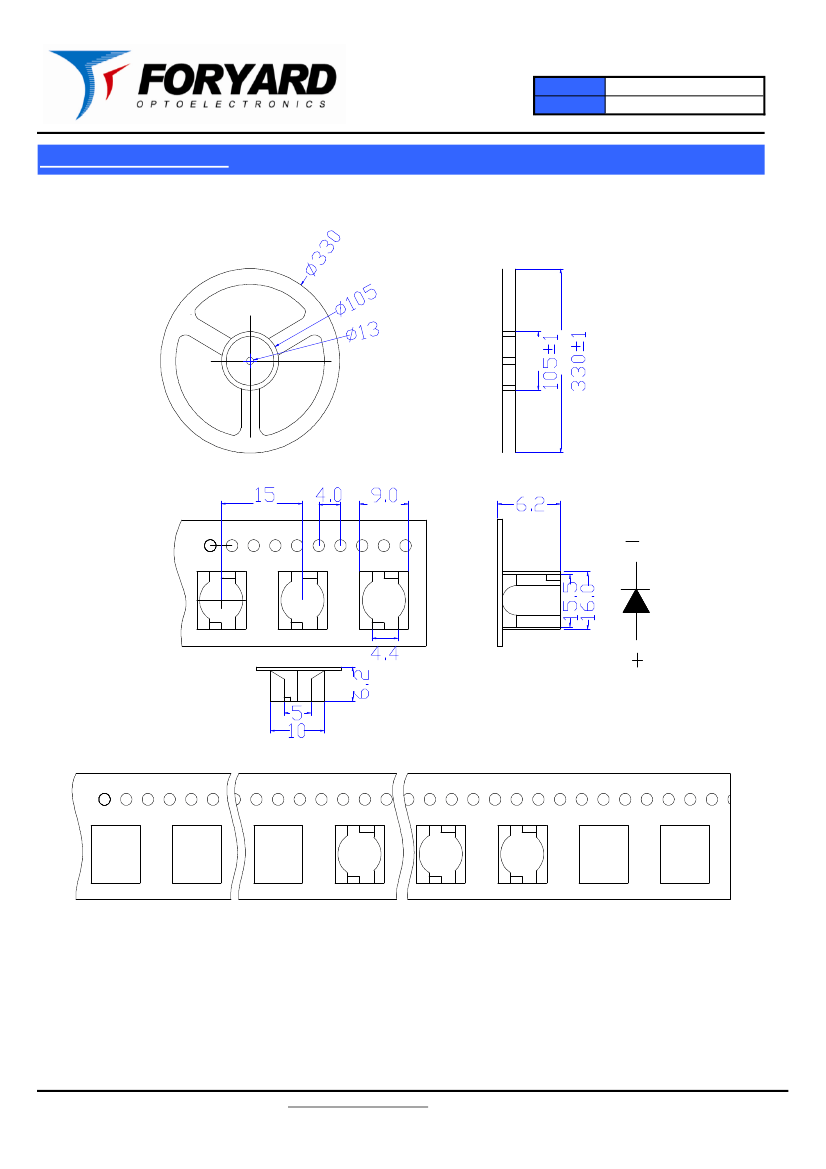

Packing Diagram
Note: The specifications are subject to change without notice. Please contact us for updated information.
