GUZR33M050 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> GUZR33M050

GUZR33M050: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 0.33uF; CategoryPassive components capacitor; File Size154KB，1 Pages; ManufacturerGemmy Electronics Co., Ltd.

Download Datasheet Parametric Compare View All

GUZR33M050 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 50V, 20% +Tol, 20% -Tol, 0.33uF

GUZR33M050 Parametric

Parameter Name	Attribute value
Maker	Gemmy Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.33 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	4 mm
dielectric materials	ALUMINUM
length	5 mm
Manufacturer's serial number	GUZ(50V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
series	GUZ(50V)
Terminal pitch	1.5 mm

Preview

Download Datasheet

View All

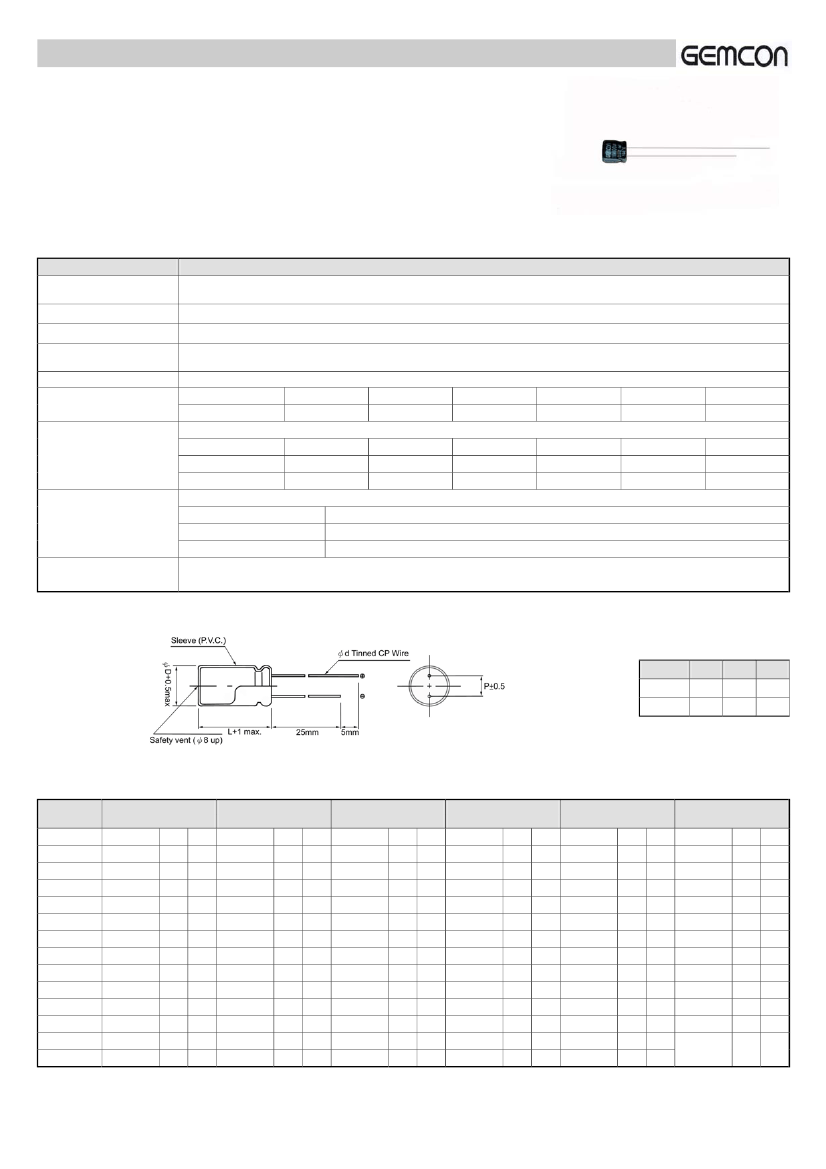

ALUMINUM ELECTROLYTIC CAPACITOR

GUZ

5mm

高度立式

105°C

小型½阻抗品

5mm Height, 105°C Low Impedance Series

5mm

1,000

105

Low impedance for high frequency circuit application

Life guaranteed 1,000 hours/105°C.

Specifications

Item

Operating Temperature

range

Rated Voltage

Capacitance Range

容量範圍

Capacitance Tolerance

Leakage Current

Dissipation Factor

(120Hz, 20°C)

Temperature

Characteristics

(120Hz)

Performance Characteristics

-40 + 105°C

6.3V

∼

50V

0.1

∼

220

µF

±20%

(120Hz, 20°C)

≤

0.01CV or 3

µA,

whichever is greater after 2 minutes application of rated voltage.

Rated voltage (V)

Tan

(max.)

Rated voltage (V)

Z (-40°C) / Z (20°C)

Z (-55°C) / Z (20°C)

Capacitance change

Tan

Leakage current

6.3

0.24

6.3

0.20

Within

±25%

of initial value

200% or less of initial specified value

Initial specified value or less

0.16

0.14

0.12

0.10

Impedance Ratio / Stability at Low Temperature

After 1,000 hours application of WV at 105°C, capacitor shall meet the characteristics requirements mentioned below.

Load Life

Shelf Life

After leaving capacitors under no load at 105°C for 1,000 hours and applying voltage according to JIS C5102 and C5141, they

shall meet the specified value as load life characteristics listed above.

Dimension

1.5

0.45

2.0

0.45

2.5

0.45

Standard Products Table

WV(SV)

Cap(µF)

0.1

0.22

0.33

0.47

2.2

3.3

4.7

100

220

4x5

5x5

6.3 x 5

5.6

2.6

1.6

100

5x5

6.3 x 5

6.3

(10)

(13)

(20)

(32)

(44)

x L (mm)

(63)

4x5

9.8

8.0

3.8

2.0

4x5

2.6

1.6

100

5x5

6.3 x 5

5.6

2.6

1.6

100

5x5

6.3 x 5

5.6

2.6

1.6

100

4x5

5x5

6.3 x 5

7.5

3.8

2.0

5x5

6.3 x 5

Case Size Imp. ripple

Impedance: (Ω) max. at 20°C 100KHz

Rated Ripple (mA rms) at 105°C 100KHz
