UM1008

User manual

Demonstration kit for the ST7570 power line modem

with graphical user interface

Introduction

The ST7570 GUI is a software tool that allows interfacing with one or more

STMicroelectronics™ power line modem (PLM) demonstration boards with a personal

computer (PC). Only PLM demonstration boards equipped with the ST7570 device are

supported.

The ST7570 GUI gives the user complete control of the ST7570 device, having access to all

its registers and functions, as described in

[2].

The typical application environment (shown in

Figure 1)

consists of an ST7570 GUI running

on a PC and communicating through a USB connection with a PLM demonstration kit

equipped with the ST7570 product, such as the EVALKITST7570-1 (consisting of a modem

board and a power supply board).

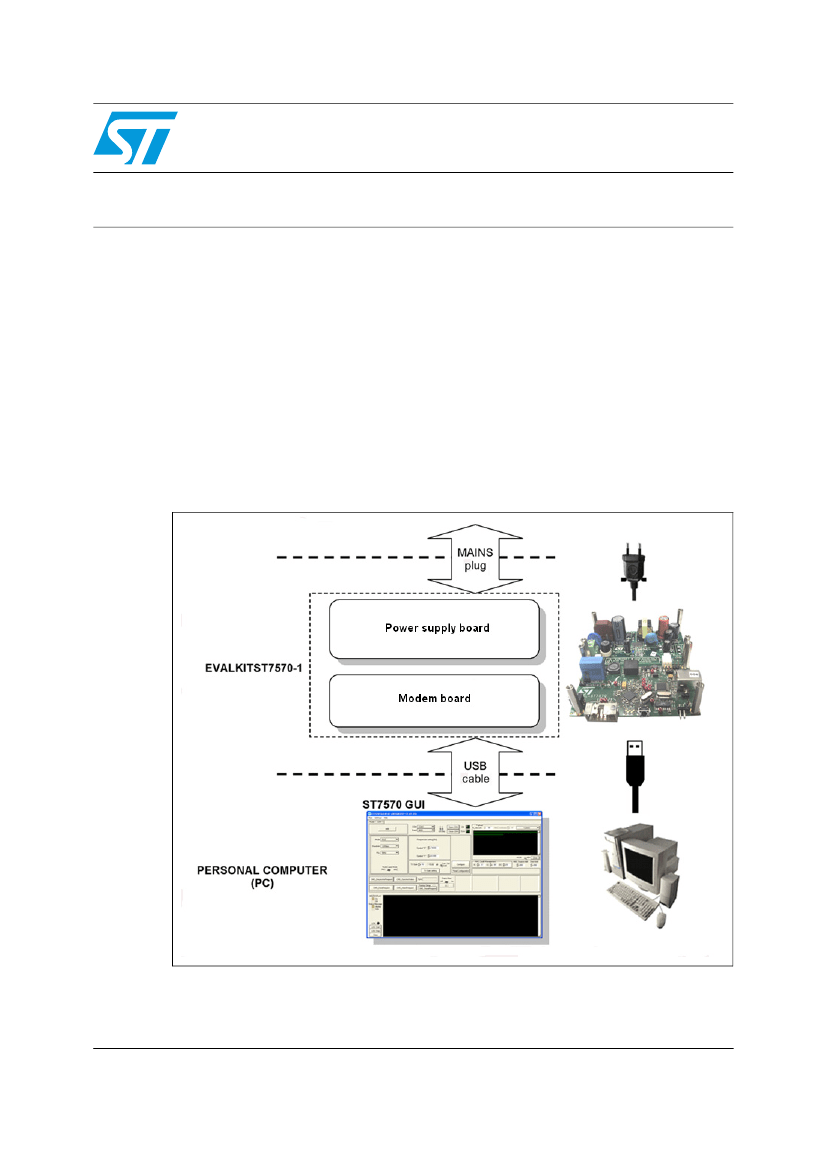

Figure 1.

ST7570 typical application environment

November 2011

Doc ID 18032 Rev 2

1/32

www.st.com

Contents

UM1008

Contents

Document conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Connection procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

GUI installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.1

3.2

System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.1

4.2

4.3

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Adding other nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Opening the COM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.1

5.2

Basic modem configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

PHY layer communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.2.1

5.2.2

5.2.3

Synchro indication information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

PHY data indication information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Synchronization management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.3

5.4

MIB operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

MAC layer communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.4.1

5.4.2

5.4.3

5.4.4

5.4.5

MAC frame transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Synchro indication found information . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

MAC data indication information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Synchronization management notification . . . . . . . . . . . . . . . . . . . . . . . 25

Statistic information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.5

5.6

Alarm services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Repeater Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.6.1

5.6.2

Repeater Call for client nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Repeater Call for server nodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2/32

References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Doc ID 18032 Rev 2

UM1008

List of figures

Figure 1.

Figure 2.

Figure 3.

Figure 4.

Figure 5.

Figure 6.

Figure 7.

Figure 8.

Figure 9.

Figure 10.

Figure 11.

Figure 12.

Figure 13.

Figure 14.

Figure 15.

Figure 16.

Figure 17.

Figure 18.

Figure 19.

Figure 20.

Figure 21.

Figure 22.

Figure 23.

Figure 24.

Figure 25.

Figure 26.

Figure 27.

Figure 28.

Figure 29.

Figure 30.

Figure 31.

Figure 32.

Figure 33.

Figure 34.

Figure 35.

Figure 36.

Figure 37.

Figure 38.

Figure 39.

Figure 40.

Figure 41.

Figure 42.

Figure 43.

Figure 44.

Figure 45.

ST7570 typical application environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

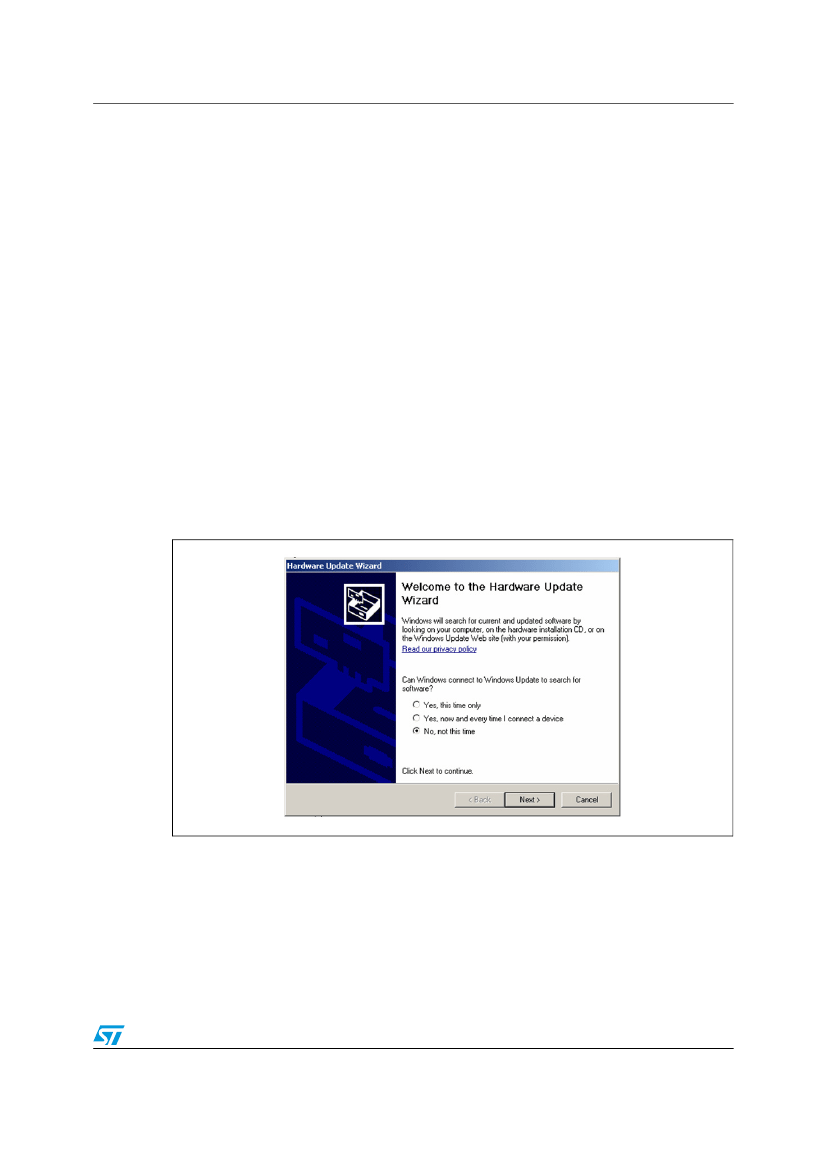

Hardware update wizard screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
