10-01293: DescriptionCable, 2000 mm, 5.5x2.5x9.5mm 50-00303 locking dc plug to same, 18 AWG, UL1185, 30- 00004 wire; File Size92KB，1 Pages; ManufacturerTensility International Corporation; Websitehttp://tensility.com/

Download Datasheet View All

10-01293 Overview

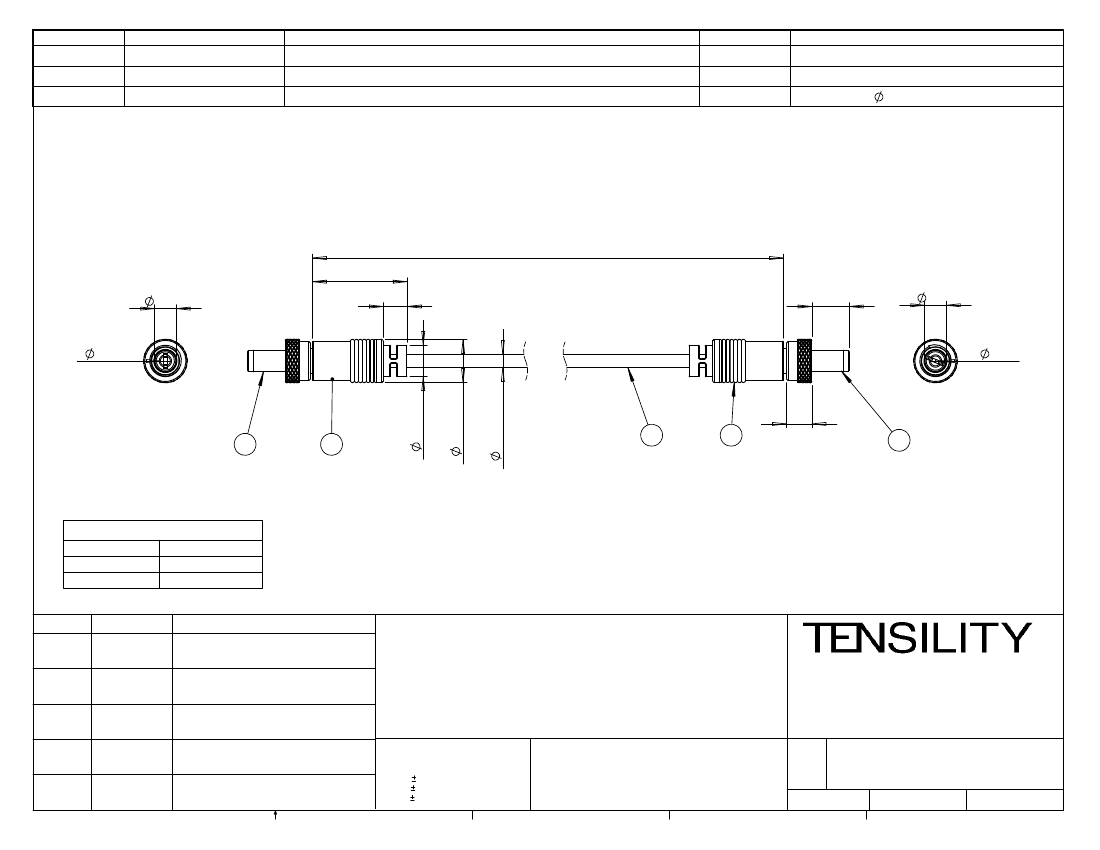

Cable, 2000 mm, 5.5x2.5x9.5mm 50-00303 locking dc plug to same, 18 AWG, UL1185, 30- 00004 wire

Preview

Download Datasheet

View All

ITEM NO.

PART NUMBER

50-00303

24-00016

30-00004

DESCRIPTION

dc plug, 5.5x2.5xBL9.5xL28 locking, spring contact , threaded 5/16-32

Holder, plug, 6.3 mm, 13 mm, locking

1C, 18 AWG, UL1185, 300V, 80C, 3.4 mm, shielded, VW-1, PVC, 60P

QTY.

NOTES

30P, PVC, black

3.4 mm, 2000 mm

2000 ±50

5.50

9.50 ±0.50

5.50

2.50

6.50

3.40

Wiring diagram

Connector 1

Center

Sleeve

Revision

Date

10/19/2012

Connector 2

Center

Sleeve

Description

Initial release

RoHS compliant

Function test: no open, no reversed polarity, no short circuit, no INT

Tensility International Corporation reserves the right to substitute parts

which are functionally equivalent to the ones specified.

20802 Sockeye Place #130

Bend, OR 97701 USA

tel

541.323.3228

fax

541.323.4202

800

877.670.7118 www.tensility.com

Notes

DIMENSIONS ARE IN MILLIMETERS

TOLERANCES:

0.5 mm

X.X:

0.3 mm

X.XX: 0.05 mm

DESCRIPTION:

SIZE

Part number

Cable, 2000 mm, 5.5x2.5x9.5mm 50-00303

10-01293

locking dc plug to same, 18 AWG, UL1185, 30-

00004 wire

SCALE: 1:1

WEIGHT:

SHEET 1 OF 1
