5088-B-1100-A-1

Description
Mains Power Connector, 2.5/4A, 250VAC, Female, Solder Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size287KB,2 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Environmental Compliance
Download Datasheet Parametric View All

5088-B-1100-A-1 Overview

Mains Power Connector, 2.5/4A, 250VAC, Female, Solder Terminal, ROHS COMPLIANT

5088-B-1100-A-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSCHURTER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDRADS: IEC/EN 60320-2-2/D, UL 498; UL 94V-0, CSA C22.2, VDE
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
IEC complianceYES
MIL complianceNO
Power Connector Ratings2.5/4A, 250VAC
Plug informationMULTIPLE MATING PARTS AVAILABLE
Installation typePANEL
OptionsGENERAL PURPOSE
Shell materialPA6
Termination typeSOLDER
Total number of contacts2

5088-B-1100-A-1 Preview

Connectors (Inlets/Outlets)
www.schurter.com/pg07
IEC Appliance Outlet D, Screw-on Mounting, Front Side, Solder Terminal
5088
D
70° C
Description
- Panel Mount:
Screw-on mounting, Frontside
- Connector, Pin temperature 70 °C Protection class II
- Solder terminal
Approvals
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
Mating Connectors, e-Store, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories
References
Weblinks
- VDE Certificate Number: 40011945
- UL File Number: E45115
- CSA File Number: 27324
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
2.5 A / 250 VAC; 50 Hz
4 A / 250 VAC; 60 Hz
> 4 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 2 acc. to IEC 61140
PA6, black / grey / white, UL 94V-0
Appliance Outlet
D acc. to IEC/EN 60320-2-2
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
2.5 A, Protection Class 2
Allowable Operation Temp.
Degree of Protection
Protection Class
Material: Housing
Dimensions
50
3.
2
50 mm
28.6
40
ø
16.2
- 0
10.8
25
16
+0.2
R
40
24.5
18
3
24.7
- 0
+0.2
<4
Length of the terminal please find at the order code configuration table
Connectors

5088
www.schurter.com/pg07
Config. Code
Connectors (Inlets/Outlets)
5088
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
5088
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Type
Type
protection class 2
5088
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Color
Configuration
key
B
Color
jet black; RAL9005
silver grey; RAL7001
pure white; RAL9010
Configuration
key
1
Configuration
key
A
B
D
5088
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Terminals
Terminal L
solder terminal
5088
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Style
Style
flange with countersunk holes
Configuration
key
1
2
5088
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Terminals
Terminal N
solder terminal
Symbols similar as in table A
Configuration
key
1
flange with through holes
5088
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Features
Features
Configuration
key
5088
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Terminals
Terminal Ground
without terminal
Symbols similar as in table A
Configuration
key
0
Packaging unit
Mating Inlets/Plugs
50 Pcs
Category / Description

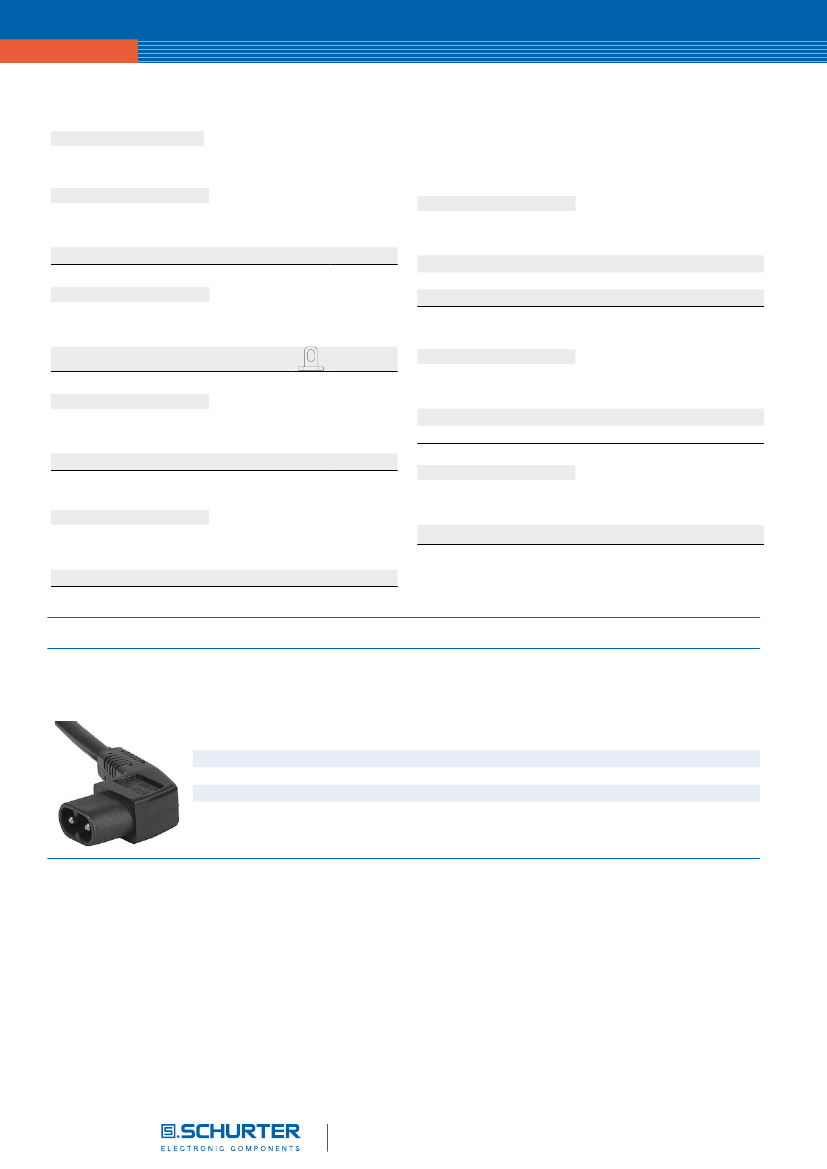

Interconnection CordOverview complete
Interconnection Cord with IEC Plug C, Angled 70°C
Interconnection Cord with IEC Plug C, Angled
Interconnection Cord with IEC Plug C, Straight
Interconnection Cord with IEC Plug C, Straight
Interconnection Cordfurther types to5088
2711
2712
2730
2731

The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
