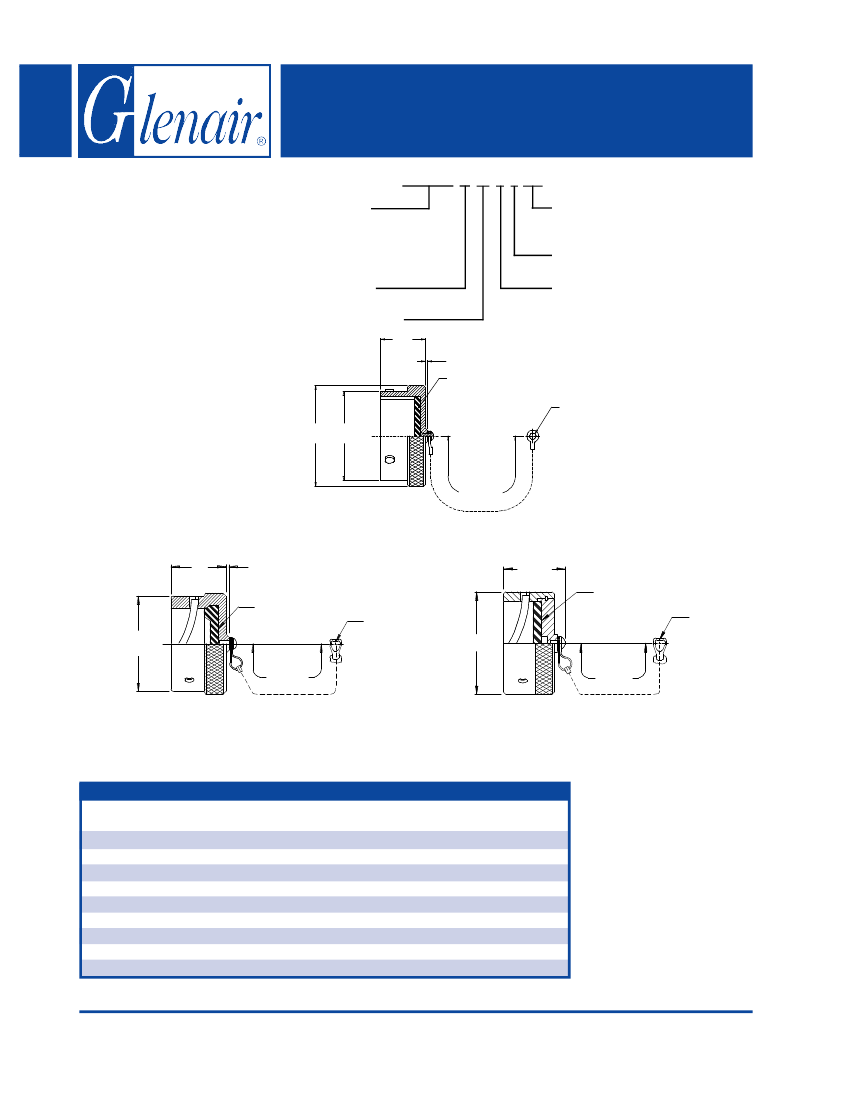

66 & 78
MIL-C-26482
G
J
.047 (1.2) Max
Gasket
H
Length
660-008 (Plug) - 660-009 (Receptacle)
661-001 (EMI Receptacle)
Protective Covers
MIL-C-26482
660-008 M 20 S 6 -04
Basic Part No.
660-008 Plug
660-009 Receptacle
661-001 Receptacle
Finish (Table II)
Shell Size (Table X)
F
.047 (1.2) Max
Gasket
Att. Type
(Table III)
Ring or Eyelet Dash No.
(Tables IV, V, VI, VII)
Attachment Length (in inches)
Attachment Type (Table III)
E
Length
660-008 Plug Cover
.800
(20.3)
Max
Gasket
Att. Type
(Table III)
Att. Type
(Table III)
Length
H
660-009 Receptacle Cover
661-001 EMI/RFI Receptacle Cover
Shell
Size
08
10
12
14
16
18
20
22
24
TABLE X: SHELL SIZE DIMENSIONS
G Dia
F
E
H Dia
Max
Max
Dia
Max
.719 (18.3)
.473 (12.0) .562 (14.3)
.734 (18.6)
.844 (21.4)
.590 (15.0) .562 (14.3)
.859 (21.8)
.750 (19.1) .562 (14.3) 1.000 (25.4) 1.000 (25.4)
.875 (22.2) .562 (14.3) 1.125 (28.6) 1.125 (28.6)
1.000 (25.4) .562 (14.3) 1.250 (31.8) 1.250 (31.8)
1.125 (28.6) .562 (14.3) 1.375 (34.9) 1.375 (34.9)
1.250 (31.8) .625 (15.9) 1.500 (38.1) 1.500 (38.1)
1.375 (34.9) .625 (15.9) 1.625 (41.3) 1.625 (41.3)
1.500 (38.1) .658 (16.7) 1.750 (44.5) 1.750 (44.5)
CAGE Code 06324
J
Max
.562 (14.3)
.562 (14.3)
.562 (14.3)
.562 (14.3)
.562 (14.3)
.562 (14.3)
.562 (14.3)
.562 (14.3)
.602 (15.3)
See inside back
cover fold-out or
page 14 for Table II.
Metric dimensions
(mm) are indicated in
parentheses.
© 2005 Glenair, Inc.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 66 and 78 - Page 6
660-008 (Plug) - 660-009 (Receptacle)
661-001 (EMI Receptacle)
Protective Covers
MIL-C-26482
ROPE
(Types F, G, H, R, T, U)
K Dia.
(Table IV)
TABLE III: ATTACHMENT
Sym
D
F
G
H
N
R
S
T
U
Attachment Type
Bead Chain, Cres., Passivate
Wire Rope, Nylon Jacket
Nylon Rope
Wire Rope, Teflon Jacket
No Attachment
Wire Rope, PVC Jacket
#8 Sash Chain, Cres.,
Passivate
Wire Rope, No Jacket
Wire Rope, Polyurethane
Jacket with Terminal
Length + .250 (6.4)
SASH CHAIN
(Type S)
K Dia.
(Table IV)
Length + 1 Link
TABLE IV: EYELET
Dash
No.
01
02
03
04
05
06
07
09
00
K DIA
±.010 (0.3)
.140 (3.6)
.182 (4.6)
.191 (4.9)
.197 (5.0)
.167 (4.2)
.125 (3.2)
.218 (5.5)
.156 (4.0)
No Eyelet
BEAD CHAIN
(Type D)
K Dia.
(Table IV)
Length + .250 (6.4)
SPLIT RING - Style C
L
SOLID RING - Style B
M
SOLID RING - Style A
N
TABLE V: SPLIT RING STYLE C
Dash
L Dia.
No. ±.015 (0.4)
50 .425 (10.8)
52 .485 (12.3)
54 .640 (16.3)
56 .750 (19.1)
58 .890 (22.6)
60 1.015 (25.8)
62 1.095 (27.8)
64 1.130 (28.7)
66 1.250 (31.8)
68 1.350 (34.3)
70 1.390 (35.3)
72 1.485 (37.7)
Dash
L Dia.
No. ±.015 (0.4)
74 1.625 (41.3)
76 1.750 (44.5)
78 1.875 (47.6)
80 1.980 (50.3)
82 2.060 (52.3)
84 2.235 (56.8)
86 2.310 (58.7)
88 2.475 (62.9)
90 2.655 (67.4)
92 2.810 (71.4)
94 3.045 (77.3)
TABLE VI: SOLID RING STYLE B
Dash
M Dia.
No. ±.015 (0.4)
08 .468 (11.9)
10 .593 (15.1)
12 .718 (18.2)
13 .765 (19.4)
14 .844 (21.4)
15 .890 (22.6)
16 .968 (24.6)
17 1.015 (25.8)
18 1.093 (27.8)
19 1.140 (29.0)
20 1.203 (30.6)
21 1.265 (32.1)
22 1.343 (34.1)
23 1.453 (36.9)
Dash
M Dia.
No. ±.015 (0.4)
24 1.484 (37.7)
25 1.577 (40.1)
27 1.640 (41.7)
28 1.687 (42.8)
29 1.765 (44.8)
30 1.890 (48.0)
31 1.953 (49.6)
32 1.968 (50.0)
33 2.077 (52.8)
35 2.140 (54.4)
36 2.187 (55.5)
40 2.406 (61.1)
44 2.656 (67.5)
48 3.031 (77.0)
118 .310 (7.9)
TABLE VII: SOLID RING STYLE A
Dash
N Dia.
No. ±.015 (0.4)
095 .312 (7.9)
100 .391 (9.9)
101 .516 (13.1)
102 .583 (14.8)
103 .641 (16.3)
104 .708 (18.0)
105 .766 (19.5)
205 .788 (20.0)
106 .896 (22.2)
206 .907 (23.0)
107 1.016 (25.8)
207 1.025 (26.0)
108 1.141 (29.0)
308 1.188 (30.2)
208 1.203 (30.6)
Dash
N Dia.
No. ±.015 (0.4)
109 1.266 (32.2)
209 1.312 (33.3)
110 1.391 (35.3)
210 1.438 (36.5)
111 1.521 (38.6)
211 1.536 (39.0)
112 1.641 (41.7)
113 1.766 (44.9)
213 1.812 (46.0)
114 1.891 (48.0)
214 1.938 (49.2)
115 2.078 (52.8)
116 2.406 (61.1)
117 2.510 (63.8)
