part number:
description:
10-00550
Cable, 1830 mm, 7P 90° mini-DIN female
50-00167, to stripped tinned, 26 AWG,
UL2464 30-00064, shield
date:
March 10, 2011
rev:
A
page:
1 of 2
Specifications:
connector description (1)
overmold (2)
wire description (3)
cable outer diameter
cable color
cable length
twist tie (4)
shrink tube (5)
shrink tube (6)
current rating
7P mini DIN female, molding style, brass, nickel plating, P/N 50-00167
inner: PE; outer: 60P, PVC, black
7C, 26 AWG, UL2464, 300V, 80C, 5.6 mm, shielded, VW-1, PVC, 60P, P/N 30-00064
Ø5.6 mm
black
1830 ± 50 mm
black
Ø6.0, 105°C, 10 ± 2 mm, black
Ø1.0, 105°C, 30 ± 5 mm, black
300 mA @ 12 Vdc
Notes:
Function test: no open, no reversed polarity, no short circuit, no INT
RoHS compliant

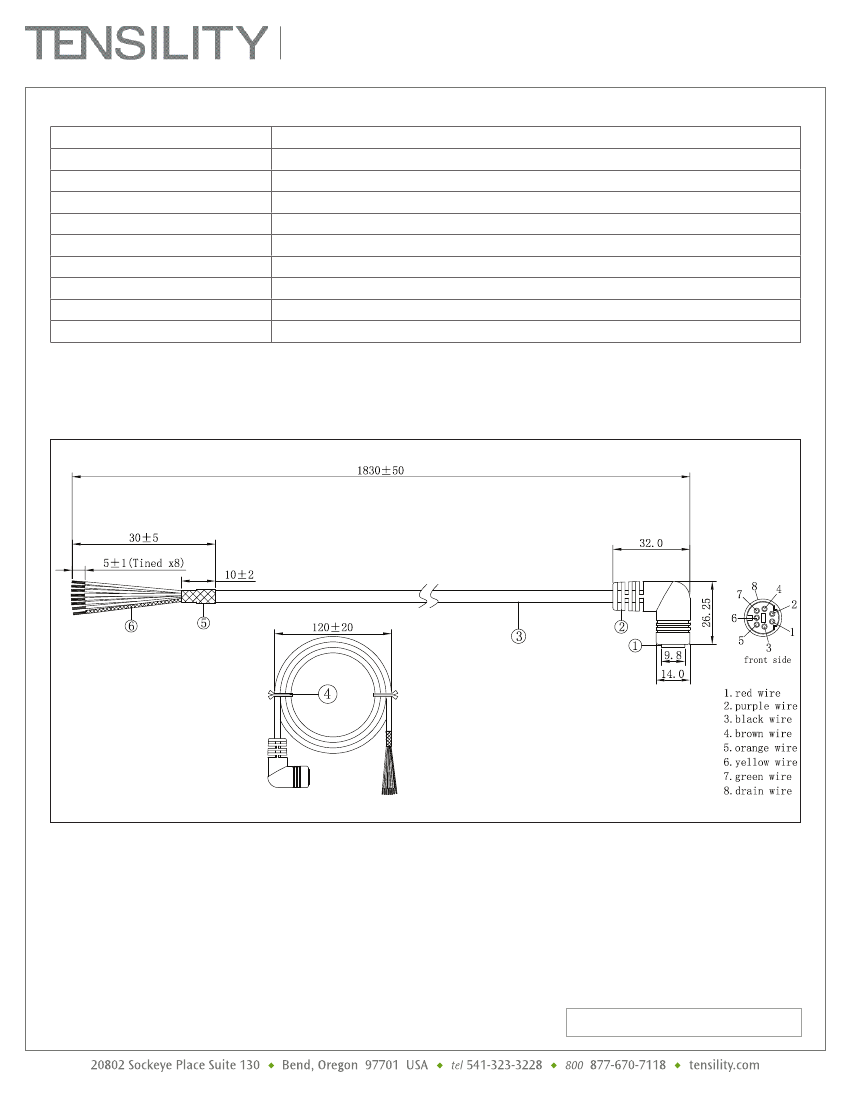

Mechanical drawing:
Units: mm
tolerance
X: ±0.5 mm
.X: ±0.3 mm
.XX: ±0.05 mm
applicable unless otherwise indicated in specification or on drawings
Tensility
International Corporation reserves the right to substitute
parts which are functionally equivalent to the ones specified.
Initial
Date
part number:
description:
10-00550
Cable, 1830 mm, 7P 90° mini-DIN female
50-00167, to stripped tinned, 26 AWG,
UL2464 30-00064, shield
date:
March 10, 2011
rev:
A
page:
2 of 2
Revision notes:
Rev
Date
Description
A
March 10, 2011
initial release
Specification Approval
Spec sign-off verifies that you have reviewed the entire specification, tested a sample of the product, and confirm that it meets your
requirements. This specification reflects the part as it will be ordered. Orders will not be processed until the specification pages have
been initialed and the approval page has been signed. This specification is confidential and is not to be transmitted without prior
approval from Tensility.
