FYLS-1206SRC
A
PRODUCT SPECIFICATION
Model No.：FYLS-1206SRC
：
Features:
■SMD
Type
■
Size (mm):3.2*1.6*1.1
■
Emitting Color:Red
■
SMT package
■
Suitable for all SMT assembly and soldering method
■
Pb-free Reflow soldering application
■
RoHS Compliant
Applications:
■
Light Strips
■
LCD Backlight
■
Decorative lighting
■
Indicators
■
Interior automotive
■
Illuminations
■
Mobile Phones
CUSTOMER APPROVED
SIGNATURES
APPROVED BY
CHECKED BY
PREPARED BY
NINGBO FORYARD OPTOELECTRONICS CO.,LTD
Add:NO.115
Qixin Road Ningbo Zhejiang China
Tel:
0086-574-87933652 87927870 87922206
Fax:
0086-574-87927917
E-mail:Sales@foryard.com
( General)
Zip:315051
Http://www.foryard.com
Http://www.foryard.com
Page：
1/8
Model. No.
Rev.
FYLS-1206SRC
A
Model No.：FYLS-1206SRC
：
■

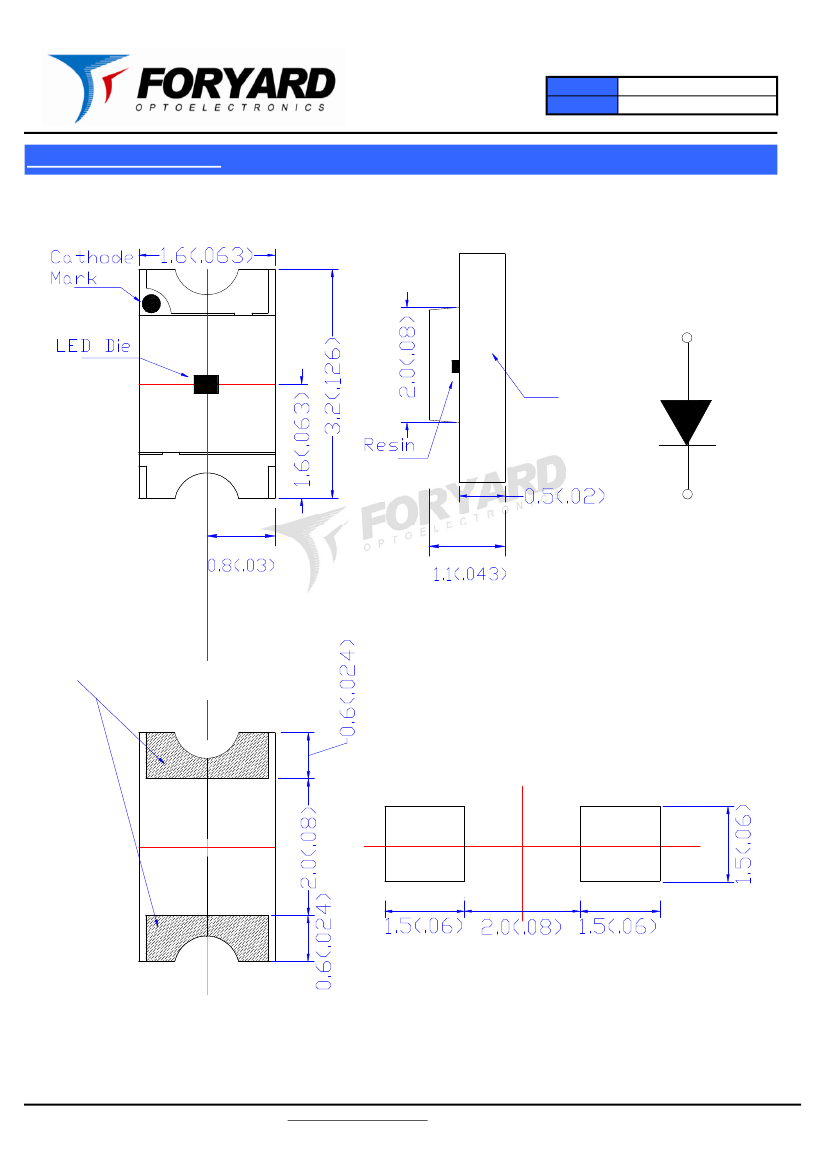

Mechanical Dimensions
PCB
S o l d e r i n g
T e r m i n a l
Notes:
1. Dimension in millimeter [inch], tolerance is ±0.25 [.010].
2.The specifications,characteristics and technical data described in the datasheet are subject to change without prior notice.
Http://www.foryard.com
Page：
2/8
Model. No.
Rev.
FYLS-1206SRC
A
Model No.：FYLS-1206SRC
：
■
Absolute Maximun Ratings(Ta=25ºC)
º
Items
Forward Current(DC)
Peak Forward Current*
Power Dissipation
Operation Temperature
Storage Temperature
Reverse Voltage
Soldering Temperature
Symbol
IF
IFP
PD
Topr
Tstg
VR
Tsol
Absolute maximum Rating
30
100
70
-40ºC½+85ºC
-40ºC½+100ºC
5
Reflow Soldering:250℃/5sec
Unit
mA
mA
Mw
℃
℃
V
*Pulse width≦1msec duty≦1/10
≦
≦
■
Typical Electrical &Optical Charcteristics(Ta=25ºC)
Items
Forward Voltage
Reverse Current
Peak Emission Wavelength
Dominant Wavelength
Luminous Intensity
50% Power Angle
Symbol
VF
IR
λp
λD
IV
2θ½
Condition
IF = 20mA
VR = 5V
IF = 20mA
IF = 20mA
IF = 20mA
IF = 20mA
Min.
1.70
Typ.
---
Max
2.30
10
Unit
V
uA
nm
nm
mcd
660
643
15
---
140
---
Deg
■
Material
Item
Material
Reflector
/
Wire
Gold
Encapsulate
Silicone
Chip
AlGaAs
Note:
1.Luminous Intensity is based on the Foryard standards.
2.Pay attention about static for InGaN
Http://www.foryard.com
Page：
3/8
Model. No.
Rev.
FYLS-1206SRC
A
Model No.：FYLS-1206SRC
：
■

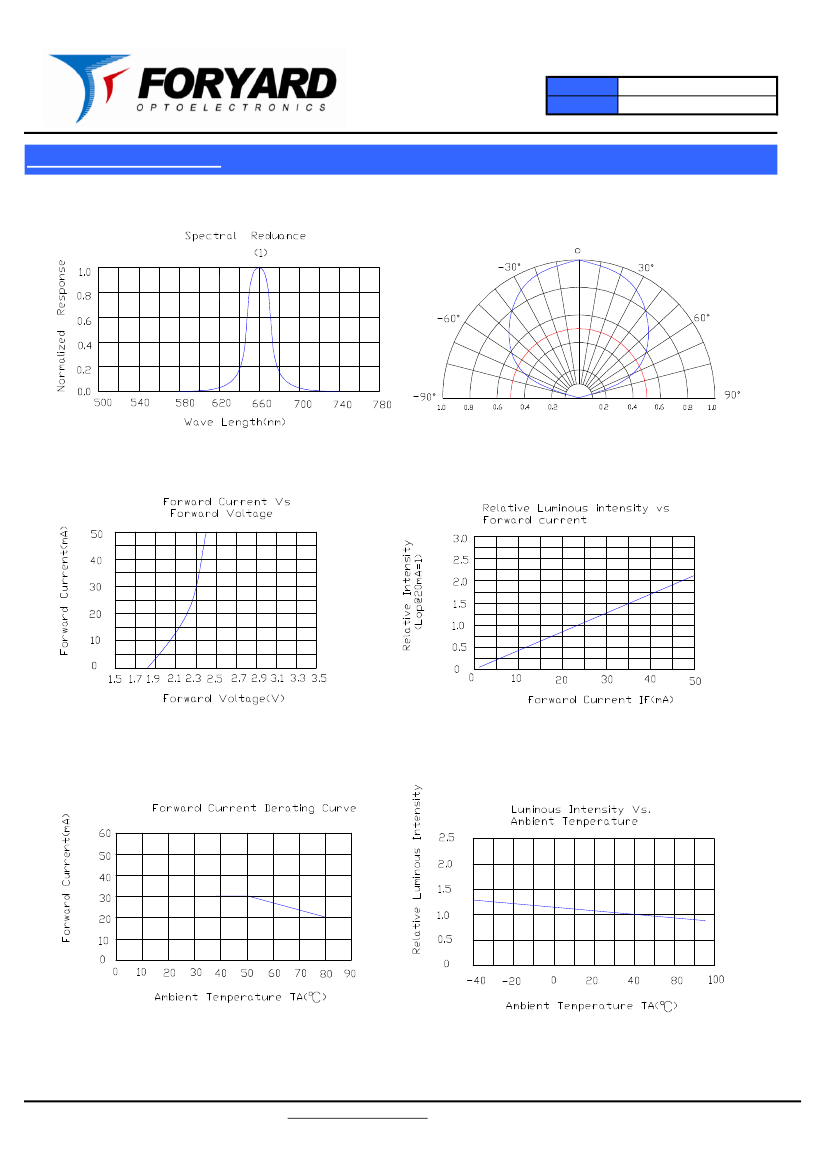

Typical Eletrical/Optical Characteristics Curves(Ta=25ºC Unless Otherwise Noted)
º
Relative Lumionous Intensity(LOP @max=1)
A l G a A s
Http://www.foryard.com
Page：
4/8
Model. No.
Rev.
FYLS-1206SRC
A
Model No.：FYLS-1206SRC
：
■

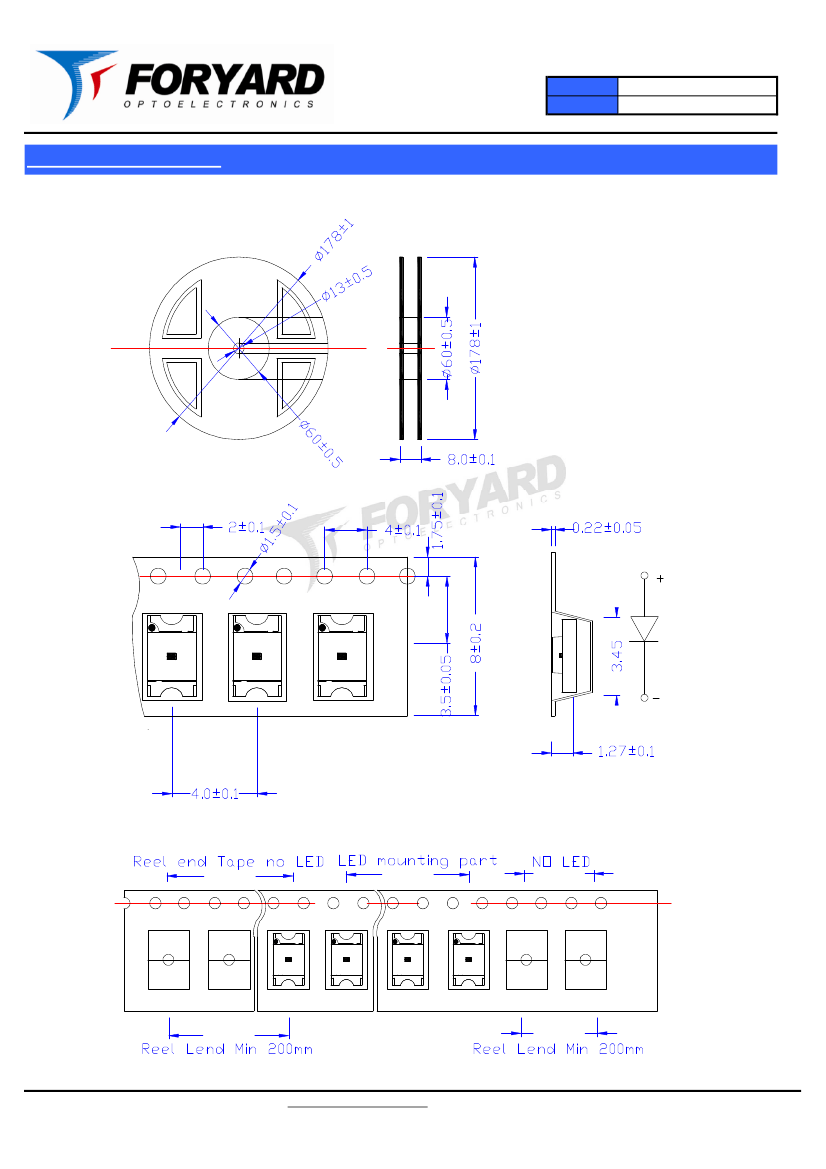

Packing Diagram
Note: The specifications are subject to change without notice. Please contact us for updated information.
Http://www.foryard.com
Page：
5/8
