General Description
KR Electronics part number 3113 is a 100 KHz differential
bandpass filter. The filter has a 3 dB bandwidth of 5 KHz mini-
mum. Other center frequencies and bandwidths are available.
Please consult the factory.
www.krfilters.com
Features
100 KHz Differential Bandpass
5 KHz min 3 dB Bandwidth
50
Source and Load
SMA Connectors
Typical Performance
Overall Response
(10 dB/div)
KR Electronics, Inc.
91 Avenel Street
Avenel, NJ 07001
© 2013, KR Electronics, Inc.
3113, Rev 0, July 19, 2013
Web
Email
Phone
Fax
www.krfilters.com
sales@krfilters.com
(732) 636-1900
(732) 636-1982
Page 1
KR Electronics, Inc.
KR Electronics, Inc.

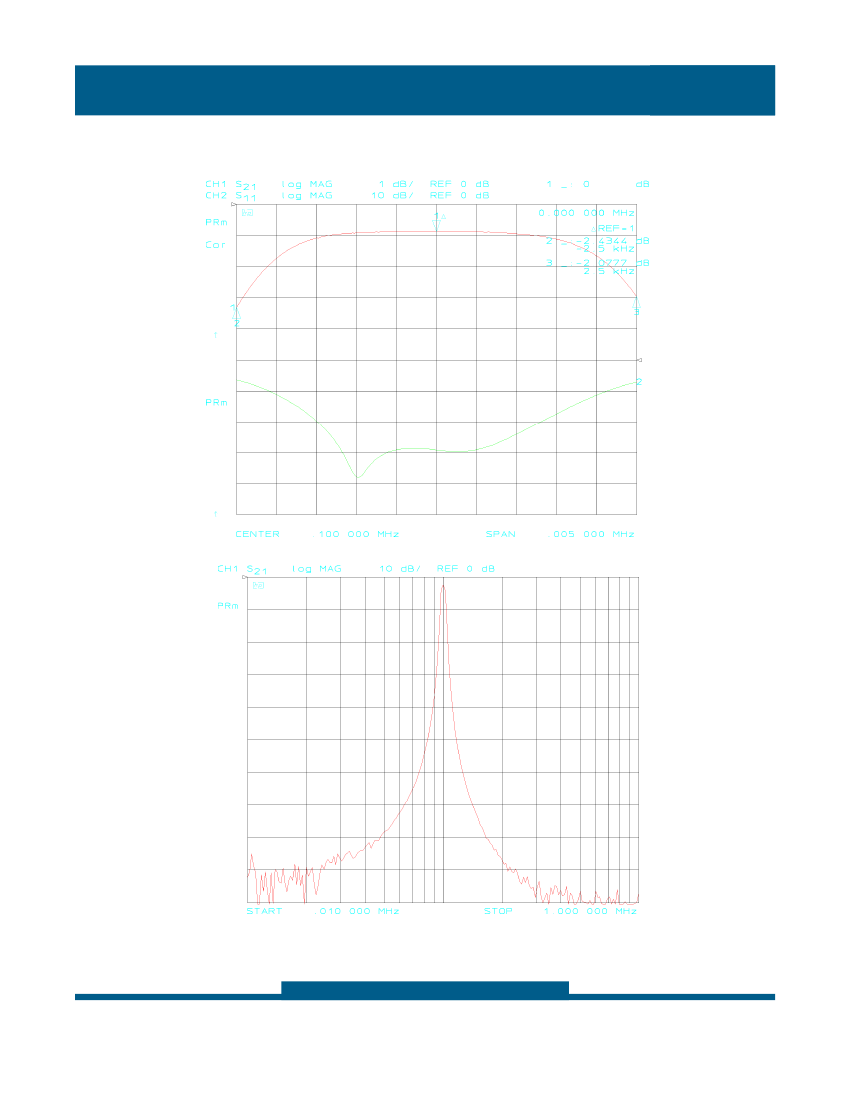

Typical Performance
Passband Amplitude
(1 dB/div)
www.krfilters.com
Overall Response
KR Electronics, Inc.
91 Avenel Street
Avenel, NJ 07001
© 2013, KR Electronics, Inc.
3113, Rev 0, July 19, 2013
Web
Email
Phone
Fax
www.krfilters.com
sales@krfilters.com
(732) 636-1900
(732) 636-1982
Page 2
KR Electronics, Inc.
KR Electronics 3113
Specifications
Parameter
Filter type
Center Frequency
Insertion Loss
3 dBc Bandwidth
Source and Load
Specification
Differential Bandpass
100 KHz
1 dBa typical
5 KHz minimum
50
www.krfilters.com
Notes
Physical Dimensions
Notes:
1. Dimensions in inches
2. Rectangular case
3. SMA(f) Connectors 4x
