KR Electronics, Inc.

General Description

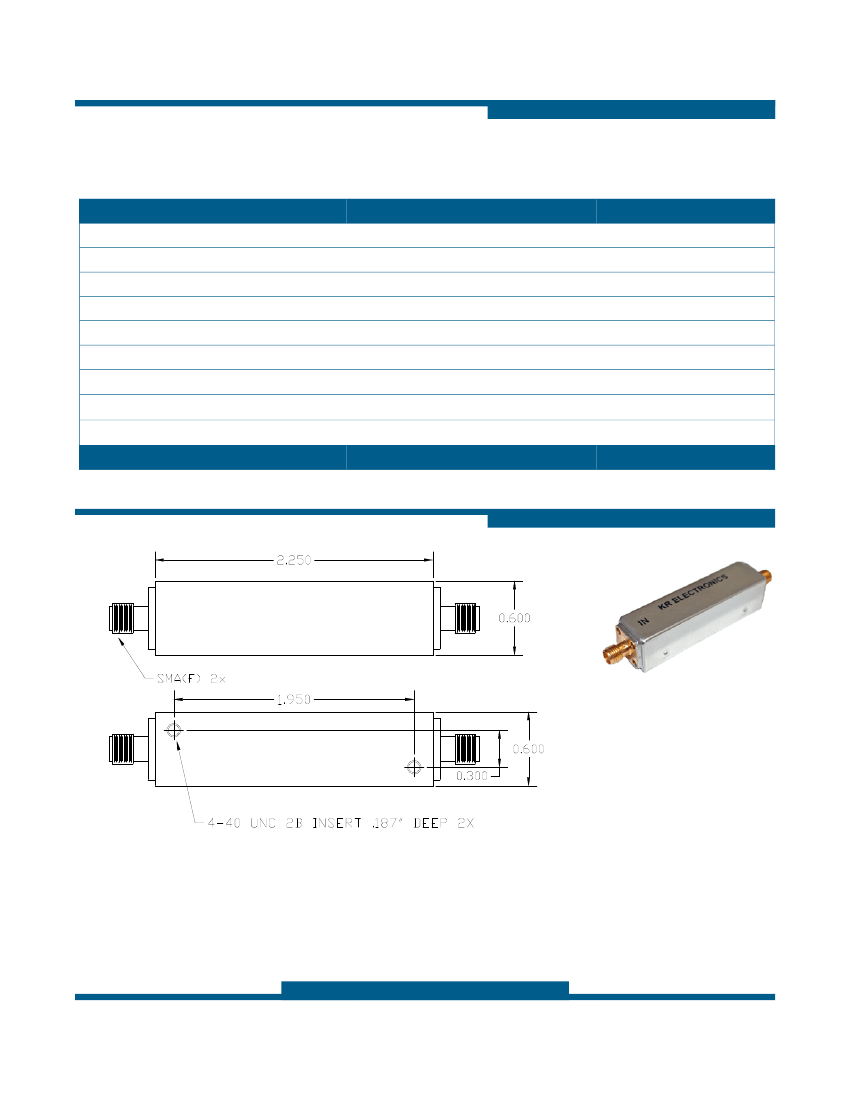

KR Electronics part number 3078-950 is a 950 MHz bandpass

filter. The filter has a 500 MHz min 1 dB bandwidth. Other cen-

ter frequencies and bandwidths are available. Please consult the

factory.

www.krfilters.com

Features



950 MHz Bandpass Filter



500 MHz minimum 1 dB Bandwidth



865 MHz typical 40 dB Bandwidth



High Stopband Attenuation



50



Source and Load



SMA Connectors

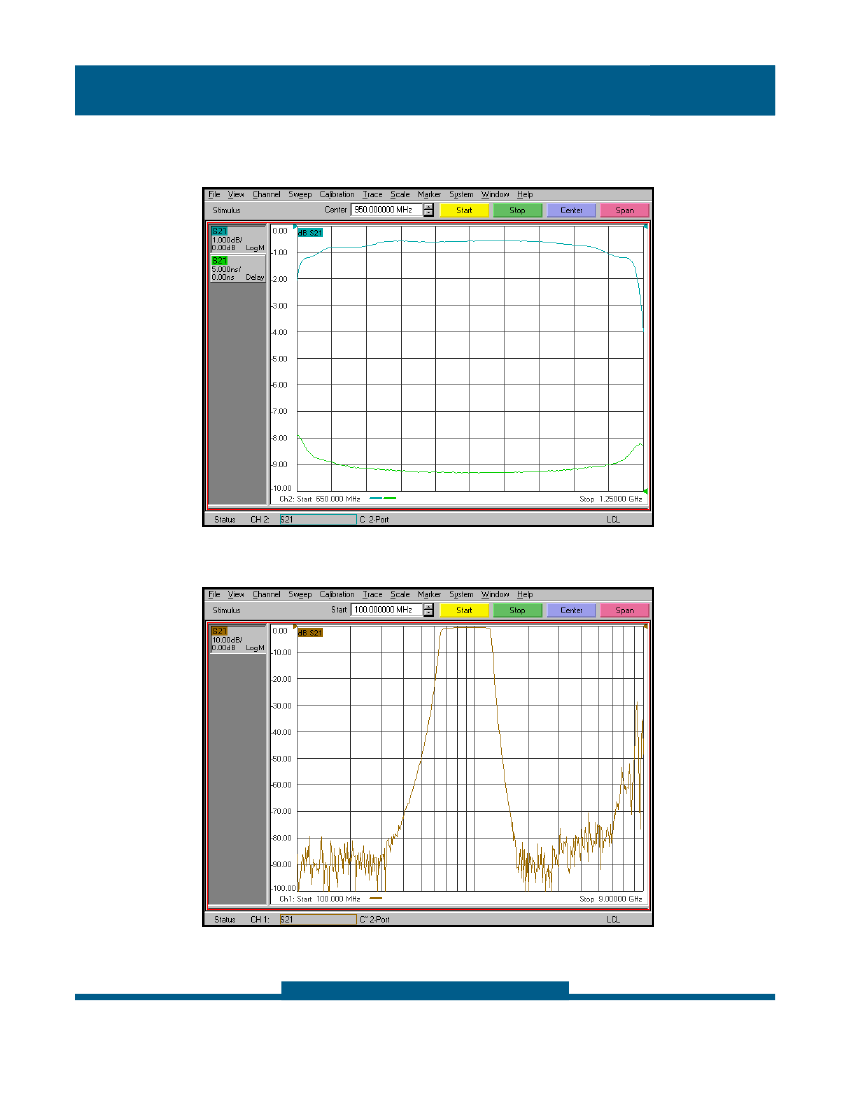

Typical Performance

Overall Response

(10 dB/div)

KR Electronics, Inc.

91 Avenel Street

Avenel, NJ 07001

3078-950, Rev 0, August 8, 2012

Web

Email

Phone

Fax

www.krfilters.com

sales@krfilters.com

(732) 636-1900

(732) 636-1982

Page 1
