B140101 Overview

DVI over Cat5-Cat6 Passive Extender Kit, Box-Style Video Transmitter and Receiver, 1920x1080 at 60Hz

Preview

Download Datasheet

View All

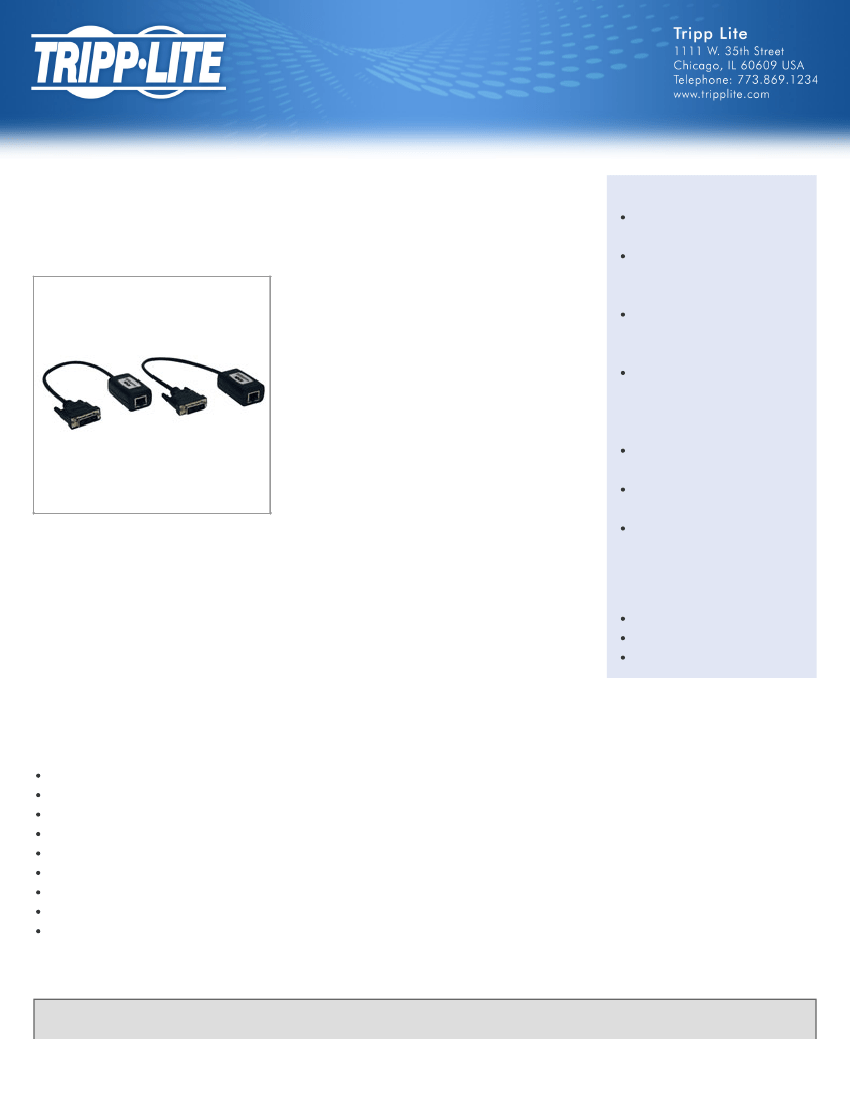

DVI over Cat5/Cat6 Passive Extender Kit, Box-Style

Video Transmitter & Receiver, 1920x1080 at 60Hz

MODEL NUMBER:

B140-101

Highlights

Extender kit comes with

transmitter and receiver units

Supports DVI-D Single-Link video

resolutions up to 1920 x 1080 @

60Hz

Extends a 1920 x 1080 @ 60Hz

signal up to 50 ft., or a 1024 x

768 @ 60Hz signal up to 100 ft.

Use 24AWG, Solid Wire Cat5e/6

cable, such as Tripp Lite's

N202-Series,

to achieve

maximum distance and resolution

Compatible with all operating

systems

Plug and play, no external power,

software or drivers required

Compliant with the Federal Trade

Description

The B140-101 is a DVI over Cat5 Passive Extender kit, which comes with both transmitter and receiver units. It

transmits a DVI-D Single-Link signal up to 100 ft. away using a single Cat5e/6 patch cable. To achieve

maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's

N202-Series).

The

B140-101 is compatible with all operating systems, and is plug and play, with no external power, software or

drivers required.Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Agreements Act (TAA) for GSA

Schedule purchases

Package Includes

B140-101 local transmitter unit

B140-101 remote receiver unit

Owner's manual

Installation is simple. Connect the built-in DVI connector on the transmitter unit to the source. Connect the built-in

DVI connector on the receiver unit to a display. Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A

1920 x 1080 @ 60Hz signal can be extended up to 50 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 100 ft.

Features

Extender kit comes with transmitter and receiver units

Transmit a DVI-D Single-Link signal up to 100 ft. away using a single Cat5e/6 patch cable

Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz

Extends a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.

Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's

N202-Series,

to achieve maximum distance and resolution

HDCP compatible

Compatible with all operating systems

Plug and play; no external power, software or drivers required

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

General Info

1/2
