LFXTAL027753REEL

Description
Parallel - Fundamental Quartz Crystal, 3.6864MHz Nom
CategoryPassive components    Crystal/resonator
File Size457KB,1 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL027753REEL Overview

Parallel - Fundamental Quartz Crystal, 3.6864MHz Nom

LFXTAL027753REEL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerIQD Frequency Products
package instructionHC49/4H, 2 PIN
Reach Compliance Codecompliant
Other featuresTR
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level500 µW
frequency stability0.005%
frequency tolerance30 ppm
load capacitance20 pF
Installation featuresTHROUGH HOLE MOUNT
Nominal operating frequency3.6864 MHz
Maximum operating temperature90 °C
Minimum operating temperature-40 °C
physical sizeL11.05XB4.7XH4.1 (mm)/L0.435XB0.185XH0.161 (inch)
Series resistance300 Ω
surface mountNO

LFXTAL027753REEL Preview

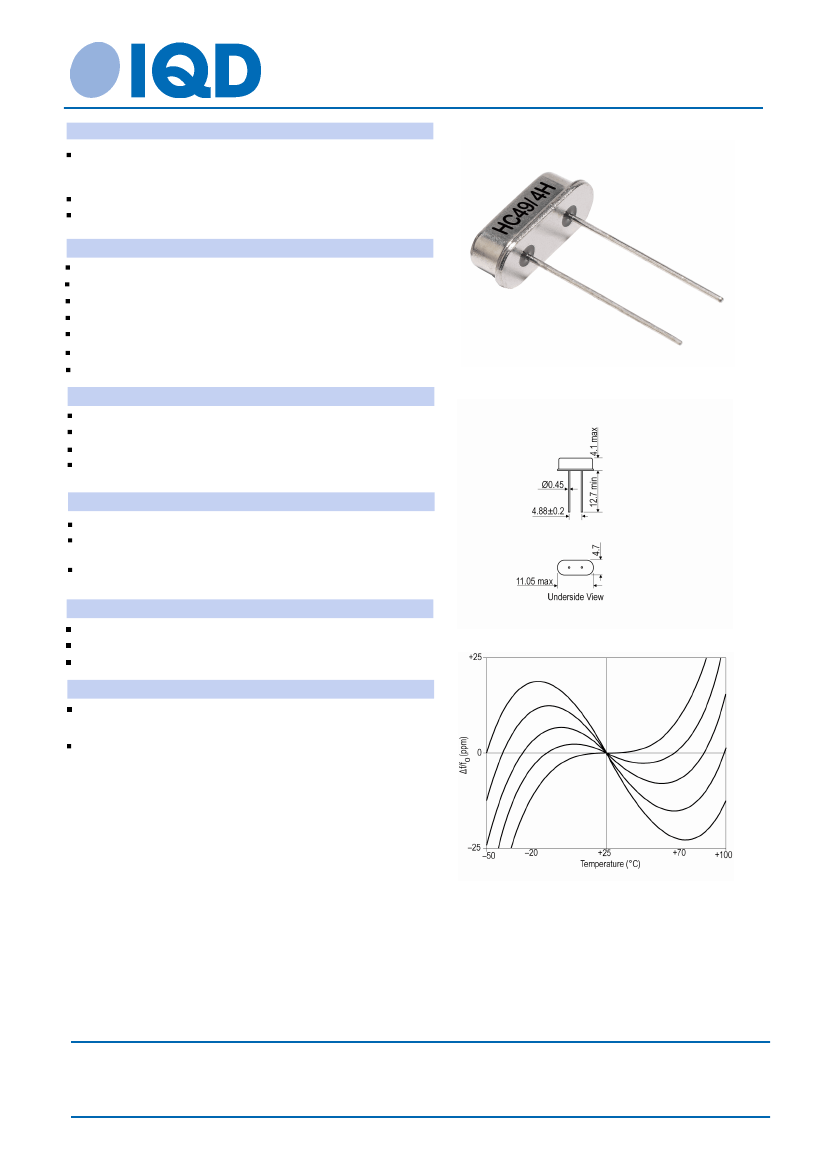

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL027753Reel
Description
Industry standard leaded package
Resistance welded, hermetically sealed in an inert atmosphere,
glass to metal seals on leads
Model
HC49/4H
Model Issue number
15
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
3.68640MHz
±30.00ppm
@ 25°C
±50.00ppm
-40.00 to 90.00°C
Fundamental
±5ppm typical per year at 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
20.00pF
7pF max
500µW max
300.00Ω max
Storage Temperature Range: -55 to 125°C
Shock: 981m/s², 6ms, 3 times in each of 3 mutually
perpendicular planes
Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz,
98.1m/s², 30mins in 3 mutually perpendicular planes
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-468-C
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
