HDMI In-Line Signal Booster-Extender, 1920x1200 at 24Hz-1080p (HDMI F-F)

Preview

Download Datasheet

View All

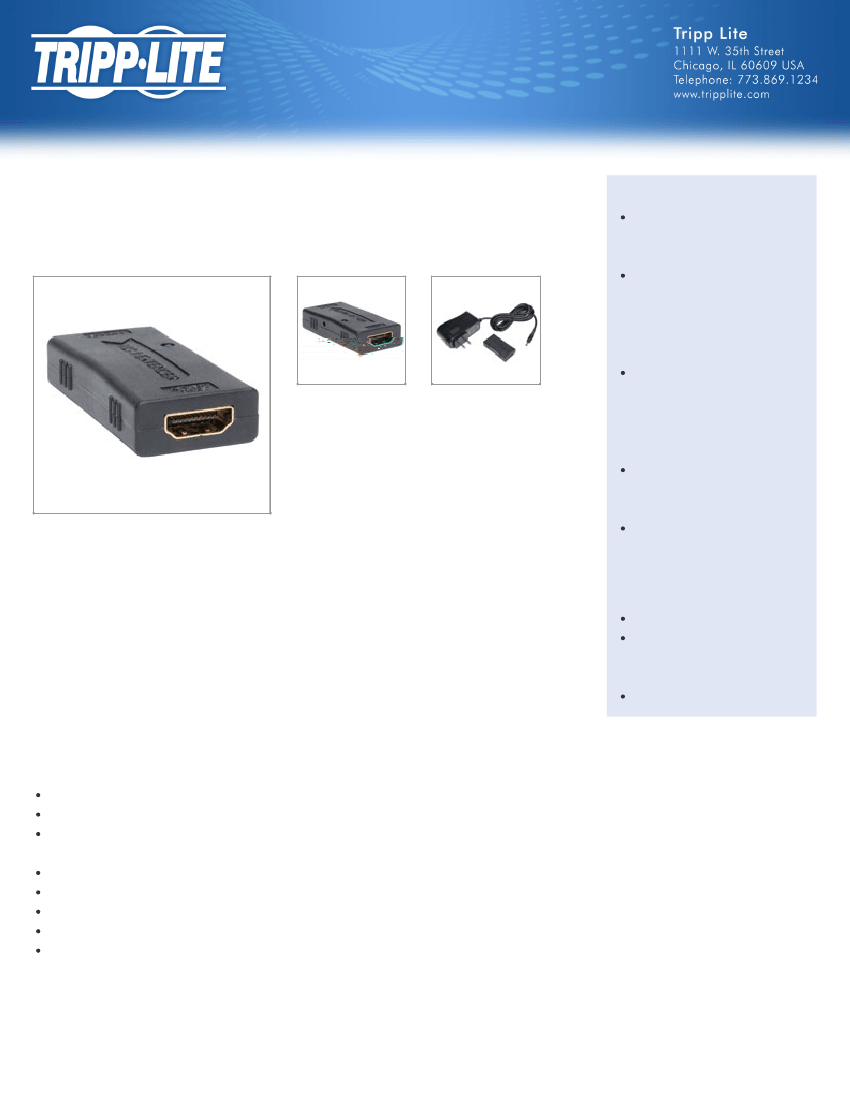

HDMI In-Line Signal Booster/Extender, 1920x1200 at

24Hz/1080p (HDMI F/F)

MODEL NUMBER:

B122-000

Highlights

Extend a 1080p @ 24Hz (or 1920

x 1200) HDMI signal up to 150 ft.

from the source

When extending a 1080p @

24Hz (or 1920 x 1200) signal

more than 75 ft., use cable made

with 24Awg wiring, such as the

P568-100-HD

24Awg HDMI cable is also

needed when extending a 3D

signal more than 50 ft.. A 3D

signal can be extended up to 125

ft. using 24Awg HDMI cable

Supports DTS-HD, Dolby True

HD and 7.1 Channel Surround

Sound Audio

Compliant with the Federal Trade

Description

Tripp Lite's B122-000 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can

be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200,

and HD resolutions up to 1080p @ 24Hz, as well as a maximum distance of 150 ft. from the source. Use

P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more

than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available

from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50

ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between

the source and the B122-000, and the shorter cable (16 ft. or less) between the adapter and the monitor.

Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA)

for GSA Schedule purchases.

Agreements Act (TAA) for GSA

Schedule purchases

Package Includes

B122-000 HDMI Signal Extender

External Power Supply (Input:

100-240V, 50/60Hz, 0.5A Output:

5V, 0.5A)

Owner's Manual

Features

Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150 ft. from the source

Use P568-Series HDMI cables in most applications

When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over

100 ft. are available from Tripp Lite as a custom order)

24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable

Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio

HDCP compliant

No software or drivers required

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

1/2
